Page 1

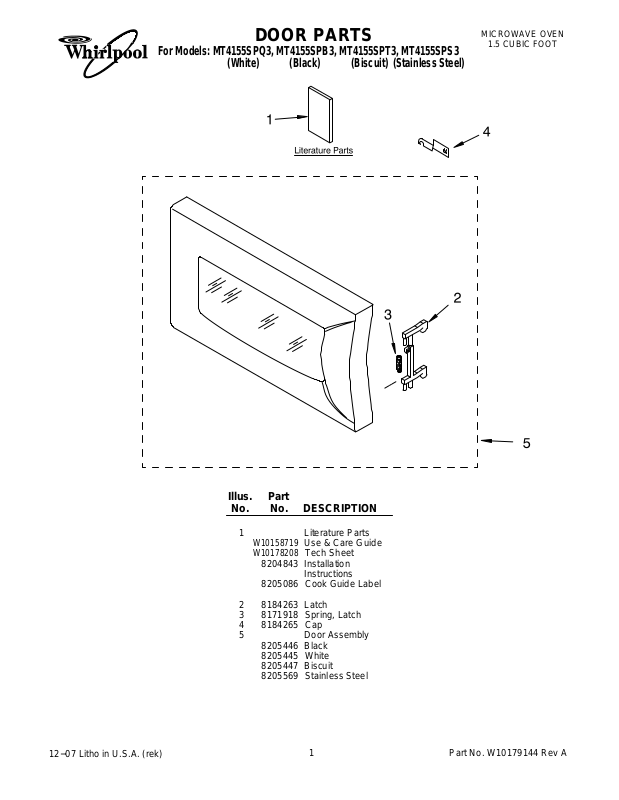

DOOR PARTS
MICROWAVE OVEN
1.5 CUBIC FOOT
For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3
(White) (Black) (Biscuit) (Stainless Steel)
12−07 Litho in U.S.A. (rek)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10158719
W10178208
8204843 Installation
8205086 Cook Guide Label
2 8184263 Latch
3 8171918 Spring, Latch
4 8184265 Cap
5 Door Assembly
8205446 Black
8205445 White
8205447 Biscuit
8205569 Stainless Steel
Use & Care Guide
Tech Sheet
Instructions
1
Part No. W10179144 Rev A
Page 2
CONTROL PANEL PARTS
For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Button
8184427 Black
8184336 White
8184441 Biscuit
8205571 Stainless Steel
2 Switch, Membrane
8205449 Black
8205448 White
8205450 Biscuit 3 8205451 Lever, Release 4 Control Panel
8184541 Black
8184533 White
8184543 Biscuit
8205570 Stainless Steel
(Includes #3)
W10178210
5
6 8184272 Spring
7 4358381 Screw
Microcomputer
2
W10179144
Page 3

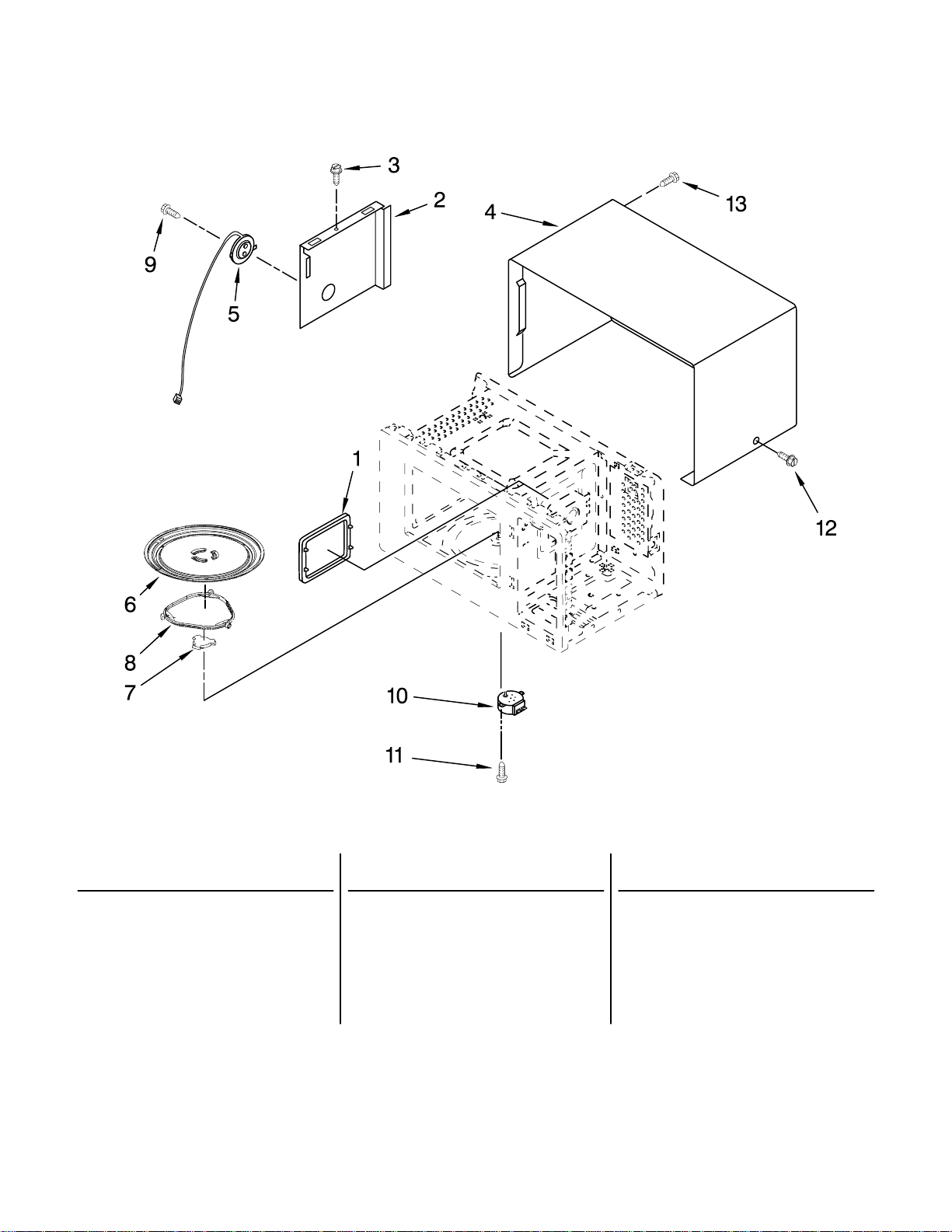

OVEN CAVITY PARTS
For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8184278 Canopy
2 8205457 Guide, Sensor
3 4358192 Screw
4 Outer Case
W10178211
W10178212
W10178213
W10179144
Black
White
Biscuit
Illus. Part
No. No. DESCRIPTION
5 8183514 Sensor, Humidity
W10143945
6
W10143947
7
W10143946
8
9 4358376 Screw
Tray, Glass
Shaft, Turntable
Ring, Turntable
3
Illus. Part
No. No. DESCRIPTION
W10169273
10
11 4358188 Screw
12 Screw
4358829 Black
4358362 White
13 8171862 Screw
Motor, Synchronous
Page 4

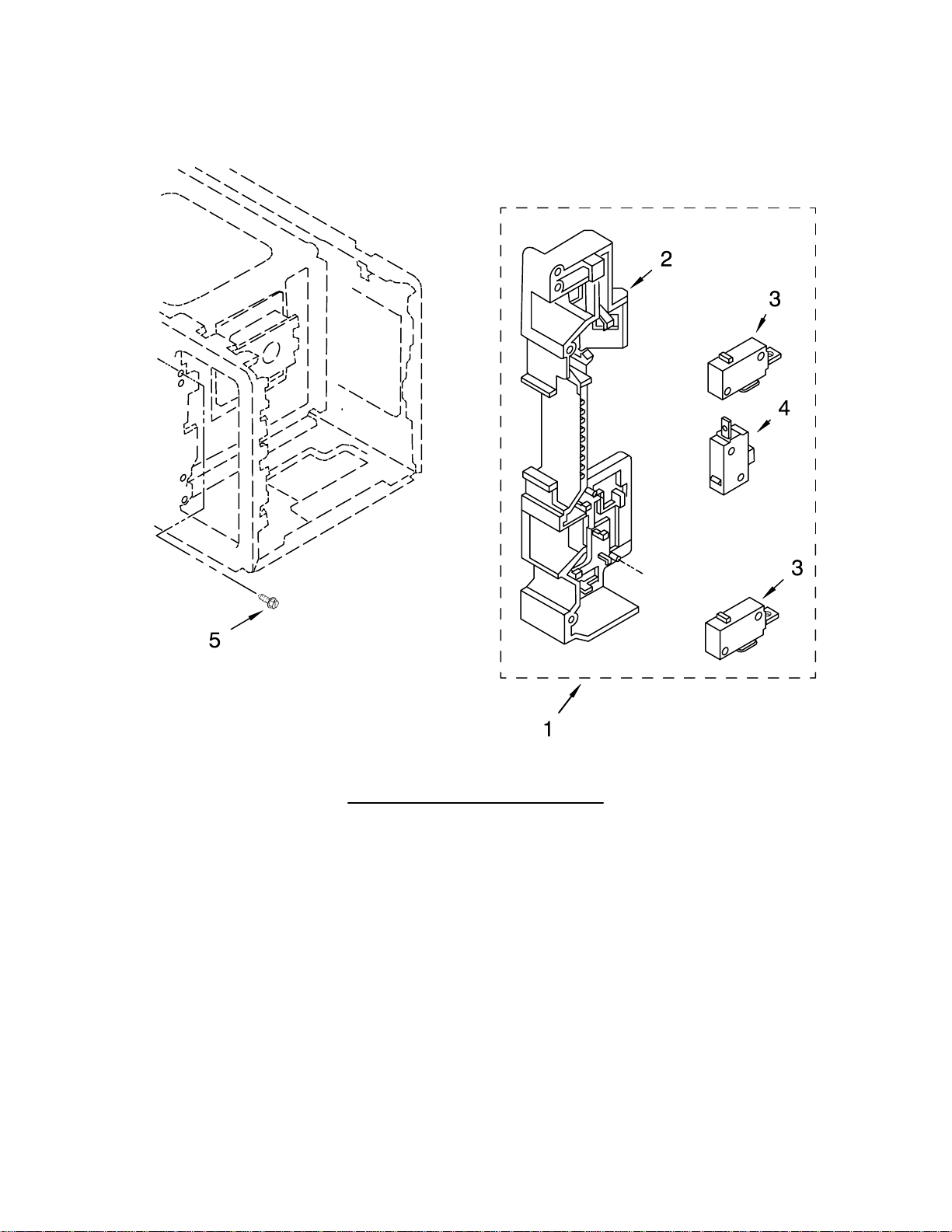

LATCH BOARD PARTS
For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Latch Board Assembly
(Non−Serviceable)
2 8185271 Latch Board
3 8183561 Switch Micro
Primary/Secondary
4 8183562 Switch, Micro
Monitor
5 4358271 Screw
4
W10179144
Page 5

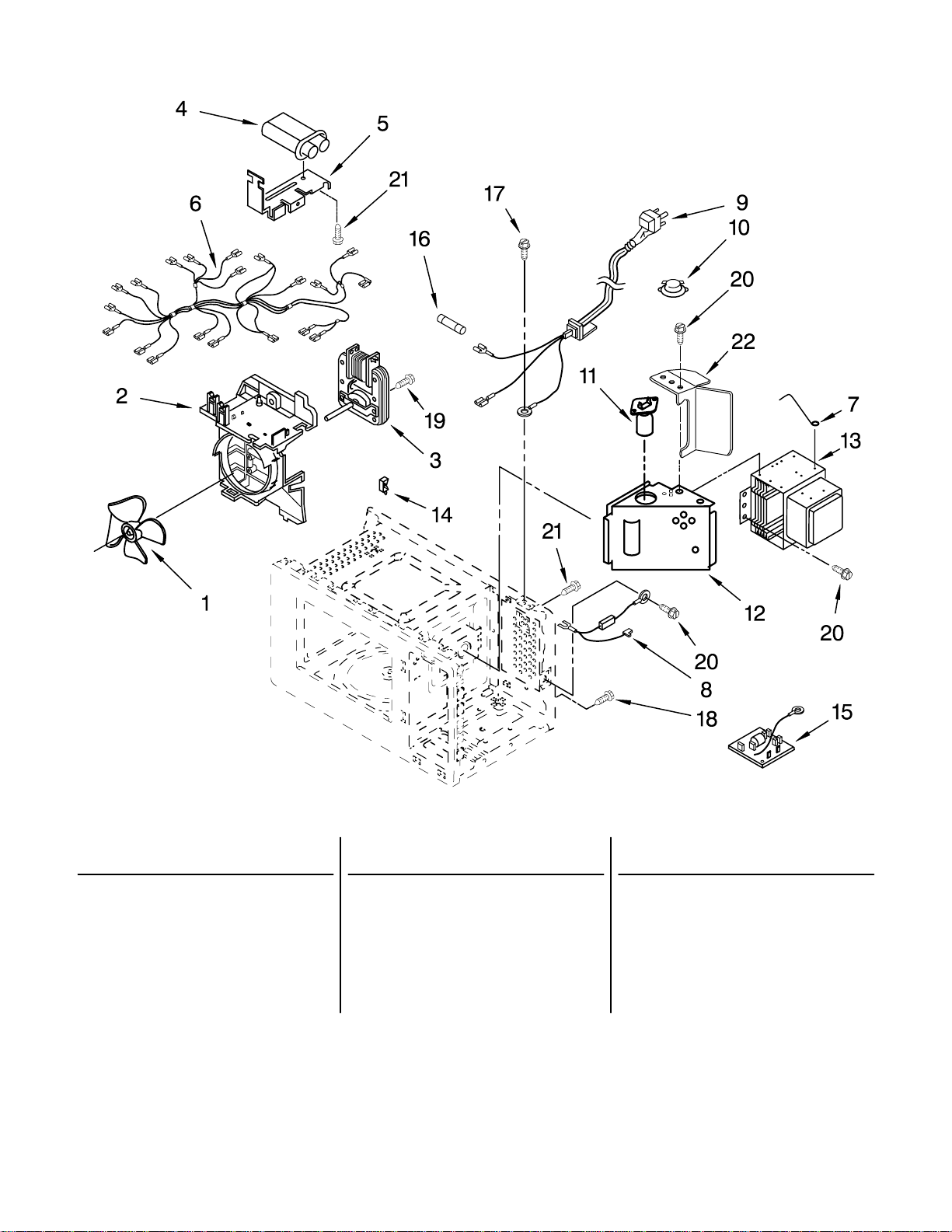

OVEN INTERIOR PARTS
For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8205458 Blade, Fan
W10169274
2
3 8205462 Motor, Fan
4 8184813 H.V. Capacitor
5 8184288 H.V.C Bracket
6 8206282 Leadwire Assembly
7 8184290 Bracket, Support
8 8184295 H.V. Diode Cable
W10179144
Guide, Suction
Illus. Part
No. No. DESCRIPTION
9 8206281 Power Cord
10 8184383 Thermostat
11 8171810 Lamp, Baseless
12 8204900 Duct, Air
13 8205460 Magnetron
14 4359794 Holder
15 8206270 Filter, Noise
5
Illus. Part
No. No. DESCRIPTION
16 8183507 Fuse
17 8204902 Screw, Ground
W10160553
18
19 4358190 Screw
20 4358489 Screw
21 4358381 Screw
22 8205509 Bracket, Support
Screw
Page 6

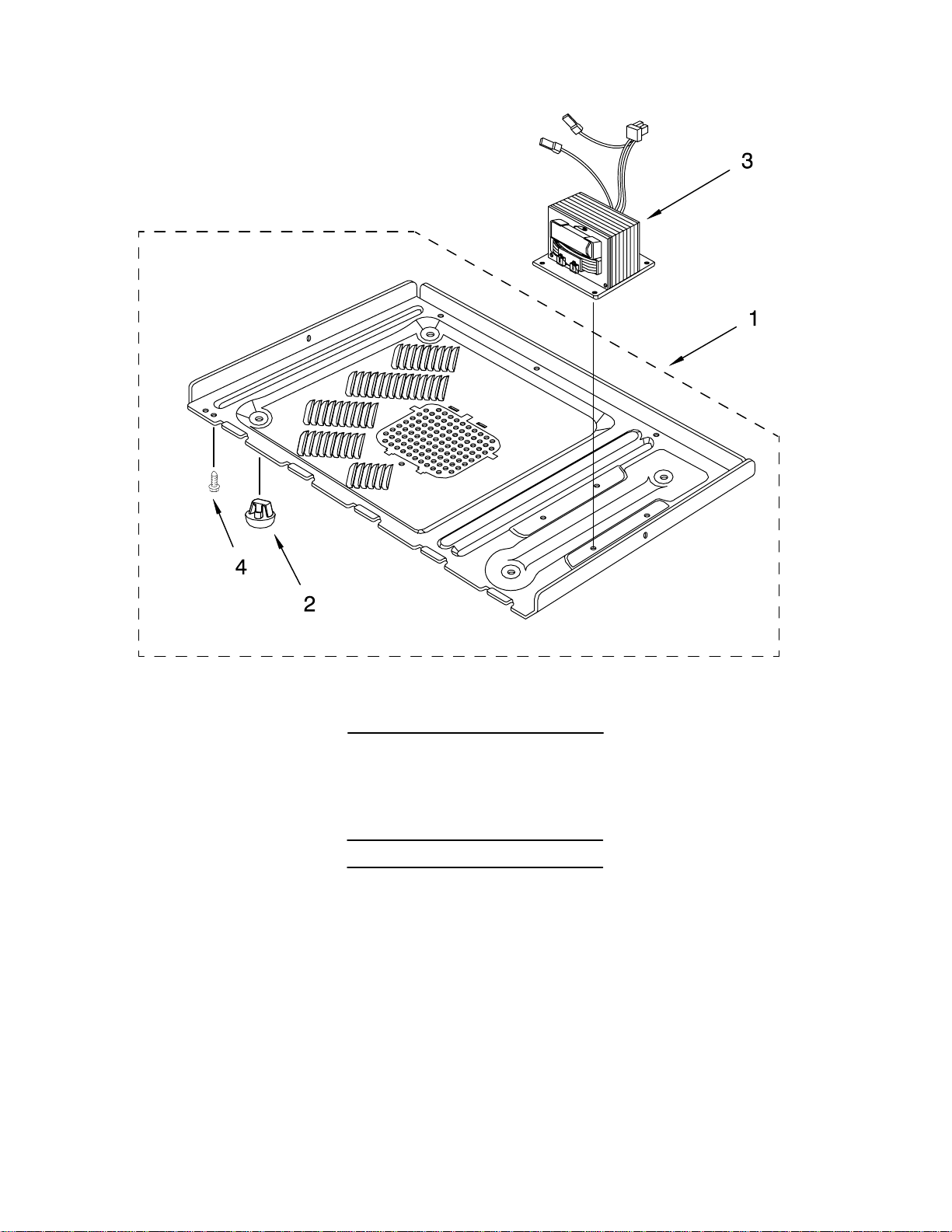

BASE PLATE PARTS
For Models: MT4155SPQ3, MT4155SPB3, MT4155SPT3, MT4155SPS3
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8205464 Base Plate
2 8184385 Leg
3
W10169275
4 4358489 Screw
Transformer
Following Parts Not Illustrated
Trim Kits
MK1154XPB
MK1154XPQ
MK1154XPT
MK1154XPS
MK1157XPB
MK1157XPQ
MK1157XPT
MK1157XPS
MK1150XPB
MK1150XPQ
MK1150XPT
MK1150XPS
24" Black
24" White
24" Biscuit
24" S. Steel
27" Black
27" White
27" Biscuit
27" S. Steel
30" Black
30" White
30" Biscuit
30" S. Steel
6
W10179144
