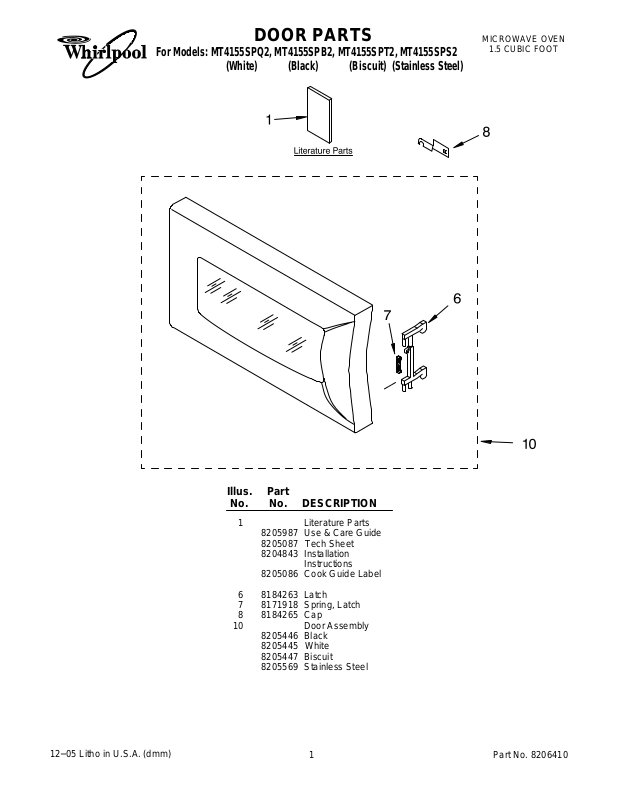

DOOR PARTS
For Models: MT4155SPQ2, MT4155SPB2, MT4155SPT2, MT4155SPS2
MICROWAVE OVEN
1.5 CUBIC FOOT
(White) (Black) (Biscuit) (Stainless Steel)
12−05 Litho in U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8205987 Use & Care Guide
8205087 Tech Sheet
8204843 Installation
Instructions
8205086 Cook Guide Label
6 8184263 Latch
7 8171918 Spring, Latch
8 8184265 Cap
10 Door Assembly
8205446 Black
8205445 White
8205447 Biscuit
8205569 Stainless Steel
1
Part No. 8206410
Page 2
CONTROL PANEL PARTS
For Models: MT4155SPQ2, MT4155SPB2, MT4155SPT2, MT4155SPS2
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
2 Button
8184427 Black
8184336 White
8184441 Biscuit
8205571 Stainless Steel
3 Switch, Membrane
8205449 Black
8205448 White
8205450 Biscuit 4 8205451 Lever, Release 5 Control Panel
8184541 Black
8184533 White
8184543 Biscuit
8205570 Stainless Steel
(Includes #3)
6 8205452 Microcomputer
7 8184272 Spring
10 4358381 Screw
2
8206410
Page 3

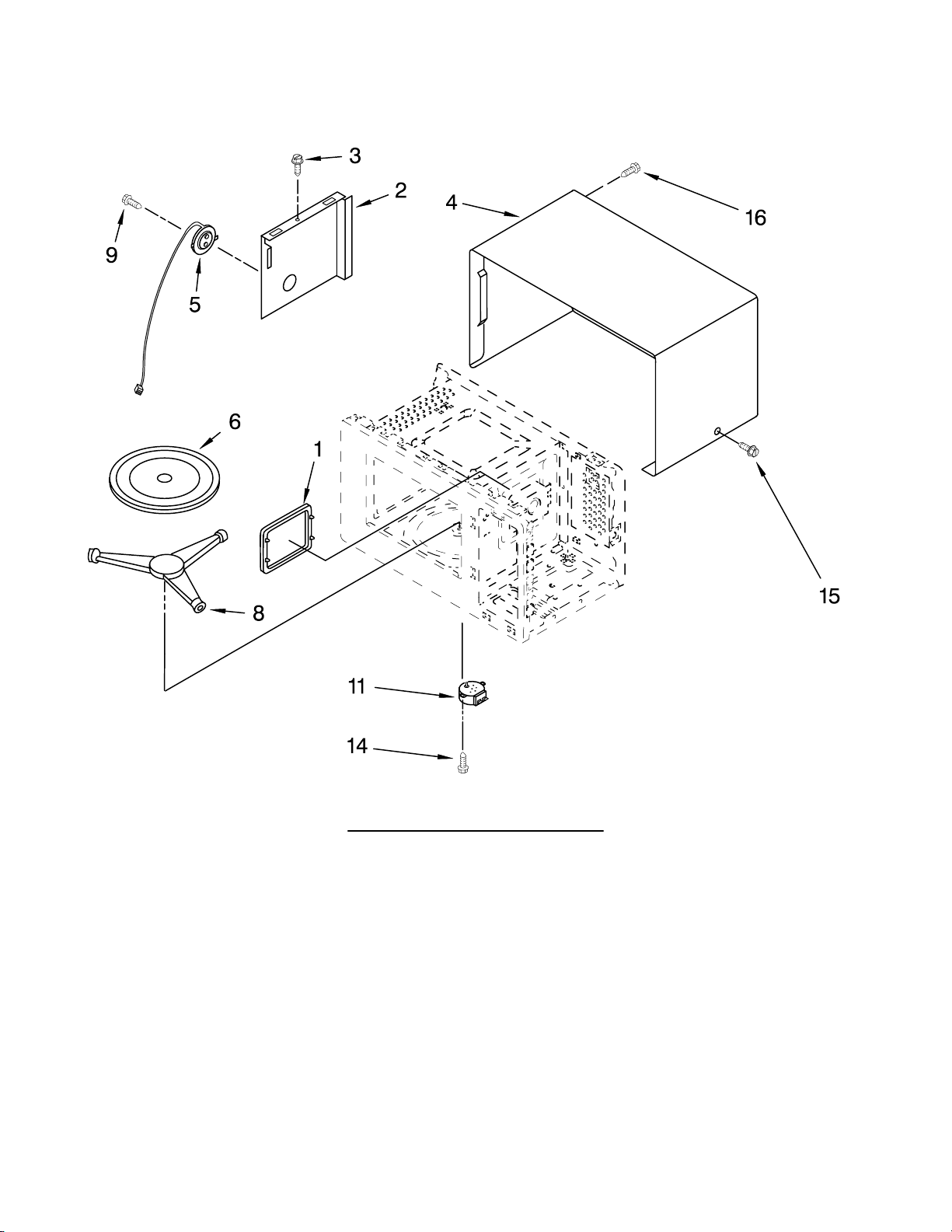

OVEN CAVITY PARTS
For Models: MT4155SPQ2, MT4155SPB2, MT4155SPT2, MT4155SPS2
(White) (Black) (Biscuit) (Stainless Steel)
8206410
Illus. Part
No. No. DESCRIPTION
1 8184278 Canopy
2 8205457 Guide, Sensor
3 4358192 Screw
4 Outer Case
8205454 Black
8205453 White
8205455 Biscuit
5 8183514 Sensor, Humidity
6 4359780 Tray, Glass
8 8205148 Turntable Support
9 4358376 Screw
11 8184283 Motor, Synchronous
14 4358188 Screw
15 Screw
4358829 Black
4358362 White
16 8171862 Screw
3
Page 4

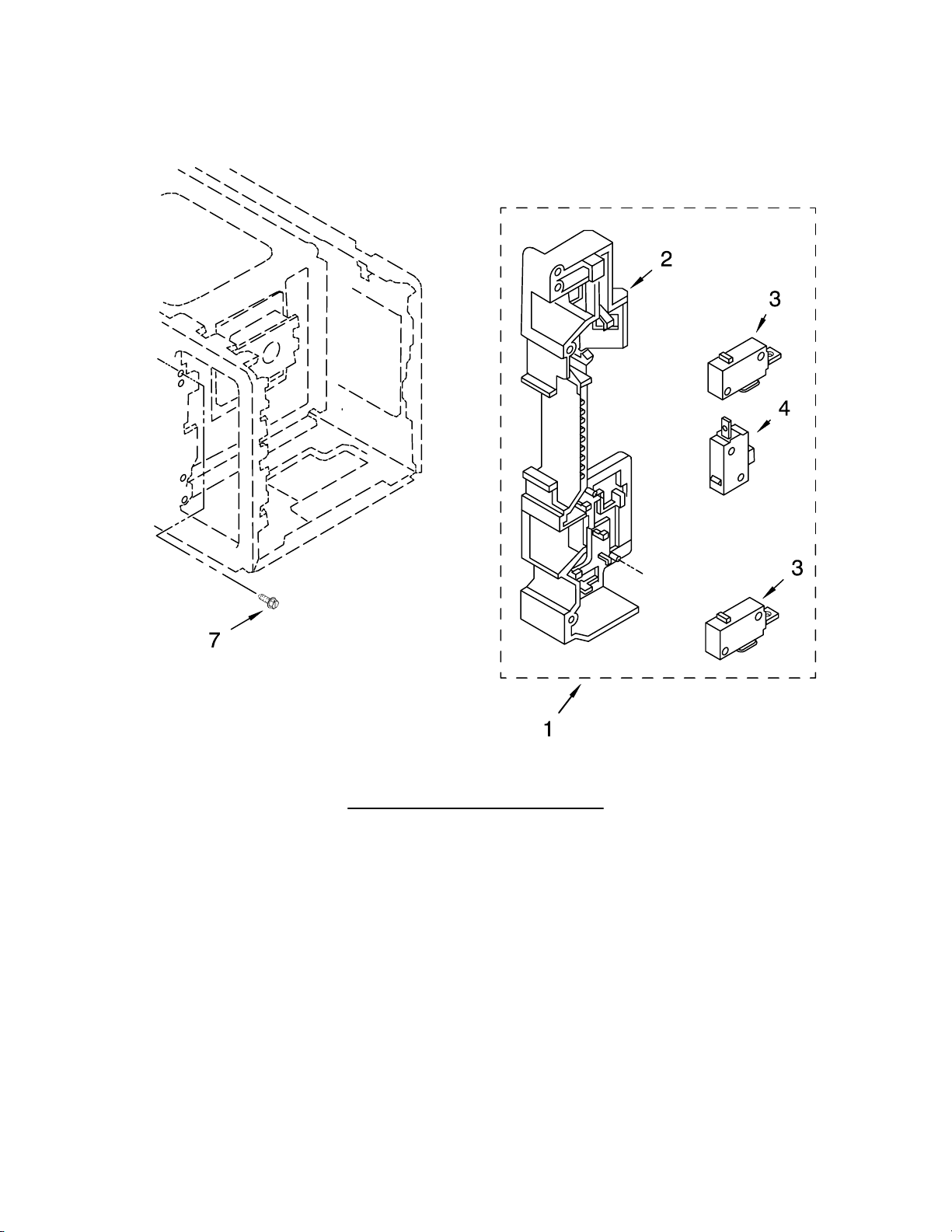

LATCH BOARD PARTS
For Models: MT4155SPQ2, MT4155SPB2, MT4155SPT2, MT4155SPS2
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 Latch Board Assembly
(Non−Serviceable)
2 8185271 Latch Board
3 8183561 Switch Micro
Primary/Secondary
4 8183562 Switch, Micro
Monitor
7 4358271 Screw
4
8206410
Page 5

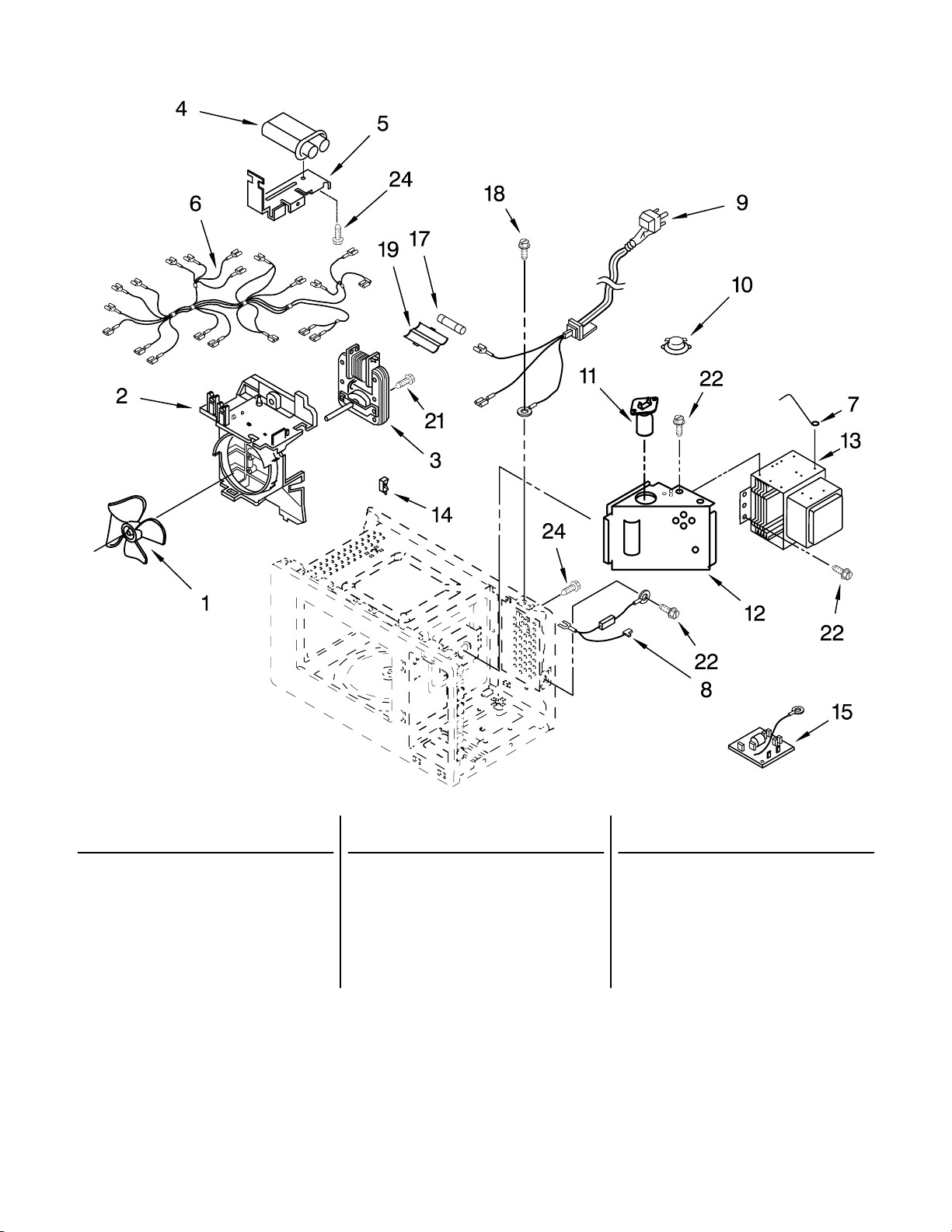

OVEN INTERIOR PARTS
For Models: MT4155SPQ2, MT4155SPB2, MT4155SPT2, MT4155SPS2
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8205458 Blade, Fan
2 8205456 Guide, Suction
3 8205462 Motor, Fan
4 8185272 H.V. Capacitor
5 8184288 H.V.C Bracket
6 8206282 Leadwire Assembly
7 8184290 Bracket, Support
8206410
Illus. Part
No. No. DESCRIPTION
8 8184295 H.V. Diode Cable
9 8206281 Power Cord
10 4359164 Thermostat
11 8171810 Lamp, Baseless
12 8204900 Duct, Air
13 8205460 Magnetron
14 4359794 Holder
15 8206270 Filter, Noise
5
Illus. Part
No. No. DESCRIPTION
17 8183507 Fuse
18 8204902 Screw, Ground
19 4358659 Cap
21 4358190 Screw
22 4358489 Screw
24 4358381 Screw
Page 6

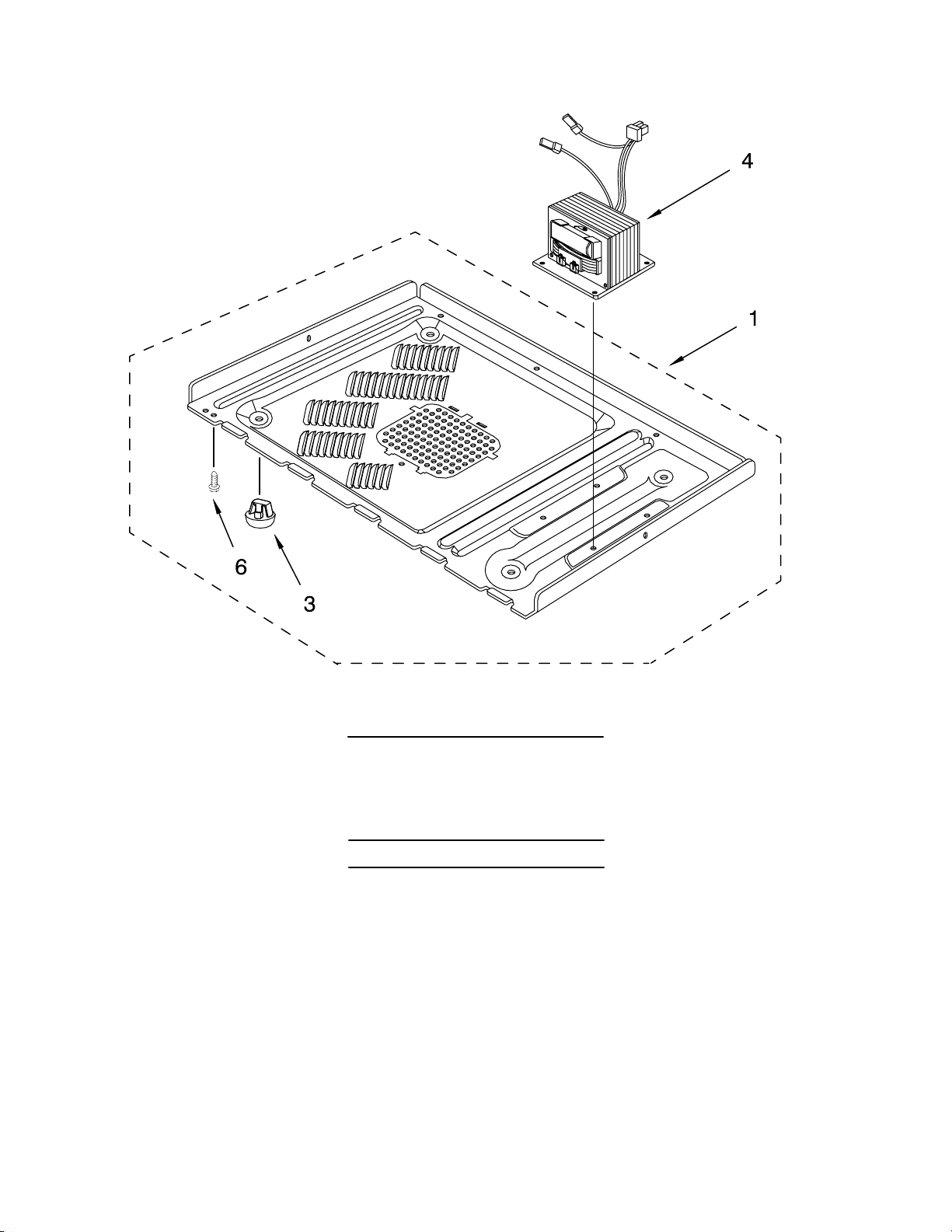

BASE PLATE PARTS
For Models: MT4155SPQ2, MT4155SPB2, MT4155SPT2, MT4155SPS2
(White) (Black) (Biscuit) (Stainless Steel)
Illus. Part
No. No. DESCRIPTION
1 8205464 Base Plate
3 8184385 Leg
4 8205459 Transformer
6 4358489 Screw
Following Parts Not Illustrated
Trim Kits
MK1154XPB
MK1154XPQ
MK1154XPT
MK1154XPS
MK1157XPB
MK1157XPQ
MK1157XPT
MK1157XPS
MK1150XPB
MK1150XPQ
MK1150XPT
MK1150XPS
24" Black
24" White
24" Biscuit
24" S. Steel
27" Black
27" White
27" Biscuit
27" S. Steel
30" Black
30" White
30" Biscuit
30" S. Steel
6
8206410
