Whirlpool JT 357 BL, JT 357 WH, JT 357 ALU PROGRAM CHART

JT 357

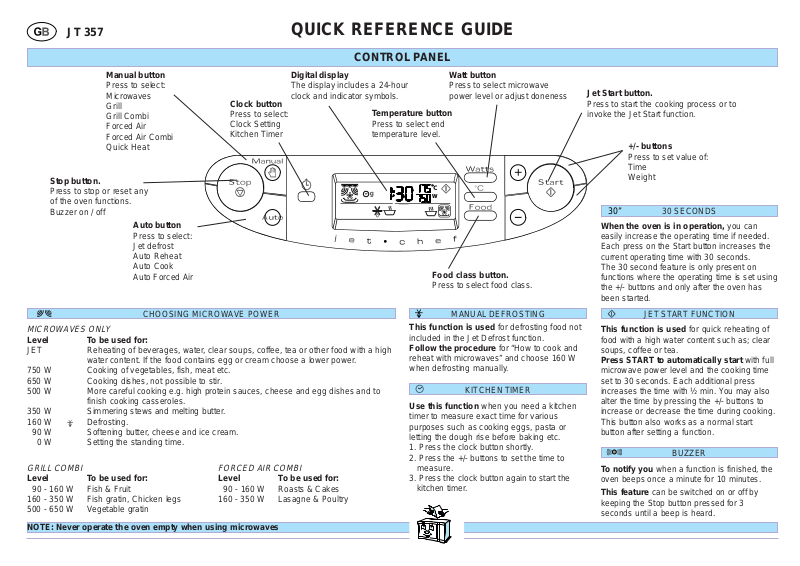

QUICK REFERENCE GUIDE

CONTROL P ANEL

Manual button

Press to select: Microwaves Grill Grill Combi Forced Air Forced Air Combi Quick Heat

Stop button.

Press to stop or reset any of the oven functions.

Buzzer on / off

Auto button

Press to select: Jet defrost Auto Reheat Auto Cook Auto Forced Air

Clock button

Press to select: Clock Setting Kitchen Timer

CHOOSING MICROWAVE POWER

Digital display

The display includes a 24-hour clock and indicator symbols.

Temperature button

Press to select end temperature level.

MICROWAVES ONLY

Level To be used for:

JET Reheating of beverages, water, clear soups, coffee, tea or other food with a high

water content. If the food contains egg or cream choose a lower power. 750 W Cooking of vegetables, fish, meat etc. 650 W Cooking dishes, not possible to stir. 500 W More careful cooking e.g. high protein sauces, cheese and egg dishes and to

finish cooking casseroles. 350 W Simmering stews and melting butter. 160 W Defrosting. 90 W Softening butter, cheese and ice cream. 0 W Setting the standing time.

GRILL COMBI

Level To be used for:

90 - 160 W Fish & Fruit

160 - 350 W Fish gratin, Chicken legs

500 - 650 W Vegetable gratin

NOTE: Never operate the oven empty when using microwaves

FORCED AIR COMBI

Level To be used for:

90 - 160 W Roasts & Cakes 160 - 350 W Lasagne & Poultry

Watt button

Press to select microwave power level or adjust doneness

Food class button.

Press to select food class.

MANUAL DEFROSTING

This function is used for defrosting food not included in the Jet Defrost function. Follow the procedure for “How to cook and reheat with microwaves” and choose 160 W when defrosting manually.

KITCHEN TIMER

Use this function when you need a kitchen timer to measure exact time for various purposes such as cooking eggs, pasta or letting the dough rise before baking etc.

1. Press the clock button shortly.

2. Press the +/- buttons to set the time to measure.

3. Press the clock button again to start the kitchen timer.

Jet Start button.

Press to start the cooking process or to invoke the Jet Start function.

+/- buttons

Press to set value of: Time Weight

30”

When the oven is in operation, you can easily increase the operating time if needed. Each press on the Start button increases the current operating time with 30 seconds. The 30 second feature is only present on functions where the operating time is set using the +/- buttons and only after the oven has been started.

This function is used for quick reheating of food with a high water content such as; clear soups, coffee or tea. Press START to automatically start with full microwave power level and the cooking time set to 30 seconds. Each additional press increases the time with ½ min. You may also alter the time by pressing the +/- buttons to increase or decrease the time during cooking. This button also works as a normal start button after setting a function.

To notify you when a function is finished, the oven beeps once a minute for 10 minutes.

This feature can be switched on or off by keeping the Stop button pressed for 3 seconds until a beep is heard.

30 SECONDS

JET STAR T FUNCTION

BUZZER

4619 694 49432

JT 357

QUICK REFERENCE GUIDE

GRILL

Use this function when cooking:

Cheese toast & Hot sandwich Sausages Grill spit Pommes Duchess Gratinated fruit

GRILL COMBI

Use this function when cooking:

Potato gratin Fish gratin Chicken pieces Lasagne Stuffed vegetables

QUICK HEAT

Use this function to preheat the empty oven.

Do not place food before or during

preheating in the oven. It may be burned from the intense heat.

Preheating is always done with the oven

empty.

FORCED AIR

Use this function to cook meringues, pastry,

sponge cakes, soufflés, poultry and roast meats.

FORCED AIR COMBI

Use this function to cook roast meats,

poultry, and jacket potatoes, frozen convenience foods, sponge cakes, pastry, fish and puddings.

AUTO FUNCTIONS

The auto functions on this oven need to know the net weight of the food. The oven will then automatically calculate the needed time to finish the defrost / cooking procedure.

If the weight is lesser or greater than recommended weight:

Use the ”Cook and reheat with microwaves” to cook / defrost the food. Note: In Auto forced air, some of the programs do not have any weight input.

Adjusting doneness When using the Auto functions (except the

Jet Defrost function), you also have the possibility to personally control the end result through the Adjust doneness feature. This is done by selecting a higher or lower level with the WATT button.

Increases the end temperature.

Decreases the end temperature.

JET DEFROST

Use this function for defrosting ONLY. Jet Defrost can only be used for very fast defrosting of frozen food belonging to the categories listed here. Use manual defrost for other food or weights not listed.

PLEASE NOTICE To achieve perfect results it is NECESSARY to: — Input, with the max. possible precision, the

WEIGHT of the food selected.

— Turn the food when the oven prompts you

to do so.

1 2 3 4 5

100 g - 2 K g Meat 100 g - 3 K g Poultry 100 g - 2 K g Fish 100 g - 2 K g Veget ab les 100 g - 2 K g Bread

AUTO REHEA T

Use this function when reheating readymade food either frozen, chilled or room tempered.

250 g - 600 g Dinner Plate

200 g - 800 g Soup

250 g - 600 g Frozen Port ion

100 g - 500 g Milk

200 g - 800 g Casserole

AUTO COOK

Use this function for cooking ONLY. This function can only be used for food belonging to the categories listed here. Use ”Cook & Reheat with microwaves” for other food or weights not listed.

200 g - 1 K g Baked Potatoes

200 g - 800 g Fr esh Vegetables

200 g - 800 g Fr ozen Veget ables

200 g - 600 g Canned Vegetables

90 g - 100 g Popcorn

PLEASE NOTICE

During the cooking process the oven may stop (depending on program) and prompt you to “TURN or STIR” food.

AUTO FORCED AIR

Use this function for cooking from raw or frozen. Auto Forced Air can only be used for

food belonging to the categories listed here. Use ”Forced air or Forced air Combi” for other food or weights not listed.

Do not use the baking plate with

foodclasses 1 & 2.

800 g - 1½ Kg Chicken

1 2 3 4 5

After the PRE-HEATING process the oven

will stop and prompt you to “ADD” food.

400 g - 1 K g Fr ozen Lasagne

Canned bread dough

Frozen rolls

PLEASE NOTICE

TECHNICAL SPECIFICA TION

Supply voltage Rated Power Input Fus e MW output power G rill For ced Air

Outer dimensions: Oven com p art ment:

230 V/50 Hz

2200 W

10 A 1000 W 1300 W 1600 W

H x W x D

377 x 487 x 515 210 x 395 x 370
