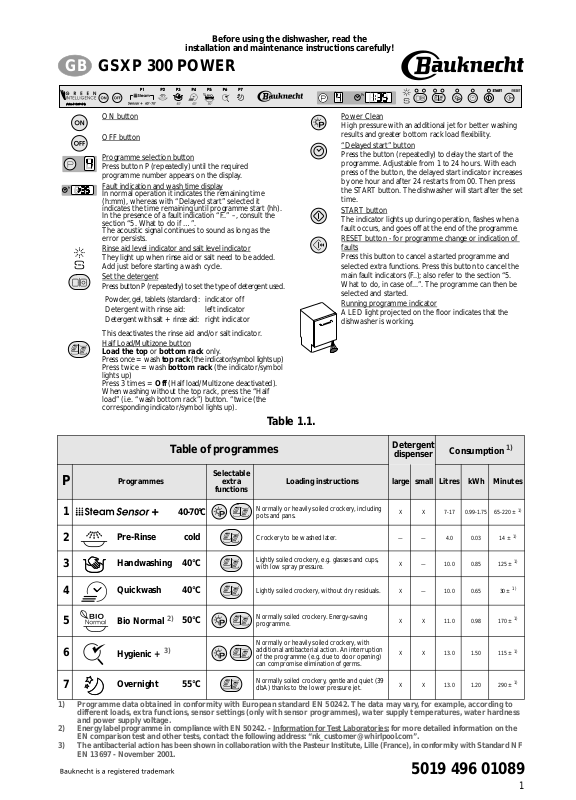

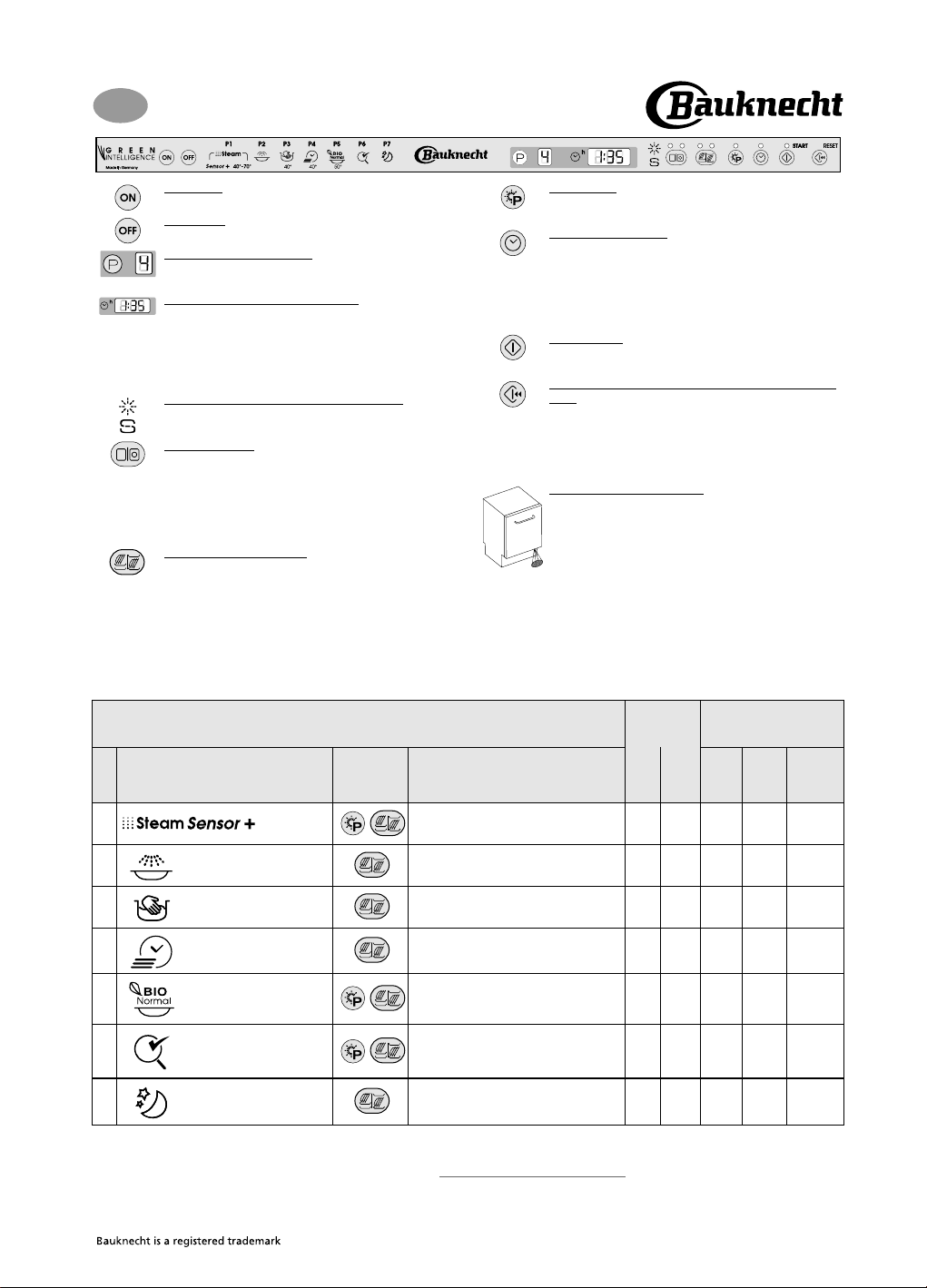

Whirlpool GSXP 300 POWER PROGRAM CHART

Before using the dishwasher, read the installation and maintenance instructions carefully!

GB GSXP 300 POWER

ON button

OFF button

Programme selection button

Press button P (repeatedly) until the required programme number appears on the display.

Fault indication and wash time display

In normal operation it indicates the remaining time (h:mm), whereas with “Delayed start” selected it indicates the time remaining until programme start (hh). In the presence of a fault indication “F..” –, consult the section “5. What to do if …”.

The acoustic signal continues to sound as long as the error persists.

Rinse aid level indicator and salt level indicator

They light up when rinse aid or salt need to be added. Add just before starting a wash cycle.

Set the detergent

Press button P (repeatedly) to set the type of detergent used.

Powder, gel, tablets (standard): indicator off

Detergent with rinse aid:

left indicator

Detergent with salt + rinse aid: right indicator

This deactivates the rinse aid and/or salt indicator.

Half Load/Multizone button

Load the top or bottom rack only.

Press once = wash top rack (the indicator/symbol lights up) Press twice = wash bottom rack (the indicator/symbol lights up)

Press 3 times = Off (Half load/Multizone deactivated). When washing without the top rack, press the “Half load” (i.e. “wash bottom rack”) button. “twice (the corresponding indicator/symbol lights up).

Table 1.1.

Power Clean

High pressure with an additional jet for better washing results and greater bottom rack load flexibility. “Delayed start” button

Press the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 00. Then press the START button. The dishwasher will start after the set time.

START button

The indicator lights up during operation, flashes when a fault occurs, and goes off at the end of the programme. RESET button - for programme change or indication of faults

Press this button to cancel a started programme and selected extra functions. Press this button to cancel the main fault indicators (F..); also refer to the section “5. What to do, in case of...”. The programme can then be selected and started.

Running programme indicator

A LED light projected on the floor indicates that the dishwasher is working.

Table of programmes

Detergent

Consumption 1)

dispenser

P

Selectable

Programmes

extra

Loading instructions

large

small

Litres

kWh

Minutes

functions

1

40-70°C

Normally or heavily soiled crockery, including

X

X

7-17

0.99-1.75

65-220 ± 1)

pots and pans.

2

Pre-Rinse

cold

Crockery to be washed later.

—

—

4.0

0.03

14 ± 1)

3

Handwashing

40°C

Lightly soiled crockery, e.g. glasses and cups,

X

—

10.0

0.85

125 ± 1)

with low spray pressure.

4

Quickwash

40°C

Lightly soiled crockery, without dry residuals.

X

—

10.0

0.65

30 ± 1)

5

Bio Normal

2)

50°C

Normally soiled crockery. Energy-saving

X

X

11.0

0.98

170 ± 1)

programme.

6

Normally or heavily soiled crockery, with

Hygienic +

3)

additional antibacterial action. An interruption

X

X

13.0

1.50

115 ± 1)

of the programme (e.g. due to door opening)

can compromise elimination of germs.

7

Overnight

55°C

Normally soiled crockery, gentle and quiet (39

X

X

13.0

1.20

290 ± 1)

dbA) thanks to the lower pressure jet.

1)Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, extra functions, sensor settings (only with sensor programmes), water supply temperatures, water hardness and power supply voltage.

2)Energy label programme in compliance with EN 50242. - Information for Test Laboratories: for more detailed information on the EN comparison test and other tests, contact the following address: “[e-mail]”.

3)The antibacterial action has been shown in collaboration with the Pasteur Institute, Lille (France), in conformity with Standard NF EN 13697 - November 2001.

5019 496 01089

1

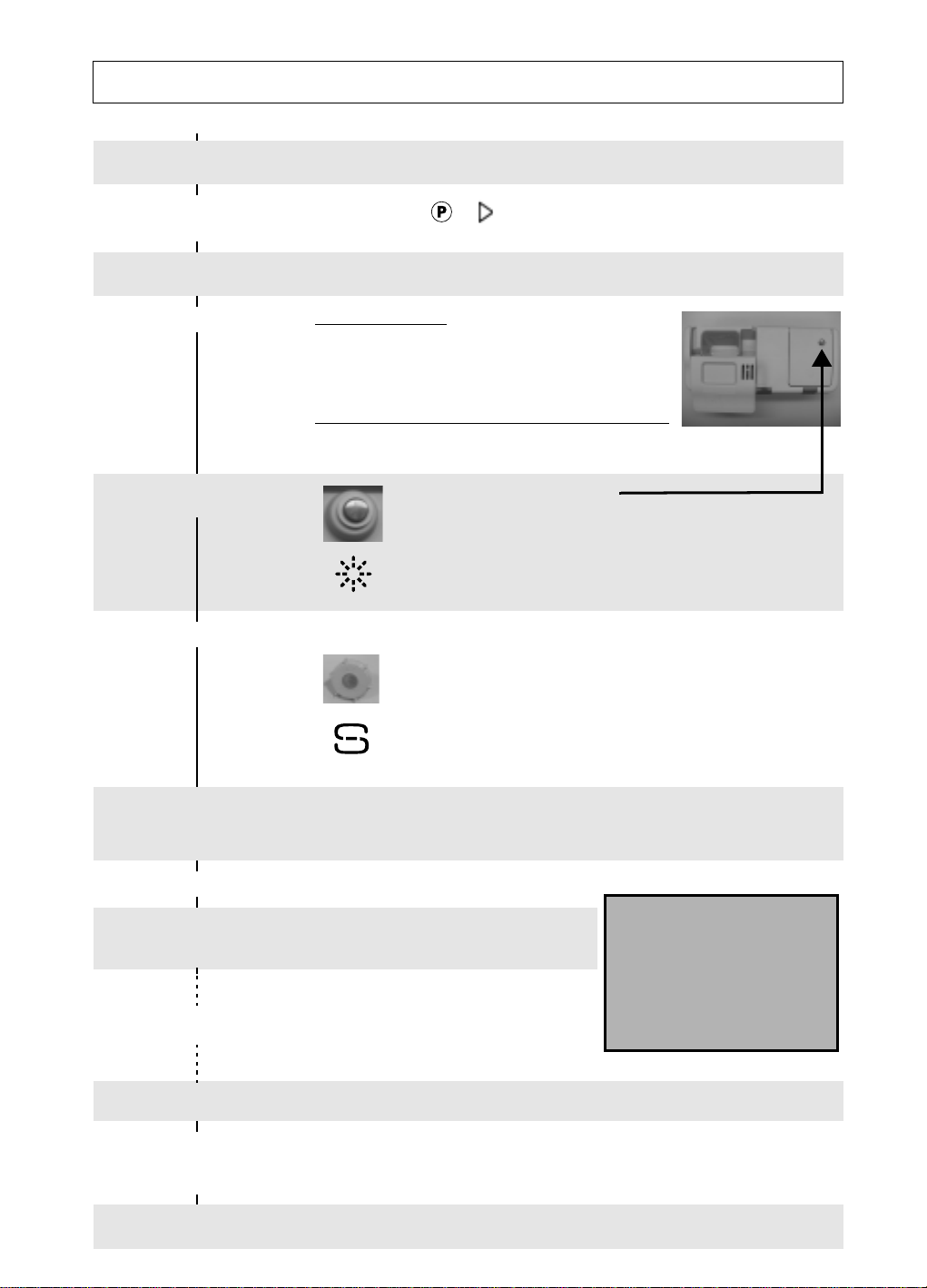

2. QUICK REFERENCE GUIDE

Detailed instructions are given in the following pages, see also chapter “5. What to do if...”

1.Switch on the appliance

2.Select a programme

3.Select the type of detergent

4.Fill in the detergent

Open the dishwasher door.

Press the ON button.

Press the button

or to bring up the desired programme on the display.

Select options, if available.

The detergent selection procedure varies depending on the dishwasher model. Chapter “1. Overview” provides instructions for selecting detergent type.

4a. Powder/gel/tabs

Fill the detergent dispenser compartments in A B C accordance with the wash programme selected.

Large compartment A for every wash cycle, additional small compartment B for programmes with pre-wash (see table 1.1.).

4b. Combined action detergents (2 in 1/3 in 1/... etc.) Place the detergent in compartment A, as per the manufacturer's recommendations.

5.Check the rinse aid level

6.Check the salt level

7. Load the racks

Visual indicator in dispenser C

dark		sufficient rinse aid present,
clear		add rinse aid (approx. 150 ml).

The indicator lamp on the control panel lights up when rinse aid needs to be added. Not all models are equipped with such an indicator.

Depending on the model:

window in salt reservoir cap on bottom of appliance inside

orange		when sufficient salt is present,
clear		when salt needs to be added.

The indicator lamp on the control panel lights up when salt needs to be added. Even once salt has been added, the indicator lamp only switches off after several wash cycles!

Make sure that the spray arms can turn freely and are not impeded by crockery or cutlery in the racks.

Detailed instructions on loading the racks are given in chapter “3. How to use the appliance”, under “How to load the racks”.

8.Start the appliance

9.Turn on the water tap and close the dishwasher door

Wash cycle

Press the START button.

When the door is closed the dishwasher starts automatically.

If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted. Care must be taken when opening the door, as steam will escape!

Change the programme in progress:

-Press the RESET button.

-Close the door.

-(Water drains for up to 60 seconds).

-Open the door.

-Select a new programme.

-Press the START button.

10.End of programme

11.Open the door, switch off the appliance

12. Turn off the water tap, unload the racks

At the end of the programme an acoustic signal will sound. The START indicator lamp switches off.

Press the OFF button. All the indicator lamps switch off.

Unload the appliance, starting from the lower rack in order to avoid any residual drips of water falling onto crockery below.

2

3. HOW TO USE THE APPLIANCE

PROGRAMME SELECTION

Press the button

or to bring up the desired programme on the display. The appliance must be switched

on. If required, select options (if supplied). The corresponding indicator lamp switches on. Appropriate programmes and relative available options are detailed in table 1.1 on page 1.

Programme times stated in the table were obtained under normal conditions and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance's automatic calibration system.

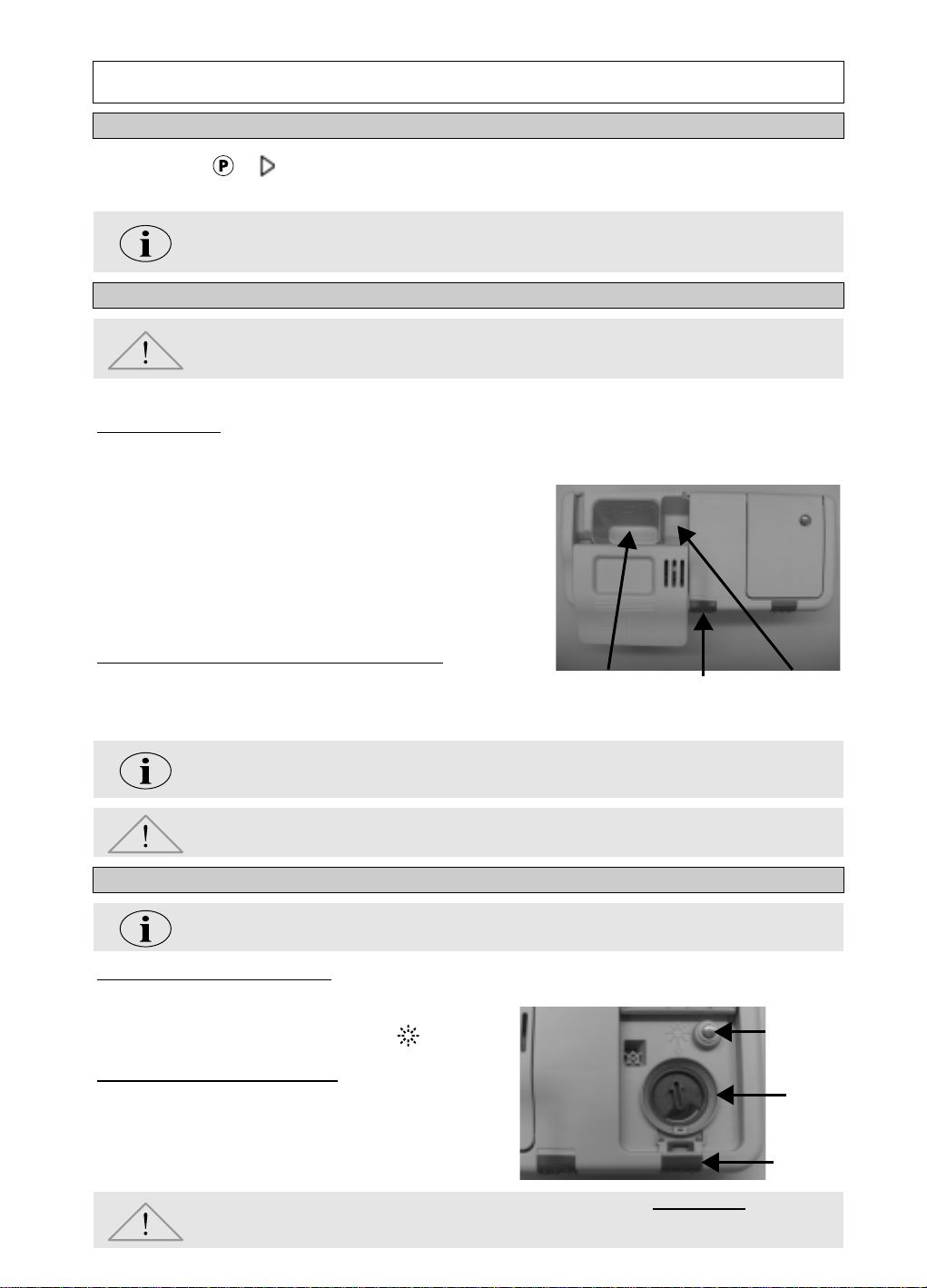

HOW TO FILL THE DETERGENT DISPENSER

Only fill the detergent dispenser prior to starting a wash programme. Only use detergents specially recommended for dishwashers, observing the manufacturer's recommended dosage. Observe the manufacturer's safety warnings!

Open the detergent dispenser compartments by pushing the left button (button 1) of the dispenser.

a. Powder/gel/tabs

Fill the detergent dispenser compartments in accordance with the wash programme selected (table 1.1).

Programmes without pre-wash:

pour the entire recommended dosage into compartment A. Programmes with pre-wash:

pour 2/3 of the recommended dosage into the large compartment A and 1/3 into the small compartment B.

Dishwasher tabs should be placed, according to the manufacturer's recommendations, in compartment A.

If the “Half load” option is selected, detergent dosage should be reduced by approximately 1/3.

b. Combined action detergents (2 in 1/3 in 1/... etc.)

Combined action detergents should be placed, according to the manufacturer's recommendations, in compartment A.

	Large				Small
		button 1
	compartment A				compartment B

Firmly close and press the detergent compartment lid shut after filling.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

The guarantee is not applicable if faults are caused by the use of these products.

HOW TO CHECK/FILL/ADJUST RINSE AID

Not necessary when using a combined action detergent.

a. How to check the rinse aid level

Check the visual indicator C on the rinse aid dispenser: dark = sufficient rinse aid, clear = add rinse aid.

In the case of appliances with an electric indicator on the control panel, the rinse aid indicator lamp lights up red when rinse aid needs to be added.

b. How to fill the rinse aid dispenser

Open the rinse aid dispenser by pressing the right button (button 2) of the dispenser.

Fill the dispenser with rinse aid up to the “max” line (approx. 150 ml).

Shut the lid again.

Indicator C

max

button 2

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

3
