Page 1
GB

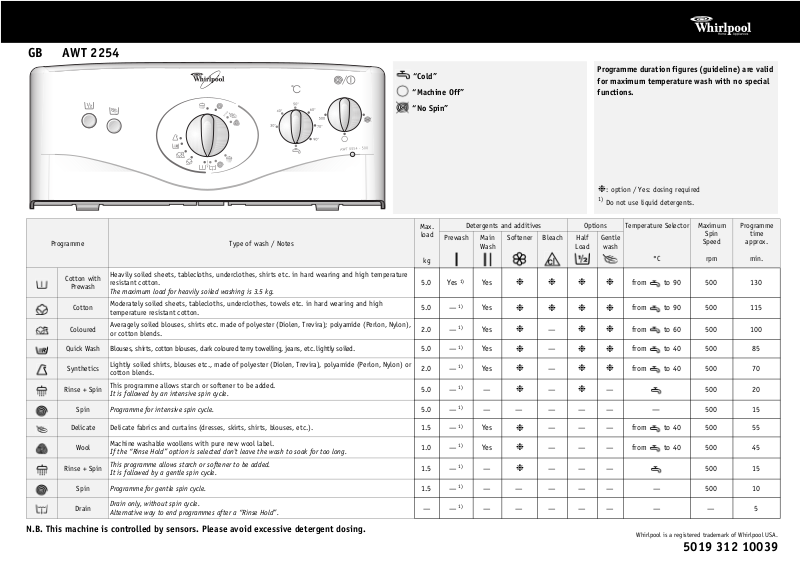

AWT 2254
“Cold”
“Machine Off”
“No Spin”
Programme duration figures (guideline) are valid
for maximum temperature wash with no special
functions.
❉
: option / Yes: dosing required
1)
Do not use liquid detergents.
Programme Type of wash / Notes
Cotton with
Prewash
Cotton
Coloured
Quick Wash Blouses, shirts, cotton blouses, dark coloured terry towelling, jeans, etc. lightly soiled.
Synthetics
Rinse + Spin
Spin
Delicate Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).
Wool
Rinse + Spin
Spin
Drain
Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature
resistant cotton.
The maximum load for heavily soiled washing is 3.5 kg.
Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high
temperature resistant cotton.
Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon),
or cotton blends.
Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or
cotton blends.
This programme allows starch or softener to be added.
It is followed by an intensive spin cycle.
Programme for intensive spin cycle.
Machine washable woollens with pure new wool label.
If the “Rinse Hold” option is selected don't leave the wash to soak for too long.
This programme allows starch or softener to be added.
It is followed by a gentle spin cycle.
Programme for gentle spin cycle.
Drain only, without spin cycle.
Alternative way to end programmes after a “Rinse Hold”.
Max.
load
Prewash Main
kg
5.0 Yes
5.0
2.0
5.0
2.0
5.0
5.0
1.5
1.0
1.5
1.5
——
1)
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
Detergents and additives Options Temperature Selector°CMaximum
Softener Bleach Half
Wash
Yes
Yes
Yes
Yes
Yes
—
—————
Yes
Yes
—
————— —
————— — —
❉❉❉❉
❉❉❉❉
❉
❉
❉
❉
❉
❉
❉
—
—
—
—
———
———
———
Gentle
Load
wash
❉❉
❉❉
❉❉
—
❉
from to 90 500 130
from to 90 500 115
from to 60 500 100
from to 40 500 85
from to 40 500 70
—50015
from to 40 500 55
from to 40 500 45
Spin
Speed
rpm
500 20
500 15
500 10
Programme
time
approx.
min.
5
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.
Whirlpool is a registered trademark of Whirlpool USA.
5019 312 10039
Page 2
ENERGY AND WATER CONSUMPTION DATA
Programme Temperature
Load
Water
Energy
Programme
time
(°C)
(kg)
(l)
(kWh)
(min)
Cotton 90 5.0 72 1.80 115
Cotton 60 5.0 72 1.15 115
Coloured 60 2.0 66 0.80 100
Coloured 40 2.0 66 0.40 100
Quick Wash + 1/2 Load 40 2.5 54 0.50 85
Synthetics + 1/2 Load 30 1.0 54 0.30 70
Delicate 40 1.5 70 0.65 55
Wool 40 1.0 70 0.55 45
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy
Label” refer to the programme “Coloured Cotton 60°C”.
* The remaining time indicator can similarly deviate from the values in the table, because it takes into account the
household conditions applicable at that time.
**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains
the water out.
PREPARATION OF WASH CYCLE PRESS ANY DESIRED OPTION BUTTON(S)
1. Close the drum flaps and check that they are
properly locked.
2. Add detergents and additives into the dispenser
to no more then the
“MAX“
level mark, as
follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
• Stain remover agents
• Anti-scale agents (if necessary)
3. Turn the
programme selector knob
clockwise to
the desired programme.
4. Turn the
temperature knob
to the required
temperature.
“Half Load” button
• Reduces the water consumption in the “Cotton”
and “Synthetics” programmes especially during
the rinse.
• Especially suitable for lightly soiled or small loads
(reduces the quantity of detergent).
• Not suitable for high temperature programmes.
“Gentle Wash” button
• In case of fragile or delicate linen, this option
shortens the time for which the drum rotates. The
linen is treated more delicately and creasing and
crumpling are reduced.
PROGRAMME START
Open the water inlet tap and select the desired spin
speed, turning the spin speed and
“On/Off”
knob to
the desired position (the indicated spin speed or “No
Spin”). The pilot lamp lights up.
DOOR LOCK
During the running programme, the door cannot be
opened.
The door locks automatically in all programmes.
If the programme is stopped or if an electrical
power failure occurs, the door unlocks
automatically after about 1 minute.
PROGRAMME END
• The programme selector knob is at “STOP”, the
pilot lamp lights.
1. Turn the spin speed knob to the Off position
“”. The pilot light goes out.
2. Cancel the options by pressing the appropriate
buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload
the machine.
SELECTING A NEW PROGRAMME, SPIN SPEED,
OPTIONS AFTER PROGRAMME START
1. Turn the spin speed knob to the Off position
“” to switch off the appliance.
The pilot light goes out.
2. Select the new programme, temperature and
options.
3. Turn the spin speed knob to the desired spin
speed to switch on the appliance.
The pilot light lights.
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Turn the spin speed knob to the Off position
“” to switch off the appliance.
The pilot light goes out.
2. Set the programme selector on “Drain”.
Turn the spin speed knob to the desired spin
speed to start the “Drain” programme.
Only open the door when the programme
selector is at “STOP” and the door is unlocked
(after approximately 1 minute).
NOTES AND INDICATIONS FOR USE
• After switching your washing machine on, it
does not start immediately: it needs some
seconds in order to lock the door, fill water and
then drum starts turning.
• Spinning has an interrupted start-up: the drum
starts and stops running several times, to
improve spin efficiency and to better balance
the laundry.
• At the end of the spinning cycle the drum goes
on reversing for some minutes: this helps you
unloading the laundry.
• Do not exceed in detergents dosage: excessive
foam formation may prevent spinning.
• The turning of the drum is stopped in several
steps of the washing cycle due to optimization
of energy consumption.
Whirlpool is a registered trademark of Whirlpool USA.
5019 312 10039
