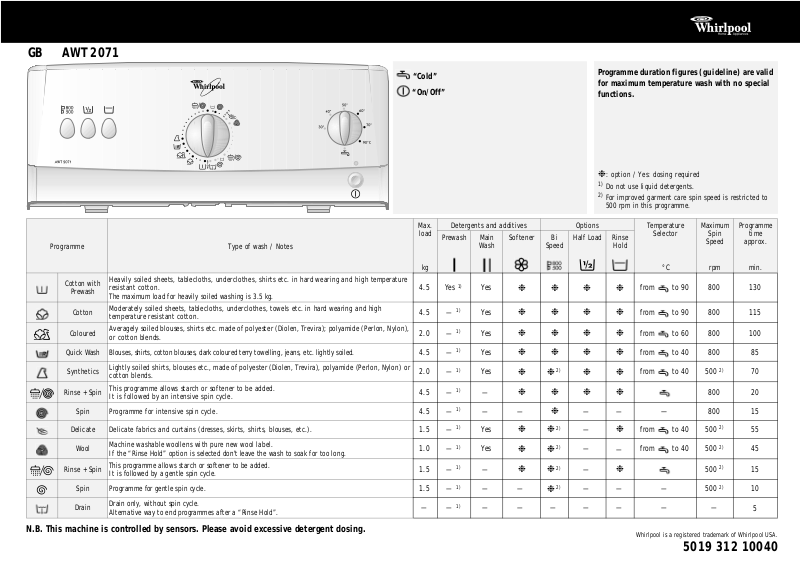

Whirlpool AWT 2071 PROGRAM CHART
GB
AWT 2071
Programme Type of wash / Notes
Cotton with
Prewash
Cotton
Coloured
Quick Wash Blouses, shirts, cotton blouses, dark coloured terry towelling, jeans, etc. lightly soiled.
Synthetics
Rinse + Spin
Spin Programme for intensive spin cycle.
Delicate Delicate fabrics and curtains (dresses, skirts, shirts, blouses, etc.).
Wool
Rinse + Spin
Spin
Drain
Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature
resistant cotton.
The maximum load for heavily soiled washing is 3.5 kg.
Moderately soiled sheets, tablecloths, underclothes, towels etc. in hard wearing and high
temperature resistant cotton.
Averagely soiled blouses, shirts etc. made of polyester (Diolen, Trevira); polyamide (Perlon, Nylon),
or cotton blends.
Lightly soiled shirts, blouses etc., made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or
cotton blends.
This programme allows starch or softener to be added.
It is followed by an intensive spin cycle.
Machine washable woollens with pure new wool label.
If the “Rinse Hold” option is selected don't leave the wash to soak for too long.
This programme allows starch or softener to be added.
It is followed by a gentle spin cycle.
Programme for gentle spin cycle.
Drain only, without spin cycle.
Alternative way to end programmes after a “Rinse Hold”.
“Cold”
“On/Off”
Max.
load
Prewash Main
kg
4.5 Yes
4.5
2.0
4.5
2.0
4.5
4.5
1.5
1.0
1.5
1.5
——
Programme duration figures (guideline) are valid
for maximum temperature wash with no special
functions.
❉
: option / Yes: dosing required
1)
Do not use liquid detergents.
2)
For improved garment care spin speed is restricted to
500 rpm in this programme.
Detergents and additives Options Temperature
Wash
1)
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
—
1)
Softener Bi
Yes
Yes
Yes
Yes
Yes
—
——
Yes
Yes
—
——
— ———— — —
❉❉❉❉
❉❉❉❉
❉❉❉❉
❉❉❉❉
❉❉ 2)❉❉
❉❉❉❉
❉❉
❉❉
❉❉
Speed
❉
❉
2)
2)
2)
2)
Half Load Rinse
——
—
—
—
—— —
Hold
❉
—
❉
Selector
°C
from to 90 800 130
from to 90 800 115
from to 60 800 100
from to 40 800 85
from to 40 500
— 800 15
from to 40 500
from to 40 500
Maximum
Spin
Speed
rpm
2)
800 20
2)
2)
2)
500
2)
500
Programme
time
approx.
min.
70
55
45
15
10
5
N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.
Whirlpool is a registered trademark of Whirlpool USA.
5019 312 10040
ENERGY AND WATER CONSUMPTION DATA
Programme Temperature
Load
Water
Energy
Programme time
(°C)
(kg)
(l)
(kWh)
(min)
Cotton 90 4.5 72 1.80 115
Cotton 60 4.5 72 1.15 115
Coloured 60 2.0 66 0.80 100
Coloured 40 2.0 66 0.40 100
Quick Wash + 1/2 Load 40 2.5 54 0.50 85
Synthetics + 1/2 Load 30 1.0 54 0.30 70
Delicate 40 1.5 70 0.65 55
Wool 40 1.0 70 0.55 45
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash. The data on the “Energy
Label” refer to the programme “Coloured Cotton 60°C”.
* The remaining time indicator can similarly deviate from the values in the table, because it takes into account the
household conditions applicable at that time.
**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains
the water out.
PREPARATION OF WASH CYCLE PRESS ANY DESIRED OPTION BUTTON(S)
1. Close the drum flaps and check that they are
properly locked.
2. Add detergents and additives into the dispenser
to no more then the
“MAX“
level mark, as
follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Stain remover agents
• Anti-scale agents (if necessary)
3. Turn the
programme selector knob
clockwise to
the desired programme.
4. Turn the
temperature knob
to the required
temperature.
“Bi Speed” button
• Press the button to set the spin speed.
Note:
every programme has an automatic
maximum spin speed.
“Half Load” button
• Reduces the water consumption in the “Cotton”
and “Synthetics” programmes especially during
the rinse.
• Especially suitable for lightly soiled or small loads
(reduces the quantity of detergent).
• Not suitable for high temperature programmes.
“Rinse Hold” button
• The laundry remains in the last rinse water,
without progressing to the spin cycle to avoid
creasing and prevent colours from changing.
• This option is especially recommended for the
“Synthetics” or “Delicate” programmes.
• This option is perfectly suitable if you wish to
postpone the spin or you don't wish to spin the
clothes.
Note:
the programme selector stops on “ ”.
Terminate the “Rinse Hold” option.
• Press the “Rinse Hold” button again; the
programme will terminate automatically with
the spin cycle corresponding to the previously
selected wash programme.
• If you do not wish to spin the clothes, switch
off the appliance by pressing the
“On/Off”
button. The pilot light goes out. Turn the
programme selector to the “Drain” position and
switch on the appliance.
PROGRAMME START
Open the water inlet tap and press the
“On/Off”
button. The pilot lamp lights up.
DOOR LOCK
During the running programme, the door cannot be
opened.
The door locks automatically in all programmes.
If the programme is stopped or if an electrical
power failure occurs, the door unlocks
automatically after about 1 minute.
PROGRAMME END
• The programme selector knob is at “STOP”, the
pilot lamp lights.
1. Press the
“On/Off”
button. The pilot light
goes out.
2. Cancel the options by pressing the appropriate
buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload
the machine.
SELECTING A NEW PROGRAMME, SPIN SPEED,
OPTIONS AFTER PROGRAMME START
1. Press the
“On/Off”
button to switch off the
appliance.
The pilot light goes out.
2. Select the new programme, temperature and
options.
3. Press the
“On/Off”
button to switch on the
appliance.
The pilot light lights.
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Press the
“On/Off”
button to switch off the
appliance.
The pilot light goes out.
2. Set the programme selector on “Drain”.
3. Press the
“On/Off”
button to start the “Drain”
programme.
Only open the door when the programme
selector is at “STOP” and the door is unlocked
(after approximately 1 minute).
NOTES AND INDICATIONS FOR USE
• After switching your washing machine on, it
does not start immediately: it needs some
seconds in order to lock the door, fill water and
then drum starts turning.
• Spinning has an interrupted start-up: the drum
starts and stops running several times, to
improve spin efficiency and to better balance
the laundry.
• At the end of the spinning cycle the drum goes
on reversing for some minutes: this helps you
unloading the laundry.
• Do not exceed in detergents dosage: excessive
foam formation may prevent spinning.
• Your imbalance detection and correction
system reduces spin speed or interrupts the
spin automatically in case of imbalance load see "troubleshooting guide".
• Your machine has a new, electronicallycontrolled motor: don't be surprised by its
sound.
• If you want to change the programme during
the wash cycle, remember to switch the
machine off before turning the programme
selector knob.
Whirlpool is a registered trademark of Whirlpool USA.
5019 312 10040
