Whirlpool AWG-910 CE-A Schematic
SERVICE
Whirlpool EMEA
Customer Services

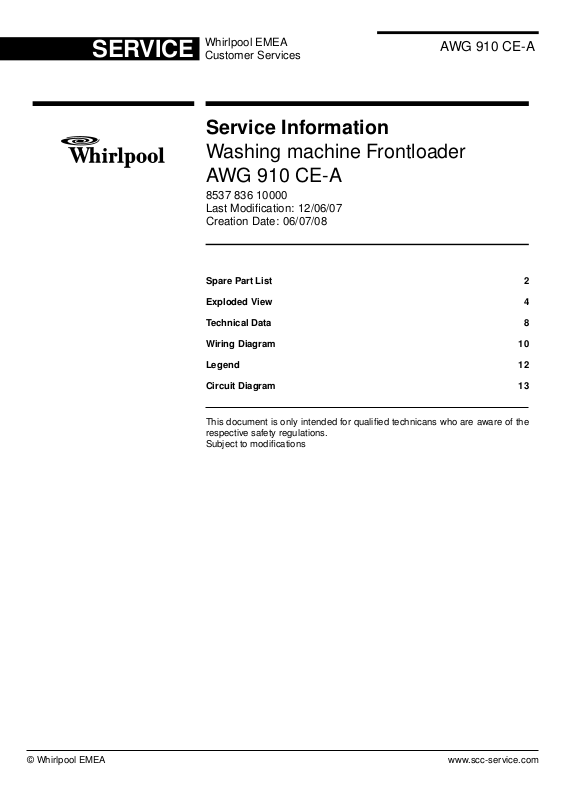

AWG 910 CE-A
Service Information
Washing machine Frontloader
AWG 910 CE-A
8537 836 10000
Last Modification: 12/06/07
Creation Date: 06/07/08
Spare Part List 2
Exploded View 4
Technical Data 8
Wiring Diagram 10
Legend 12
Circuit Diagram 13
This document is only intended for qualified technicans who are aware of the
respective safety regulations.
Subject to modifications
© Whirlpool EMEA www.scc-service.com
Whirlpool EMEA
SERVICE
Customer Services
Spare Part List
Pos 12NC Description
001 0 4812 440 11761 Cabinet
003 0 4819 404 43391 Bearer hook crosspiece
011 0 4812 462 48448 Foot
024 0 4812 440 11763 Panel rear
030 0 4812 440 11762 Table top
041 0 4812 417 19513 Hinge
041 1 4819 903 10139 RIVET
054 0 4812 462 79961 Cover
061 0 4812 466 89022 Counter weight upper
061 1 4812 466 89023 Counter weight bottom
081 0 4812 463 68035 Shock absorber
110 0 4812 462 69024 Door handle
110 1 4812 462 69025 Door handle complete
133 0 4812 462 68968 Door latch
133 1 4812 462 38341 Pin door handle
140 0 4812 450 59945 Door glass
143 0 4819 903 02494 Strap
144 0 4812 459 28082 Frame door glas
144 1 4812 459 28081 Frame door glas outer
144 2 4812 532 98024 Collarring
190 0 4812 466 89019 Gasket door
200 0 4812 418 08009 Tub with drum kit
223 0 4812 418 89031 Drum lifter
271 0 4812 358 18205 Belt
272 0 4812 528 88137 Pulley
301 0 4812 464 69379 Control panel
301 1 4812 410 78236 Push button
301 2 4812 404 49886 Support box buttons
303 1 4812 498 48048 Handle drawer
331 0 4812 410 78237 Knob potentiom.
401 0 4812 361 38139 Motor
430 0 4812 360 18602 Pump,draining
451 0 4812 259 28967 Heating element
451 2 4812 903 08212 Resistor
483 0 4812 321 78413 Cable harness
484 0 4812 321 28505 Cable flat, E.module-butt.PC
484 1 4812 321 28509 Cable flat, Potentiometer
490 0 4812 321 18294 Cable mains from 03.04.2006
521 0 4812 214 58558 Unit electrical
521 2 4812 214 70675 Module buttons
531 0 4812 273 28295 Selector,switch
572 0 4812 271 18086 Valve magnet cold water
583 0 4812 271 28593 Pressostat
630 0 4812 280 58043 door lock
701 0 4819 530 28932 60Bars 25# WRC,VDE, IMQ straight/curved
702 0 4812 530 29499 Hose inlet
708 4 4812 530 29501 Drainhose inner
711 0 4812 418 68438 Dispenser
711 1 4812 462 29397 Cover detergent
712 0 4812 418 70056 Drawer detergent
8537 836 10000, 12/06/07
page 2 of 13
© Whirlpool EMEA www.scc-service.com
Whirlpool EMEA
SERVICE
Pos 12NC Description
714 1 4812 418 70058 Tray softener
714 2 4812 418 70057 Separator detergent dispenser
754 0 4812 529 18065 Drainhose
754 1 4812 530 29502 Ball drain coupling
754 2 4812 466 89021 Gasket drain coupling
781 0 4812 530 29503 Hose draining
782 0 4819 530 28682 Hose
791 0 4812 466 89011 Gasket drain hose protection
794 0 4819 903 04978 Gasket
900 1 4819 466 98528 Clamping piece
900 4 4812 404 38637 Holder pressostat
900 8 4812 404 78924 Support pin damper
901 0 4822 401 10258 lamp,hose 10-18 mm
901 1 4819 903 02487 Clamp hose
901 2 4812 401 18893 Clamp drainhose
901 3 4819 401 18351 Clamp hose
901 4 4819 401 18174 Clamp of exhaust hose 25-45 mm
901 7 4812 401 48604 Clamp drain pipe hose
902 1 4812 404 48907 Holder unit elect.
903 2 4819 903 08165 Holder hose 1
903 4 4819 903 10167 Door glass insert
903 6 4819 903 08162 Holder hose 2
910 1 4812 502 18649 Screw Torx D=4,2 H=9,5
910 2 4812 502 18499 Screw
910 3 4812 502 18651 Screw Torx D=4,2 H=13
910 4 4812 502 18822 Screw
910 5 4812 502 18652 Screw
910 6 4812 502 18823 Screw motor
910 7 4812 502 38362 Screw
911 1 4819 903 10173 SCREW
911 2 4819 502 18534 SCREW
911 3 4812 502 18672 Screw
911 4 4812 560 18075 Screw
911 5 4812 502 18798 Screw counterweight upper
911 6 4812 502 18802 Screw counterweight
911 8 4812 502 18479 Screw
912 0 4812 502 18803 Screw pulley
912 1 4812 523 18039 Nut shock absorber
931 0 4812 492 68225 Spring door catch return
931 3 4812 492 68227 Spring,suspens.
931 4 4819 492 38135 SPRING
931 5 4812 492 68226 Spring safety, doorhandle
952 2 4812 466 88793 Gasket potentiometer
962 0 4812 466 38122 Protector drain pump
993 0 4819 401 18345 Bow
Customer Services
8537 836 10000, 12/06/07
page 3 of 13
© Whirlpool EMEA www.scc-service.com
SERVICE
Exploded View
Whirlpool EMEA
Customer Services
8537 836 10000, 12/06/07
page 4 of 13
© Whirlpool EMEA www.scc-service.com
