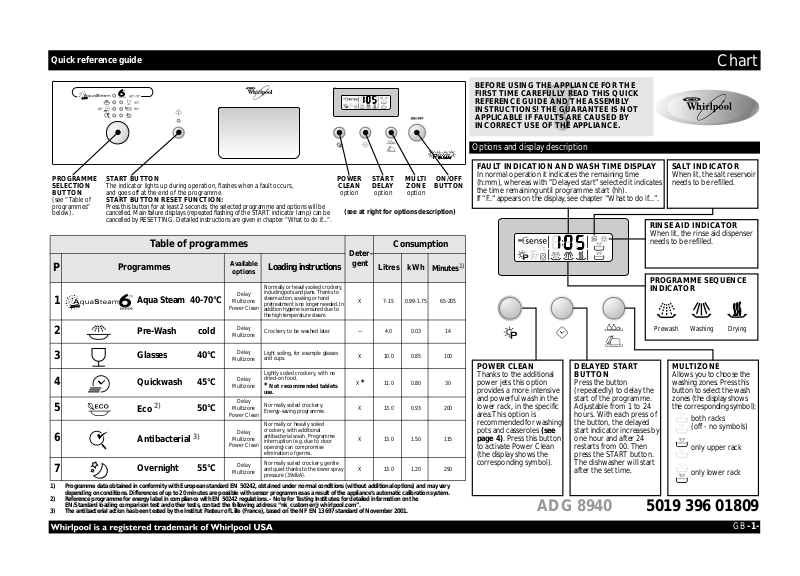

Whirlpool ADG 8940 Quick Reference Guide

-1-

Chart

START

DELAY

option

MULTI

ZONE

option

POWER

CLEAN

option

ON/OFF

BUTTON

PROGRAMME

SELECTION

BUTTON

(see “Table of

programmes”

below).

START BUTTON

The indicator lights up during operation, flashes when a fault occurs,

and goes off at the end of the programme.

START BUTTON RESET FUNCTION:

Press this button for at least 2 seconds; the selected programme and options will be

cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be

cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.

(see at right for options description)

1) Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional opti ons) and m ay vary

depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.

2) Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the

EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

3) The antibacterial action has been tested by the Institut Pasteur of Lille (France), based on the NF EN 13697 standard of November 2001.

Table of programmes

Deter-

gent

Consumption

Programmes

Available

options

Loading instructions

Litres kWh

Minutes

Aqua Steam 40-70°C

Delay

Multizone

Power Clean

Normally or heavily soiled crockery,

including pots and pans. Thanks to

steam action, soaking or hand

pretreatment is no longer needed. In

addition hygiene is ensured due to

the high temperature steam.

X 7-15 0.99-1.75 65-205

Pre-Wash cold

Delay

Multizone

Crockery to be washed later. — 4.0 0.03 14

Glasses 40°C

Delay

Multizone

Light soiling, for example glasses

and cups.

X 10.0 0.85 100

Quickwash 45°C

Delay

Multizone

Lightly soiled crockery, with no

dried-on food.

Not recommended tablets

use.

11.0 0.80 30

Eco

50°C

Delay

Multizone

Power Clean

Normally soiled crockery.

Energy-saving programme.

X 13.0 0.93 200

Antibacterial

Delay

Multizone

Power Clean

Normally or heavily soile d

crockery, with additional

antibacterial wash. Programme

interruption (e.g. due to door

opening) can compromise

elimination of germs.

X 13.0 1.50 115

Overnight 55°C

Delay

Multizone

Normally soiled crockery, gentle

and quiet thanks to the lower spray

pressure (39dbA).

X 13.0 1.20 290

DELAYED START

BUTTON

Press the button

(repeatedly) to delay the

start of the programme.

Adjustable from 1 to 24

hours. With each press of

the button, the delayed

start indicator increases by

one hour and after 24

restarts from 00. Then

press the START button.

The dishwasher will start

after the set time.

5019 396 01809ADG 8940

MULTIZONE

Allows you to choose the

washing zones. Press this

button to select the wash

zones (the display shows

the corresponding symbol):

both racks

(off - no symbols)

only upper rack

only lower rack

POWER CLEAN

Thanks to the additional

power jets this option

provides a more intensive

and powerful wash in the

lower rack, in the specific

area.This option is

recommended for washing

pots and casseroles (see

page 4). Press this button

to activate Power Clean

(the display shows the

corresponding symbol).

RINSE AID INDICATOR

When lit, the rinse aid dispenser

needs to be refilled.

SALT INDICATOR

When lit, the salt reservoir

needs to be refilled.

FAULT INDICATION AND WASH TIME DISPLAY

In normal operation it indicates the remaining time

(h:mm), whereas with “Delayed start” selected it indicates

the time remaining until programme start (hh).

If “F..” appears on the display, see chapter “What to do if...”.

Options and display description

BEFORE USING THE APPLIANCE FOR THE

FIRST TIME CAREFULLY READ THIS QUICK

REFERENCE GUIDE AND THE ASSEMBLY

INSTRUCTIONS! THE GUARANTEE IS NOT

APPLICABLE IF FAULTS ARE CAUSED BY

INCORRECT USE OF THE APPLIANCE.

PROGRAMME SEQUENCE

INDICATOR

Prewash Washing Drying

Quick reference guide

-2-

First time use

1- salt reservoir

2- rinse aid dispenser

3- detergent dispenser

4- racks system

5,6,7,8- available functions on the panel

9- filters

10- spray arms

In order to always ensure the best cleaning

results, you NEED to set:

DETERGENT type and WATER HARDNESS.

Select 3rd programme

(see Table of programmes

- page 1)

Press START button

for 7 seconds

3a.

Check your

detergent type...

3b.

...and set it on your dishwasher

using the START button

(as per table below)

Remember to use salt and rinse

aid when needed (as indicated

below)

Switch off and switch on

again to save setting

Detergent

types

Dishwasher models

model without

display

model with display

Powder or gel

(factory setting)

no symbol add salt add rinse aid

Tablet 2 in 1

add salt

Tablet 3 in 1

Tablet All in 1

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

3h 6h 9h

rinse aid

salt

rinse aid

How to set water hardness

* only before the first wash or if

the water hardness has been

changed

Switch on the appliance

- Select the 2nd programme “P2” - consult the table of programmes.

- Press the ST ART button for at least 5 seconds until the START indicator lamp flashes.

- The water hardness setting is shown on the display (if present) or the START button flashes.

- With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

- The appliance must be switched off to memorise the new setting.

Even if you use tablets which include salt,

you must still add salt since such

detergents are not effective enough at

softening hard water.

Water hardness level is factory set for

medium hard water (a number “4” is

shown on the display or the START

indicator lamp flashes 4 times).

Ask your water supply company what the

water hardness

is...

...enter this value on your

dishwasher

Suggestions for detergent use

German

degrees °dH

French

degrees °fH

English

degrees °eH

Water

hardness

Dishwasher

with display:

insert value in

the display

Dishwasher

without

display: count

START button

led flashes

Gel or Powder

(rinse aid and

salt)

Tablets

0 - 5 0 - 9 0 - 6.3 Soft 1 1x

go to step 1

(see “Daily

check”)

if extra salt is

needed go to

step 1

(see “Daily

check”)

6 - 10 10 - 18 7 - 12.6 Medium 2 2x

11 - 15 19 - 27 13.3 - 18.9 Average 3 3x

16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 4x

22 - 28 38 - 50 26.6 - 35 Hard 5 5x

29 - 35 51 - 63 35.7 - 44.1 Very hard 6 6x

36 - 60 64 - 107 44.8 - 74.9

Extremely

hard

7 7x

How to set detergent type: powder/gel/tablet (if option is available)

-3-

Daily check

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily use

The salt level indicator lamp may remain lit for the duration of several wash cycles. If the

water hardness level falls within category (soft),

salt is required.

Salt indicator

(depending on

the model)

The indicator lamp on the control panel lights

up when SALT NEEDS TO BE ADDED.

orange: OK. clear: NEEDS TO BE ADDED

Rinse aid indicator (depending on model)

The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE

ADDED.

dark: OK. clear: NEEDS TO BE ADDED

Only use rinse aids recommended for use in domestic dishwashers.

Immediately

wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly d ry : incr e a s e the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid

setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend

to form excess suds.

Visual indicator

(depending

on model).

Unscrew cap.

Fill the salt

reservoir with

water before the

first wash only.

Add salt

(never add

detergent!).

min. 1.5 kg

max. 2 kg

Visual indicator (depending

on model). Screw on the cap.

Salt residues around cap

need to be removed.

If required,

open the cover

B (press right

button).

Open the cover A

(press left button).

Only fill the

detergent dispenser

prior to starting a

wash programme.

By pressing

dedicated ribs

shut the cover.

Tablet / gel / powder

Add rinse aid

to the max.

line ~150 ml

The rinse aid dosage can be adjusted to the

detergent used. The lower the setting,

the less rinse aid is dispensed

(factory setting: position 4).

Press the button to open the cover B. Using a

coin or similar object, turn the arrow to the

desired setting. After adjusting the rinse aid

setting, shut the cover again.

Visual

indicator

Adding detergent -

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Use only one tablet per one

cycle, only placed in detergent

dispenser.

All types of tablets can be

used, but for 2 in 1 type

adding of salt is mandatory.

Filling the salt reservoir -

Dissolve limescale (not necessary if water hardness level is set to “soft”!)
