Page 1

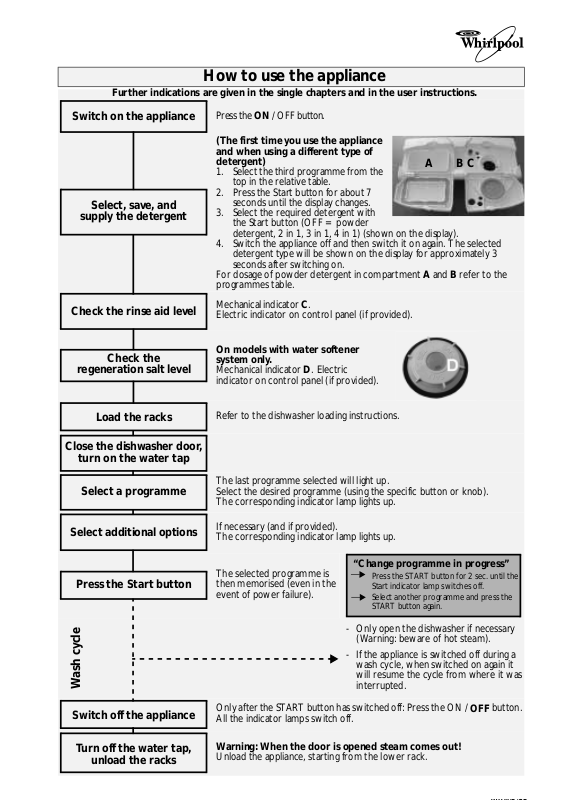

How to use the appliance
ABC
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
Select, save, and
supply the detergent
Check the rinse aid level
Check the
regeneration salt level
Load the racks
Press the ON / OFF button.
(The first time you use the appliance
and when using a different type of
detergent)
1. Select the third programme from the
top in the relative table.
2. Press the Start button for about 7
seconds until the display changes.
3. Select the required detergent with
the Start button (OFF = powder
detergent, 2 in 1, 3 in 1, 4 in 1) (shown on the display).
4. Switch the appliance off and then switch it on again. The selected
detergent type will be shown on the display for approximately 3
seconds after switching on.
For dosage of powder detergent in compartment A and B refer to the
programmes table.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Close the dishwasher door,
turn on the water tap
Select a programme
Select additional options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap,
unload the racks
The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.
If necessary (and if provided).
The corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Press the ON /
All the indicator lamps switch off.
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme in progress”
Press the START button for 2 sec. until the
Start indicator lamp switches off.
Select another programme and press the
START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
OFF
button.
Page 2
Dishwasher loading instructions and racks provided
Upper rack:
Multi-purpose support (A):
Depending on the position, for longhandles utensils, cups and glasses. May be
used in three different positions.
Crockery holders (B):
Depending on the position, for example
plates, cups and long-stemmed glasses.
Revolving glass support (C):
Depending on the position, for example
small or long-stemmed glasses.
Long-handled utensils (e.g. carving forks,
knives) must be arranged with the sharp
end facing in towards the appliance.
Half Load:
Load the upper rack (see description of
Options).
Place the cutlery basket (D) in the upper
rack.
Rack height adjustment
(also when loaded):
•
Lower adjustment:
rack handles outwards (E) and lower
the rack.
•
Upper adjustment:
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both sides.
Removing the top rack to provide
clearance for large items of crockery in
the bottom rack:
Open the rack guide retainers (F) on the
right and left and remove the top rack.
When the upper rack is in place the
retainers must always be closed.
1)
2)
pull out the
pull the
two
two
depending on the model
Retainer
closed
F
Retainer
F
open
Lower rack:
Depending on the model with fixed, tilting
(G) or tilting split plate holders (H).
Half Load:
Load the lower rack (see description of
Options).
Greater washing power, particularly for
plates and saucepans.
I
Power Clean load
Increased wash power in the dedicated area
(I) and high flexibility for lower rack loading.
H
Cutlery basket (J) or (L):
Some models are provided with a grid (K)
that can be fitted onto the cutlery basket to
keep items separated. Cutlery basket (D), if
provided, for appliances with half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the sharp end
facing downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a dishwasher, for example
wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery .
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369 series.
2)
Revolving glass support (C) - N. WGH 1000 series.
Page 3
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see
also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working
If crockery is not
perfectly dry
If crockery is not
perfectly clean
Sandy or grainy
residues
Colour of plastic parts
faded
• No water supply. • Open the tap.
• The appliance does not load sufficient
water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. •Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
• The water jet does not reach the
crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice, ... • Depending on the material, if necessary use a
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the safety circuit breaker.
• Arrange crockery so that items do not touch each
other. Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
•Removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• Not removable • Insufficient water softening, calcium
Opaque glasses/ glasses
deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if necessary add salt *.
not sparkling
Rust on cutlery
Identifying appliance
faults
If, after carrying out the above checks, the fault persis ts, switch off the appliance, disconnect the mains plug and turn off the
water tap. Contact the After-Sales Service (see warranty).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault
• The appliance type and model
• The service code (the number indicated on the adhesive rating plate)
inside the door on the right-hand side.
• Not made of stainless steel. •Use suitable cutlery.
• The START indicator lamp flashes.
• Indicator F... (if provided).
• Ensure the filter assembly is not clogged and that
there is no interruption to the water supply
(if necessary, clean the filters *). Start the programme
again. Press the ST ART button for 2 seconds, until the
START indicator lamp switches off . Select a new
programme and press the Start button again.

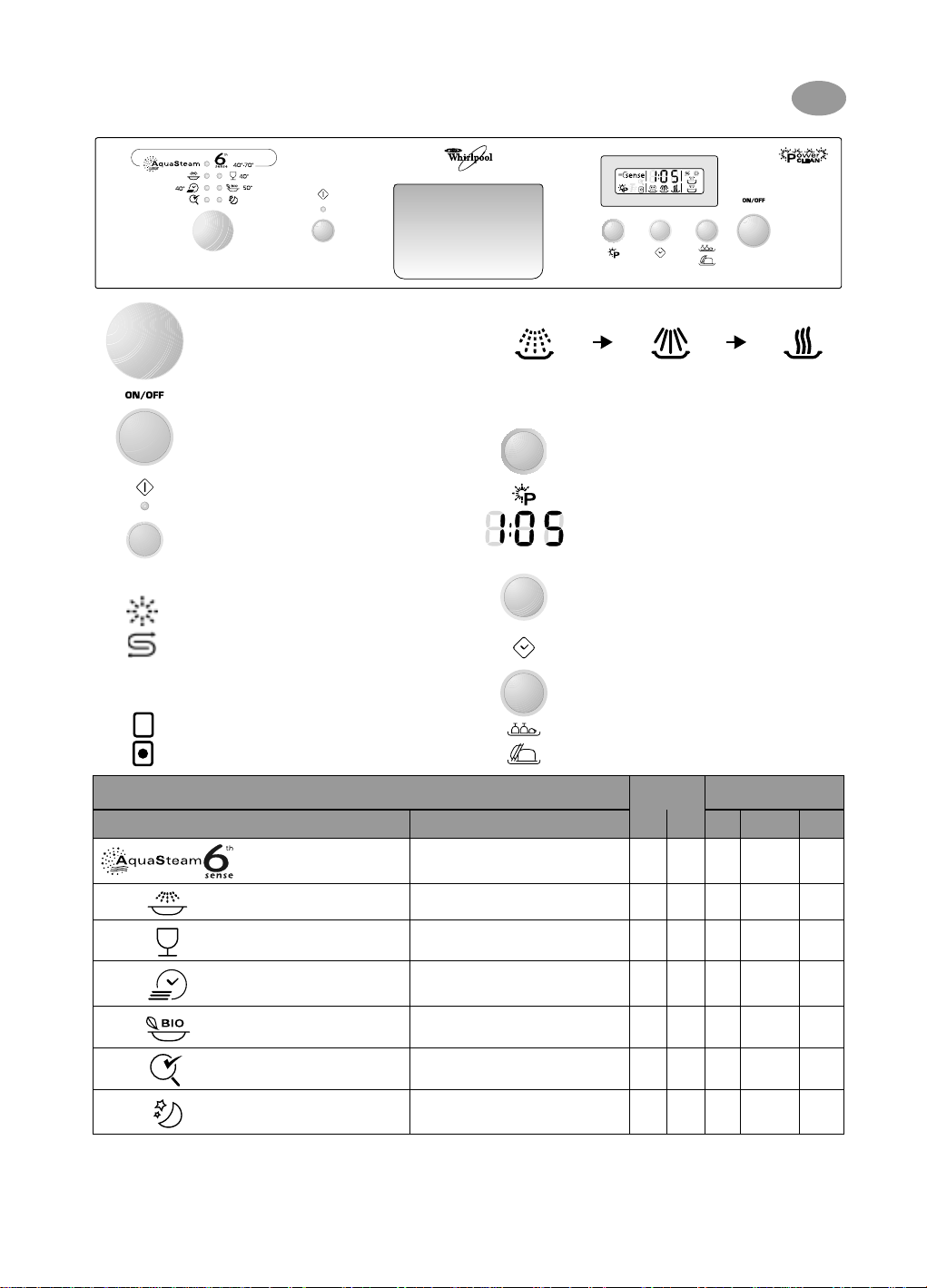

Page 4
Before using the dishwasher, read the user instructions!
ADG 8921
Indicators
Quick Reference Guide
Wash cycle
Programme selection button
Pre-Rinse Washing Drying
Options
On / Off button
Start button
Switches “on” when the dishwasher is operating. Flashes when a
fault occurs. Switches off at the end of the programme.
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before starting a
wash programme.
Detergent light
No light = detergent in powder
The symbol lights up = tablets 2 in 1
The symbol lights up = tablets 3 in 1.... X in 1
(For adjustment refer to “How to use the appliance”)
Programmes Loading instructions A B
or
or
Programme chart
AquaSteam
6)
40-70°C
Lightly, normally or heavily soiled
crockery, including pots and pans.
3)
Power Clean
An increased pressure combined with additional spray level
offers better cleaning result and more flexibility of dish
loading in the lower rack.
Time and failure display
Indicates in hours the time remaining until the start of the
wash cycle. Switches off when the programme starts and
indicates the time remaining in hours and minutes.
“F....” Identification of faults for service technician
“Delayed start” button
The wash cycle can be programmed to start after 1 - 24
hours. With each successive touch of the button, the delayed
start indicator increases by 1 hour, and after 24 returns to
00. Then press the Start button. The dishwasher will start at
the set time.
“Half load - Multizone” button
Load the upper or lower rack only.
This function can be used with any programme.
Press once = upper rack (the indication lamp/symbol comes on)
Press twice = lower rack (the indication lamp/symbol comes on)
Press 3 times = Off (half load function deactivated).
When washing without the top rack, press the “Half Load”
button twice, or “Lower rack wash” (the corresponding
LED/symbol comes on).
Detergent
X X 7-17 0.99-1.75 65-220
6)
2)
Consumption
Litres kWh Minutes
GB
3)
Pre-Rinse cold
Glasses 40°C
Quickwash 40°C
1) 6)
Bio
Antibacterial
4) 5) 6)
Overnight 55°C
1) Reference programme for energy label EN 50242.
2) Refer to “User instructions”.
3) The data relevant to programmes are values obtained in the laboratory in conformity
with Standard EN 50242. In practice there may be time variations or leaps depending
on different loads, function options, sensor calibr ation ( only fo r sensor -cont rolled
programmes) water temperatures or hardness and different power supply voltages.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected]”.
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later . - - 4.0 0.03 14
Light soiling, for example glasses and
cups.
Lightly soiled crockery with no dried-on
food.
Normally soiled crockery. Energy saving
50°C
programme.
Normally or heavily soiled crockery, with
additional antibacterial action.
Normally soiled crockery, gentle and
quiet programme thanks to the low spray
pressure (39dbA).
4) The bacteria removal efficiency has been tested by the Institut Pasteur de Lille
(France), based on the NF EN 13697 standard of November 2001;
5) Programme interruption (e.g. the door being opened) may compromise the
result of the antibacterial rinse;
6) These programmes can be used with the “Power Clean” option.
(We reserve the right to make technical modifications)
X - 10.0 0.85 100
X - 10.0 0.65 30
X X 11.0 1.05 155
X X 13.0 1.50 115
X X 13.0 1.20 290
5019 396 01728
