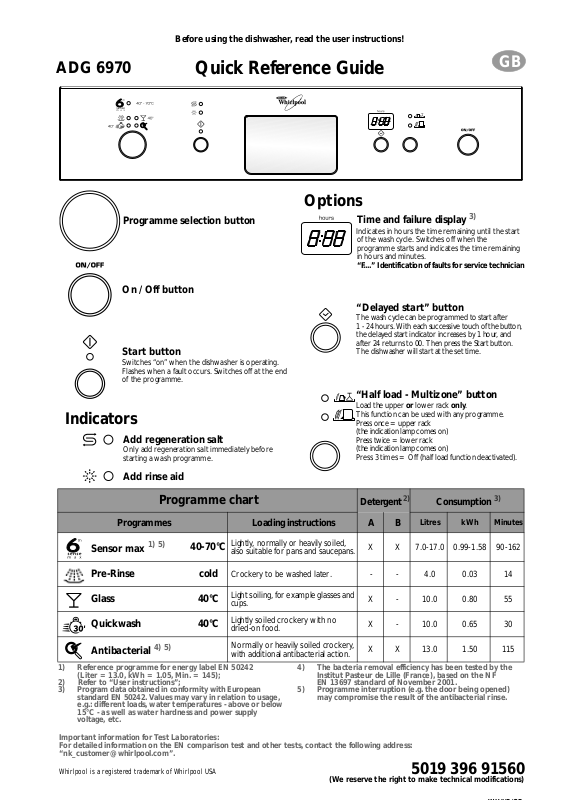

Whirlpool ADG 6970 Quick Reference Guide

Before using the dishwasher, read the user instructions!

ADG 6970

Indicators

Quick Reference Guide

Programme selection button

On / Off button

Start button

Switches “on” when the dishwasher is operating.
Flashes when a fault occurs. Switches off at the end
of the programme.

Add regeneration salt

Only add regeneration salt immediately before
starting a wash programme.

Add rinse aid

Options

GB

only

3)

.

Time and failure display

Indicates in hours the time remaining until the start
of the wash cycle. Switches off when the
programme starts and indicates the time remaining
in hours and minutes.

“F....” Identification o f faults for service technician

“Delayed start” button

The wash cycle can be programmed to start after
1 - 24 hours. With each successive touch of the button,
the delayed start indicator increases by 1 hour, and
after 24 returns to 00. Then press the Start button.
The dishwasher will start at the set time.

“Half load - Multizone” button

Load the upper or lower rack
This function can be used with any programme.
Press once = upper rack
(the indication lamp comes on)
Press twice = lower rack
(the indication lamp comes on)
Press 3 times = Off (half load function deactivated).

Programme chart

Detergent

2)

Programmes Loading instructions A B

Sensor max

1) 5)

40-70°C

Pre-Rinse cold

Glass 40°C

Quickwash 40°C

Antibacterial

1) Reference programme for energy label EN 50242
(Liter = 13.0, kWh = 1.05, Min. = 145);

2) Refer to “User instructions”;

3) Program data obtained in conformity with European
standard EN 50242. Values may vary in relation to usage,
e.g.: different loads, water temperatures - above or below
15°C - as well as water hardness and power supply
voltage, etc.

Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address:
“[e-mail]”.

Whirlpool is a registered trademark of Whirlpool USA

4) 5)

Lightly, normally or heavily soiled,
also suitable for pans and saucepans.

Crockery to be washed later. - - 4.0 0.03 14
Light soiling, for example glasses and

cups.
Lightly soiled crockery with no

dried-on food.
Normally or heavily soiled crockery,

with additional antibacterial action.

4) The bacteria removal efficiency has been tested by the
Institut Pasteur de Lille (France), based on the NF
EN 13697 standard of November 2001.

5) Programme interruption (e.g. the door being opened)
may compromise the result of the antibacterial rinse.

(We reserve the right to make technical modifications)

X X 7.0-17.0 0.99-1.58 90-162

X - 10.0 0.80 55

X - 10.0 0.65 30

X X 13.0 1.50 115

Consumption

Litres kWh Minutes

3)

5019 396 91560

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Switch on the appliance

Fill the detergent dispenser

Check the rinse aid level

Check the

regeneration salt level

Load the racks

Close the dishwasher door,

turn on the water tap

Select a programme

Press the ON / OFF button.

Compartment
With each wash cycle.
Compartment
For programmes with pre-wash only.

Mechanical indicator lamp C.
Electric indicator on control panel (if provided).

On models with water softener
system only.

Mechanical indicator lamp D. Electric
indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up.
Select the desired programme (using the specific button or knob).
The corresponding indicator lamp lights up.

A:

ABC

B:

Select additional options

Press the Start button

Wash cycle

Switch off the appliance

Turn off the water tap,

unload the racks

If necessary (and if provided).
The corresponding indicator lamp lights up.

The selected programme is
then memorised (even in the
event of power failure).

Only after the START button has switched off: Press the ON /
All the indicator lamps switch off.

Warning: When the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

“Change programme in progress”

Press the START button for 2 sec. until the
Start indicator lamp switches off.
Select another programme and press the

START button again.

- Only open the dishwasher if necessary
(Warning: beware of hot steam).

- If the appliance is switched off during a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.

OFF

button.
