Whirlpool Ad75ust0 Installation Template

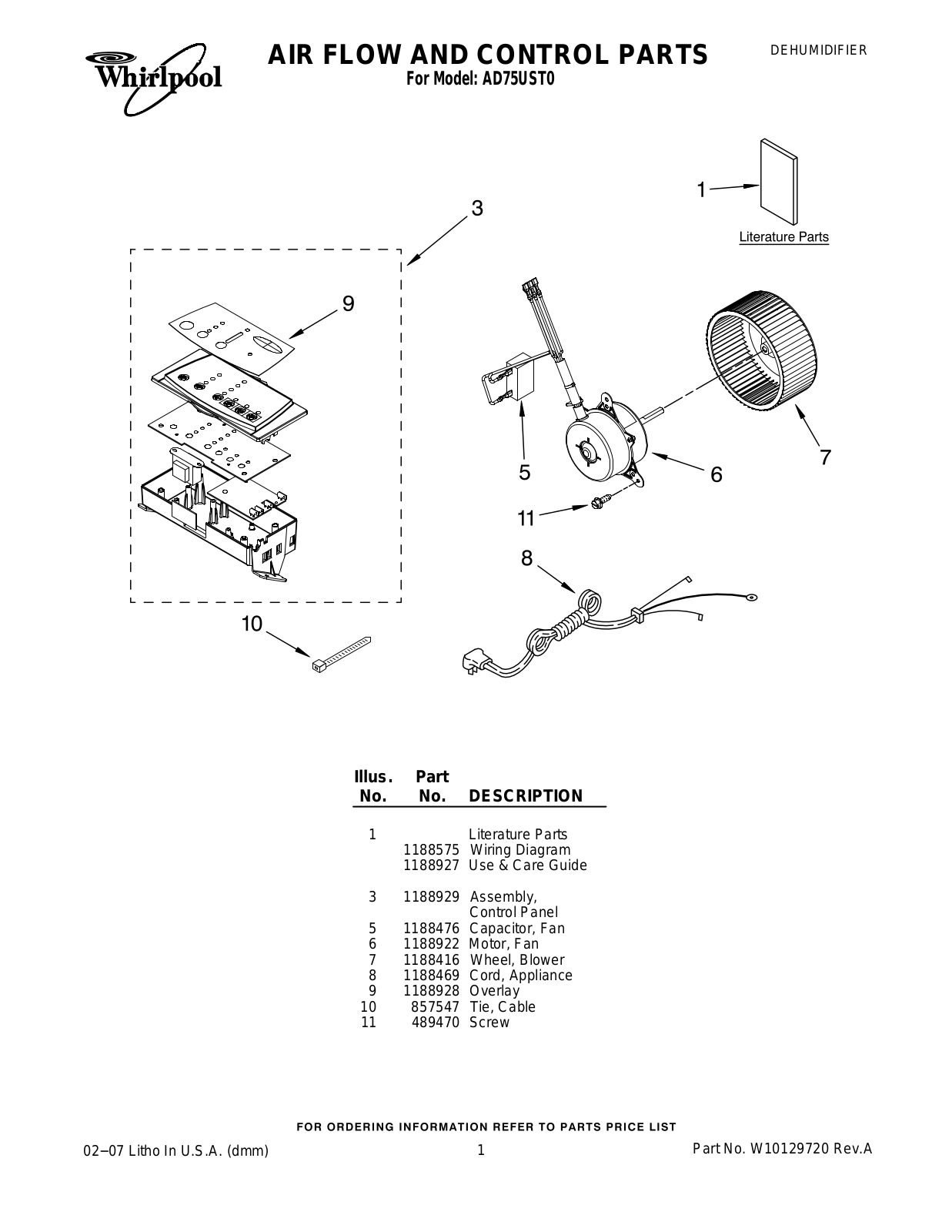

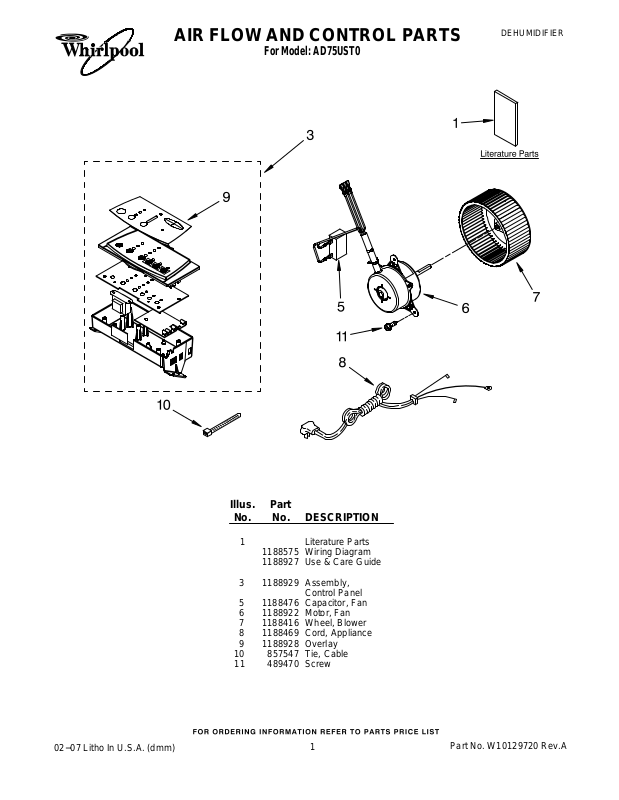

AIR FLOW AND CONTROL PARTS

For Model: AD75UST0

DEHUMIDIFIER

02−07 Litho In U.S.A. (dmm)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

1188575 Wiring Diagram
1188927 Use & Care Guide

3 1188929 Assembly,

Control Panel
5 1188476 Capacitor, Fan
6 1188922 Motor, Fan
7 1188416 Wheel, Blower
8 1188469 Cord, Appliance
9 1188928 Overlay

10 857547 Tie, Cable
11 489470 Screw

1

Part No. W10129720 Rev.A

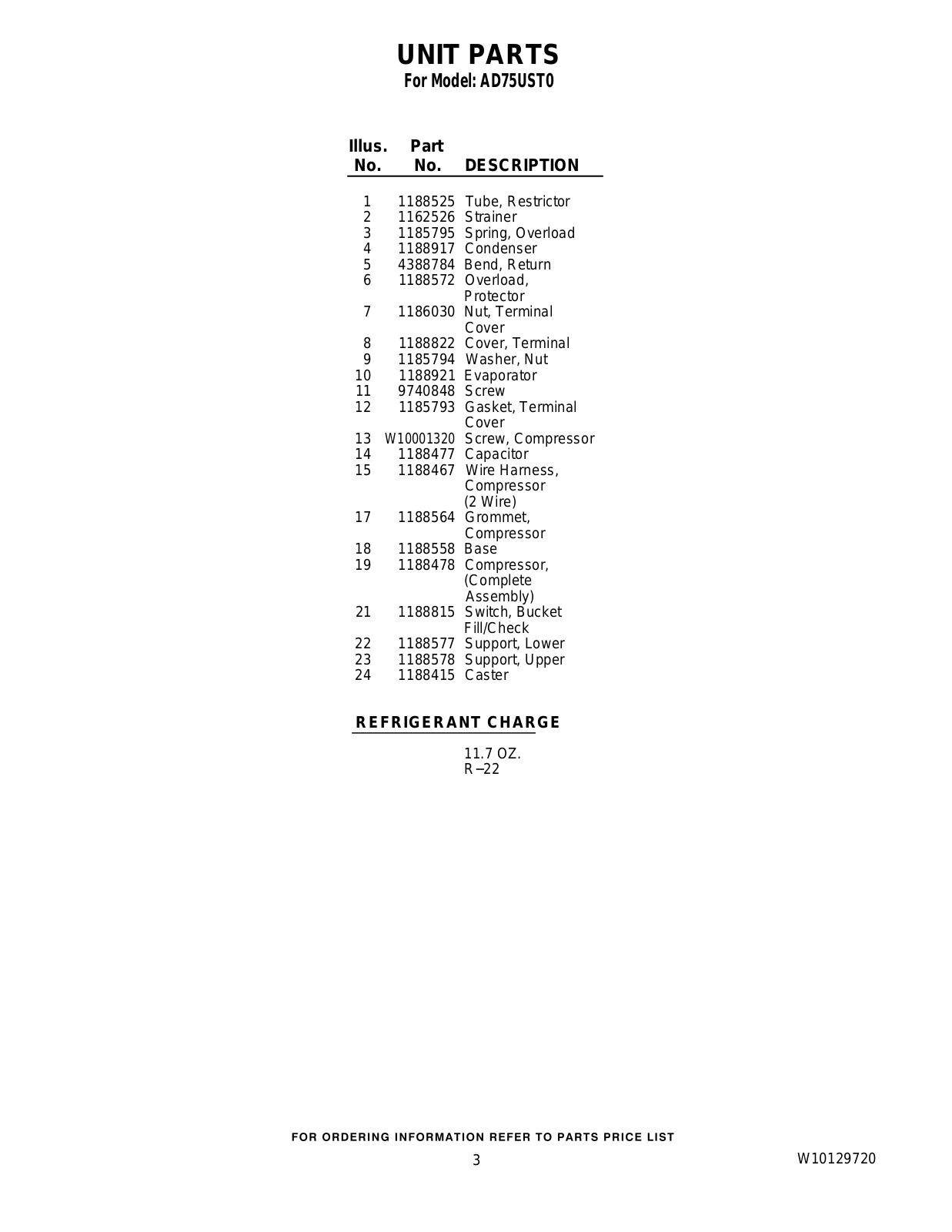

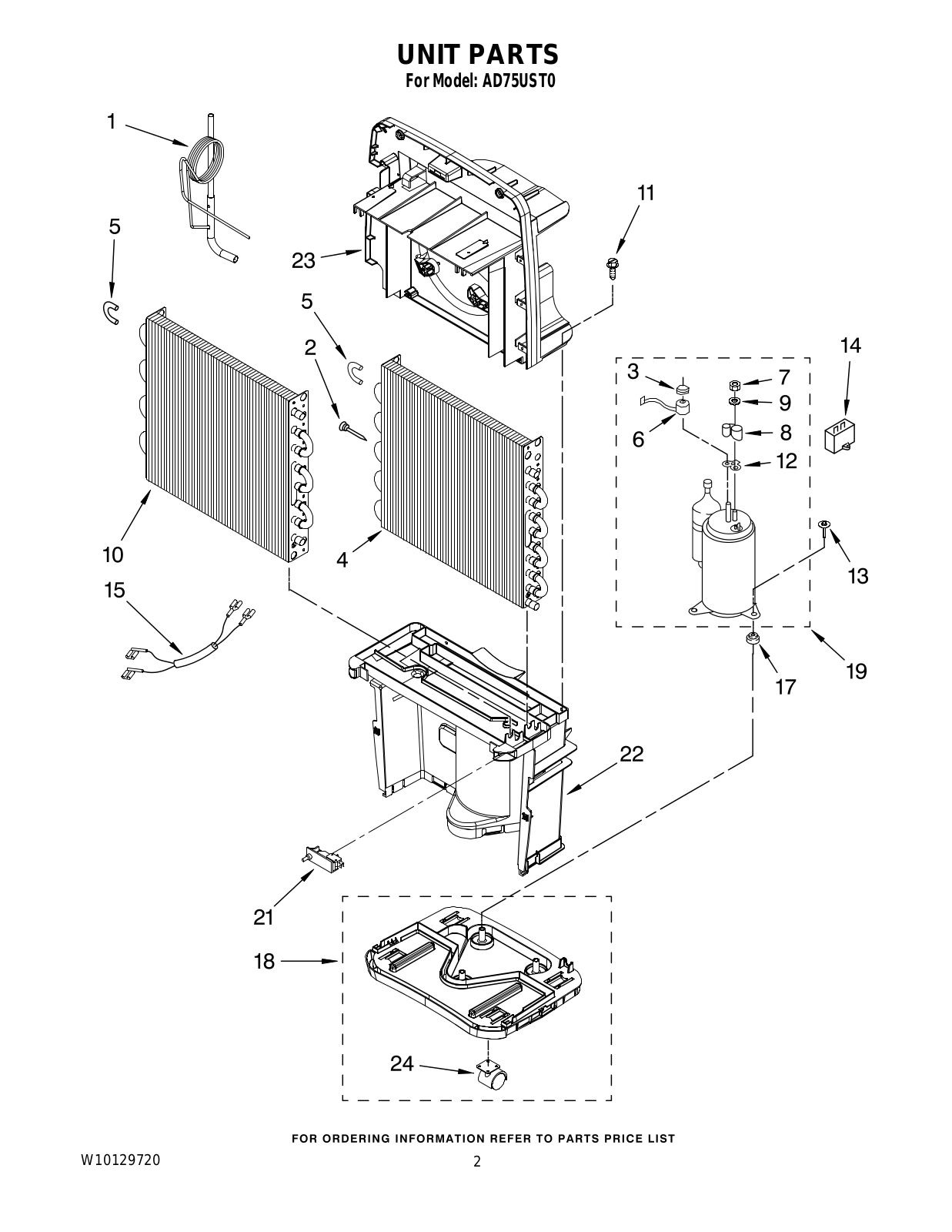

UNIT PARTS

For Model: AD75UST0

W10129720

2
