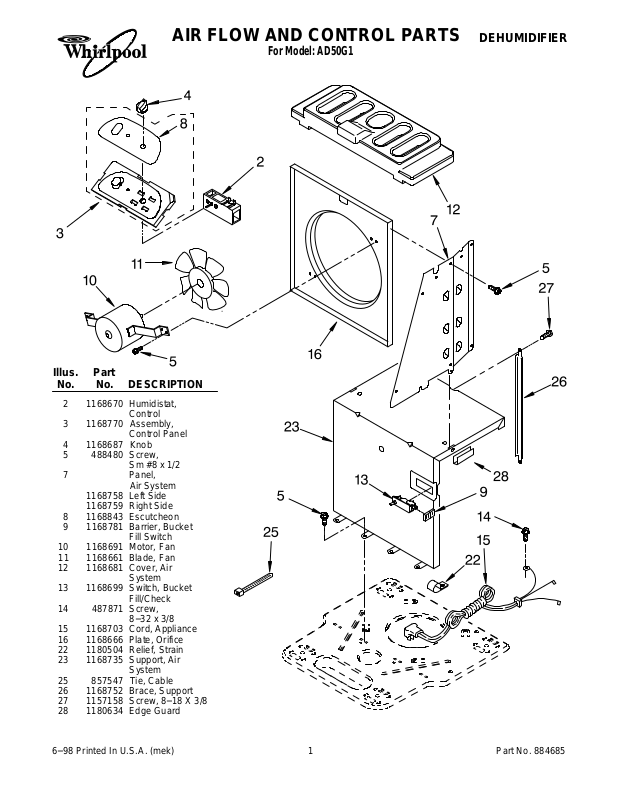

AIR FLOW AND CONTROL PARTS
For Model: AD50G1
DEHUMIDIFIER
Illus. Part
No. No. DESCRIPTION
2 1168670 Humidistat,
Control
3 1168770 Assembly,
Control Panel
4 1168687 Knob
5 488480 Screw,
Sm #8 x 1/2
7 Panel,
Air System
1168758 Left Side
1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket
Fill Switch
10 1168691 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air
System
13 1168699 Switch, Bucket
Fill/Check
14 487871 Screw,
8−32 x 3/8
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
22 1180504 Relief, Strain
23 1168735 Support, Air
System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard
6−98 Printed In U.S.A. (mek)
1
Part No. 884685
Page 2
UNIT PARTS
For Model: AD50G1
Illus. Part
No. No. DESCRIPTION
2 1168677 Tube, Restrictor
(Length 30.00")
3 1162526 Strainer
4 1169762 Bend, Return (2)
6 950061 Spring, Overload
7 1168657 Condenser
8 708531 Bend, Return (12)
9 1168777 Deicer, Bimetal
10 1163837 Overload,
Protector
11 950058 Relay, Start
Production Compressor Requires Production Electrical Components.
Service Compressor Requires Service Electrical Components.
For Further Information, Refer to Filmcard 19.1.
Illus. Part
No. No. DESCRIPTION
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1168655 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168701 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
2
Illus. Part
No. No. DESCRIPTION
25 1168669 Compressor,
(Complete
Assembly)
26 1168761 Pan, Drain
27 854624 Bend, Return (9)
29 1162650 Insulation
(Restrictor Tube)
REFRIGERANT CHARGE
10.00 Oz.
884685
Page 3

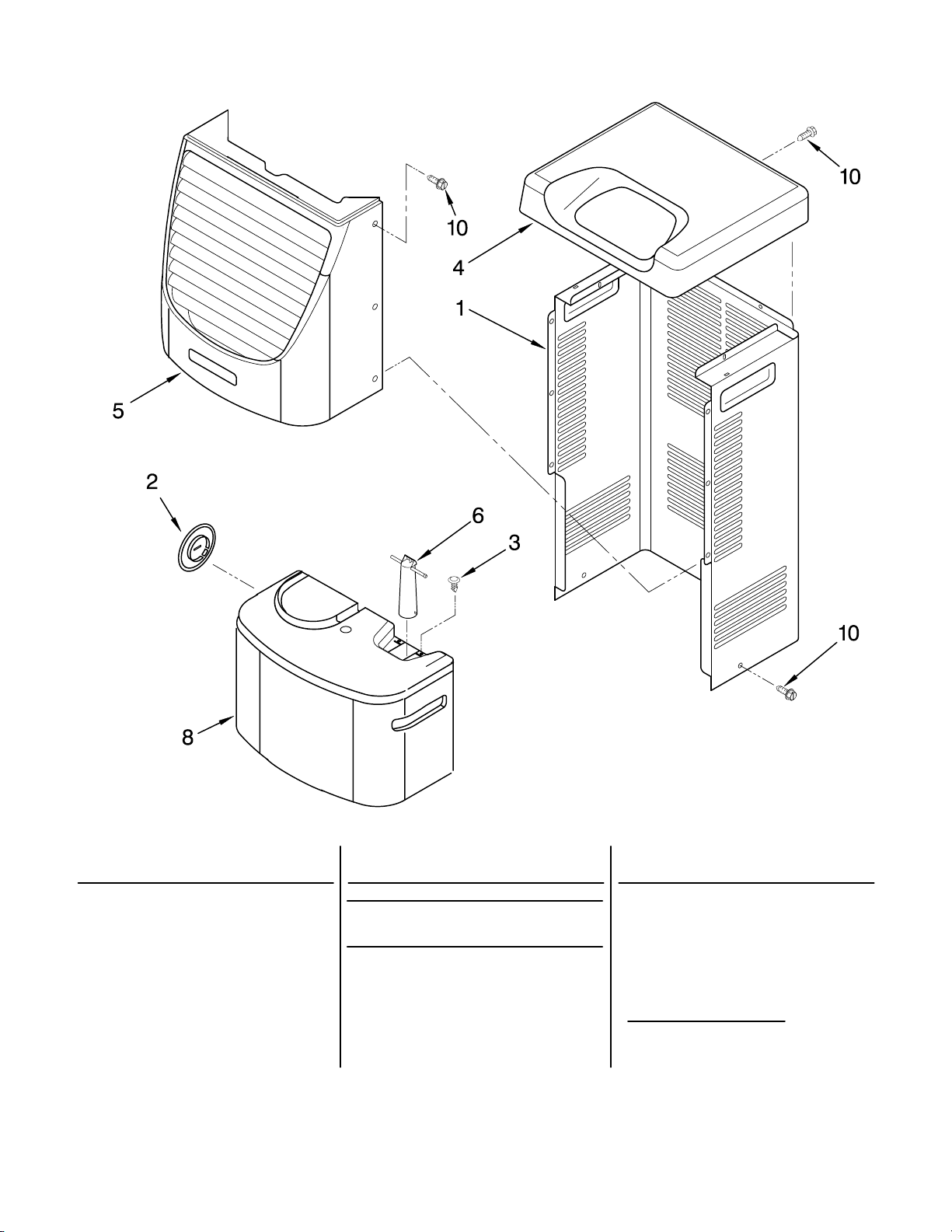

CABINET PARTS
For Model: AD50G1
Illus. Part
No. No. DESCRIPTION
1 1168667 Cabinet
2 1172098 Cover, Hose
Connection
3 1168762 Clip, Float
4 1168652 Cover, Top
5 1182061 Cover, Front
6 1172075 Float
8 1182080 Bucket,
Condensate
10 1168744 Screw
884685
Illus. Part
No. No. DESCRIPTION
Following Parts Not Illustrated
and Optional Parts Not Included
484310 Epoxy, Tube
(Aluminum Repair)
505168 Tape, No Drip
Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
3
Illus. Part
No. No. DESCRIPTION
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865 Seal, Ring
Access Valve
(20 Pack)
LITERATURE PARTS
LIT1168765
LIT1172401
Wiring Diagram
Use and Care Guide
