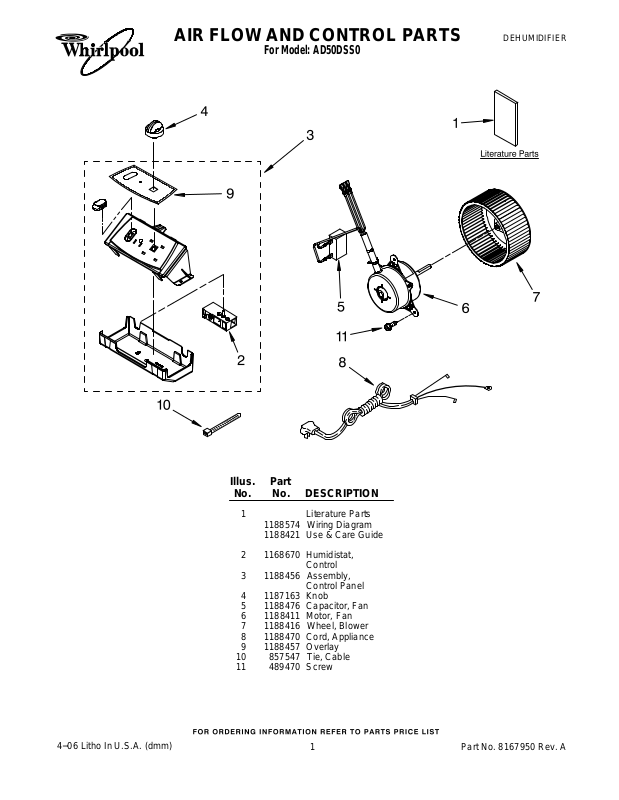

Page 1
AIR FLOW AND CONTROL PARTS
For Model: AD50DSS0
DEHUMIDIFIER
4−06 Litho In U.S.A. (dmm)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
1188574 Wiring Diagram
1188421 Use & Care Guide
2 1168670 Humidistat,
Control
3 1188456 Assembly,
Control Panel
4 1187163 Knob
5 1188476 Capacitor, Fan
6 1188411 Motor, Fan
7 1188416 Wheel, Blower
8 1188470 Cord, Appliance
9 1188457 Overlay
10 857547 Tie, Cable
11 489470 Screw
1
Part No. 8167950 Rev. A
Page 2
UNIT PARTS
For Model: AD50DSS0
8167950
2
Page 3
UNIT PARTS
For Model: AD50DSS0
Illus. Part
No. No. DESCRIPTION
1 1188524 Tube, Restrictor
2 1162526 Strainer
3 1185795 Spring, Overload
4 1188484 Condenser
5 4388784 Bend, Return
6 1188186 Overload,
Protector
7 1186030 Nut, Terminal
Cover
8 1188822 Cover, Terminal
9 1185794 Washer, Nut
10 1188443 Evaporator
11 9740848 Screw
12 1185793 Gasket, Terminal
Cover
W10001320
13
14 1188477 Capacitor
15 1188467 Wire Harness,
16 1188468 Wire Harness,
17 1188564 Grommet,
18 1188558 Base
19 1188418 Compressor,
20 1182480 Putty, Sound
21 1188814 Switch, Bucket
22 1188393 Support, Lower
23 1188394 Support, Upper
24 1188415 Caster
25 1188466 Bi−metal, Defrost
Screw, Compressor
Compressor
(2 Wire)
Compressor
(3 Wire)
Compressor
(Complete
Assembly)
Damping
Fill/Check
REFRIGERANT CHARGE
7.50 oz.
R−22
3
8167950
Page 4

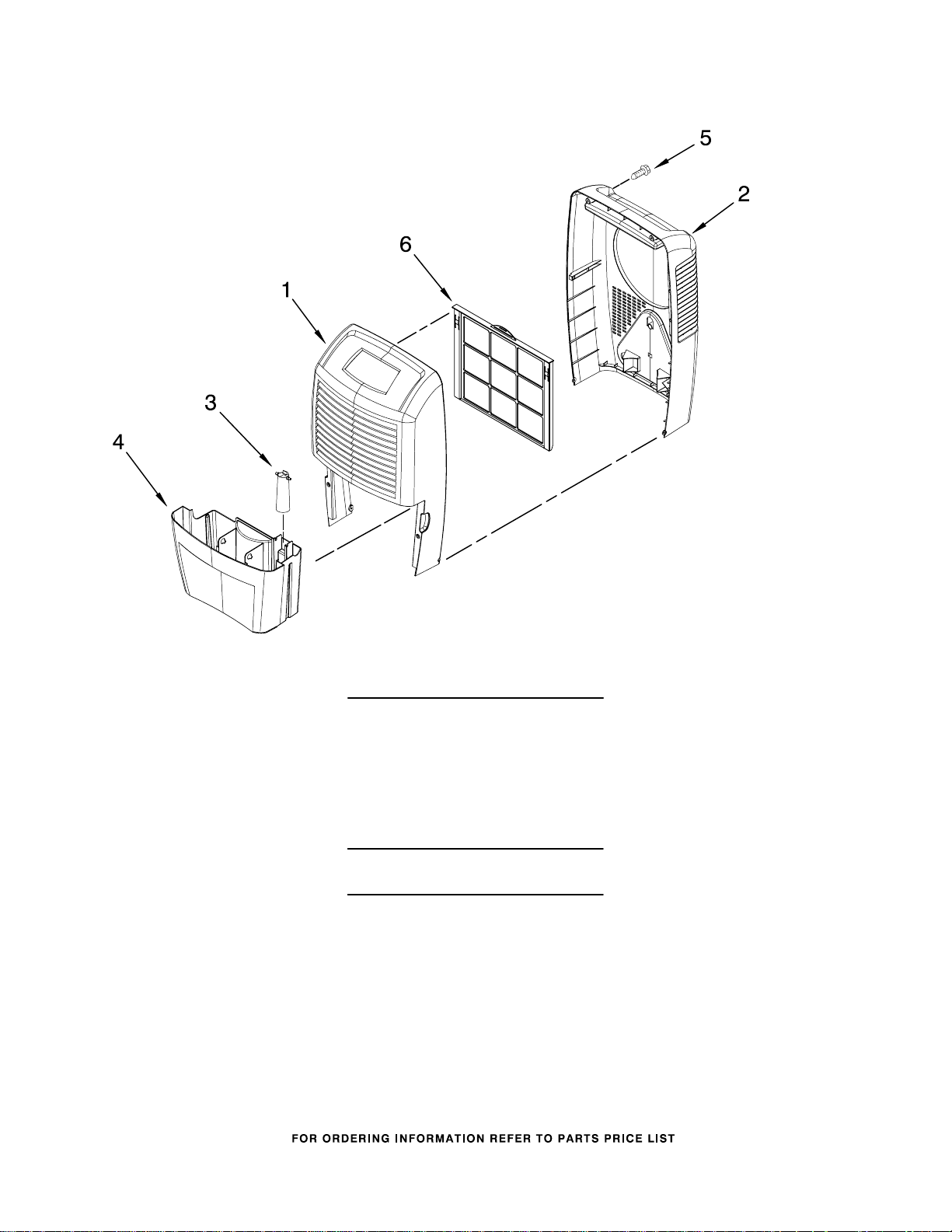

CABINET PARTS
For Model: AD50DSS0
Illus. Part
No. No. DESCRIPTION
1 1188395 Cabinet, Front
2 1188396 Cabinet, Rear
3 1188341 Float
4 1188527 Bucket Assembly
(Includes Item 6)
5 9742177 Screw
6 1188402 Filter
Following Parts Not Illustrated
and Optional Parts Not Included
484310 Epoxy, Tube
(Aluminum Repair)
505168 Tape, No Drip
Valve, Access
978025 1/4" Tube O.D.
978026 5/16" Tube O.D.
978027 3/8" Tube O.D.
978028 1/2" Tube O.D.
978029 5/8" Tube O.D.
978030 3/4" Tube O.D.
978865Bulk
Seal, Ring
Access Valve
(20 Pack)
4
8167950
