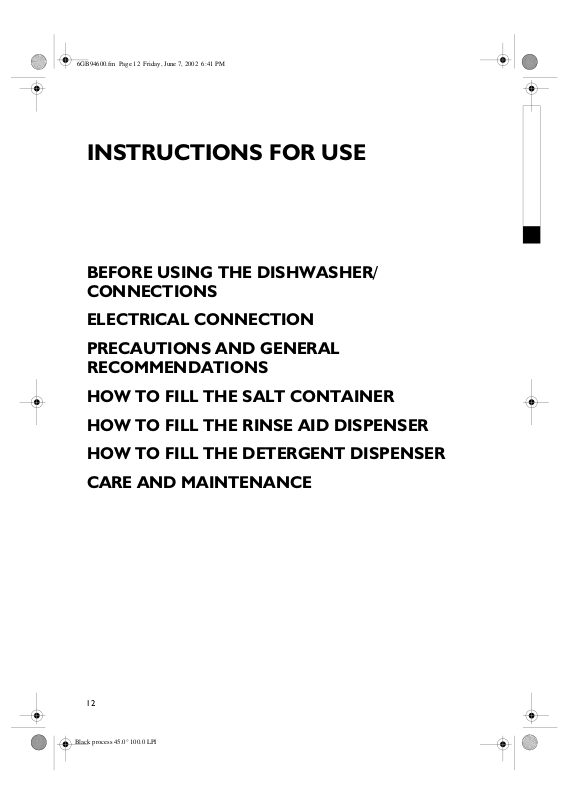

INSTRUCTIONS FOR USE
BEFORE USING THE DISHWASHER/
CONNECTIONS
ELECTRICAL CONNECTION
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO FILL THE SALT CONTAINER
HOW TO FILL THE RINSE AID DISPENSER
HOW TO FILL THE DETERGENT DISPENSER
CARE AND MAINTENANCE
12
Black process 45.0° 100.0 LPI
Page 2
6GB94600.fm Page 13 Friday, June 7, 2002 6:41 PM
BEFORE USING THE DISHWASHER/
CONNECTIONS
1. Removing the packaging and controls:
After unpacking, make sure that the dishwasher is
undamaged and that the door closes correctly. If in
doubt, contact a qualified technician or your local
retailer.
•
Keep the packaging materials (plastic bags,
polystyrene parts, etc.) out of reach of children, as
they are potentially dangerous.
2. Water and electrical connections:
All water and electrical connections must be
carried out by a qualified technician in compliance
with the manufacturer's instructions (refer to the
enclosed installation booklet) and current local
safety regulations.
The appliance must only be used in the household
for the prescribed uses.
Do not use the dishwasher if it has been damaged
in transit. Consult your local retailer or our
After-Sales Service.
(Refer to the separate installation
instructions booklet)
3. Water inlet and drain:
•
Observe any special regulations issued by your local
Water Board.
Water supply pressure: 0.3 - 10 bar.
•
Make sure the inlet and drain hoses are kink-free
and are not crushed.
•
If the hose length is not sufficient, please contact
your local dealer or our After-Sales Service.
•
The inlet hose must be securely clamped to the
water tap to prevent leaks.
•
The inlet water temperature varies according to the
model installed. Inlet hose marked “25°C Max”:
maximum temperature 25°C.
All other models: maximum temperature 60°C.
•
When installing the appliance, make sure the drain
water discharges correctly (if necessary, remove
the wire gauze from the sink siphon).
•
Fix the drain hose to the spigot with a clamp to
prevent it from coming off during operation.
For appliances with water-stop system only: if
the water connections are made correctly, the
water-stop system safeguards your home against
damage caused by flooding.
4. Electrical connection:
•
Closely adhere to local Electricity Board regulations.
•
Voltage information is shown on the rating plate
mounted inside the door on the right hand side.
•
The appliance must be earthed as prescribed by
law.
•
Do not use extension leads or multiple adapters.
•
Before carrying out maintenance, disconnect the
mains plug.
•
The power cable must only be replaced by
authorized personnel.
• For Austria:
a fault current switch, this must be sensitive to the
pulsating current.
if the apparatus is series connected to
Black process 45.0° 100.0 LPI
13
Page 3
6GB94600.fm Page 14 Friday, June 7, 2002 6:41 PM
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
1.
Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please contact
Whirlpool Service for further instruction. Please do not attempt to
change plug yourself. This procedure needs to be carried out by a
qualified Whirlpool technician in compliance with the manufactures
instructions and current standard safety regulations.
14
Black process 45.0° 100.0 LPI
Page 4
6GB94600.fm Page 15 Friday, June 7, 2002 6:41 PM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
1. Packing
The packing box may be fully recycled as
confirmed by the recycling symbol .
2. Energy and water saving tips:
•
Do not rinse crockery under running water.
•
Always fully load the dishwasher before switching
on.
•
If ecological energy sources are available, such as
solar panel heating, heat pumps or centralised
heating systems, the appliance may be connected to
the hot water mains up to a maximum temperature
of 60°C. Make sure the water inlet hose is of the
correct type. Refer to the “Connections” chapter in
these user instructions.
3. Disposal:
The appliance is built from reusable materials. If
you decide to scrap the dishwasher, it must be
disposed of in compliance with local waste disposal
laws.
Before scrapping, cut off the power cable so that
the appliance cannot be connected to the mains.
4. Child safety:
•
Children must not be allowed to play with the
dishwasher.
•
Store the detergent, rinse aid and salt in a dry place
out of the reach of children.
5. General recommendations:
•
The open dishwasher door can only support the
weight of the loaded rack when pulled out. Do not
rest objects on the open door or sit or stand on it:
the appliance may topple over!
•
Do not use solvents inside the dishwasher:
explosion!
•
Only use detergents, rinse aids and regeneration
salts specially recommended for use in domestic
dishwashers.
•
Before cleaning or carrying out maintenance,
switch off the appliance and turn off the water tap.
•
If a fault occurs, switch off the appliance and turn off
the water tap.
•
If necessary, the power cable may be replaced with
one the same obtained from our After-Sales
Service. The power cable must only be replaced by
a qualified technician.
•
On completion of the programme switch off the
dishwasher and turn off the water tap.
risk of
6. For appliances with water stop system:
The water inlet hose and plastic casing contain
electrical components. Do not therefore cut the
hose or immerse the plastic casing in water.
If the hose is damaged switch off the appliance
immediately.
EC Declaration of conformity:
This appliance has been designed, constructed and
distributed in compliance with the safety
requirements of EC Directives:
•
73/23/EC
•
89/336/EC
•
93/68/EC
Load capacity:
9 place settings.
Black process 45.0° 100.0 LPI
15
Page 5
6GB94600.fm Page 16 Friday, June 7, 2002 6:41 PM

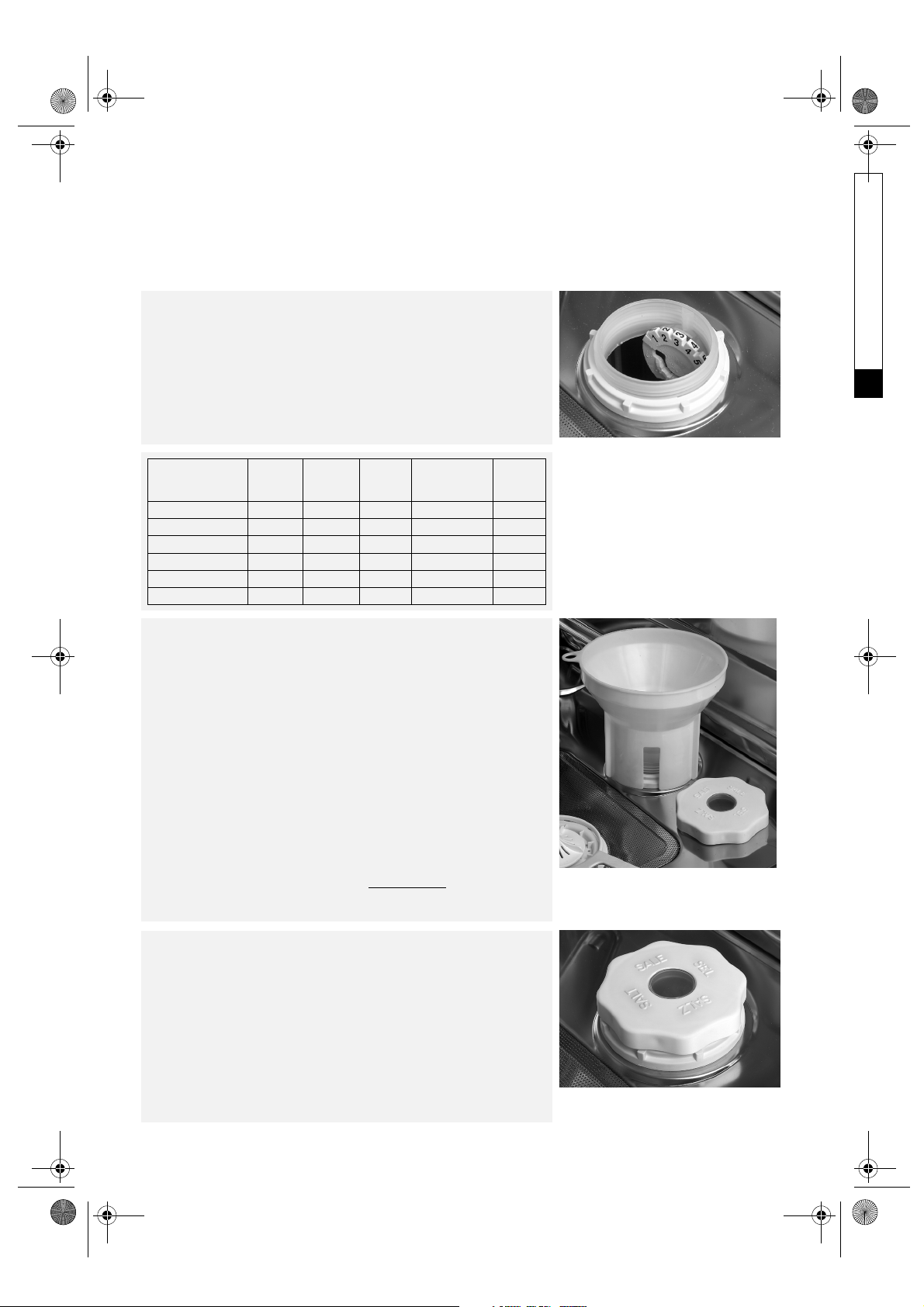

HOW TO FILL THE SALT CONTAINER
From a water hardness category of 1–2 (medium), before using the
dishwasher for the first time, fill the salt container with regeneration salt
(to find out the hardness level of water in your area, contact your local
Water Board or check the last bill you received).
If the water hardness level does not correspond to position 3 on the
selector (factory setting) or if the water hardness level changes:
Turn the selector to the correct position:
Set the water hardness by turning the selector inside the salt container.
Use the table below to set the dial to the correct setting:
Hardness
level
1 soft 0 - 4 0 - 7 0 - 0.7 0 - 5.0 1
1 - 2 medium 5 - 9 8 - 15 0.9 - 1.6 6.3 - 11.3 1
2 average 10 - 22 16 - 30 1.8 - 4.0 12.5 - 27.5 2
3 medium-hard 23 - 29 31 - 45 4.1 - 5.2 28.8 - 36.3 3
4 hard 30 - 35 46 - 60 5.4 - 6.3 37.5 - 43.8 4
5 extremely hard 36 - 41 61 - 80 6.5 - 7.4 45.0 - 51.3 5
German
degrees
°dH
French
degrees
°fH
mmol/l Clarke scale
or English
degrees °eH
Setting
How to fill the salt container
Warning: only use regeneration salts for use in domestic
dishwashers!
Do not fill the salt container with unsuitable substances, such as
detergent, as this will cause irreparable damage to the water softener
system.
1.
Remove the lower rack.
2.
Unscrew the cap by turning it counter-clockwise.
3.
When first using the dishwasher: fill the salt container to the rim with
water.
4.
Fill the salt container with regeneration salt to the rim (using
the funnel provided) (when filling for the first time min. 1.5 kg and
max. 2 kg) and stir with a spoon handle.
5.
Screw the cap back on by turning it clockwise.
6.
Fit the lower rack.
7.
If regeneration salt is to be added,
immediately
start a wash
programme (rinsing alone is not sufficient) in order to eliminate
any residual saline solution straight away and avoid corrosion.
If the water hardness level falls within
category 1 (soft), no salt is required.
Salt level indicator
The dishwasher is equipped with an electric or visual salt level
indicator (depending on the model installed).
Electric indicator
The salt level indicator lamp on the control panel lights up when the
salt container is empty.
Visual indicator
The float is clearly visible in the cap window when the salt container is
full (see photo).
The float lowers and is no longer visible when the salt container is
empty.
16
Black process 45.0° 100.0 LPI
Page 6
6GB94600.fm Page 17 Friday, June 7, 2002 6:41 PM

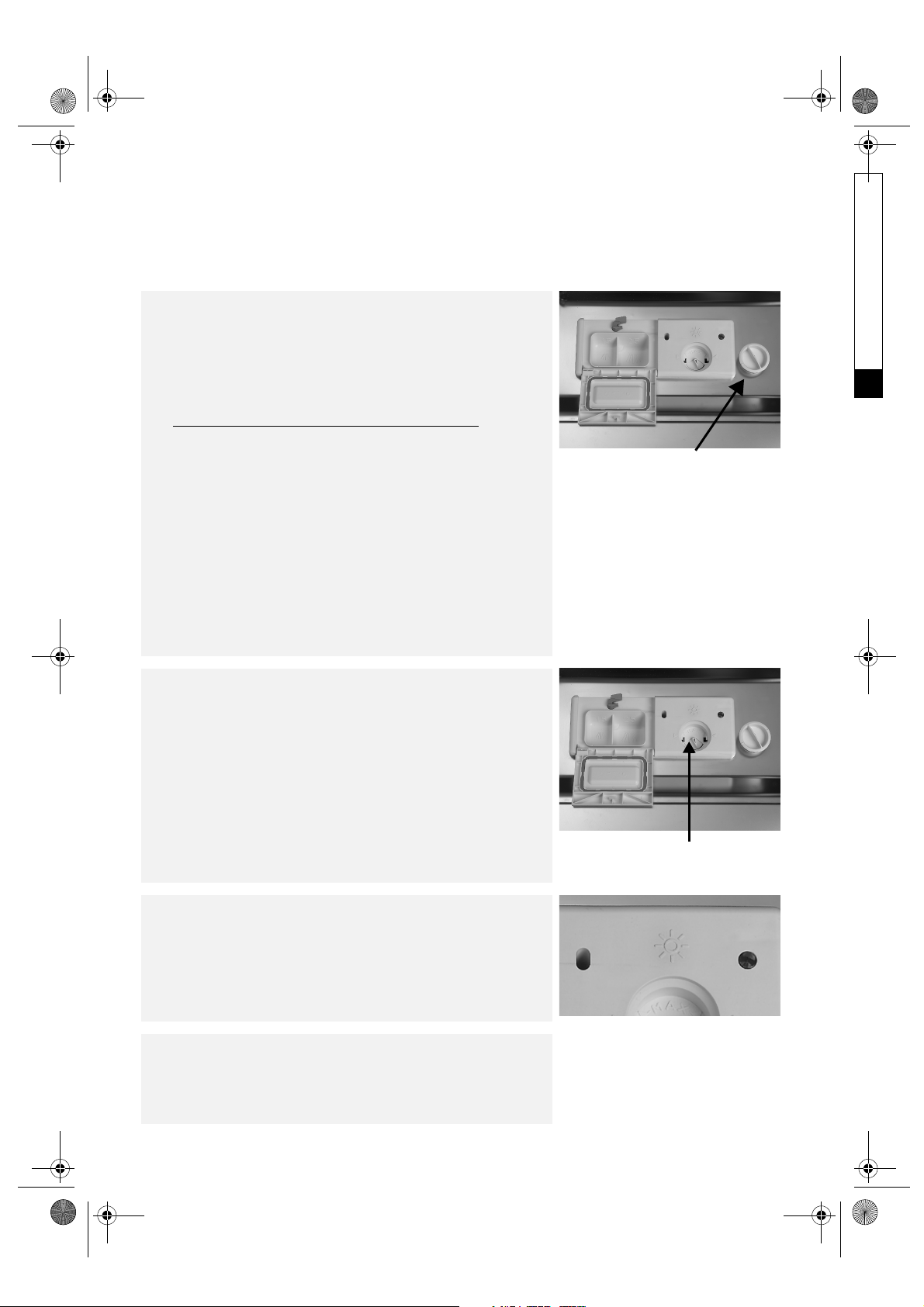

HOW TO FILL THE RINSE AID DISPENSER
The rinse aid facilitates drying and prevents the formation of unsightly
spots and streaks on crockery. Before using the dishwasher for the
first time, fill the rinse aid dispenser. Only use rinse aids recommended
for use in domestic dishwashers.
1.
Unscrew the cap A by turning it counter-clockwise (see picture).
2.
Fill the dispenser with rinse aid up to the dotted line
(approx. 140 cc).
Immediately wipe away any rinse aid spilt accidentally!
This prevents the formation of excessive amounts of foam, which
might spoil washing results.
3.
Close the cap.
Thereafter, regularly check the rinse aid level.
“max”
A
How to adjust the rinse aid dosage regulator
Factory setting: medium position.
If you are not satisfied with washing or drying results, change the rinse
aid dosage setting.
1.
Unscrew the cap (A) by turning it counter-clockwise (see drawing).
2.
If crockery is prone to whitish streaks: reduce the dosage by
turning the dial (B) to a lower setting. If crockery is not perfectly
dry: increase the dosage by turning the dial to a higher setting.
3.
Close the cover.
Rinse aid level indicator:
Visual indicator:
light
dark
Electric indicator (if provided):
The indicator lamp on the control panel lights up when more rinse aid
needs to be added.
add rinse aid
sufficient rinse aid.
Do not add any!
B
Black process 45.0° 100.0 LPI
17
Page 7
6GB94600.fm Page 18 Friday, June 7, 2002 6:41 PM
HOW TO FILL THE DETERGENT DISPENSER
A small compartment and a large compartment are provided for the
detergent.
The use of detergent in excess of the recommended dosage may cause
pollution. The recommended dosage varies for different brands.
If you use detergents in pellet form, follow the manufacturer's
directions for use.
“New generation” detergents contain enzymes that give better
washing results when Bio programmes are used. However, these
programmes are also suitable for all other dishwasher detergents.
How to fill the detergent dispenser:
Only use detergents recommended for use in domestic dishwashers.
Only fill the detergent dispenser prior to starting a wash
programme.
1.
Press button (C) to open the cover.
2.
How to fill the detergent dispenser.
Programmes with pre-rinse:
-
Pour two thirds of the recommended dosage in the
large compartment (B
-
Pour the remaining third in the
Programmes without pre-rinse:
-
Pour the entire recommended dosage into the large
compartment (B). If the recommended dosage on the
detergent pack is over 45 ml (maximum capacity of the large
compartment), pour the remaining detergent into the small
compartment (A).
3.
Close the cover.
).
small compartment (A
).
A
C
B
18
Black process 45.0° 100.0 LPI
Page 8
6GB94600.fm Page 19 Friday, June 7, 2002 6:41 PM

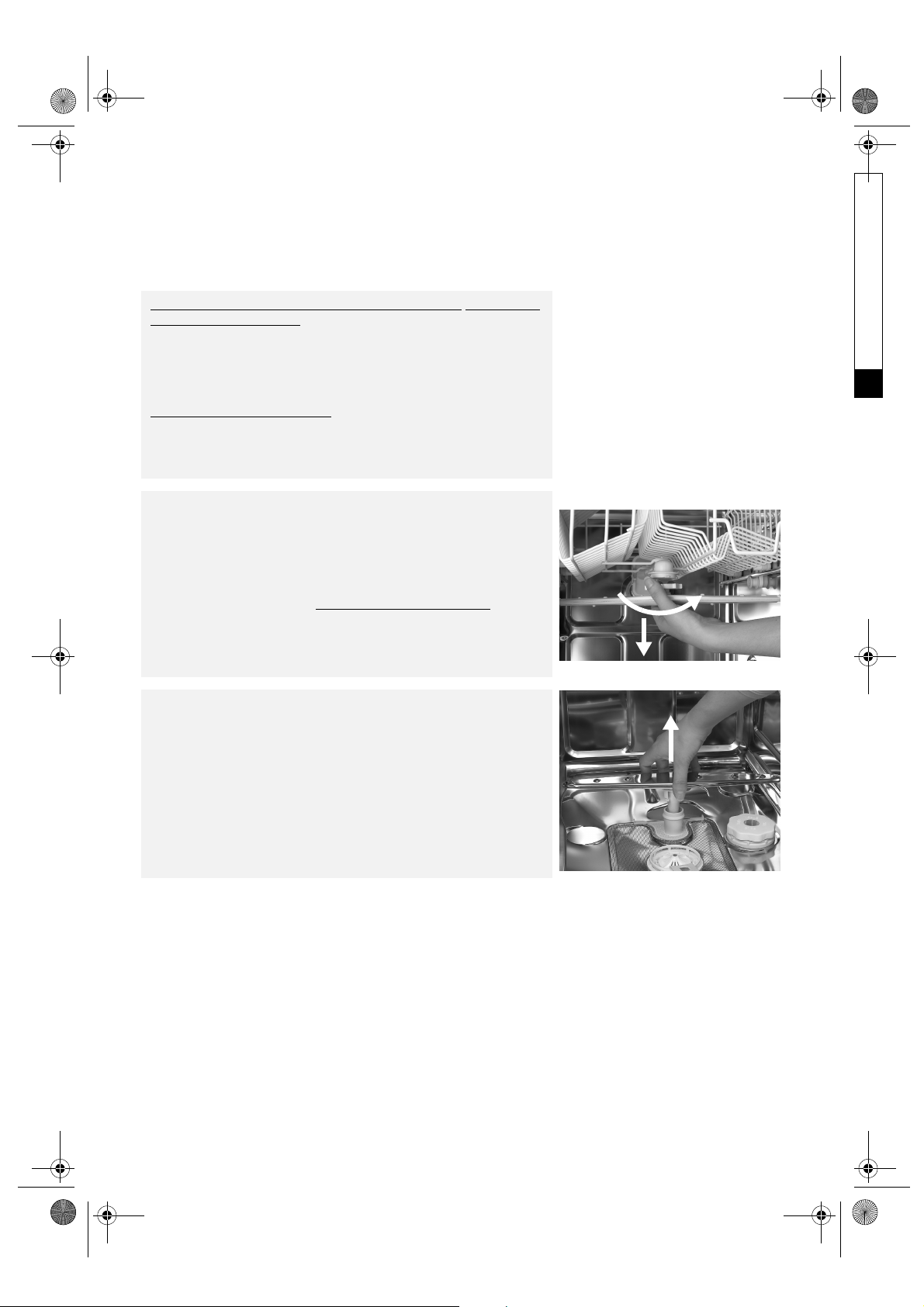

CARE AND MAINTENANCE
Before cleaning or carrying out maintenance, switch off the appliance
and turn off the water tap.
Cleaning the outside of the appliance:
To clean the outside of the appliance, use a neutral detergent and a
damp cloth.
Clean the control panel with a damp cloth only.
Do not use abrasive detergents.
Cleaning the inside of the dishwasher:
Regularly wipe the door seal and inside of the door with a damp cloth
to remove any food residues.
Upper spray arm:
1.
Slacken the fixing nut (A) (by turning it counter-clockwise) and
detach the spray arm (B) by pulling it down.
2.
Rinse the nozzles.
3.
To remount the spray arm, align it and then tighten the fixing nut
(by turning it clockwise), paying attention not to bend it.
The fixing nut must be tightened correctly!
Make sure the spray arm rotates freely.
A
B
Lower spray arm:
1.
Remove the spray arm by pulling it upwards (C).
2.
Rinse the nozzles.
3.
To remount the spray arm, align it with the mounting and insert it
by pushing it down.
Make sure the spray arm rotates freely.
C
19
Black process 45.0° 100.0 LPI
Page 9
6GB94600.fm Page 20 Friday, June 7, 2002 6:41 PM
CARE AND MAINTENANCE

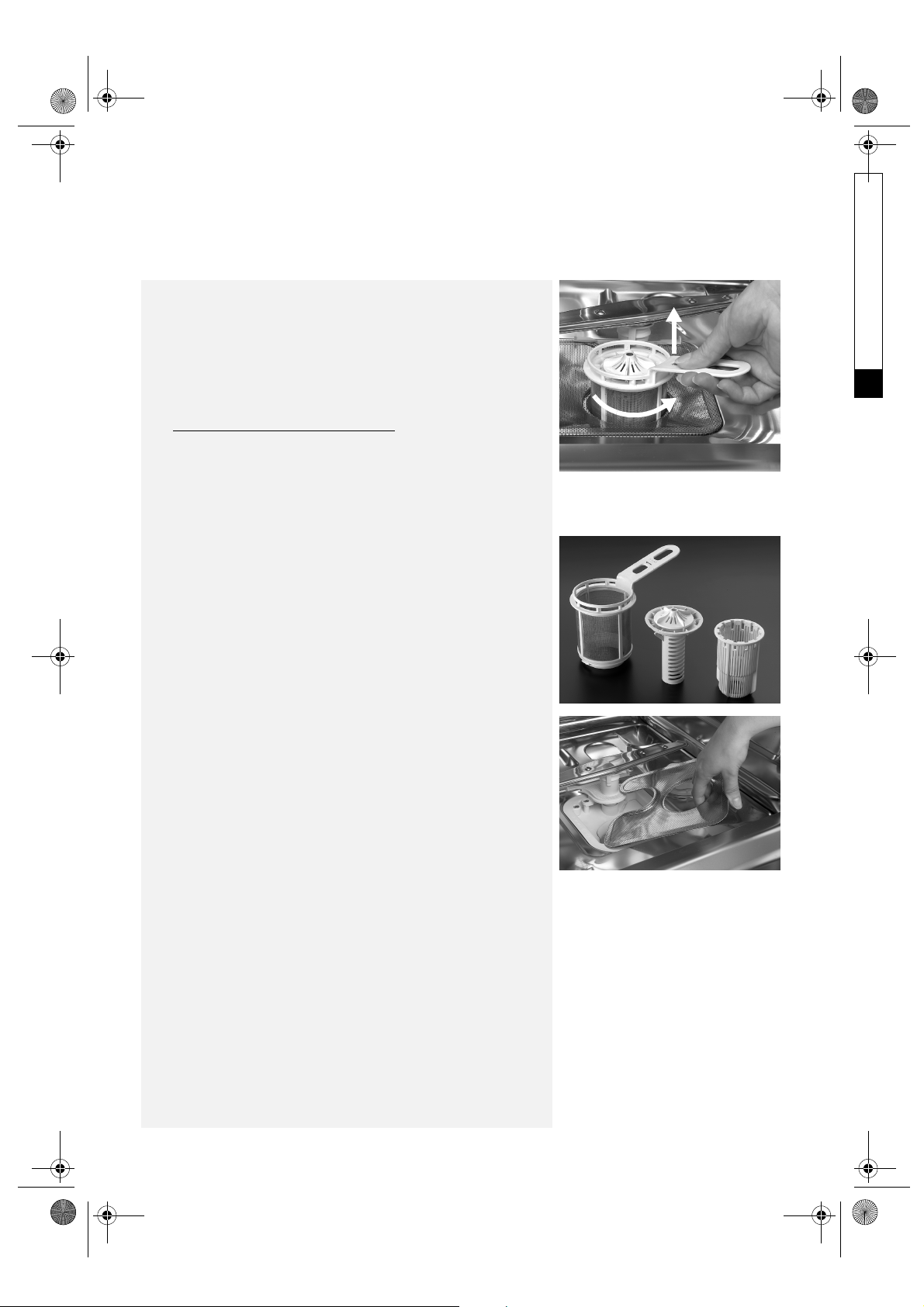

Cleaning the filters:
1.
Rotate the microfilter counter-clockwise (E) and extract it (F).
2.
Place the microfilter central filter unit on a flat surface and push the
handle of the microfilter (I).
Extract the filter (I) by pulling it forwards and upwards.
Extract filter (I) from filter (H).
3.
Extract the central steel filter (J).
4.
Clean all the filters under running water
are left inside the dishwasher!
5.
Reassemble the microfilter, replace the central steel filter (J) and
refit the microfilter.
The filter unit must be correctly assembled to ensure good
wash results!
. Check that no impurities
G
F
E
I
H
20
Black process 45.0° 100.0 LPI
J
Loading...
