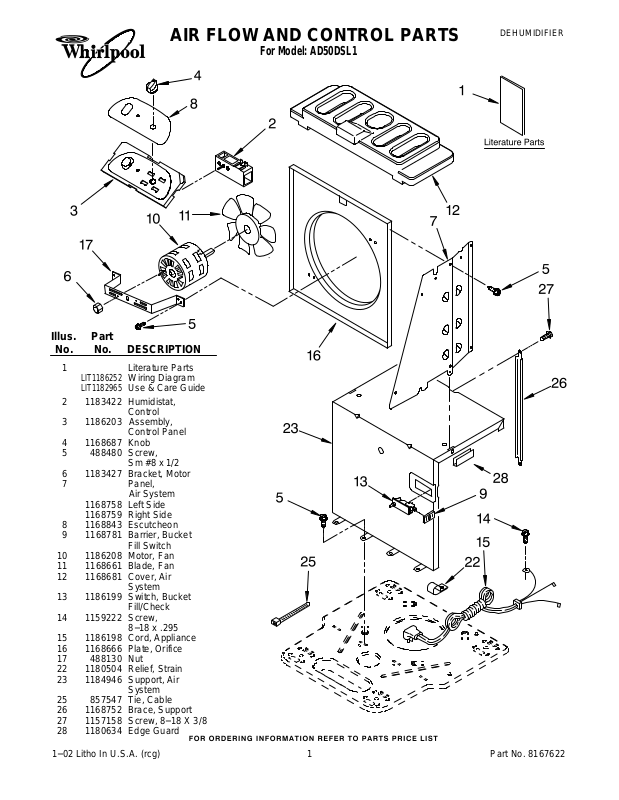

AIR FLOW AND CONTROL PARTS
For Model: AD50DSL1
Illus. |
Part |
|
No. |
No. |
DESCRIPTION |
1 |
|
Literature Parts |
|
LIT1186252 |
Wiring Diagram |
|
LIT1182965 |
Use & Care Guide |
2 |
1183422 |
Humidistat, |
|
|
Control |
3 |
1186203 |
Assembly, |
|
|
Control Panel |
4 |
1168687 |
Knob |
5 |
488480 |
Screw, |
|
|
Sm #8 x 1/2 |
61183427 Bracket, Motor
7Panel,
|
|
Air System |
|
1168758 |
Left Side |
|
1168759 |
Right Side |
8 |
1168843 |
Escutcheon |
9 |
1168781 |
Barrier, Bucket |
|
|
Fill Switch |
10 |
1186208 |
Motor, Fan |
11 |
1168661 |
Blade, Fan |
12 |
1168681 |
Cover, Air |
|
|
System |
13 |
1186199 |
Switch, Bucket |
|
|
Fill/Check |
14 |
1159222 |
Screw, |
|
|
8−18 x .295 |
15 |
1186198 |
Cord, Appliance |
16 |
1168666 |
Plate, Orifice |
17 |
488130 |
Nut |
221180504 Relief, Strain
231184946 Support, Air
System
25 857547 Tie, Cable
261168752 Brace, Support
271157158 Screw, 8−18 X 3/8
281180634 Edge Guard
1−02 Litho In U.S.A. (rcg) |
|
|
|
|
1 |
|
|||
