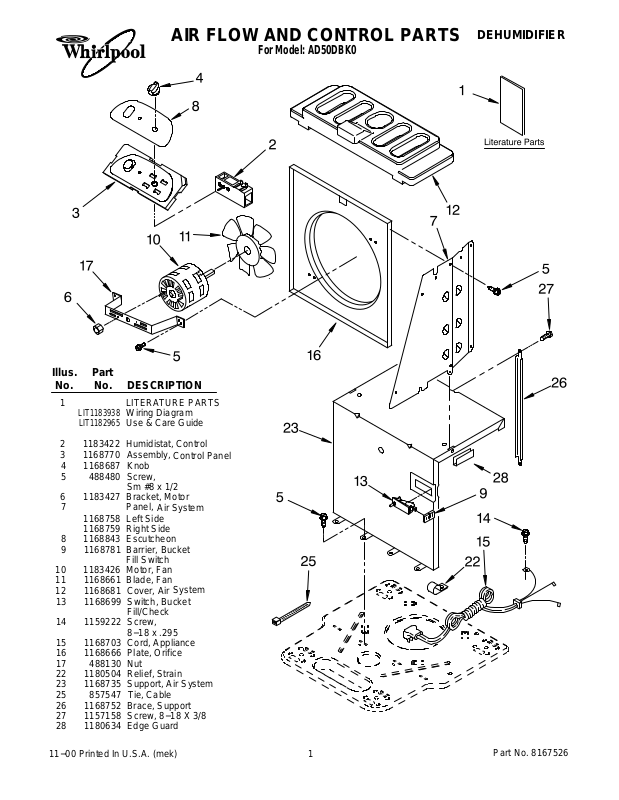

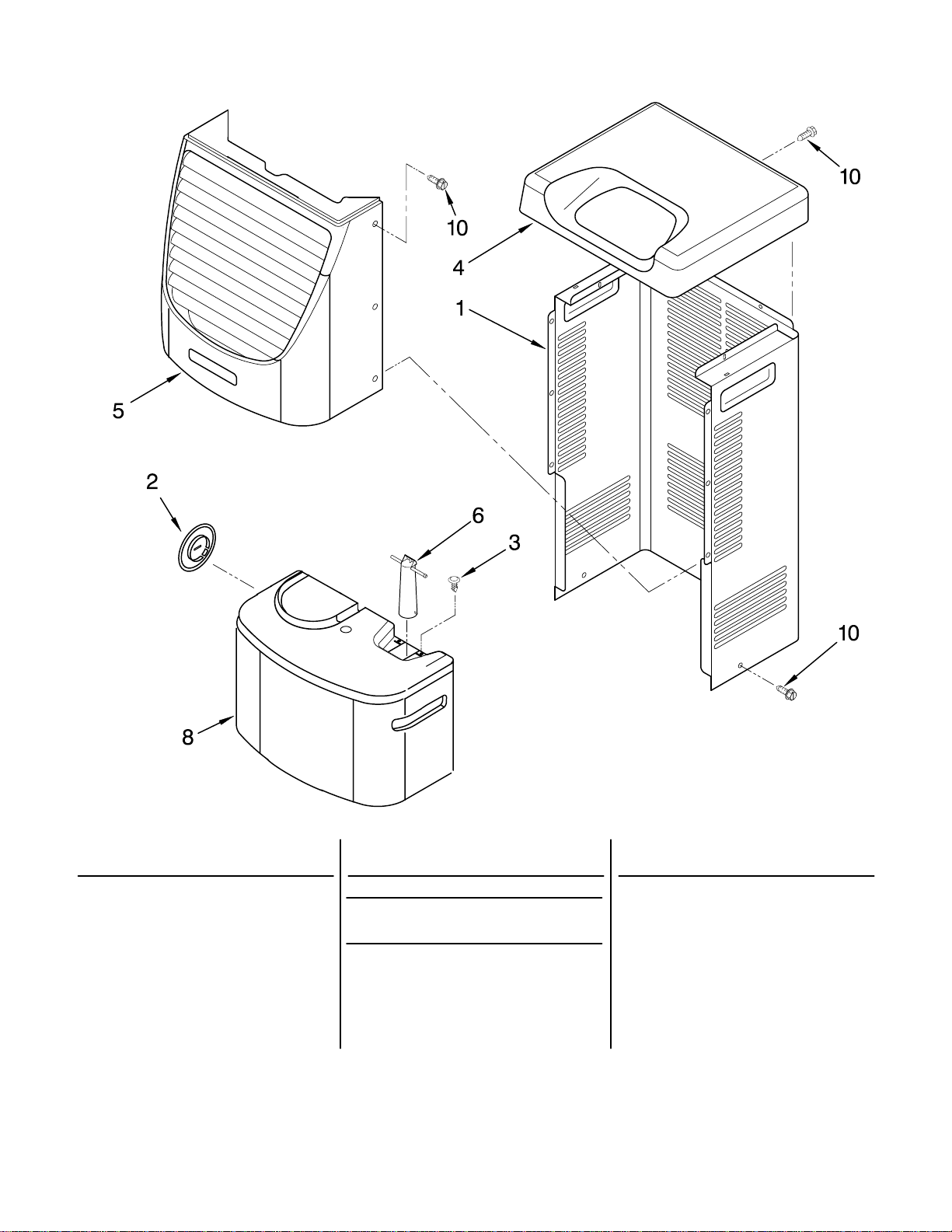

AIR FLOW AND CONTROL PARTS

For Model: AD50DBK0

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT1183938
LIT1182965

2 1183422 Humidistat,
3 1168770 Assembly,
4 1168687 Knob
5 488480 Screw,

6 1183427 Bracket, Motor
7 Panel,

1168758 Left Side

1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket

10 1183426 Motor, Fan
11 1168661 Blade, Fan
12 1168681 Cover, Air
13 1168699 Switch, Bucket

14 1159222 Screw,
15 1168703 Cord, Appliance

16 1168666 Plate, Orifice
17 488130 Nut
22 1180504 Relief, Strain
23 1168735 Support, Air
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control

Control Panel

Sm #8 x 1/2

Air System

Fill Switch

System

Fill/Check

8−18 x .295

System

11−00 Printed In U.S.A. (mek)

1

Part No. 8167526

UNIT PARTS

For Model: AD50DBK0

Illus. Part

No. No. DESCRIPTION

2 1168734 Tube, Restrictor

(Length 30.00")
3 1162526 Strainer
4 708532 Bend, Return

Evaporator (9)
6 8031223 Bend, Return

Condenser (2)
7 1184770 Condenser
8 8031222 Bend, Return (15)
9 1168777 Deicer, Bimetal

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

10 1184495 Overload,

Protector
11 950058 Relay, Start
12 1182781 Cover, Terminal
13 1184415 Bracket, Overload
14 1185204 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168701 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base

2

Illus. Part

No. No. DESCRIPTION

22 1164241 Caster (4)
25 1182780 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

12.0 oz.

8167526
