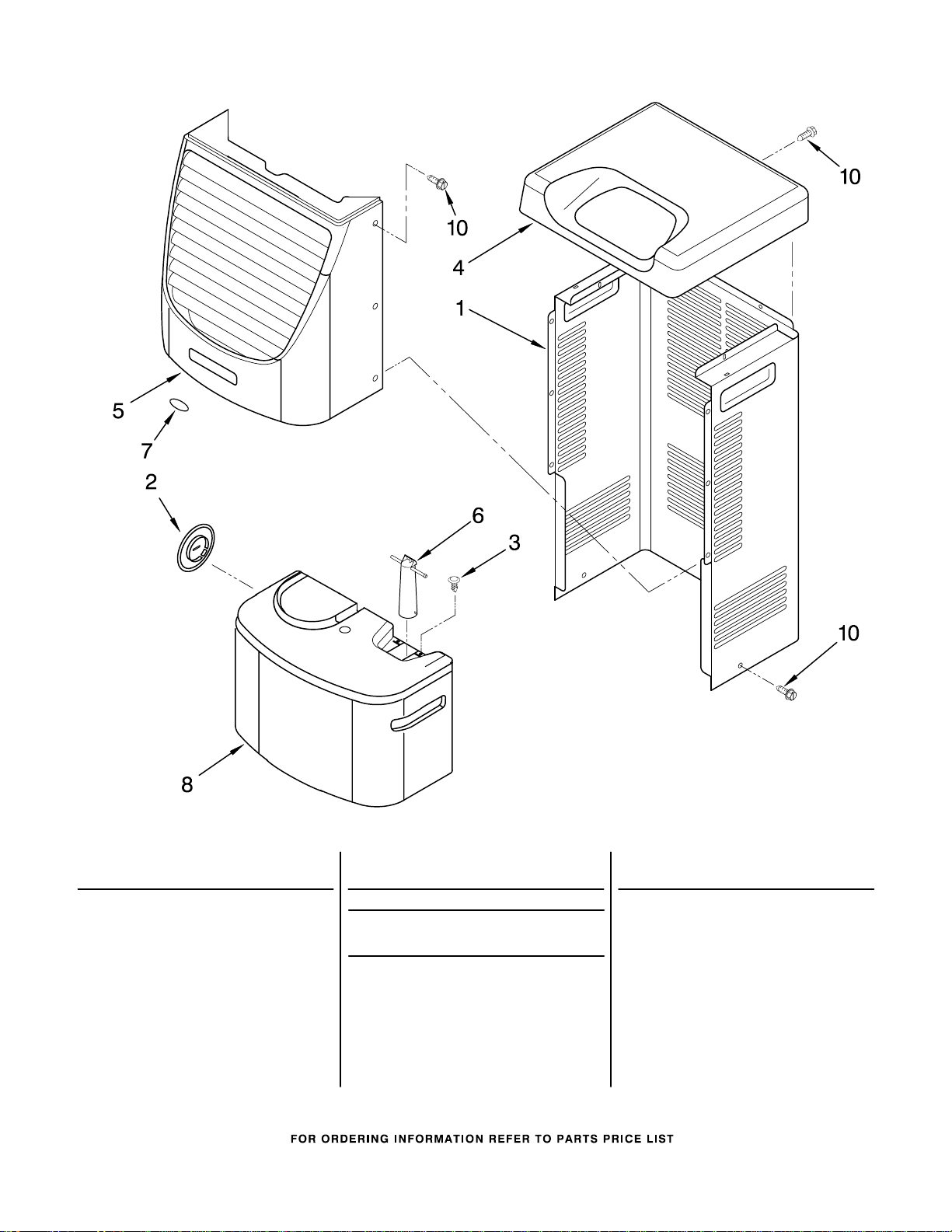

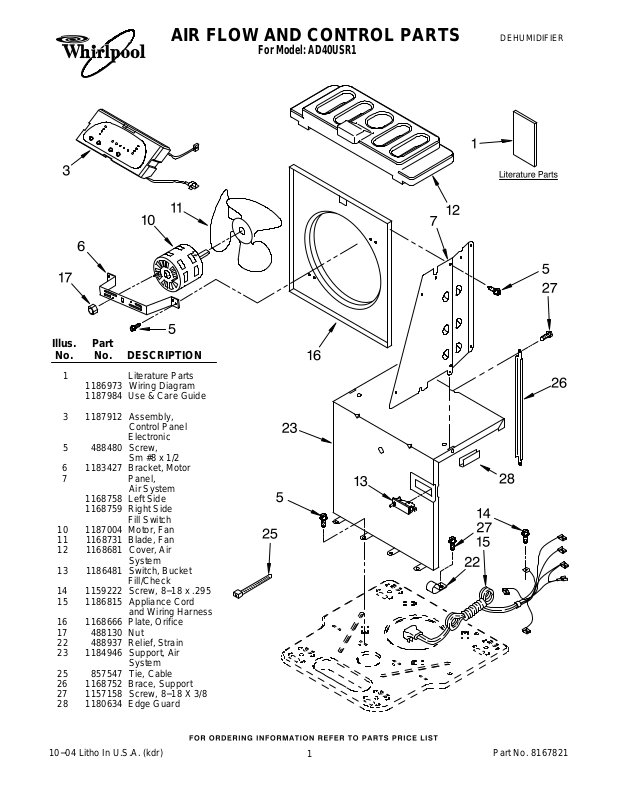

AIR FLOW AND CONTROL PARTS

For Model: AD40USR1

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

1186973 Wiring Diagram
1187984 Use & Care Guide

3 1187912 Assembly,

Control Panel
Electronic

5 488480 Screw,

Sm #8 x 1/2
6 1183427 Bracket, Motor
7 Panel,

Air System

1168758 Left Side
1168759 Right Side

Fill Switch

10 1187004 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

System

13 1186481 Switch, Bucket

Fill/Check

14 1159222 Screw, 8−18 x .295
15 1186815 Appliance Cord

and Wiring Harness

16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

System

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

10−04 Litho In U.S.A. (kdr)

1

Part No. 8167821

UNIT PARTS

For Model: AD40USR1

Illus. Part

No. No. DESCRIPTION

2 1186761 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
6 1185795 Spring, Overload
7 1187542 Condenser

10 1188145 Overload,

Protector

11 1186030 Nut, Hex
12 1185792 Cover, Terminal

Illus. Part

No. No. DESCRIPTION

13 1185794 Gasket, Nut
14 1186754 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1185793 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1188137 Capacitor
20 950212 Grommet (3)
21 1186674 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1188132 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.50 oz.

8167821
