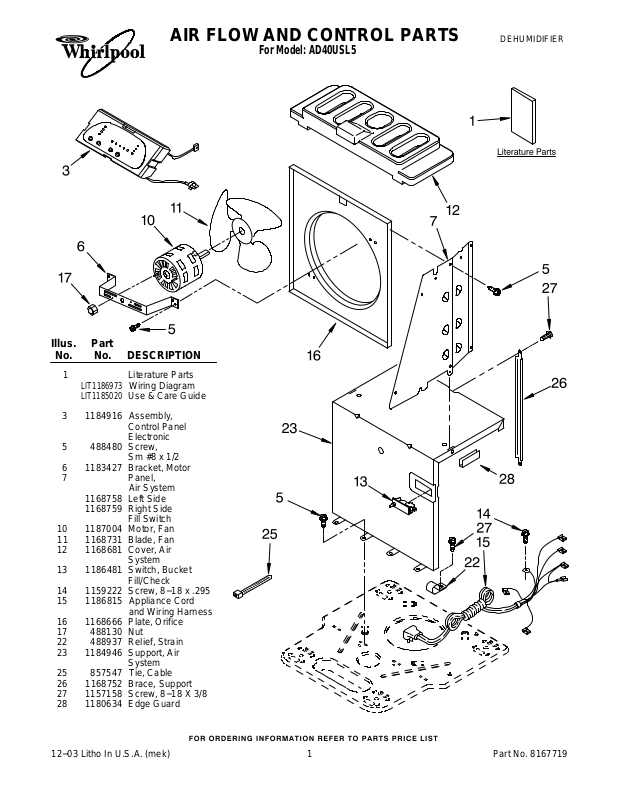

AIR FLOW AND CONTROL PARTS

For Model: AD40USL5

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT1186973
LIT1185020

3 1184916 Assembly,

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side
1168759 Right Side

10 1187004 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

13 1186481 Switch, Bucket
14 1159222 Screw, 8−18 x .295

15 1186815 Appliance Cord
16 1168666 Plate, Orifice

17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control Panel

Electronic
Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check

and Wiring Harness

System

12−03 Litho In U.S.A. (mek)

1

Part No. 8167719

UNIT PARTS

For Model: AD40USL5

Illus. Part

No. No. DESCRIPTION

2 1186761 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
7 1187542 Condenser

10 1186982 Overload,

Protector

11 1186128 Nut, Hex

Illus. Part

No. No. DESCRIPTION

12 1184748 Cover, Terminal
13 1182120 Gasket, Nut
14 1186754 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1182118 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1186186 Capacitor
20 950212 Grommet (3)
21 1186674 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1187682 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.50 oz.

8167719
