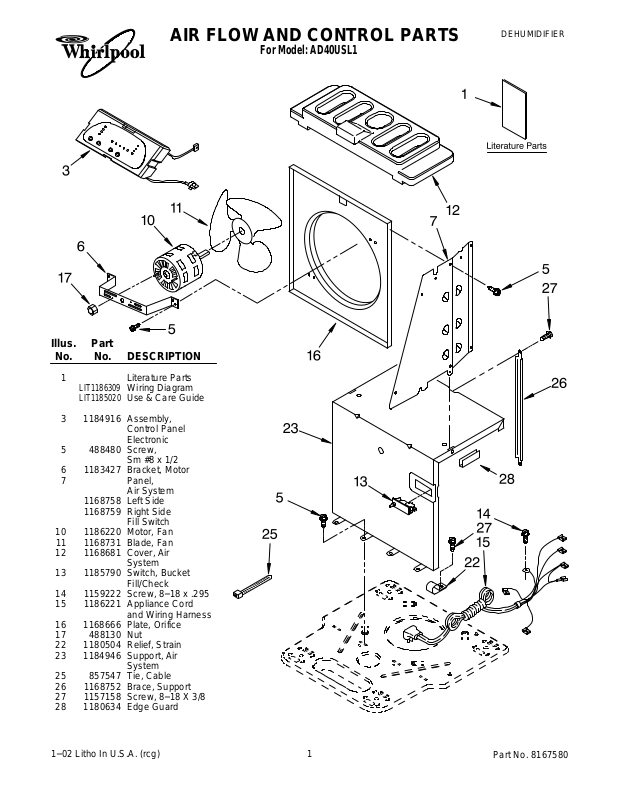

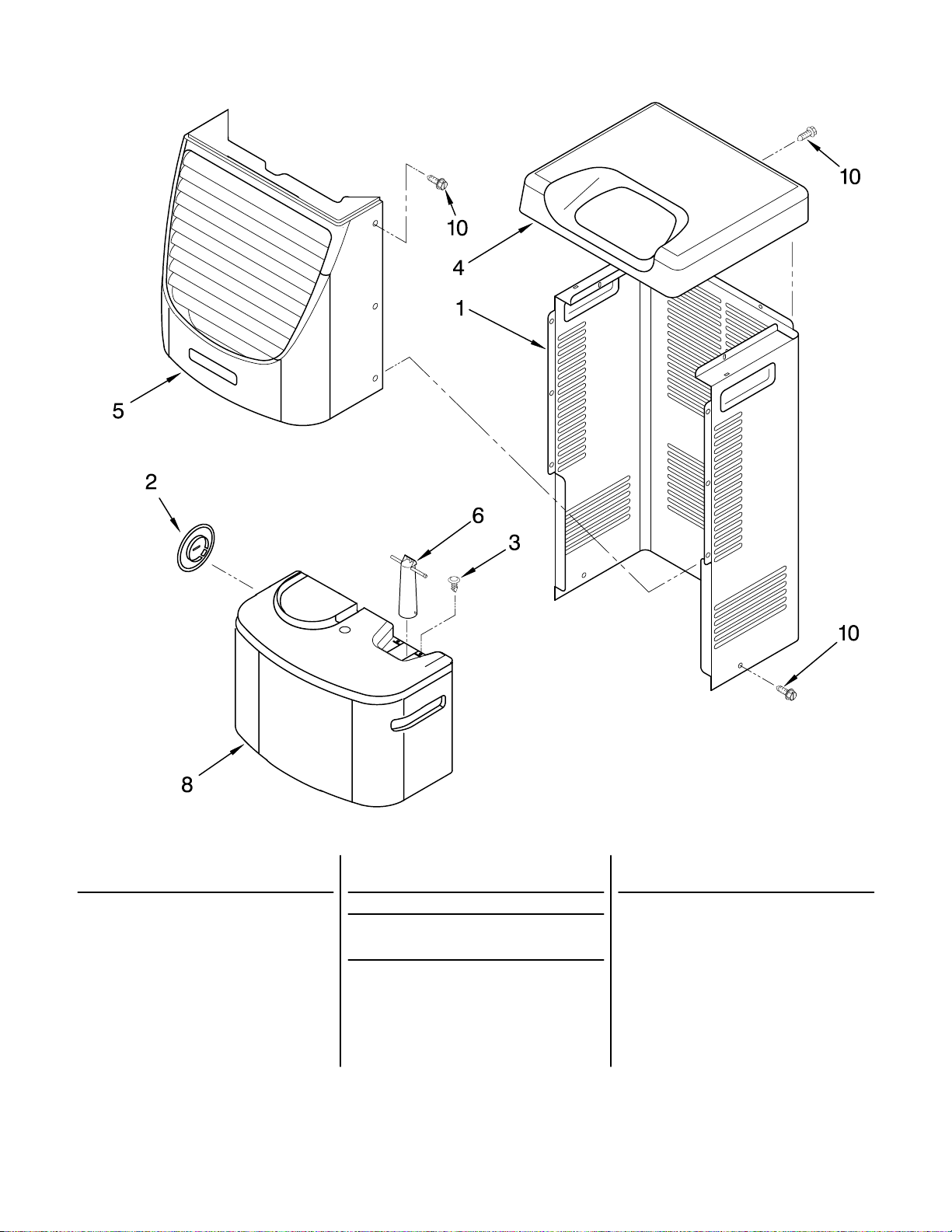

AIR FLOW AND CONTROL PARTS

For Model: AD40USL1

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT1186309
LIT1185020

3 1184916 Assembly,

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side
1168759 Right Side

10 1186220 Motor, Fan

11 1168731 Blade, Fan

12 1168681 Cover, Air
13 1185790 Switch, Bucket
14 1159222 Screw, 8−18 x .295

15 1186221 Appliance Cord
16 1168666 Plate, Orifice

17 488130 Nut
22 1180504 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control Panel

Electronic
Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check

and Wiring Harness

System

1−02 Litho In U.S.A. (rcg)

1

Part No. 8167580

UNIT PARTS

For Model: AD40USL1

Illus. Part

No. No. DESCRIPTION

2 1168677 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
6 8031223 Bend, Return (9)
7 1184766 Condenser
8 8031222 Bend, Return (1)

10 1182783 Overload,

Protector

11 950058 Relay, Start

Illus. Part

No. No. DESCRIPTION

12 1182781 Cover, Terminal
14 1184995 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1182779 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.60 oz.

8167580
