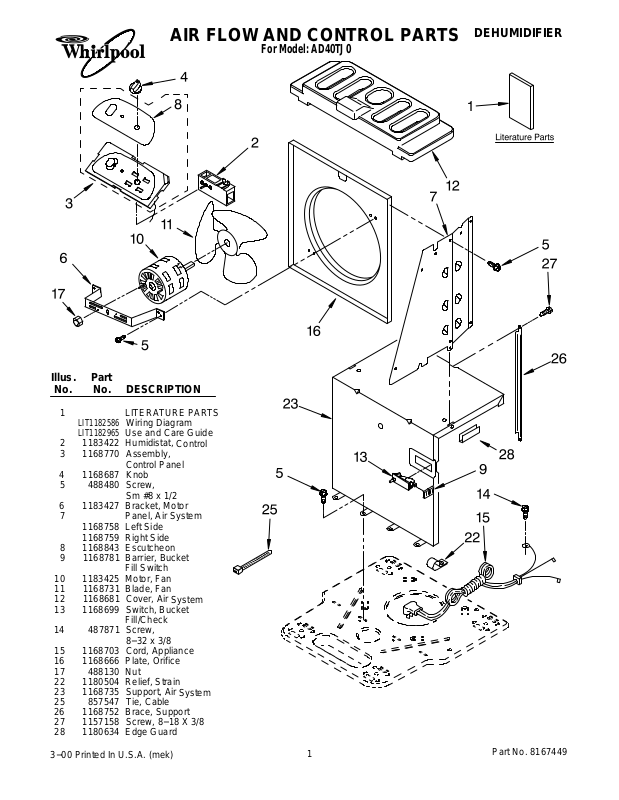

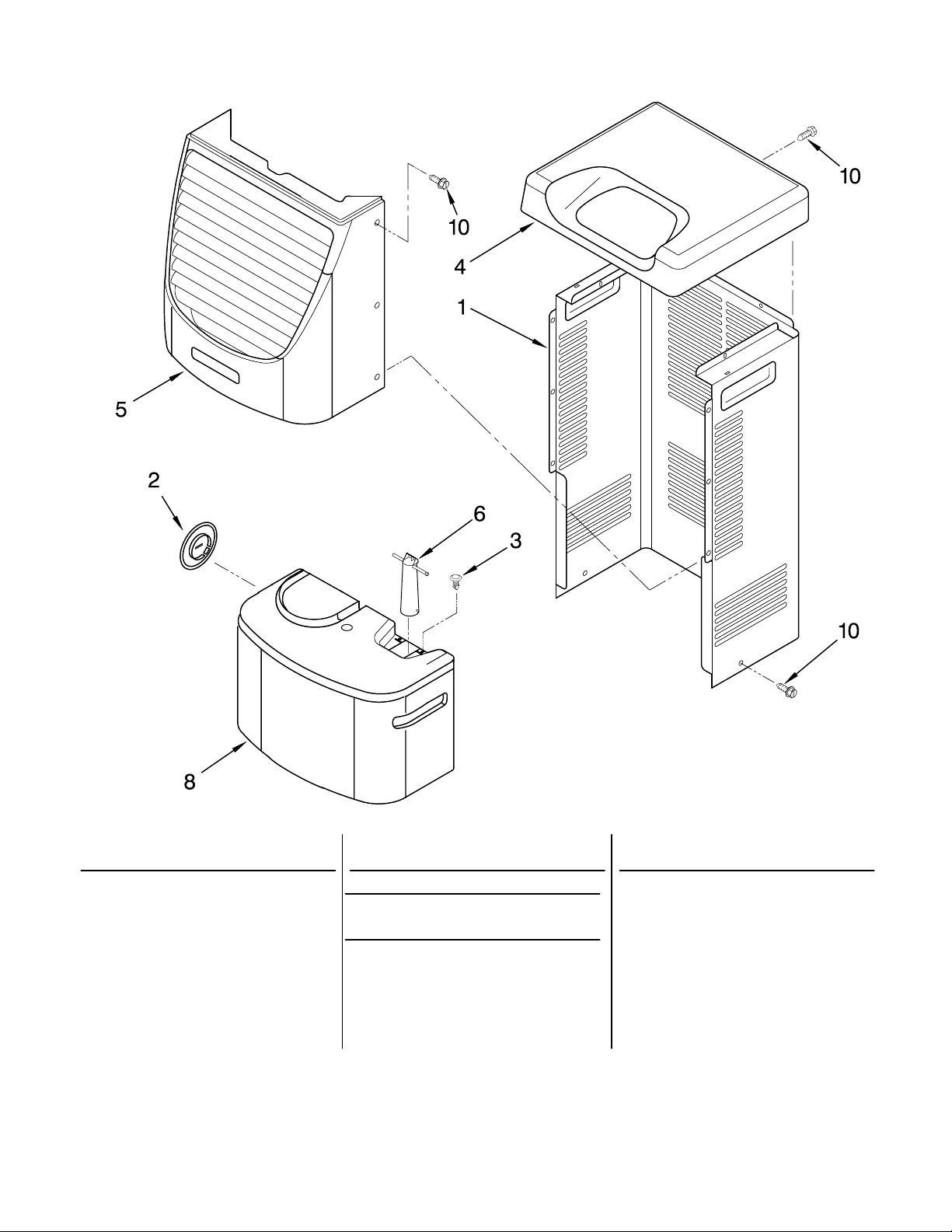

AIR FLOW AND CONTROL PARTS DEHUMIDIFIER
For Model: AD40TJ0
Illus. |
Part |
|
|
No. |
No. |
DESCRIPTION |
|
1 |
|
LITERATURE PARTS |
|
|
LIT1182586 |
Wiring Diagram |
|
|
LIT1182965 |
Use and Care Guide |
|
2 |
1183422 |
Humidistat, Control |
|
3 |
1168770 |
Assembly, |
|
|
|
Control Panel |
|
4 |
1168687 |
Knob |
|
5 |
488480 |
Screw, |
|
|
|
Sm #8 x 1/2 |
|
6 |
1183427 |
Bracket, Motor |
|
7 |
|
Panel, Air System |
|
|
1168758 |
Left Side |
|
|
1168759 |
Right Side |
|
8 |
1168843 |
Escutcheon |
|
9 |
1168781 |
Barrier, Bucket |
|
|
|
Fill Switch |
|
10 |
1183425 |
Motor, Fan |
|
111168731 Blade, Fan
121168681 Cover, Air System
13 |
1168699 |
Switch, Bucket |
|
|
Fill/Check |
14 |
487871 |
Screw, |
|
|
8−32 x 3/8 |
15 |
1168703 |
Cord, Appliance |
16 |
1168666 |
Plate, Orifice |
17 |
488130 |
Nut |
22 |
1180504 |
Relief, Strain |
23 |
1168735 |
Support, Air System |
25857547 Tie, Cable
261168752 Brace, Support
271157158 Screw, 8−18 X 3/8
281180634 Edge Guard
3−00 Printed In U.S.A. (mek) |
1 |
Part No. 8167449 |
