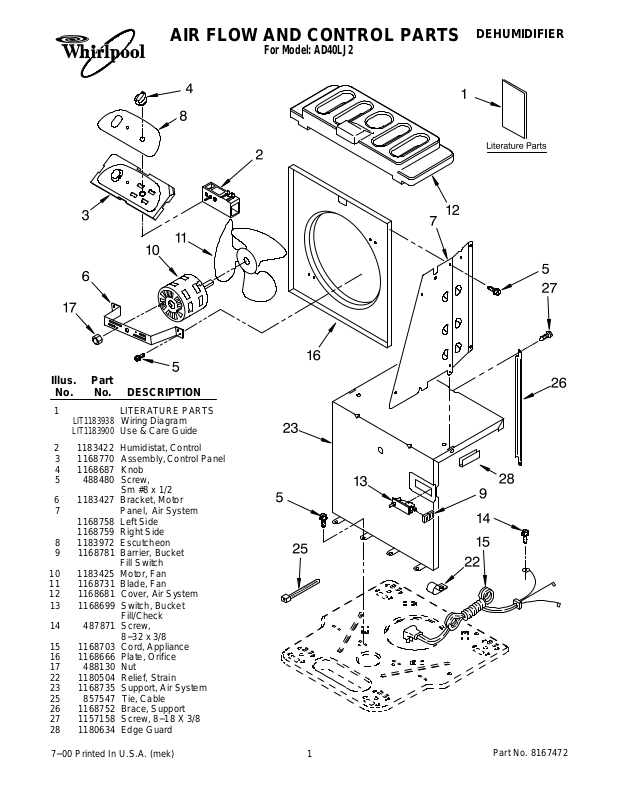

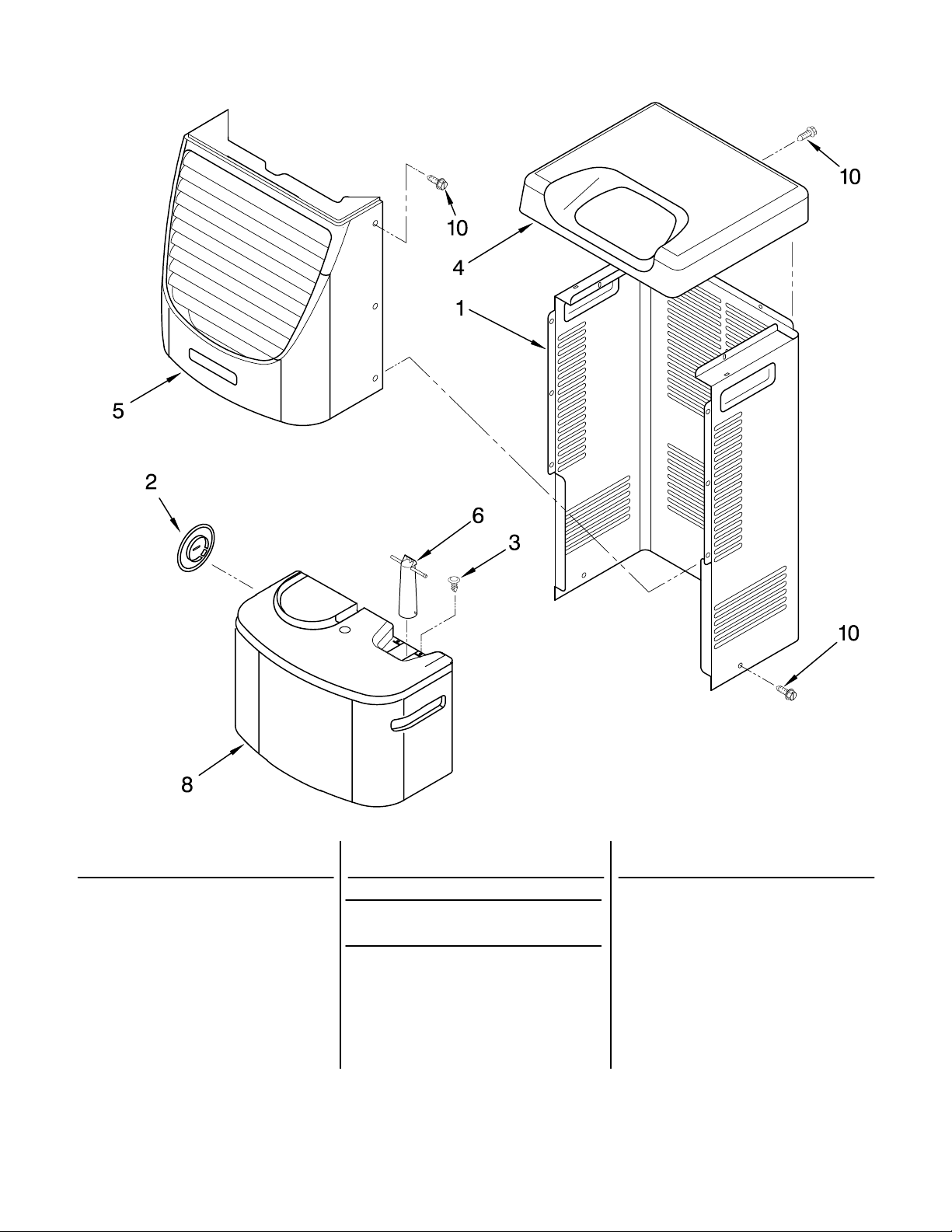

AIR FLOW AND CONTROL PARTS DEHUMIDIFIER
For Model: AD40LJ2
|
Illus. |
Part |
|
|
|
No. |
No. |
DESCRIPTION |
|
1 |
|
LITERATURE PARTS |
||
|
LIT1183938 |
Wiring Diagram |
||
|
LIT1183900 |
Use & Care Guide |
||
2 |
1183422 |
Humidistat, Control |
||
3 |
1168770 |
Assembly, Control Panel |
||
4 |
1168687 |
Knob |
||
5 |
488480 |
Screw, |
||
|
|
|
Sm #8 x 1/2 |
|
6 |
1183427 |
Bracket, Motor |
||
7 |
|
Panel, Air System |
||
|
|
1168758 |
Left Side |
|
|
|
1168759 |
Right Side |
|
8 |
1183972 |
Escutcheon |
||
9 |
1168781 |
Barrier, Bucket |
||
|
|
|
Fill Switch |
|
10 |
1183425 |
Motor, Fan |
||
11 |
1168731 |
Blade, Fan |
||
12 |
1168681 |
Cover, Air System |
||
13 |
1168699 |
Switch, Bucket |
||
|
|
|
Fill/Check |
|
14 |
487871 |
Screw, |
||
|
|
|
8−32 x 3/8 |
|
15 |
1168703 |
Cord, Appliance |
||
161168666 Plate, Orifice
17488130 Nut
22 |
1180504 |
Relief, Strain |
23 |
1168735 |
Support, Air System |
25 |
857547 |
Tie, Cable |
261168752 Brace, Support
271157158 Screw, 8−18 X 3/8
281180634 Edge Guard
7−00 Printed In U.S.A. (mek) |
1 |
Part No. 8167472 |
