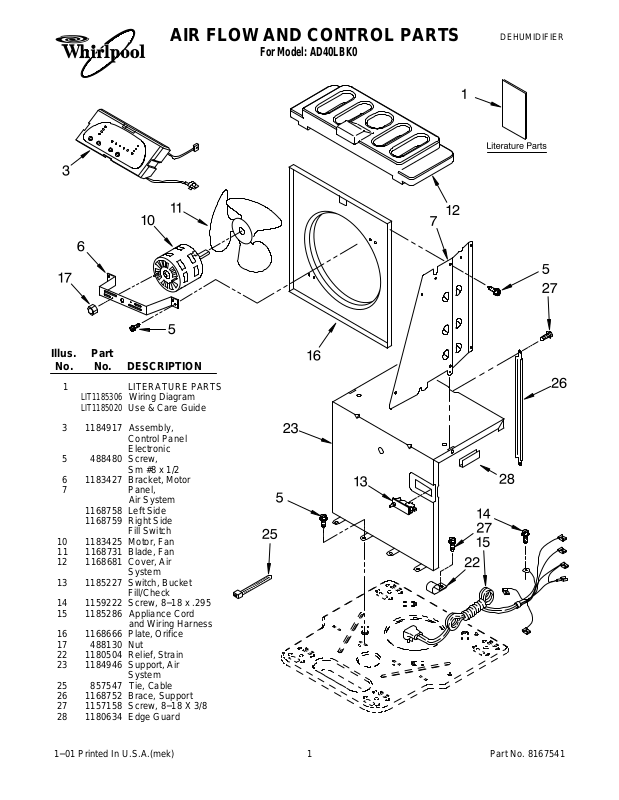

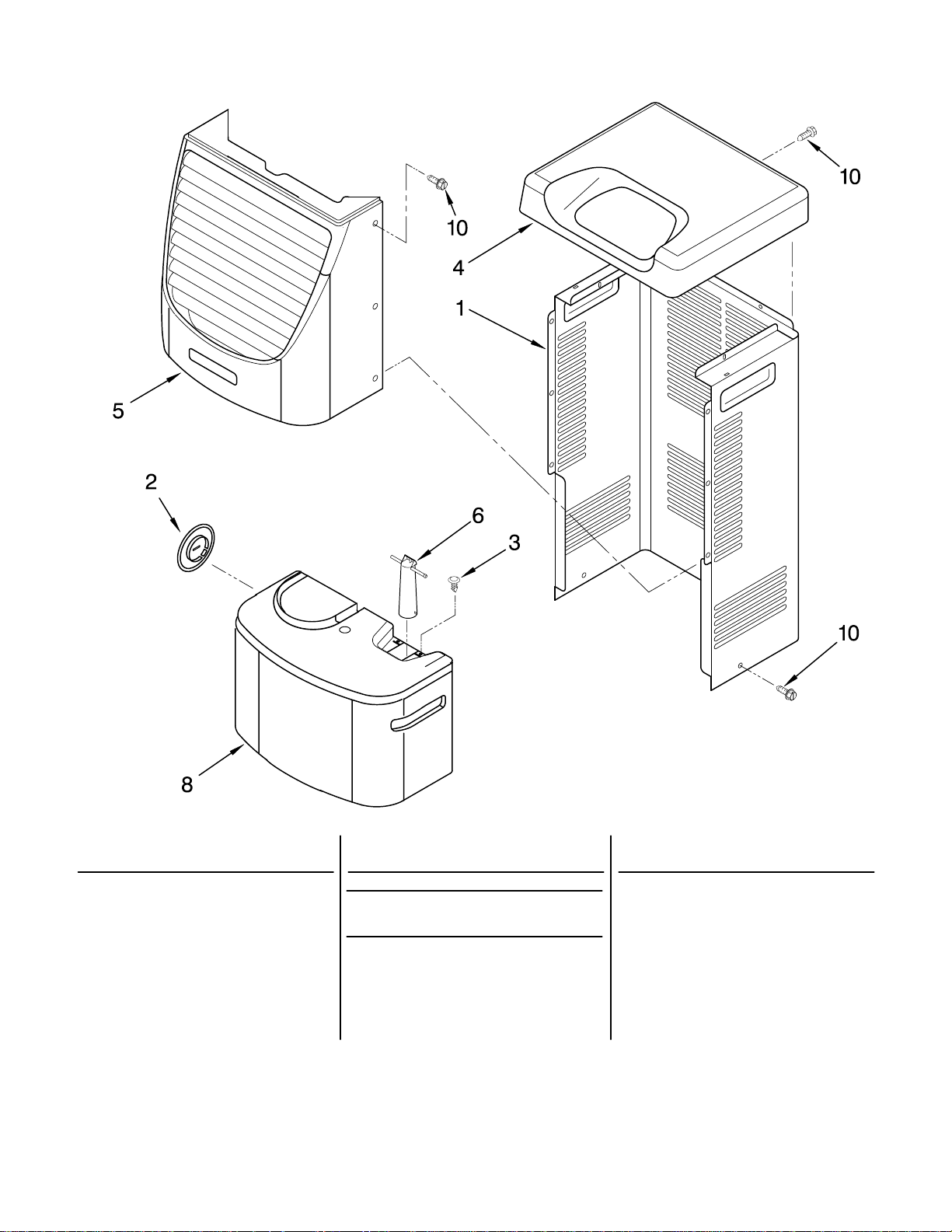

AIR FLOW AND CONTROL PARTS

For Model: AD40LBK0

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT1185306
LIT1185020

3 1184917 Assembly,

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side
1168759 Right Side

10 1183425 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

13 1185227 Switch, Bucket
14 1159222 Screw, 8−18 x .295

15 1185286 Appliance Cord
16 1168666 Plate, Orifice

17 488130 Nut
22 1180504 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control Panel

Electronic
Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check

and Wiring Harness

System

1−01 Printed In U.S.A.(mek)

1

Part No. 8167541

UNIT PARTS

For Model: AD40LBK0

Illus. Part

No. No. DESCRIPTION

2 1168677 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
6 8031223 Bend, Return (9)
7 1184766 Condenser
8 8031222 Bend, Return (1)

10 1184494 Overload,

Protector

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

11 950058 Relay, Start
12 1182781 Cover, Terminal
13 1184415 Bracket, Overload
14 1184995 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
20 1168722 Grommet (4)

21 1168654 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1182779 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.60 oz.

8167541
