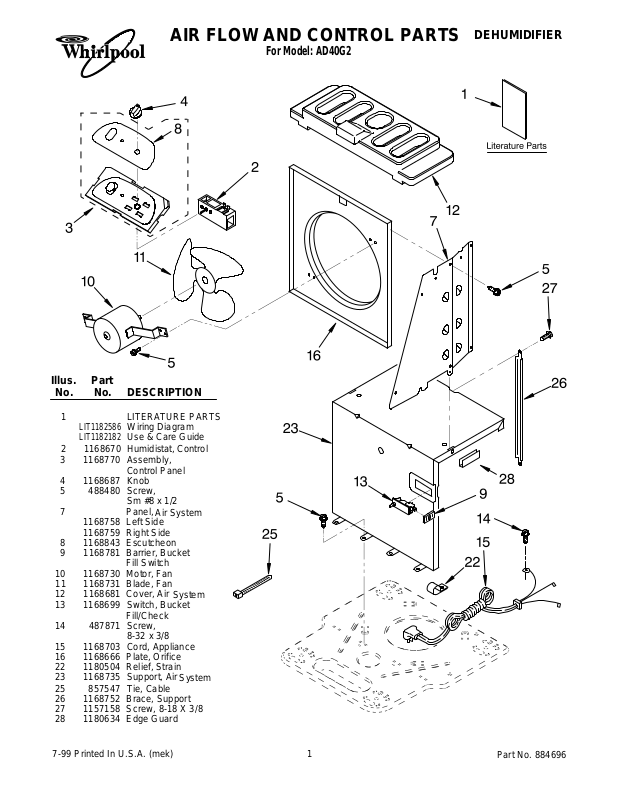

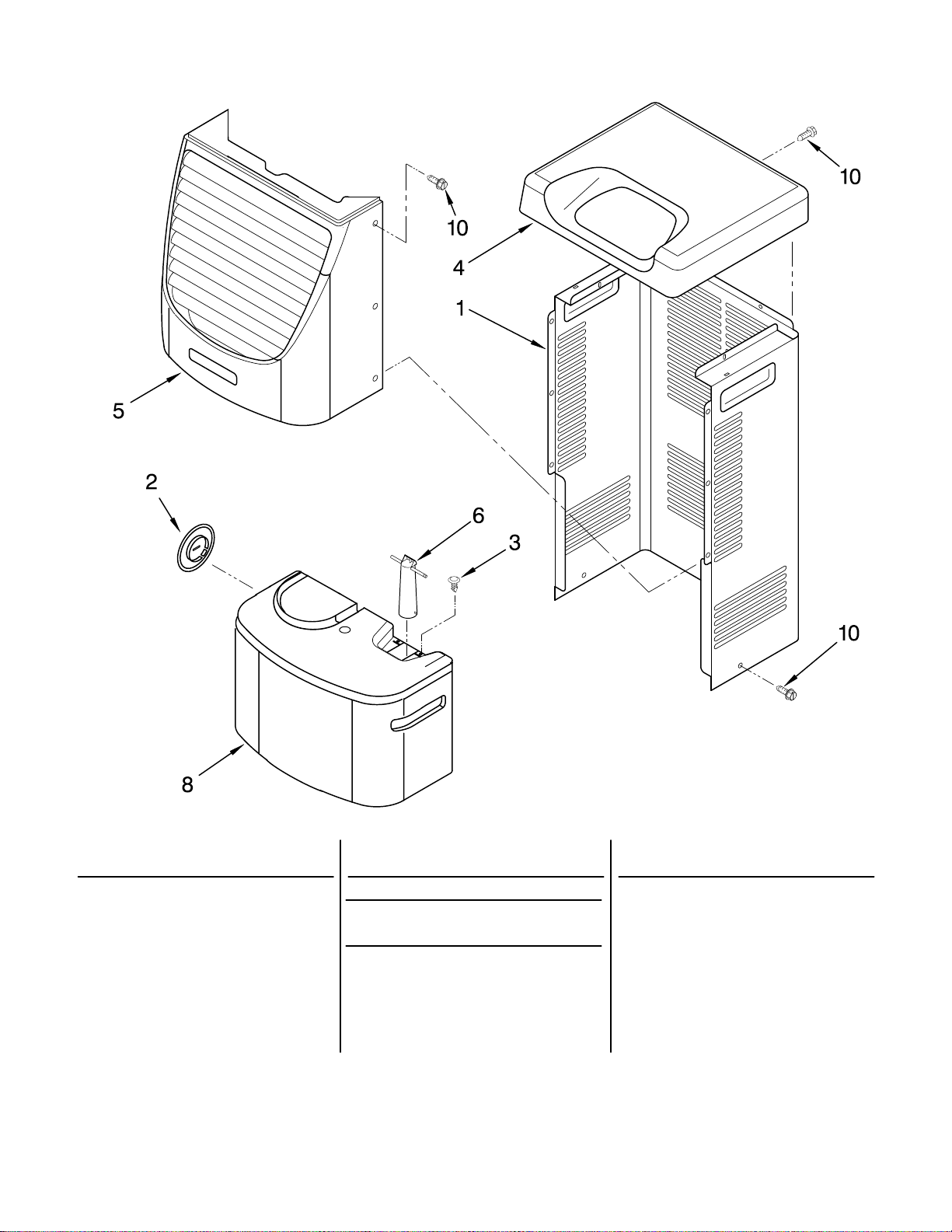

AIR FLOW AND CONTROL PARTS

For Model: AD40G2

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

1 LITERATURE PARTS

LIT1182586
LIT1182182

2 1168670 Humidistat,

3 1168770 Assembly,
4 1168687 Knob

5 488480 Screw,
7 Panel,

1168758 Left Side

1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket

10 1168730 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air
13 1168699 Switch, Bucket

14 487871 Screw,
15 1168703 Cord, Appliance

16 1168666 Plate, Orifice
22 1180504 Relief, Strain
23 1168735 Support, Air
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8-18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control

Control Panel

Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check
8-32 x 3/8

System

7-99 Printed In U.S.A. (mek)

1

Part No. 884696

UNIT PARTS

For Model: AD40G2

Illus. Part

No. No. DESCRIPTION

2 1168734 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
7 1168724 Condenser
8 708532 Bend, Return (9)
9 1168777 Deicer, Bimetal

10 1182783 Overload,

Protector

11 950058 Relay, Start

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

12 1182781 Cover, Terminal
14 1168726 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168701 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1182779 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
27 854624 Bend, Return (9)
29 1162650 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

8.00 OZ.

884696
