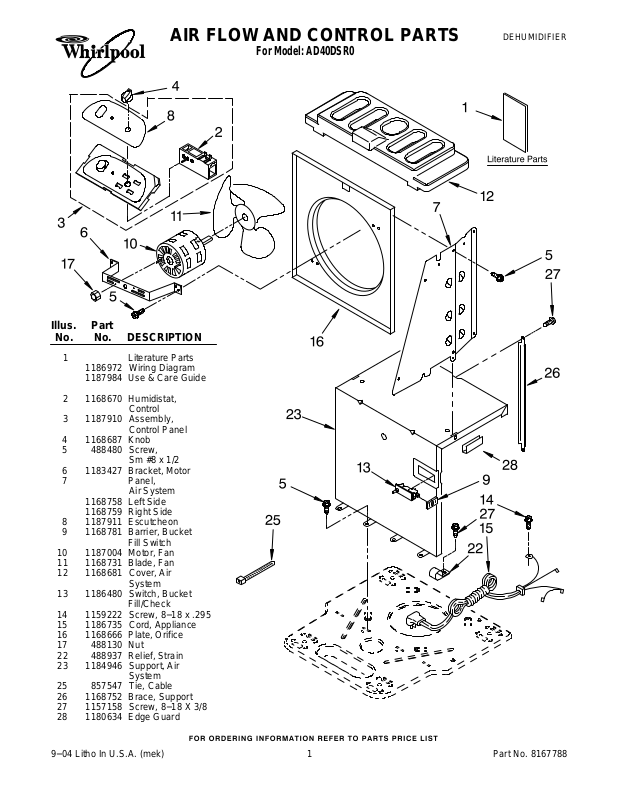

AIR FLOW AND CONTROL PARTS

Illus. Part

No. No. DESCRIPTION

DEHUMIDIFIER

For Model: AD40DSR0

1 Literature Parts

1186972 Wiring Diagram
1187984 Use & Care Guide

2 1168670 Humidistat,

Control

3 1187910 Assembly,

Control Panel
4 1168687 Knob
5 488480 Screw,

Sm #8 x 1/2
6 1183427 Bracket, Motor
7 Panel,

Air System

1168758 Left Side

1168759 Right Side
8 1187911 Escutcheon
9 1168781 Barrier, Bucket

Fill Switch
10 1187004 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

System
13 1186480 Switch, Bucket

Fill/Check
14 1159222 Screw, 8−18 x .295
15 1186735 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

9−04 Litho In U.S.A. (mek)

1

Part No. 8167788

UNIT PARTS

For Model: AD40DSR0

Illus. Part

No. No. DESCRIPTION

2 1186761 Tube, Restrictor

(Length 44.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
7 1187542 Condenser

10 1186982 Overload,

Protector

11 1186128 Nut, Terminal

Cover

12 1184748 Cover, Terminal
13 1182120 Gasket, Nut

Illus. Part

No. No. DESCRIPTION

14 1186754 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1182118 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1186186 Capacitor
19 1187006 Harness, Wire

(With De−Icer)
20 950212 Grommet (3)
21 1186674 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1187682 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.50 oz.

8167788
