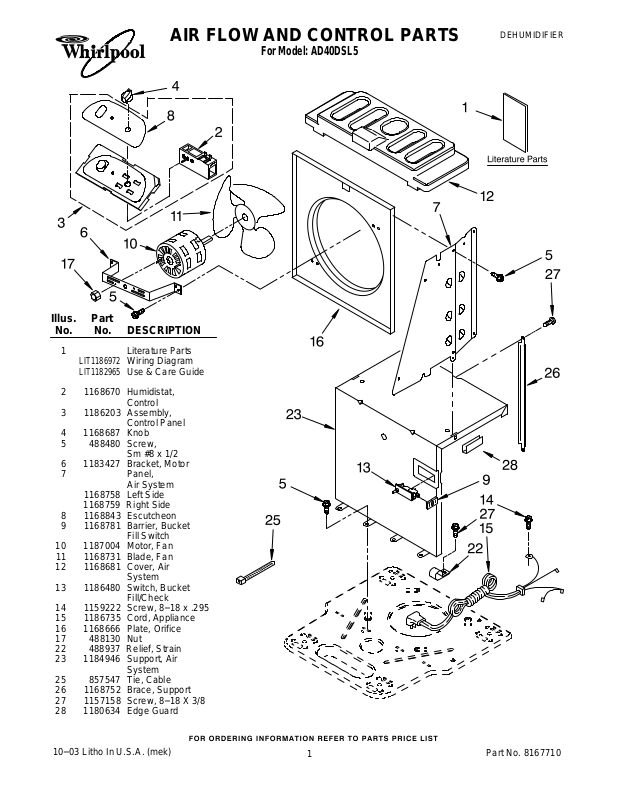

AIR FLOW AND CONTROL PARTS

Illus. Part

No. No. DESCRIPTION

DEHUMIDIFIER

For Model: AD40DSL5

1 Literature Parts

LIT1186972

LIT1182965
2 1168670 Humidistat,
3 1186203 Assembly,
4 1168687 Knob

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side

1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket

10 1187004 Motor, Fan

11 1168731 Blade, Fan

12 1168681 Cover, Air
13 1186480 Switch, Bucket
14 1159222 Screw, 8−18 x .295

15 1186735 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control
Control Panel

Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check

System

10−03 Litho In U.S.A. (mek)

1

Part No. 8167710

UNIT PARTS

For Model: AD40DSL5

Illus. Part

No. No. DESCRIPTION

2 1186761 Tube, Restrictor

(Length 44.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
7 1187542 Condenser

10 1186982 Overload,

Protector

11 1186128 Nut, Terminal

Cover

12 1184748 Cover, Terminal

Illus. Part

No. No. DESCRIPTION

13 1182120 Gasket, Nut
14 1186754 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 1182118 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1186186 Capacitor
19 1187006 Harness, Wire

(With De−Icer)
20 950212 Grommet (3)
21 1186674 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1187682 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.50 oz.

8167710
