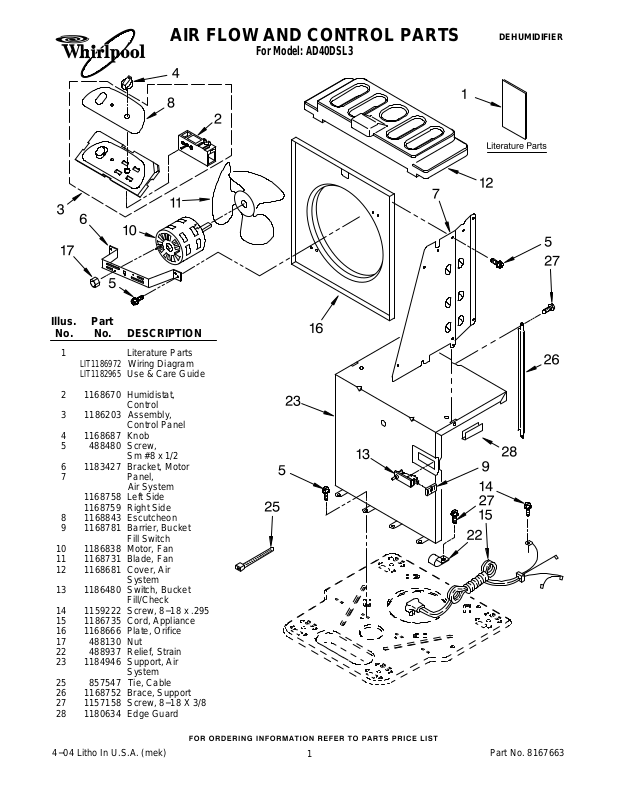

AIR FLOW AND CONTROL PARTS

Illus. Part

No. No. DESCRIPTION

DEHUMIDIFIER

For Model: AD40DSL3

1 Literature Parts

LIT1186972

LIT1182965
2 1168670 Humidistat,
3 1186203 Assembly,
4 1168687 Knob

5 488480 Screw,
6 1183427 Bracket, Motor

7 Panel,

1168758 Left Side

1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket

10 1186838 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air

13 1186480 Switch, Bucket
14 1159222 Screw, 8−18 x .295

15 1186735 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 488937 Relief, Strain
23 1184946 Support, Air

25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

Wiring Diagram
Use & Care Guide

Control
Control Panel

Sm #8 x 1/2

Air System

Fill Switch

System
Fill/Check

System

4−04 Litho In U.S.A. (mek)

1

Part No. 8167663

UNIT PARTS

For Model: AD40DSL3

Illus. Part

No. No. DESCRIPTION

2 1186761 Tube, Restrictor

(Length 44.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
6 8031223 Bend, Return (9)
7 1186752 Condenser
8 8031222 Bend, Return (1)

10 1186980 Overload,

Protector

11 1186128 Nut, Terminal

Cover

Illus. Part

No. No. DESCRIPTION

12 1184748 Cover, Terminal
13 1182120 Gasket, Nut
14 1186754 Evaporator
15 488480 Screw, 8 x 1/2 (4)

16 1182118 Gasket, Terminal

Cover
17 8011446 Clip, Compressor
18 1186186 Capacitor
19 1186727 Harness, Wire

(With De−Icer)
20 1186709 Grommet (3)
21 1186674 Base

2

Illus. Part

No. No. DESCRIPTION

22 1164241 Caster (4)
25 1186705 Compressor,

(Complete

Assembly)

26 1168761 Pan, Drain

29 1184625 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

7.50 oz.

8167663
