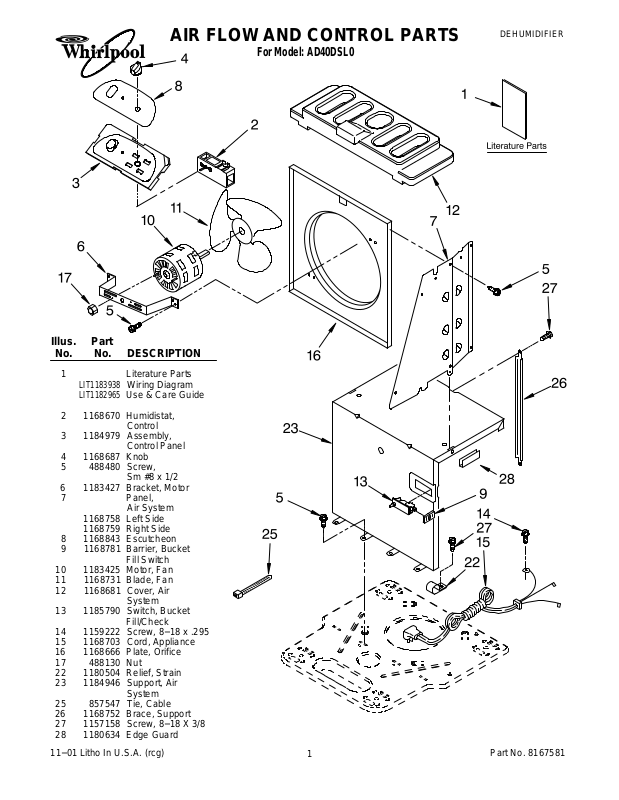

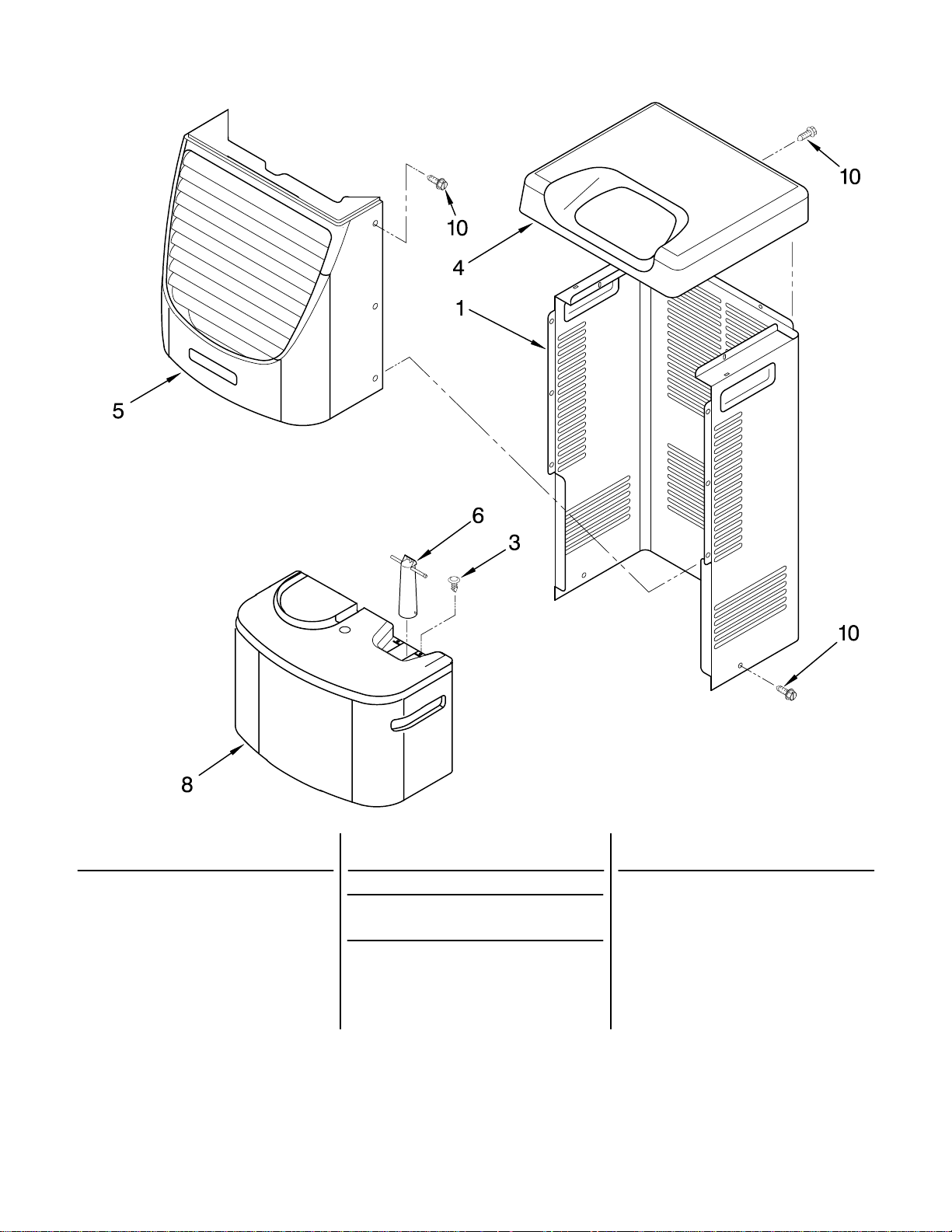

AIR FLOW AND CONTROL PARTS
For Model: AD40DSL0
DEHUMIDIFIER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT1183938
LIT1182965
2 1168670 Humidistat,
3 1184979 Assembly,
4 1168687 Knob
5 488480 Screw,
6 1183427 Bracket, Motor
7 Panel,
1168758 Left Side
1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket
10 1183425 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air
13 1185790 Switch, Bucket
14 1159222 Screw, 8−18 x .295
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 1180504 Relief, Strain
23 1184946 Support, Air
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard
Wiring Diagram
Use & Care Guide
Control
Control Panel
Sm #8 x 1/2
Air System
Fill Switch
System
Fill/Check
System
11−01 Litho In U.S.A. (rcg) Part No. 8167581
1
UNIT PARTS
For Model: AD40DSL0
Illus. Part
No. No. DESCRIPTION
2 1168677 Tube, Restrictor
(Length 36.00")
3 1162526 Strainer
4 708532 Bend, Return (7)
5 708531 Bend, Return (1)
6 8031223 Bend, Return (9)
7 1184766 Condenser
8 8031222 Bend, Return (1)
9 1168777 Deicer, Bimetal
10 1182783 Overload,
Protector
Illus. Part
No. No. DESCRIPTION
11 950058 Relay, Start
12 1182781 Cover, Terminal
14 1184995 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168701 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)
2
Illus. Part
No. No. DESCRIPTION
25 1182779 Compressor,
(Complete
Assembly)
26 1168761 Pan, Drain
29 1184625 Insulation
(Restrictor Tube)
REFRIGERANT CHARGE
7.60 oz.
8167581
