Whirlpool Ad40dbk0 Installation Template

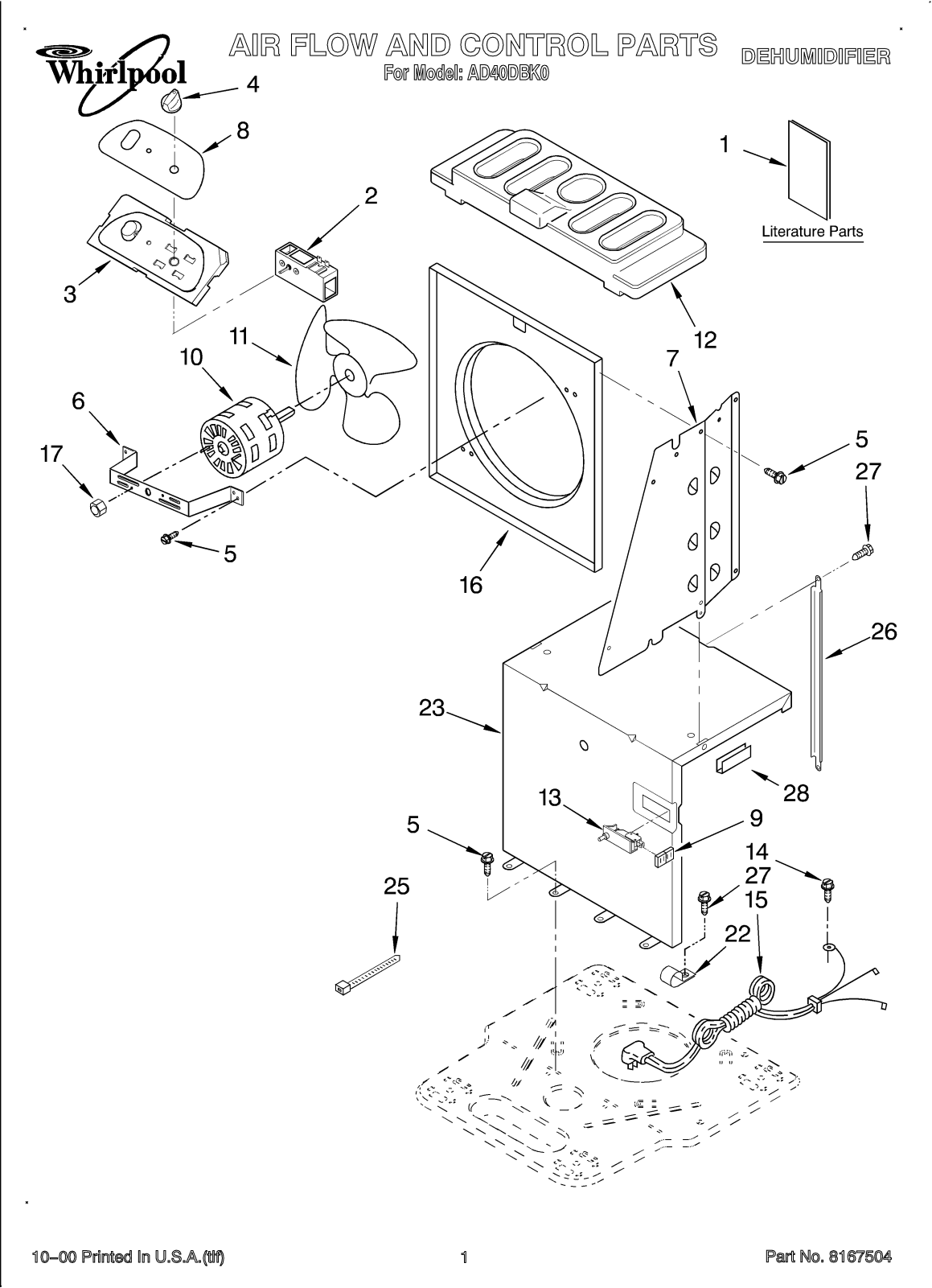

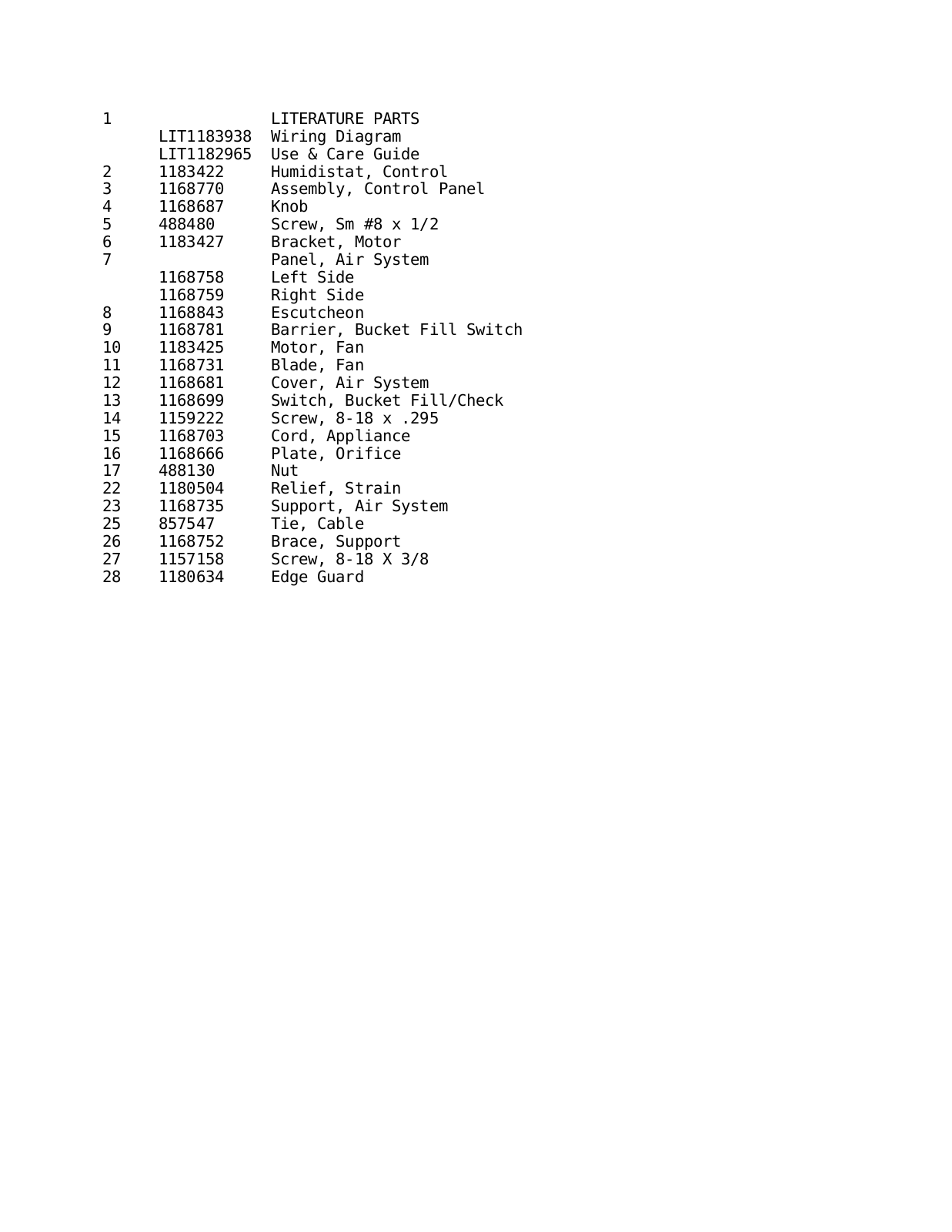

1 LITERATURE PARTS

LIT1183938 Wiring Diagram

LIT1182965 Use & Care Guide
2 1183422 Humidistat, Control
3 1168770 Assembly, Control Panel
4 1168687 Knob
5 488480 Screw, Sm #8 x 1/2
6 1183427 Bracket, Motor
7 Panel, Air System

1168758 Left Side

1168759 Right Side
8 1168843 Escutcheon
9 1168781 Barrier, Bucket Fill Switch
10 1183425 Motor, Fan
11 1168731 Blade, Fan
12 1168681 Cover, Air System
13 1168699 Switch, Bucket Fill/Check
14 1159222 Screw, 8-18 x .295
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
17 488130 Nut
22 1180504 Relief, Strain
23 1168735 Support, Air System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8-18 X 3/8
28 1180634 Edge Guard
