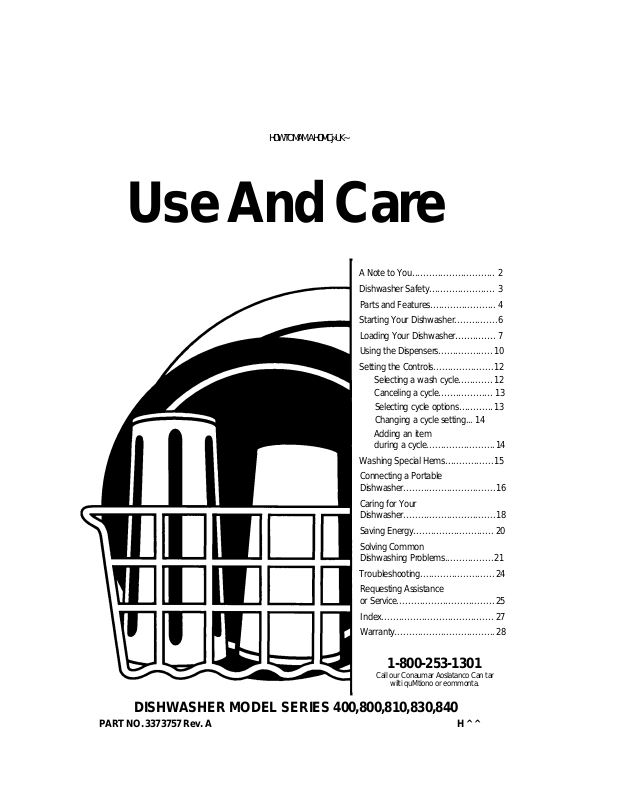

HOW TO MAM A HOMC j»UK~

Use And Care

A Note to You Dishwasher Safety Parts and Features Starting Your Dishwasher Loading Your Dishwasher Using the Dispensers

Setting the Controls.....................12

Selecting a wash cycle Canceling a cycle Selecting cycle options Changing a cycle setting... 14 Adding an item

during a cycle........................14

Washing Special Hems Connecting a Portable

Dishwasher................................16

Caring for Your

Dishwasher................................18

Saving Energy

Solving Common Dishwashing Problems

Troubleshooting

Requesting Assistance

or Service

Index

.......................................

Warranty...................................28

.............................

.......................

...............

..............

...................

............

...................

............

.................

............................

.................

..........................

..................................

25 27

2 3 4 6 7

1-800-253-1301

Call our Conaumar Aoslatanco Can tar

wilti quMtiono or eommonta.

DISHWASHER MODEL SERIES 400,800,810,830,840

PART NO. 3373757 Rev. A H ^ ^

Page 2

A Note to You

Thank you for buying a Whirlpool* appliance.

Because your life is getting busier and rmre complicated, Whirlpool dishwashers are easy to use, save time, and help you manage your horne better. To ensure you enjoy years of trouble-free operation, we developed this Use aixl Care Guide. It contains valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully.

Also, please complete arxl mail the Owr>ership Registration Card provided with your appliance. This card helps us notify you about any new information on your appliance.

Please record your model's Information.

Whenever you call to request service for your appliance, you need to know your complete nfxxlel number arKi serial number. You can find this information on the model arvf serial rurmber label (see diagram on page 4 for location of latol).

Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center tm onn oeo «lond number Is toll-free 24 hours a day. ' ■oOO“ZOo“l oOl

Model Number. Serial Number. Purchase Date. Dealer Name Dealer Address Dealer Photte

Help us help you

Please:

• Have your dishwasher installed by a

qualifi^ installer.

• Install where dishwasher is protected from

the elements.

• Install and level dishwasher on a floor that

will hold the weight, and in an area suitable for its size arxf use.

• Properly connect dishwasher to electricity,

water, and drain.*

• See Installation Instructiorts for complete

information.

• Remove aU shipping plugs from hoses and connectors (such as the cap on the drain outlet) before installing.*

• Remove all hang tags and temporary labels.

• Make sure dishwasher is not used by anyone unable to operate it properly.

• Properly maintain dishwasher. See page 18.

Page 3

Dishwasher Safety

Your safety is important to us.

This guide contains safety statements under warning symbols. Please pay special atten tion to these symbols and follow any instructions given. Here is a brief explana tion of the use of the warning symbol.

This symbol alerts you to such dangers as fire, electrical shock, burns, arnf personal injury.

^WARNING

IMPORTANT SAFETY INSTRUCTIONS

AWARNING

• Read all instructions before using the dishwasher.

• Use your dishwasher only for the uses described in this manual.

•DISHWASHER MUST BE ELECTRI CALLY GROUNDED. Read the

Installation Instructioru for details.

• When discarding an old dishwasher, always remove the door to prevent accidental entrapment or suffocation.

• Use ONLY detergents and rinse agents recommended for use in a dishwasher.

■ Store dishwasher detergent in a cool, dry place WHERE CHILDREN CANT

REACH IT.

•When loading items to be washed:

- Load sharp Kerns and knives wKh

the handles up to reduce risk of cut-type injuries.

- Locate sharp items and knives so

that they are not likely to damage the door or tub.

• DO NOT let children play in or on the dishwasher.

• DO NOT reach into the area below the bottom rack until the heating element has cooled for at least 20 minutes.

- SAVE THESE INSTRUCTIONS -

To reduce the risk of fire, electrical shock, or injury when using your dishwasher, folbw basic precautions including the following:

• DO NOT wash plastic Kerns unless marked “Dishwasher Safe” or the equiva lent. If not marked, check manufacturer's recommendations.

• DO NOT use your dishwasher unless all enclosure panels are properly in place.

• DO NOT sit on, stand on, or abuse the dishwasher door or dishracks.

• DO NOT tamper wKh controls.

• If hot water has not been used recently (usually two weeks or longer), hydrogen gases may build up in the water heater and the hot water pipes. HYDROGEN GAS IS EXPLOSIVE. To prevent injury or damage, before using your dish washer, turn on all hot water faucets and allow water to run for several minutes. This will allow gases to escape. Do not smoke or use any open flame near the faucet while K is open.

• DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

• Disconnect electrical power to the dishwasher before attempting to service.

Page 4

Parts and Features

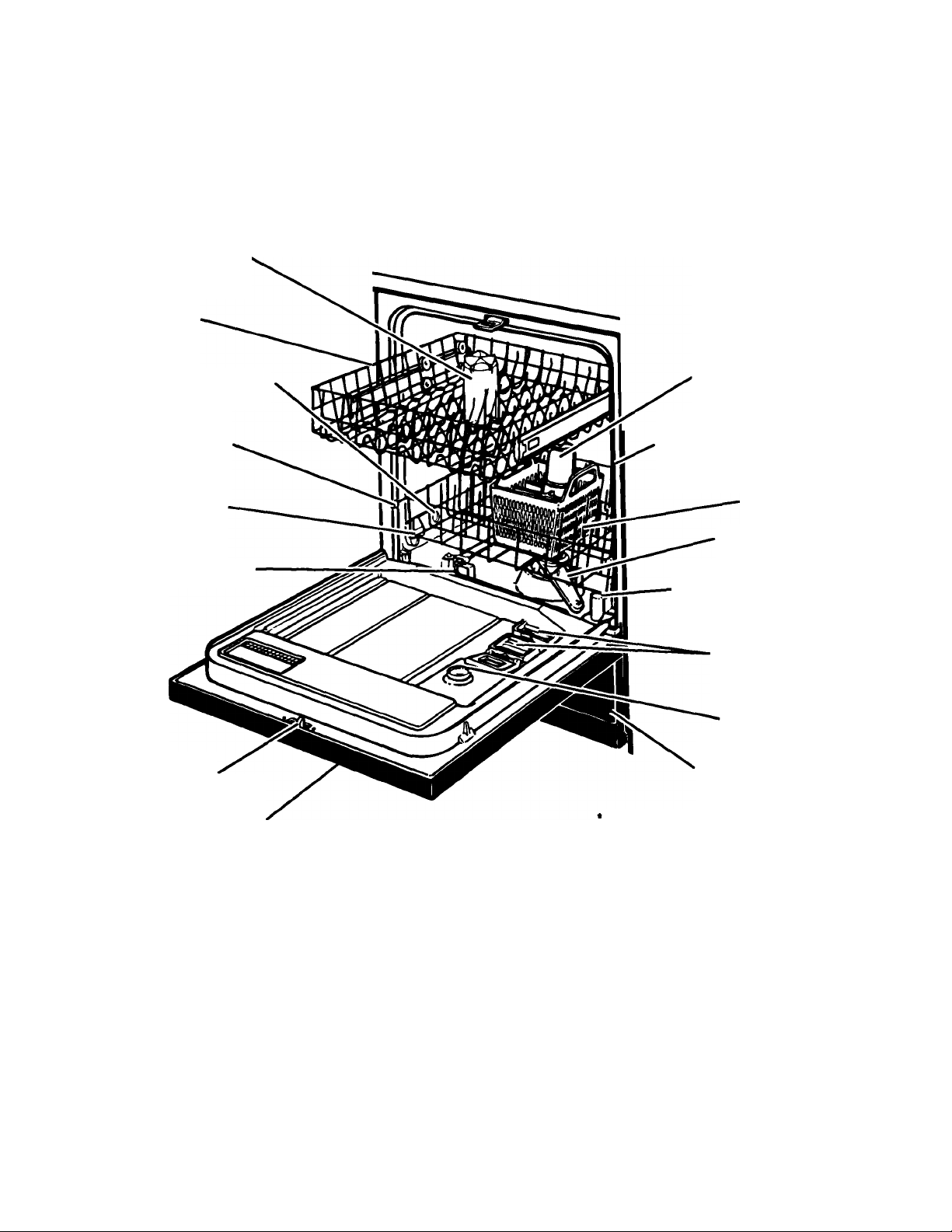

Your dishwasher is illustrated below with the parts arKl features called out. To help you firKl information on specific parts or features quickly, page references are included.

Third level wash

(on some models) (p. 9)

Top rack

(P. 9)

Water inlet opening (P- 8)

Rack bumper (P- 8)

Bottom rack

(P- 8)

Heating element

Spray tower

and protector

(P- 8)

Model and

serial number label

(on right side)

Silverware

basket

(P- 7)

Spray arm

(P. 8)

Overfill protector

(p. 19)

Door latch

Door color panel*

Detergent

dispensers

(p. 10)

Rinse agent

dispenser

(P.11)

Access panel*

See Installation Instructions

for more information.

Page 5

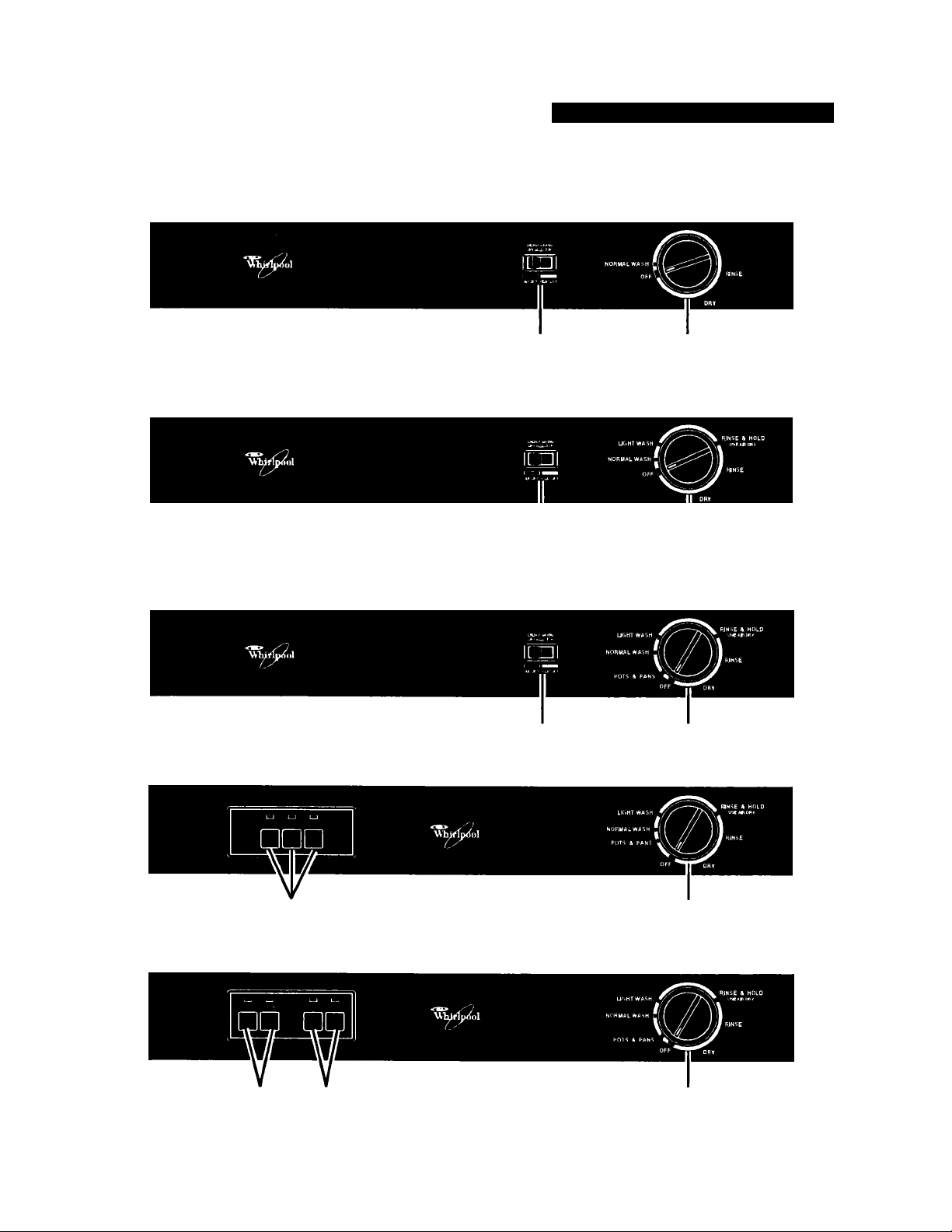

Series 400 models

PARTS AND FEATURES

Series 800 models

Series 810 models

Series 830 models

Option selector

switch

Option seiector

switch

Option selector

switch

Cycle control knob

Cycie control knob

Cycle control knob

Selector buttons

Series 840 models

Cycle selector Option seiector

buttons buttons

Cycle control knob

Page 6

Starting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Starting a wash cycle

1. Load the dishwasher. See pages 7-9.

2. Spin the spray arm. H should turn freely.

3. Add detergent. See page 10.

4. Add rinse agent, if needed. See page 11.

5. Close door firmly until it latches.

7. Select a drying option. (See page 13.) For models with buttons, the indicator above the button will show red when the option has been selected. For inodels with rocker switches, the

switch irxlicates which option has been selected.

NOTE: Select AIR DRY for the RINSE & HOLD cycle. For Series 840 nfKxlels, push a Cycle button for the desired cycle. NORMAL WASH,

LIGHT WASH, and RINSE & HOLD cycles share the same button. The Cycle Control Knob determines which cycle operates. For Series 830 nxxlels, the HEAT DRY option is automatically selected with the POTS & PANS cycle.

8. Turn the Cycle Control Knob clockwise to

^ the desired cycle. You will

feel a definite “stop" at each cycle mark. The dishwasher automatically starts the cycle you select.

NOTE: If the door is latched, you will hear

the cycles start and stop as the control

knob passes each cycle mark. This is normal and does rv3t hurt the dishwasher. If you prefer, you can set the Cycle Control Knob with the door unlatched.

6. Run hot water at the sink nearest the dishwasher until water is hot. Turn water off. (See page 20.)

Stopping the dishwasher

You can stop your dishwasher anytime during a cycle. All you have to do is:

• Open the door siightly. Wait for any filling

or spraying action to stop before opening the door all the way. Clo^ the door to continue the cycle.

> Turn the Cycle Control Knob slowly

clockwise until you hear water draining. Let the dishwasher drain completely. Then open the door and turn the Cycle Control

Knob to OFF.

Page 7

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

• To save water arvl energy, do not rinse dishes before putting them into the dishwasher.

• Remove large pieces of food, bones, and other hard items.

• Foods like eggs, rice, pasta, and cooked cereals may be hard to remove if left to dry over a period of time. Run a RINSE & HOLD cycle to keep dishes moist if you do rx)t plan to wash them soon.

• Load dishes so soiled surfaces face the rotatirtg spray arm.

• Load dishes so they are rx4 stacked or overlapping. It is important for the water spray to reach all soiled surfaces for best washing. For best drying, water must be able to drain from all surfaces.

Loading the silverware basket

Loading for quiet operation

• Secure lightweight load items in the racks.

• Pot lids and handles, pizza pans, cookie sheets, etc., should not touch interior walls, interfere with the spray arm’s rotation, or cover the spray tower.

• Load dishes so they do not touch one arwther.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

^WARNING

Personal Injury Hazard

Load sharp items (knives, forks, skewers, etc.) with the point down.

Failure to do so could cause personal

* •

injury.

• Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

NOTE: The loaded basket must be placed in the center front (over the spray tower) of the bottom rack for proper washing.

• Mix Kerns in each section of the basket wKh some pointing up and some down to avoid nesting. Spray carmot reach nested Kerns. However, always load sharp Kerns

(knives, skewers, forte, etc.) pointing

down.

• Put small Kerns (baby bottle caps, jar lids, etc.) in any section.

• You can also remove the basket for easy

unloading. Always unload or remove the basket before unloading the racks to avoid spilling water on the silverware.

Page 8

LOADING YOUR DISHWASHER

Loading the bottom rack

Load Hems wHh cooked-on or dried-on food in the bottom rack, with soiled surfaces facing inward to the spray.

Mixed load

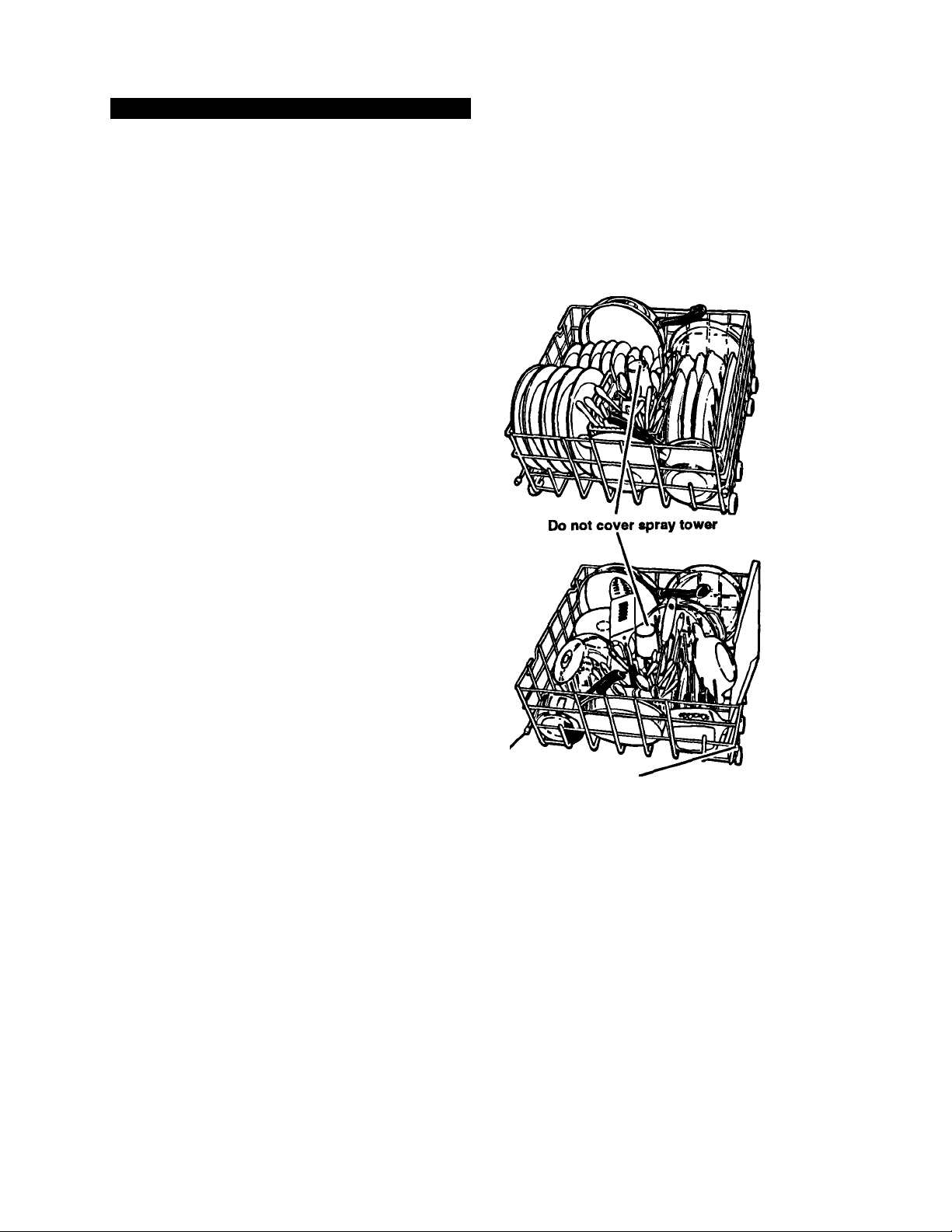

• Load plates, soup bowls, etc., between prongs arxj facing inward to the spray.

• Make sure pot handles and other items do not slop rotation of the spray arm. Spray

arm must move freely.

• Load Hems so they do not block or cover the spray tower.

• Load heavily soiled cookware face down

in rack.

• Do not stack or overlap dishes. Water

spray must reach all s^ed surfaces for best resuHs.

Utensil load

• Load cookie sheets, cake pans, and other large Hems at sides and back. Loading such Hems in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

• Do not load glasses, cups, or plastic items in the bottom rack.

• Do not load Hems between the bottom rack and the side of the dishwasher tub. This can block the water inlet opening.

• If you have removed the bottom rack for unloading or cleaning, replace H wHh bumpers in front.

Mixed load

Utensil load

Bumpers must face dishwasher door

Page 9

Loading the top rack

Load the top rack with cups, glasses, and smaller items. Do not cover the third level wash (on some models) when loading the

top rack.

LOADING YOUR DISHWASHER

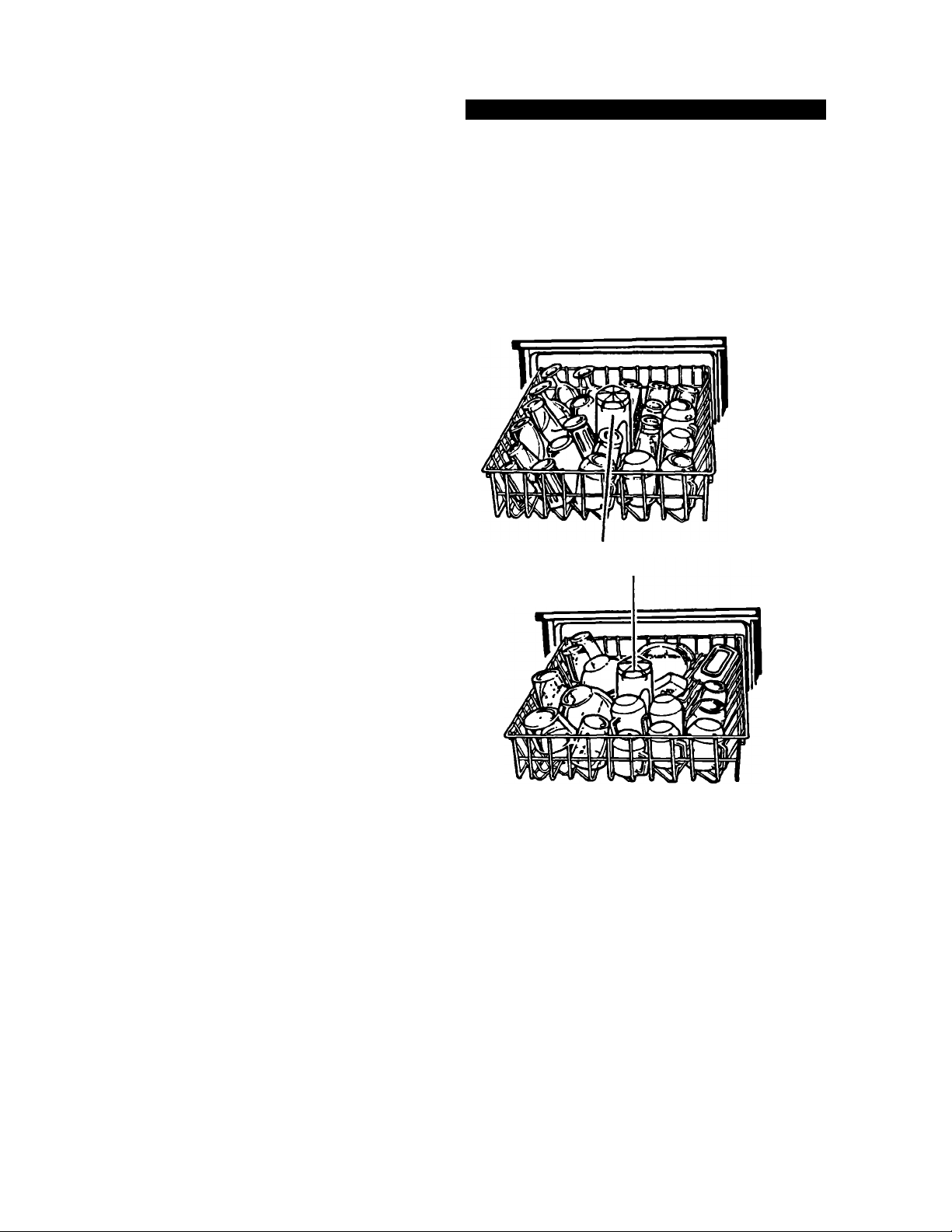

Cup and glass load

• Load so open erxls face down for cleaning and draining.

• Load glasses in top rack only - bottom rack is not designed for glasses. Damage

can occur.

• Place Hems in the rows between prongs. Placing them over the prongs may lead to breakage.

• Secure lightweight Hems.

• China, crystal, and other delicate Hems

must not touch each other during dish

washer operation. Damage may occur.

Mixed load

• Small bowls, pjans, and other utensils can be placed in the top rack.

• Load plastic Hems in the top rack only.

Plastic Hems may meH in the bottom rack.

• Wash only plastic Hems marked “dish washer safe.”

• Load plastic Hems so the force of the spray

does not move them during the cycle.

Cup and glass load

Do not cover third level wash

(on some models)

Mixed load

Page 10

Using the Dispensers

For best washing results, review the information below. It is important to use detergents and rir^ agents properly.

Using the detergent dispenser

• Use automatic dishwashing detergent oniy. Other detergents are too mild and

much too sudsy.

■ Add detergent just before starting cycle.

• Store detergent tightly-closed in a cool, dry place. Fresh automatic dishwasher detergent resuits in better cieaning.

Filling the detergent dispenser

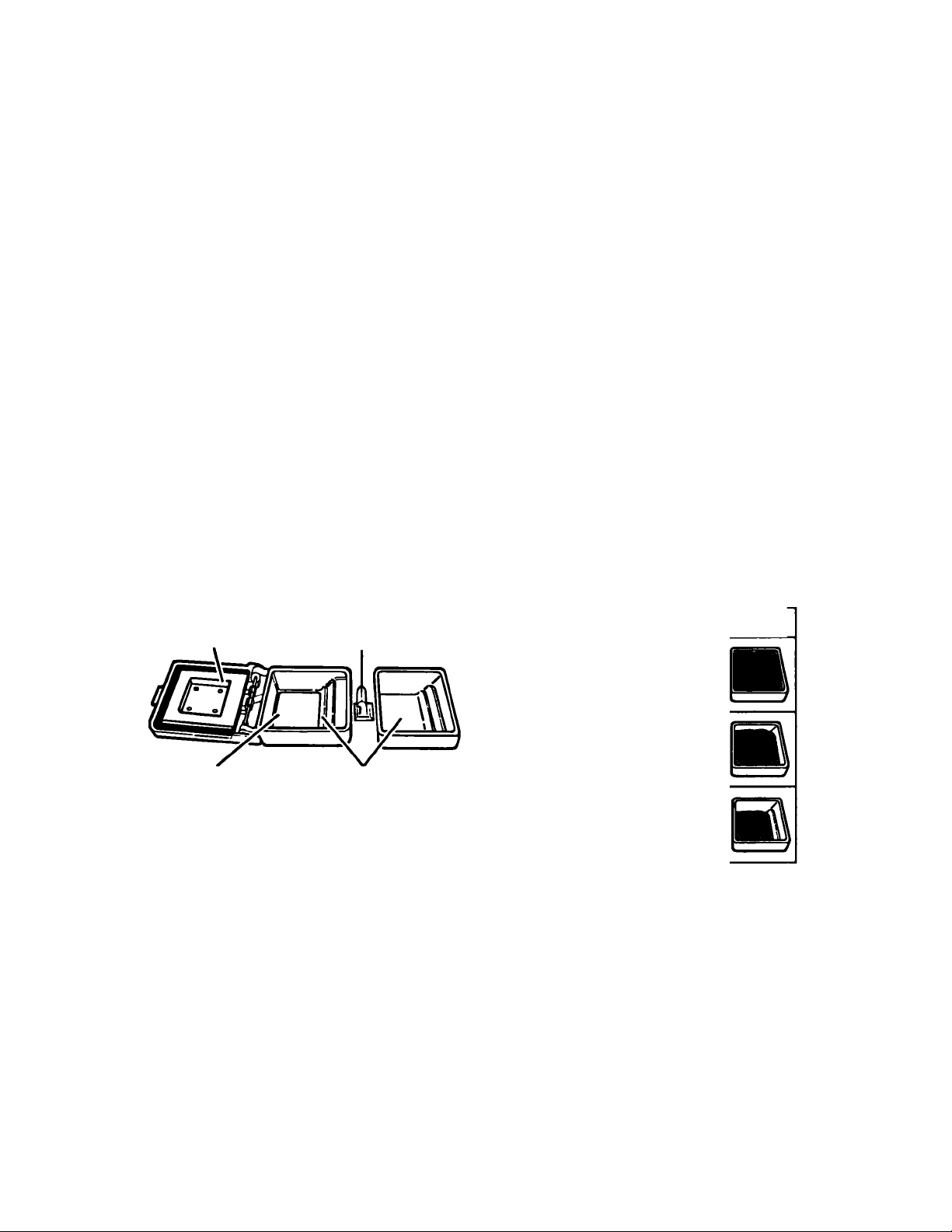

The detergent dispenser has one section with a cover and one without. Push cover down firmly until it latches. Detergent in the

open section falls into the dishwasher when closing the door. The covered section opens automatically for the niain wash.

NOTE: It is normal for the cover to open partially when dispensing detergent.

Coyer

Cover Latch

How much detergent to use

• The amount of detergent to use depends on the hardness of your water arvi the type of detergent. If you use too little, dishes won't be clean. If you use too much in soft water, glassware will etch.

• Different brands of dishwasher detergent have different anwunts of phosphorus for softening water. If you have hard water and use bw phosphorus content detergent (6.0% or less), you may need to use more detergent or use a detergent with a higher phosphorus content (8.7%).

• Find out your water’s hardness by asking your local water department, water soft ener company, or county extension agent.

WATER TYPE

Hard

8+ grains per gallon

13&I- parts per million

WHERE TO FILL Top of

3rd step (3tbs)

Use only covered

section for:

- UGHT WASH*

*Cycte on some models only.

Use both sections for

- NORMAL WASH

- POTS & PANS*

Medium

5-7 grains per gallon 85-119 parts per million

Soft Top of

0-4 grains per gallon 1 st step 0-68 parts per million (i tbs)

Rll amounts shown are for standard powdered detergent. Amounts may vary if you use liquid or concentrated powdered detergent. Follow manufacturers directions when using liquid dishwasher detergent or concentrated powdered detergent.

Top of 2nd step (2 tbs)

Page 11

USING THE DISPENSERS

Using the rinse agent dispenser

Keep the rinse agent dispenser filled with a liquid rinse agent. A rinse agent greatly Improves dish drying by helping water flow off them during the last rinse. A rinse agent also keeps water from forming droplets arKi drying as spots or streaks.

A small amount of rinse agent automati

cally releases into the rinse water during the

final rinse of each cycle. For best drying

results, check dispenser periodicaiiy to see if It needs filling.

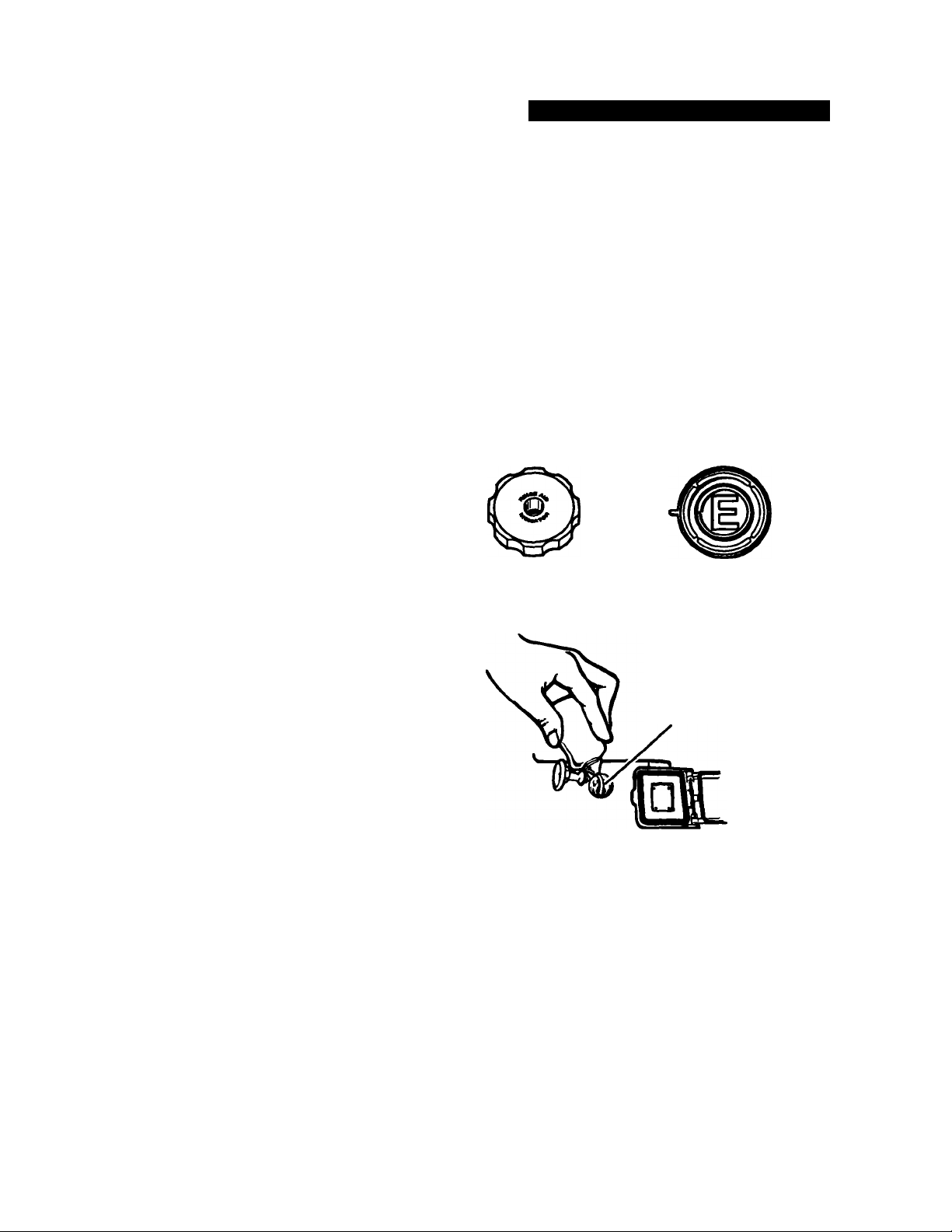

To check dispenser:

• Check center of Fill Indicator Cap. Clear means it needs filling.

• Remove Fill Indicator Cap. An “P is visible when dispenser is empty.

Cap center clear

when empty

"E" visible

when empty

To fill dispenser:

The rinse agent dispenser holds 6 ounces

(175 mL). Under normal conditions, this lasts about 3 months.

1. Open dishwasher door completely.

2. Remove Rll Indicator Cap.

3. Add rinse agent. Fill to smallest opening in lower part of dispenser only. Overfilling may cause rinse agent to leak out. This

will not harm the dishwasher, but could

cause oversudsing.

4. Clean up any spilled rinse agent with a

damp cloth.

5. Replace Fill Indicator Cap. Keep it closed tightly.

NOTE: You do not have to wait until the

dispenser is empty before refilling, but do

not overfill it. Your dishwasher is designed to use a liquid rinse agent. You do not need to use a solid or bar-type rinse agent.

Do not fill past

smallest opening

Keep dispenser filled for best drying resuHs

Page 12

Setting the Controls

Operating your dishwasher's controls properly helps you obtain the best possible washing

results. *№is section tells you how to select wash cycles and options.

Selecting a wash cycle

For Series 400,800, and 810 models: Turn Cycle Control Knob to desired cycle. For Series 830 models: Press POTS & PANS button for that cycle. Or press either HEAT

DRY or AIR DRY for NORMAL WASH and LIGHT WASH cycles. Press AIR DRY for RINSE & HOLD cycle. Turn Cycle Control Knob to desired cycle.

For Series 840 models: Press a cycle pad, then turn the Cycle Control Knob to desired

cycle. NORMAL WASH. LIGHT WASH, and RINSE & HOLD all share the same cycle pad.

NOTE: Your nnodel may have all or some of the cycles shown.

CYCLE POTS & PANS

Double wash for rnaximum cleaning of

cooked-on or baked-on foods.

NORMAL WASH

Double wash for normal,

everyday soiled loads. (The Energy Guide label is based on this cycle.)

LIGHT WASH

Single wash

for prerinsed

or lightly soiled loads.

A shows what each cycle includes

WASH RINSE

• •

•

MAIN

•

RINSE

•

RINSE

WASH

•

• • • •

FINAL RINSE

• •

•

DRY

•

CYCLE

TIME

Minutes)

98*

90*

85*

RINSE & HOLD

• Do rK>t use detergent.

• Use AIR DRY option.

*Cyd* tkn* Muim dfy Dm*.

days later.

•

Page 13

Canceling a cycle

You can cancel a cycle at any time.

1. Turn the Cycle Control Knob slowly clockwise until you hear water draining.

Let the dishwasher drain completely.

2. Open the door.

3. Turn the Cycle Control Knob to OFF.

Selecting cycle options

You can select a drying option after the dishwasher starts as long as the Cycle Control Krtob has not reached DRY.

HEAT DRY option

If the HEAT DRY option is selected, air in the dishwasher is heated during the “dry” part of the cycle. For best results, use a liquid rinse agent.

For Series 830 models, the HEAT DRY

option is automatically selected with the

POTS & PANS cycle.

SETTING THE CONTROLS

UHY

imj

□

Series 400,800, and 810 models

Series 830 and 840 models

AIR DRY option

When AIR DRY is selected, the air in the dishwasher is rK>t heated during the “dry” portion of a cycle. Using AIR DRY helps save energy, but dishes take longer to dry and some spotting can occur. Some items (such as plastics) may need towel drying.

For best drying, use a liquid rirrse agent. NOTE: You must choose either AIR DRY or

HEAT DRY for each wash cycle. Select AIR DRY when using the RINSE & HOLD cycle (Series 800, 810, 830, and 840 models).

imj

Series 400, 800, and 810 models

□

Series 830 and 840 models

DRY

Page 14

SETTING THE CONTROLS

Changing a cycle setting

(on some models)

You can change a cycle setting anytime

during any cycle.

1. Lift up the door latch to stop the cycle.

2. Turn the Cycle Control Knob clockwise to the desired cycle.

3. Check the detergent dispensers. They must be filled properly for the new cycle.

NOTE: Turning the Cycle Control Knob

can cause the covered section of the detergent dispenser to open and release the detergent. Check the covered section

if setting NORMAL WASH or POTS & PANS cycle.

4. Close the door firmly until it latches. The dishwasher starts the new cycle.

Adding an item during a cycle

(on some models)

You can add an additional item to the dish washer anytime before the Cycle Control

Knob reaches LIGHT WASH. Items added

after the Cycle Corrtrol Knob reaches LIGHT

WASH will only be rinsed.

1. Lift up the door latch to stop the cycle. Wait for spraying action to stop before opening the door.

2. Open the door and add the item.

3. Close the door, but do not latch it. Wait 30 seconds for the air in the dishwasher to warm up. Doing so reduces the anxtunt of moisture in the vent when restarting a cycle.

4. Close the door firmly until it latches. The dishwasher resumes the cycle.

Page 15

Washing Special Items

If you have any doubts about washing a particular item, check with the manufacturer to see if K is dishwasher safe.

MATERIAL Aluminum Yes

Bottles

and Cans

Cast Iron China/

Stoneware

Crystal

Gold Glass

HollowHandle Knives

Pewter

Disposable Plastics

Plastics Yes

Stainless Steel

Sterling Silver or

Silver Plate

Tin Wooden

Ware

DISHWASHER SAFE?

Yes

No No

EXCEPTIONS/SPECIAL INFORMATION

High water temperature and detergents can pit

finish of anodized aluminum. Wash bottles and cans by hand. Labels attached

with glue can loosen in your dishwasher. Loose

labels and glue can clog spray arm or the pump

arnd will reduce washing performance. Seasoning will be removed and iron will rust. Always check manufacturer’s recommendations

before washing. Antique, hand-painted, or overthe-glaze patterns may fade. Gold leaf can discolor or fade.

Always check manufacturer’s recommendations before washing. Some types of leaded crystal can etch with repeated washings.

Gold-colored flatware will discolor.

Milk glass will yellow with repeated dishwasher

washing.

Handles of some knives are attached to the blade with adhesives which may loosen if washed in the dishwasher.

High water temperatures arxJ detergent can discolor or pit finish.

Cannot withstarxl high water temperatures and detergents.

Always check manufacturer’s recommendations before washing. Plastics vary in their capacity to withstarKi high water temperatures and deter gents. Load plastics in top rack only.

Run the RINSE & HOLD cycle if not washing

immediately. Prolonged contact with food containing salt, vinegar, milk products, or fruit juice can damage finish.

Run the RINSE & HOLD cycle if not washing

immediately. Prolonged contact with food containing salt, acid, or sulfide (eggs, mayon-

r^ise, and seafood) can damage finish. Can rust. Always check manufacturer’s recommendations

before washing. Untreated wood can warp, crack, or lose its finish.

Page 16

Connecting a Portable Dishwasher

NOTE: A special adapter must be installed on the faucet before the dishwasher can be connected. Complete instructions and the adapter are packed with your dishwasher.

When moving your dishwasher make sure the door is latch^. Hold the dishwasher at the top front corners.

Connecting the dishwasher

1. Run water at faucet until it is hot. Turn water off.

2. Pull hoses out of their storage comp>artment on the back of the dishwasher.

NOTE: Make sure the hoses are not kinked or twisted. Kinked hoses reduce washing performance.

3. PuU down on the locking collar while lifting the hose connector onto the faucet adapter.

4. When the connector snaps into place,

release the locking collar.

5. Turn the hot water on slowly until it is all the way on.

6. Plug in power supply cord.

7. See page 6 for irtstructions on how to start the dishwasher.

Hose connection

Drawing water when dishwasher is

connected

You can draw water from the faucet while the dishwasher is connected. Do not draw water while the dishwasher is filling or while

water is being pumped out. (This helps prevent a low fill wiran dishwasher is filling

or mixing drain water with fresh water.)

• Press the red button on the hose connec tor to draw water from faucet. (The faucet

is set on hot. Adjust faucet for the water

temperature you want.)

NOTE: Turn hot water back on after you draw water from faucet. Turn off cold water.

Page 17

CONNECTING A PORTABLE DISHWASHER

Disconnecting the dishwasher

1. Turn hot water off. (This can be done after the last rinse.)

2. Press the red button on the connector to

release the water pressure.

3. Lift slightly on the hose connector while pulling down the locking collar. Pull down on the connector.

4. Empty any remaining water from the connector by turning the connector

upside down.

5. Unplug power supply cord aixl return to storage compartment.

6. Return hoses to storage compartment.

Electricai connection

A power supply of 120 volts, 60Hz AC, 15 or 20 amps, is required. For your personal safety, this appliance must be grounded. This appliance is equipped with a power supply cord having a 3-prong grourxJing plug. To

minimize possible shock hazard it must be plugged into a mating 3-prong grounding type wall receptacle, grounded in accordance with the Natiorral Electrical Code aixl local codes and ordinances. If a mating waU receptacle is not available, it is the responsibility a^ obligation of the customer to have a properly

grounded 3-prong wall receptacle installed by

a qualtfied electrician.

3-prong grounding

cord

Locking collar

Hose connection

3-prong grounding type wall receptacle

^WARNING

Fire Hazard

An extension cord should not be used

with this appliance. Do not, under any circumstances,

renfK)ve the power supply cord ground prong.

Such use may result in a fire, electrical shock, or other persor^l injury.

Converting a portable dishwasher to a built-in

Your Whirlpool Portable Dishwasher can be converted to a built-in (undercounter) model by using conversion kit No. 4317856. The kit

is available at your Whirlpool dealer or authorized Whirlpool service company.

Instructions are included with the kit.

Page 18

Caring for Your Dishwasher

Your new dishwasher is designed to give you many years of dependable service. There are a few things you can do to maintain your dishwasher properly. This section tells you how to clean arid care for your dishwasher.

Refer to “Solution charf on pages 21-23 for

special cleaning problems. See Installation

Instructions for information on storing your

dishwasher and for cleaning the drain air gap.

Before cleaning interior, wait at least 20 minutes after a cycle for the heating element to cool down.

Failure to do so could result in burns.

Caring for simulated wood top

(on portable models)

The simulated wood top can be used as a utility work surface for most kitchen jobs. It is stronger and more easily cleaned than gen uine wood. The top can be used as a cutting board. Knife marks will be visible, but will not seriously damage top. Hot items from the oven can be placed on the top. Clean top with warm, soapy water. For dried-on foods, use a scourir^ pad.

^WARNING

Personal Injury Hazard

Cleaning the exterior

In most cases, regular use of a soft, damp cloth or sponge arxJ a mild detergent is all that is necessary to keep the outside of your dishwasher nice looking and clean.

Cleaning the interior

Hard water mirrerals may cause a white film to build up on the inside surfaces, especially just beneath the door area. To clean interior:

• Apply powdered dishwasher detergent to a

damp sponge to make a paste.

• Use liquid automatic dishwasher detergent

and clean with damp sponge.

Wear rubber gloves. Do not use any type of cleanser other than dishwasher detergent because it can cause foaming or sudsing.

NOTE: Follow the “Removing spots and film” procedure on page 23 to clean your dishwasher with white vinegar. Remember, this procedure is intended for occasional use only. Vinegar is an acid. Excessive use can damage your dishwasher.

Page 19

CARING FOR YOUR DISHWASHER

Overfill Protector

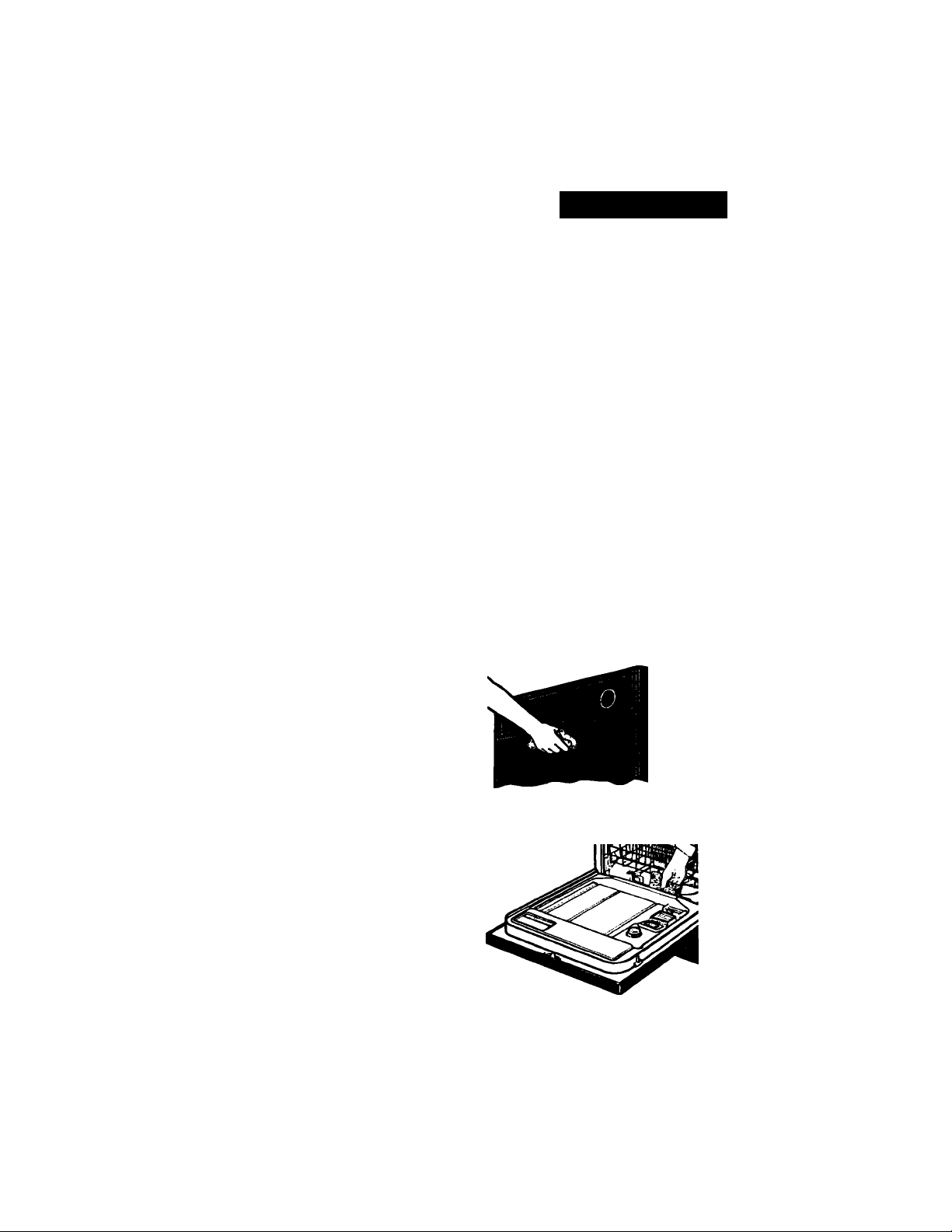

The Overfill Protector (in the front right comer of the dishwasher tub) keeps the dishwasher from overfilling. It must be in place for the dishwasher to operate.

Check under the float for objects that may

keep the protector from moving up or down.

Cleaning the filter screen

The filter system requires periodic cleaning as needed. To clean screen:

1. Unload and slide the bottom rack forward. (Remove bottom rack if necessary to reach filter screen.)

2. Remove collected particles from the screen with your fingers or paper towel.

3. Return the bottom rack to original position.

Page 20

Saving Energy

Saving energy is important and helps you save money. This section gives you tips on the best ways to save energy with your dishwasher.

Loading tips

• Wash full loads. Running a half-filled dishwasher uses the same amount of electricity and hot water as a fully loaded machine.

• Load correctly for best washing results. Incorrect loading may cause poor washing and the need to rewash all or part of load.

• Do not prerinse normally soiled dishes. Select the correct cycle for the load and use the recommended arrK)unt of detergent.

Cycle and option tips

• If your model has the LIGHT WASH cycle, use it whenever possible. The cycle uses less hot water arid errergy than the NORMAL WASH cycle.

• Run your dishwasher during off-peak hours. Local utilities recommend avoiding heavy usage of energy at certain times of day.

• Use the AIR DRY option whenever pos sible. Allow longer drying times (overnight).

Use a rinse agent to improve drying.

• Loads may not wash or dry as well if the water temperature is too low. For best

dishwashing results, water must be at least 120°F (49°C) as it enters the dishwasher.

To check water temperature:

1. Run the hot water at the faucet closest to your dishwasher. Let the water

run for at least 1 minute.

2. Hold a candy or meat thermometer in the

running stream of water. If water temperature at the faucet is below 120°F (49°C), have a qualified person raise the water

heater’s thermostat setting.

Page 21

Solving Common

Dishwashing Problems

A convenient checklist for handling minor performance problems. Go over this list before caHing for service. If you are unable to solve your dishwasher's problem, turn to page 25 for

service information.

Solution chart

PROBLEM CAUSE Food soil left

on dishes

Improper loading Water temperature

too low

Use of kvxMTect, too little, or ineffective detergent

Detergent cakes in

dispenser

Insufficient fill due to

low water pressure

Slowdown of wash

arm due to high suds

SOLUTION Follow loading instructioris on pages 7-9.

If needed, turn home water heater up to ensure water entering dishwasher is 120°F (49”C) minimum. See To check water temperature” on page 20.

Use recommended dishwasher detergents only. Follow recommendations on |)age 10 for amounts. Never use less than 1 tablespoon per

load. Detergent must be fresh to be effective. Always store detergent tightly-closed in a cool, dry place.

Use fresh detergent only. Do not allow deter

gent to sit for several hours in a wet dispenser.

Check dispenser for caked detergent. Clean

dispenser when caked detergent is present.

Home water pressure should be 20 to 120

pounds per square inch (psi) for proper dishwasher fill. A booster pump on the water supply may be necessary if pressure is too low.

Never use soap or laundry detergents. Use

recommended dishwasher detergents only.

Spotting and filming

Hard water or high mineral content in water

Water temperature too low

Use of ir№orrect detergents

Use rinse agent to help prevent spotting

and filming. See page 11. To remove hard

water film, see “Removing spots and film” on

page 23.

If needed, turn home water heater up to ensure water entering dishwasher is 120°F (49°C) minimum. See To check water temperature”

on page 20.

Use reconrvnended dishwasher detergents only.

continued on next page

Page 22

SOLVING COMMON DISHWASHING PROBLEMS

PROBLEM Spotting

and filming

(continued)

Dishes do not

dry completely

Silica film or etching

(silica film is a white iridescent deposit; etching

is a cloudy film)

CAUSE SOLUTION Incorrect amount

of detergent

Use of ineffective detergents

Insufficient fill due to

low water pressure

Dishes do not drain properly

Plastics Some plastics, due to material, may need to

Water chemical reaction with certain types of glassware usually caused by some combination of soft or softened water, alkaline washing solutions, insufficient

rinsing, overloading the dishwasher, and heat of drying.

Follow recommendations on page 10 for amount. Heavy soil and/or hard water generally require extra detergent.

Use fresh detergent. Store detergent tightlyclosed in a cool, dry place. Discard lumpy detergent.

Home water pressure should be 20 to 120 psi for proper dishwasher fill. A booster pump on the water supply may be neces sary if pressure is too low.

Dishes must have proper water drainage. Do not overload. Follow instructions for loading dishwasher on pages 7-9. Use a liquid rinse agent to speed draining.

be towel dried.

It may not be possible to prevent problem, except by har^ washing. To slow this process, use a minimum amount of deter gent but not less than 1 tablespoon per load. Use a liquid rinse agent artd underload the dishwasher to allow thorough rinsing. Silica film and etching are permanent and canrx>t be removed. Use the AIR DRY option.

Black or gray marks on dishes

White spots on cookware with

non-stick finish

Aluminum items touching dishes

Seasoning removed by dishwasher detergertts

Load aluminum items so that they will not

rub against dishes during washing. Do not wash throwaway aluminum items in the dishwasher because they may break down arKi cause marking. Remove aluminum

markings by using a mild abrasive cleanser.

Reseason cookware after dishwasher washing.

Page 23

SOLVING COMMON DISHWASHING PROBLEMS

PROBLEM Brown stains

on dishes and dishwasher interior

Orange stains on dishwasher interior

Odor in the dishwasher

Chipping of dishes

CAUSE

High iron content in water supply

Large amounts of tomato-based foods on dishes placed in the dishwasher

Dishes only washed every two to three days

Improper loading

SOLUTION

Remove by washing dishes (after food soil has been removed) with 1 teaspoon to 1 table spoon of citric acid crystals added to covered section of detergent dispenser. Do rx>t use detergent. Follow with a LIGHT WASH cycle and detergent. If treatment is needed more often than every other month, we recommerrd installation of an iron rerrK)val unit.

Stains will not affect dishwasher performance and can gradually fade over time. Regular use of RINSE & HOLD reduces the charge of staining. If air in the dishwasher is heated dur ing the “dry” portion of the cycle, stains may fade slower than if the AIR DRY option is selected.

Run a RINSE & HOLD cycle at least once or twice a day until a full load is accumulated.

Load dishes and glasses so they are stable and do not strike together from washing action. Moving racks in and out slowly will also minimize chipping.

NOTE: Some types of china and glassware

are too delicate for automatic dishwashing and should be hand washed; for example: antiques, feather-edged crystal, and similar items.

Removing spots and film

Keep the rinse agent dispenser filled with a

liquid rinse agent. A rinse agent prevents water from forming droplets and drying as spots or streaks.

To remove spots and film on dishes and glasses, or hard water filrri/lime buildup on the interior of the dishwasher, you may use white vinegar with the following procedure:

1. Load clean dishes and glasses in dish

washer (see pages 7-9). Do not load silverware or other metals in the dishwasher.

2. Put 2 cups of household vinegar (in a glass or dishwasher safe measuring cup) standing upright in the bottom rack.

3. Close and latch the door.

4. Select the NORMAL WASH cycle and AIR DRY option. Do not use detergent. Allow the dishwasher to complete the entire cycle.

NOTE: This cieaning procedure is intended

for occasional use only. Vinegar is an acid. Excessive use may damage your dishwasher.

Page 24

Troubleshooting

Before calling for assistance please check the chart below for problems you can fix. It

could save you the cost of a service call.

Dishwasher problems

PROBLEM

Dishwasher does not run or stops during a cycle

Dishwasher Is the Overfill Protector stuck in “up” position? Overfill Protector

will not fill should move up and down freely. Press down to release. See

Water remains in dishwasher

Detergent remains in covered section of dispenser

Dishes not as dry as you expected

CHECK THE FOLLOWING Is the door tightly closed and securely latched?

Has the cycle been set correctly? See pages 5 and 12-13. Has a household fuse blown or circuit breaker tripped? If the motor stopped because of an overload, it will automatically

reset itself within a few minutes. If it does not start, call for service. Is the water supply turned on? Is the dishwasher wired into a live circuit with the proper voltage?

page 19. Allow cycle to finish. A small armunt of water remaining is normal.

Check the drain air gap (if installed). If it is clogged, follow the manufacturer’s cleaning instructions.

Has the cycle completed? Is the detergent fresh and dry without lumps? See page 10. Is the bottom rack in backwards? The rack bumpers must face the

dishwasher door. Is the rinse agent dispenser empty? Using a rinse agent greatly

improves drying. See page 11.

White residue appears on front of access panel

Dishwasher will not close

Do not use AIR DRY option on the next load. See page 13. Is too much detergent being used? See page 10 for recommeixied

amounts of detergent. Some liquid detergents develop excess foam and residue on panel.

Try a different brand to reduce foaming and eliminate buildup. Is the bottom rack in backwards? The rack bumpers must face the

dishwasher door.

Page 25

Requesting Assistance or

Service

Before calling for assistance or service, please check Troubleshooting" on page 24. It may

save you the cost of a service call. If you still need help, follow the instructions below.

1. If you need assistance* ...

Call the Whirlpool Consumer Assistance

Center telephone number. Dial toll-free from anywhere in the U.S.A.:

1-800-253-1301

and talk with one of our trained

consultants. The consultant can instruct you

in how to obtain satisfactory operation from

your appliance or, if service is necessary,

recommend a qualified service company in

your area.

If you prefer, write to:

Mr. William Clark Consumer Assistance Representative Whirlpool Corporation 2000 North M-63 Benton Harbor, Ml 49022-2692

Please kx:lude a daytime phone number in

your correspondence.

2. If you need service* ...

Whirlpool has a rrationwkJe network of

authorized service companies. Whirlpool service technicians

iSERVKE

the United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance Center telephone

number (see Step 1) or look in your tele

phone directory Yellow Pages under:

are trained to fulfill the product warranty and provide after warranty service, anywhere in

3. If you need FSP*

replacement parts ...

FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this synibol of quality whenever you need a replacement part for your Whirlpool* appli ance. FSP replacement parts will fit right and work right, because they are made to the same exacting specifications used to build every new Whirlpool appliance.

To locate FSP replacement parts in your area, refer to Step 2 or call the Whirlpool Consumer Assistance Center number in Step 1.

4. If you are not satisfied

with how the problem was solved ...

• Contact the Major Appliance Consumer

Action Program (MACAP). MACAP is a group of independent consumer experts that voices consumer views at the highest levels of the major appliance irxlustry.

• Contact MACAP only when the dealer,

authorized servicer, and Whirlpool have failed to resolve your problem.

Major Appliance Consumer Action Program 20 North Wacker Drive Chicago, IL 60606

• MACAP wiil in turn inform us of your

action.

•APPUANCE-HOUSEHOLDMAJOR, SERVICE A REPAIR

- Smt WhMpool AppHanoM or

Aulhorizod Whirlpool Sorvloo

(£nrr^’ XYZ Sorvlos Co.)

•WASHING MACHINES S DRYERS» SERVICE li REPAIR

«S—: Whirlpool AppHanoss or

Authorizad Whirlpool Sarvica (£jcarrv»to: XYZ Sarvtea Co.)

"When asking for help or service:

Please provide a detailed description of the problem, your appliance's complete model and serial numbers, and the purchase date. (See page 2.) This information will help us respond properly to your request.

Page 26

Index

This index is alphabetical. Look for the word or phrase you are interested in, then look for the page number.

TOPIC

___________________________

PAGE

TOPIC PAGE

BOTTOM RACK..............................................8

CLEANING

Exterior...................................................18

Interior

...................................................

COMMON WASHING PROBLEMS

Solving

...............................................

CONNECTING A PORTABLE

DISHWASHER......................................16-17

CYCLE

Canceling Selecting

DETERGENT

Tips........................................................10

Use chart

DISHWASHER OPERATION

Adding an item during a cycle

Changing a cycle setting Starting

Stopping...................................................6

DISPENSER

Detergent................................................10

Rinse Agent.............................................11

ENERGY

Saving

FEATURES/PARTS.......................................4-5

FILM/SPOTS

Removing................................................23

Bottom rack...............................................8

Preparing to load

Silverware basket........................................7

Top rack

................................................

.................................................

................................................

......................

.............................

....................................................

........................................

...................................................

21-23

13 12

14 14

OPTIONS.....................................

OVERFILL PROTECTOR

PARTS/FEATURES RESPONSIBILITIES

Owner

.....................................

RINSE AGENT

Using.......................................

SAFETY SERVICE

SILVERWARE BASKET SPECIAL ITEMS

SPOTS/FILM

TOP RACK....................................

TROUBLESHOOTING......................

WARRANTY..................................

WATER

7 9

......................................

Parts

.......................................

Requesting

Washing

Removing.................................

Checking temperature

.........................

...............................

...................................

..................

....................

.................

..............

.............

................

..............

................

..............

................

..............

................

..............

13 19

4-5

25 25

Page 27

WHIRLPOOL®

Dishwasher Warranty

LENGTH OF WARRANTY FULL ONE-YEAR

WARRANTY

From Date of Purchase FULL TWENTY-YEAR

WARRANTY From Date of Purchase

WHIRLPOOL WILL NOT PAY FOR A. Service calls to:

1. Correct the irrstallation of the dishwasher.

2. Instruct you how to use the dishwasher.

3. Replace house fuses or correct house wiring or plumbing. B. Repairs when dishwasher is used in other than normal, single-family household use. C. Pickup and delivery. This product is designed to be repaired in the home. D. Danrage to dishwasher caused by accident, misuse, fire, flood, acts of God, or use of

products not approved by Whirlpool.

E. Repairs to parts or systems caused by unauthorized modifications made to the

appliance.

WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSE QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of incidental or cor^equential damages, so this exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool dealer.

If you need service, first see the “Requesting Assistance or Service” section of this book. After checking “Requesting Assistance or Service,” additional help can be found by calling our Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.

WHIRLPOOL WILL PAY FOR FSP* replacement parts and repair labor to correct defects

in materials or workmanship. Service must be provided by an authorized Whirlpool service company.

FSP replacement parts arid repair labor for the DURAPERM™ tub and/or inner door should they fail to contain water due to defective materials or workmanship. Service must be provided by an authorized Whirlpool service company.

a«4

PART NO. 3373757 Rev. A

C1005 WhMpool CrwporaUon

Printed on fcycltd paper -

10% poal-oonaumar waala

50% fcovarad matarWt

• RagMarad Tradamark of Whirlpool, U.SJk.

Prinlad in U.S>.
