USER MANUAL
GAS BUILT-IN OVENS
GAS BUILT-IN OVENS
WVG613S/W, WVG615S/W
WVG613S/W, WVG615S/W
WVG655S/W, WVG665S/W
WVG655S/W, WVG665S/W
WARNING
WARNING
TIPS & INFORMATION
ENVIRONMENTAL TIPS
CONTENTSCONGRATULATIONS
Dear customer,
Congratulations and thank you for choosing our oven.
We are sure you will find it a pleasure to use. Before you
use the oven, we recommend that you read through
the relevant sections of this manual, which provides a
description of your appliance and its functions.
To avoid the risks that are always present when you use
an appliance, it is important that the appliance is installed
correctly and that you read the safety instructions
carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
After unpacking the appliance, please check it is not
damaged. If in doubt, do not use the appliance but
contact your local customer care centre.
This appliance complies with requirements of Australian
Standards AS/NZS 60335.2.6 and AS4551.
Conditions of use
This appliance is intended to be used in household and
similar applications such as:
• Staff kitchen areas in shops, offices and working
henvironments
• Farm houses
• By clients in hotels, motels and other residential type
environments
• Bed and breakfast type environments
• Catering and similar non-retail applications
Important safety instructions ........................................................3
Product description ...........................................................................5
Before using your appliance for the first time ................... 6
Installing oven accessories .............................................................7
Using your oven ................................................................................. 8
Cooking guide ...................................................................................14
Grilling guide ...................................................................................... 15
Dealing with cooking problems .................................................16
Getting to know your oven ..........................................................17
Cleaning your appliance ...............................................................18
Cleaning the oven door .................................................................20
Troubleshooting ................................................................................24
Installing your appliance ...............................................................25
Gas installation information ....................................................... 30
Warranty ...............................................................................................35
Please read the user manual carefully and store in a handy
place for later reference.
The symbols you will see in this booklet have
these meanings:
WARNING
This symbol indicates information concerning your
personal safety.
CAUTION
This symbol indicates information on how to avoid
damaging the appliance.
Please ensure you read the instruction manual fully
before you call for service, or a full service fee could
be applicable.
Record model and serial number here:
Model number:........................................................................................
Serial number: .........................................................................................
PNC: .............................................................................................................
IMPORTANT
This symbol indicates tips and information about use
of the appliance.
ENVIRONMENT
This symbol indicates tips and information about
economical and ecological use of the appliance.
CONTENTS
2 CONTENTS
TIPS & INFORMATION
ENVIRONMENTAL TIPS
WARNING
IMPORTANT SAFETY INSTRUCTIONS
Please read the user manual carefully and store in a handy
place for later reference.
IMPORTANT
Important – check for any damages or marks
If you find the oven is damaged or marked, you must
report it within 7 days if you wish to claim for damage/
marks under the manufacturer’s warranty. This does not
affect your statutory rights.
ENVIRONMENT
Information on disposal for users
• Most of the packing materials are recyclable. Please
dispose of those materials through your local
recycling depot or by placing them in appropriate
collection containers.
• If you wish to discard this product, please contact
your local authorities and ask for the correct method
of disposal.
WARNING
These warnings have been provided in the interest of
safety. You MUST read them carefully before installing
or using the appliance.
• An authorised person must install this appliance
and carry out servicing. (Certificate of Compliance to
be retained)
• Before using the appliance, ensure that all packing
materials are removed from the appliance.
• Always be careful when you move the appliance
because it is heavy. Always wear safety gloves.
• Do not pull the appliance by the door handle.
• This appliance must be earthed.
• In order to avoid any potential hazard, the enclosed
installation instructions must be followed.
• Ensure that all specified vents, openings and air
spaces are not blocked.
• Do not modify this appliance.
• This appliance must not be used as a space heater.
• Where the appliance is built into a cabinet, the
cabinet material must be capable of withstanding
70°C. If adjacent to vinyl wrapped surfaces, use
installation kit from vinyl wrap supplier.
• Ensure the appliance is switched off before cleaning
or replacing parts. This can be done by switching off
the appliance via the powerpoint or isolating switch
(if available), or the switchboard.
• Do not use steam cleaners, as this may cause
moisture build up.
• Switch the appliance off before removing the oven
light glass for globe replacement.
• Always keep the appliance clean. Ensure fats and oils
do not accumulate around elements, burners or fans.
• Care must be taken when wiping exposed stainless
steel edges.…they can be sharp!
• Do not spray flammable materials in or under the
appliance, e.g. aerosols.
• Do not store flammable materials in or under the
appliance e.g. Aerosols
• Do not leave the grill on unattended.
• Always turn the grill off immediately after use as fat
left behind may catch fire.
• Do not cover the grill insert with foil, as fat left there
may catch fire.
• Always keep the oven dish, grill dish and bake trays
clean as any fat residue may catch fire.
• To avoid an accident, ensure that the oven shelves
and fittings are always inserted into the appliance in
accordance with the instructions.
• The door glass on this appliance is made from a
tough, durable material that withstands heating and
cooling without breaking. As a precaution however,
do not put cold water on hot glass.
• Door glass that is damaged should be
immediately replaced.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
persvvon responsible for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
• Accessible parts will become hot when in use. To
avoid burns and scalds children should be kept away.
• During use, this appliance becomes hot. Care should
be taken to avoid touching hot surfaces, e.g. oven
door, heating elements or internal surfaces of
the oven.
• Always use gloves when handling hot items inside
the oven.
• To maintain safe operation, it is recommended
that the product be inspected every 5 years by
an authorised service person.
• New appliances can have an odour during the first
operation. It is recommended to ‘run in’ the oven
before you cook. Run the oven(s) at 180°C for 30
minutes and ensure the room is well ventilated.
SAFETY
3SAFETY
WARNING
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Read the following carefully to avoid damage to the
appliance.
• The grill door must be left fully open whilst grilling in
a separate grill wall oven and a separate grill
underbench oven.
• The grill tray must be fully inserted whilst grilling.
• Do not place thick portions of food under the grill.
Foods may curl, catch and ignite.
• Do not use the door as a shelf.
• Do not push down on the open oven door.
• Do not use harsh abrasive cleaners or metal scrapers
to clean the oven door glass since they can scratch
the surface which may result in shattering of the
glass.
• Do not use harsh abrasive cleaners, powder cleaners,
steel wool or wax polishes on enamel.
• Do not use sharp metal implements or utensils on
any surface, as these may leave permanent scratches
or marks.
• Do not use stainless steel cleaners, abrasive cleaners
or harsh solvents to clean your stainless steel
appliance.
• Do not line the bottom of the oven or grill with foil or
cookware, it will damage the enamel.
• Do not use the base of the oven for cooking – it will
damage the enamel.
• Do not put water directly into the hot appliance.
• Always clean the appliance immediately after any
food spills.
Note: You must read these warnings carefully before
installing or using the appliance. If you need assistance,
contact your Customer Care Centre. The manufacturer
will not accept liability, should these instructions or any
other safety instructions incorporated in this book
be ignored.
4 SAFETY
PRODUCT DESCRIPTION
WVG613
WVG615
1
2 3 4
5 1
WVG655 & WVG665
2 7 6 9
1
Oven indicator light
2
Function selector
3
Oven/grill temperature selector
4
‘Auto-off’ timer
2
1 8
6
3
5
Function indicator light
6
Electronic Clock
7
Oven temperature selector
8
Grill indicator light
9
Grill temperature selector
5PRODUCT DESCRIPTION
WARNING
BEFORE FIRST USE
Setting the time
If you have purchased a model fitted with an electronic
clock, you must set the time of day before you can
operate your appliance.
Electronic clock
• After the appliance has been electrically connected,
“12.00” will be displayed and the indicator
symbol
• To set the time of day, press the
• After 5 seconds from the last change, the
indicator symbol
time has been set.
NOTE: The clock has a 24-hour display.
will flash.
or symbols.
will disappear, confirming the
CAUTION
• Do not line the oven with foil as it will damage
the enamel.
• New appliances can have an odour during first use.
It is recommended to ‘run in’ the oven before cooking
for the first time. Operate the oven(s), empty, at a
temperature of 180°C for approximately 30 minutes.
For appliances with a separate grill, run grill on
maximum for 15 minutes WITH GRILL DOOR OPEN.
Please ensure that the room is well ventilated during
this process.
Preparing your appliance for the first time
• Please remove all internal boxes and bags from the
oven before operation.
• Please wipe out the oven interior prior to operation
with warm soapy water and polish dry with a soft
clean cloth. Do not close the oven door until the oven
is completely dry.
• If your appliance is fitted with a mechanical “Auto
Off” timer, make sure it is set to “Off” marker for
manual operation.
6 BEFORE FIRST USE
INSTALLING YOUR OVEN ACCESSORIES
TIPS & INFORMATION
Installing your oven accessories
Side racks
The side racks that come with your oven can be
attached to either side of your oven.
• Insert the rear peg(s) side into the rear access holes
provided, ensuring that the pegs are fully inserted.
• Then locate the front peg into the front access hole
and push in firmly.
• When locating the side racks into the small oven or
grill, ensure the left pegs go into the upper two holes.
Shelves and trays
IMPORTANT
The shelves are designed so that they have maximum
travel but cannot be accidentally pulled right out. The
trays are designed the same way and fit straight into the
side racks.
• Locate the rear edge of the shelf/tray in between
2 guide rails of the side rack - see diagram. Ensure
the same rail positions on both sides of the oven are
being engaged.
• With the front edge raised, begin to slide the shelf
into the oven.
• Once the detents have passed the front edge of the
side rack, the shelf can be pushed completely in.
• The grill/baking tray for separate grill wall oven
models slides into the wire runners in a similar
manner.
• When fully inserted the shelf/tray should not interfere
with the closed oven door.
• Remove extra trays and dishes before roasting or
baking.
• To insert the grill tray in a separate grill underbench
product, open the grill door and fully extend the grill
drawer. Position the grill tray so that the slots on the
outer edges fit over the tabs on the slides.
WVG665
7OVEN ACCESSORIES
USING YOUR OVEN
Understanding your oven functions
Your oven will have a selection of the following functions.
Refer to “Description of your appliance” to confirm what
functions are available to you.
Oven
Refer to cooking guide for more information.
Fan bake
Heat comes from the gas “base heat” burner which is
then circulated by the fan. This fan circulates the hot air
around the oven cavity so that you can put your food
in different places in the oven and still cook them at the
same time.
You can use the “fan bake” function for multi-shelf
cooking, reheating cooked foods, pastries and complete
oven meals.
It will cook at a lower temperature and be faster than
baking.
Please note that some variation in browning is normal.
Defrost
The “defrost” function uses low temperature air which is
circulated by the fan. You can defrost (thaw) your food
before you cook it. Also you may use your “defrost” to
raise your yeast dough or to dry fruit, vegetables or herbs.
Grill
Refer to grilling guide for more information.
Grill (grill in oven models only)
The “grill” directs radiant heat from the powerful upper
element onto the food. You can use the “grill” function for
tender cuts of meat, steak, chops, sausages, fish, cheese
toasties and other quick cooking foods. Grill with the
oven door closed. Preheat your grill for 3 minutes to get
the best results. This will help seal in the natural juices of
steak, chops etc. for a better flavour. You can slide your
grill dish into either of the 2 spaces within the upper pairs
of support rails.
Bake
Heat comes from the gas “base heat” burner below the
food. The bottom burner is below the floor of the oven
which is controlled by the thermostat and will turn on and
off to maintain the set temperature.
You can use the “bake” function for single trays of
biscuits, scones, muffins, cakes, slices, casseroles, baked
puddings, roasts and delicate egg dishes.
• For best results use silver or shiny trays.
Fan grill (grill in oven models only)
“Fan grill” offers you the benefits of both “bake” and
traditional “grill” functions. The grill element turns on
and off to maintain the set temperature while the fan
circulates the heated air. The oven door remains closed
for fan grill. You can use “fan grill” for large cuts of meat
in the oven which gives you a result that is similar to
“rotisserie” cooked meat. Put your food on a shelf in the
second lowest shelf position. Put the grill dish on the
lowest shelf position to catch any spills. When using “fan
grill” it is not necessary to turn the food over during the
cooking cycle. Set temperature to 180°C.
8 OPERATION
Separate grill (separate grill models only)
TIPS & INFORMATION
WARNING
The “grill” directs radiant heat from the powerful upper
element onto the food. You can use the “grill” function for
tender cuts of meat, steak, chops, sausages, fish, cheese
toasties and other quick cooking foods. Preheat your grill
for 3 minutes to get the best results. This will help seal in
the natural juices of steak, chops etc. for a better flavour.
For models with a separate grill, the door must be left
open while grilling.
IMPORTANT
Cooling/Venting fan
Your built-in appliance is fitted with a cooling fan.
This prevents your kitchen cabinet from overheating and
reduces the condensation inside the oven. It will operate
whenever you are using your oven or grill and will blow
warm air across the top of the oven or grill door.
NOTE: (Model WVG655 only) If the oven is still hot from
cooking, the cooling fan will keep running to cool the oven
down and will switch off automatically when cool.
Condensation
This appliance is supplied with an exclusive system which
produces a natural circulation of air and the constant
recycling of steam. This steam makes it possible to
cook in a steamy environment ensuring that dishes are
soft inside and crusty on the outside. This process also
reduces cooking time and energy consumption. During
cooking, steam may be produced and released when the
door is opened. This is absolutely normal. When food is
heated, it produces steam in the same way a boiling kettle
does. When steam comes into contact with the oven door
glass, it will condense and produce water droplets. To
reduce condensation, ensure that the oven is pre-heated
before placing food in the oven cavity. It is recommended
that condensation is wiped away after each use of
the oven.
• To increase base browning simply lower the shelf
position. To increase top browning, raise the shelf
position.
• Always place dishes centrally on the shelf to ensure
even browning.
• Single level cooking gives best results in conventional
modes. If cooking on more than one level use a fan
cooking function.
Operating your oven temperature selector
A thermostat controls the temperature in your appliance.
The temperature can be selected within the specified
range. To set the temperature, turn the temperature
selector
in a clockwise direction to the desired setting. An
indicator light above the temperature selector will
come on and the oven burner will ignite. When the
set temperature is reached, the gas burner flame goes
out and the indicator light goes off. When the oven
temperature falls below the set temperature the flame
automatically re-ignites and the oven indicator light
comes on again.
CAUTION
Once the food is cooked, turn the temperature selector
back in an anti-clockwise direction. Do not force it right
round in a clockwise direction as this will result in damage
to the thermostat.
NOTE: For multifunction ovens the desired cooking
function must be selected before the oven will operate.
Once the desired function has been selected, use the
temperature selector to set the required temperature.
Pre-heating your appliance
For best results when baking you must preheat your oven
for 30 minutes. Preheat grill for 3 minutes to obtain best
results. Pre-heating your appliance allows it to reach the
required temperature quickly and efficiently.
When baking bread or cakes, load the oven as quickly
as possible after pre-heating, only leaving the oven door
open for the shortest time. This will minimise loss of heat
from the oven and ensure the best results.
With “bake” or “fan bake”
The effects of dishes on cooking results
Dishes and tins vary in their thickness, conductivity, colour
etc. which affects the way they transfer heat to the food.
• Aluminium, earthenware, oven glassware and bright
shiny utensils reduce cooking and base browning.
• Enamelled cast iron, anodized aluminium, aluminium
with non-stick interior and coloured exterior and dark,
heavy utensils increase cooking and base browning.
• It is recommended you preheat your appliance when
cooking or baking.
• Set the desired preheat temperature, by rotating your
oven temperature selector.
Once the oven has been preheated, place your food into
the oven, close the door and set the timer if you desire.
9OPERATION
USING YOUR OVEN (CONTINUED)
WARNING
With “grill”
• Preheat the grill for at least 3 minutes to obtain best
results. This will help to seal the natural juices of
steak, chops and other meats for a better flavour.
Cooking with your timer
CAUTION
Set the timer clockwise. Do not force anticlockwise or
damage to the timer will result.
120 minute “Auto off” timer
The 120 minute timer features an automatic oven cut off.
This means that a cooking period of up to 120 minutes
can be set. When the timer has counted back to “Auto
off”, a bell will sound and the oven will automatically
switch off.
Operating the electronic clock (selected models
only)
General features
The oven is equipped with an electronic clock that can
be used to turn the oven on and off automatically. The
function automatically turns the oven off after
a set amount of time. The
set the time of day you want the cooking cycle to finish.
A “Delayed start” is possible by combining the
and features to switch the oven on and off at a
specific time during the day.
NOTE: Your touch control clock only operates with your
main oven.
function is used to
Setting the time of day (after electrical connection)
Once automatic baking is complete, return to manual
operation by setting the timer to the “OFF” mark.
90 minute “Auto Off” timer
The 90 minute timer features an automatic oven “cut off”.
This means that a cooking period of up to 90 minutes can
be set. When the timer has counted back to “Auto Off”, a
ding will sound and the oven will automatically switch off.
Once automatic baking is complete, return to manual
operation by setting the timer to the “OFF” mark.
NOTE: It is not recommended to use this timer for short
durations (e.g. boiling eggs).
1. After the appliance has been electrically connected,
“12.00” will be displayed and the indicator
symbol
2. To set the time of day, press the
while the
3. After 5 seconds from the last change, the
indicator symbol
time has been set.
NOTE: The clock has a 24-hour display.
will flash.
or symbols
indicator symbol is flashing.
will disappear, confirming the
Changing the time of day
1. Press “Mode” until the indicator symbol
begins flashing.
2. To set the time of day, press the
while the
3. After 5 seconds from the last change, the
indicator symbol
time has been set.
indicator symbol is flashing.
will disappear, confirming the
or symbols
10 OPERATION
Setting the minute minder
1. Press “Mode“ until the indicator symbol
begins flashing.
symbols
2. Set the countdown time by using
while the
3. After 5 seconds from the last change, the
indicator symbol
timer has been set. The countdown time remaining
will appear on the display.
4. Once the set time has elapsed, a beeper will sound
for 1 minute. The time indication “0.00” and a flashing
display.
5. To stop the beeper, press
NOTE: This feature has no effect on the oven operation.
With the minder operating, the time of day cannot be
displayed.
indicator symbol will appear on the
indicator symbol is flashing.
will stop flashing, confirming the
, symbols or “mode”.
or
Setting the cooking duration
1. Select the desired oven and . The
oven indicator light will appear and the heating
source will switch on.
2. Press
begins flashing.
3. Set the cooking duration by using
while the indicator symbol is flashing.
4. After 5 seconds from the last change, the
indicator symbol will stop flashing, and the time
of day will be displayed.
NOTE: Do not forget to add pre-heating time if necessary.
until the indicator symbol
or symbols
Setting the cooking end time
1. Select the desired oven and ..
2. Press
begins flashing.
3. Enter the time of day to finish cooking by pressing
or symbols while the indicator symbol
is flashing.
4. After 5 seconds from the last change, the
indicator symbol
time of day will be displayed.
until the indicator symbol
will stop flashing and the current
, etc) that you want to display. After
5 seconds from the last change, the indicator will
stop flashing and the time of day will be displayed.
2. To cancel “delayed start”, press
indicator symbol
and hold
current time of day is displayed.
3. To cancel a setting, press
symbol flashes next to the setting to be cancelled.
Press and hold
setting is cleared.
or
flashes next to “End time”. Press
symbols together until the
symbols together until the
and
until the
until the indicator
On completion of cooking
When the set time has elapsed, the oven will turn off,
the timer will beep and the and/or
indicators will flash.
1. Turn the
to the off position.
2. Press
from beeping.
or symbols or to stop the clock
and controls
Switching the clock display ON and OFF
1. Press together and symbols for 3 seconds to
switch off the display.
2. Press together
switch the clock display on again.
NOTE: If a timer mode is set, then it is not possible to
switch the display off.
and symbols for 3 seconds to
Electronic burner control
Your gas oven is fitted with an electronic controller which
manages the operation of the burner and monitors the
flame. This controller includes features which ensure the
safe operation of your appliance and will prevent the build
up of unburnt gas should a fault occur.
It is normal for the flame to turn on and off during
cooking to maintain a stable temperature in the oven.
The thermostat indicator light indicates when the flame
is on or igniting (indicator on), or when the flame is off
(indicator off).
The burner flame can be seen by viewing through the
2 holes in the front of the burner cover.
Setting the delayed start cooking time
1. Program the and as described in
the relevant sections. Once both the
have been set, the and
indicators will stop flashing and the current time of
day will be displayed.
NOTE: Do not forget to add pre-heating time if necessary.
and
To check or cancel settings
1. To check your settings, press until the
indicator symbol flashes next to the mode (
11OPERATION
USING YOUR OVEN (CONTINUED)
TIPS & INFORMATION
Ignition and response to ignition failure
The electronic controller attempts to ignite the flame
when an oven function and temperature is selected (the
thermostat indicator light changes from off to on). The
controller makes up to 2 attempts to ignite the flame,
stopping if a flame is detected by the controller. If a flame
is not detected after 2 attempts the burner and ignition
are automatically switched off and a 90 second delay will
occur. During this delay the controller does not respond
to the “function” and “temperature” controls.
At the end of this delay, switch the
control off and leave off for at least 5 seconds. Then
switch the
re-attempt ignition.
If the oven controls are left on when the delay ends then
ignition is not attempted until the
control is first turned off for at least 5 seconds.
and control on again to
or
or
Response to flame failure
If the controller cannot detect flame due to a fault, then the
controller will firstly respond by attempting to re-light the
burner with a sequence of up to 3 attempts. If the re-lighting
sequence is not successful the burner will be shut off.
The re-lighting sequence includes up to 3 attempts to
re-light the burner, stopping if a flame is detected by the
controller. If a flame is not detected after the re-lighting
sequence the burner and ignition are automatically
switched off and a delay of 90 seconds will occur. During
this delay the controller will not respond to the “function”
and “temperature” controls.
At the end of this delay, switch the
control off and leave it off for at least 5 seconds. Then
switch the
attempt ignition.
If the oven controls are left on when the delay ends
then ignition will not be attempted until the
control is turned off for at least 5 seconds.
or control on again to re-
or
or
Recognising a safety shut-down condition
During normal cooking the thermostat indicator light
is on when the burner flame is igniting or on, and the
thermostat indicator light is off when the flame is off.
If an oven function and temperature is selected and the
thermostat indicator light is on, but the flame is not on
or attempting to ignite, then the controller has invoked a
safety shutdown of the burner and a 90 second delay will
occur. During this delay the controller does not respond
to the “function” and “temperature” controls.
At the end of this delay, switch the
control off and leave off for at least 5 seconds. Then
switch the
re-attempt ignition.
or control on again to
or
Power failure
In the event of an interruption to mains power, the
restoration of power will not cause the burner to re-ignite
if the controls were left on. However the grill element will
resume heating on models which do not have an
electronic clock.
To resume operation of the appliance after the power has
been restored:
1. If the appliance has an electronic clock then set the
time of day on the electronic clock.
2. Switch the “function” or “temperature” control off
and leave off for at least 5 seconds. Then switch the
and control on again to
re-attempt ignition.
Normal operation of the appliance will now resume.
Oven shelves
IMPORTANT
•
Select the correct shelf location for food being cooked.
• Make sure dishes will fit into the oven before you
switch it on.
• Keep edges of baking dishes at least 40mm from the
side of the oven. This allows free circulation of heat
and ensures even cooking.
• Do not open the oven door more than necessary.
• Do not place foods with a lot of liquid into the oven
with other foods. This will cause food to steam and
not brown.
After the oven is turned off it retains the heat for some
•
time. Use this heat to finish custards or to dry bread.
• Do not use a lot of cooking oil when roasting. This
will prevent the splattering of oil on the sides of the
oven and the oven door. Polyunsaturated fats can
leave residue which is very difficult to remove.
• When cooking things which require a high heat from
below (e.g. tarts), place the cooking dish on a scone
tray in the desired shelf position.
• For sponges and cakes use aluminium, bright finished
or non-stick utensils.
• Always remove unnecessary trays or dishes when
roasting or baking.
12 OPERATION
Oven shelf location
Your oven has seven positions for shelves. These are
numbered from 1 (the lowest shelf position) to 7 (the
highest shelf position). See diagram.
Use the oven efficiently, by cooking many trays of food at
the same time. For example:
• Cook 2 trays of scones, small cakes or sausage rolls.
• Cook a roast dinner at the same time as you cook
chips or vegetables.
It is not recommended to use more than 2 shelves at
a time. When cooking with 2 shelves use an oven fan
function.
To give maximum space above and below the shelves,
load them in this way:
• When cooking with 1 shelf, use position 3 or 4.
• When cooking with 2 shelves, use positions 3 and 5.
7
6
5
4
7 Position Rack
3
2
1
MEAT RECCOMMENDED
TEMPERATURE ºC
RESULT
MINUTES PER
KILOGRAM
Rare 35 - 40
Beef 200
Medium 45 - 50
Well Done 55 - 60
Lamb 200
Medium 40
Well Done 60
Veal 180 Well Done 60
Pork 200 Well Done 60
Roasting poultry and fish
• Place the poultry or fish in an oven set at a moderate
temperature of 180°C.
• Place a layer of foil over the fish for about three
quarters of the cooking time.
The table shows temperatures and cooking times for
different kinds of fish and poultry. These may vary
depending on the thickness or bone content of the meat.
MEAT RECCOMMENDED
TEMPERATURE ºC
MINUTES PER
KILOGRAM
Chicken 180 45 - 50
Roasting meat
• Place the meat in the oven and set the temperature
between 180°C and 200°C. (It is recommended to
wrap your meats in an oven roasting bag or foil to
prevent fats and oils from splattering, making it easier
to clean your oven.)
• Use the grill/oven dish and grill insert. Place the meat
on the insert.
• Do not pierce the meat, as this will allow juices to
escape.
• When the meat is cooked, take the roast out of the
oven, wrap in aluminium foil and leave to stand for
about 10 minutes. This will help retain the juices when
the meat is carved. The table shows temperatures
and cooking times for different kinds of meat. These
may vary depending on the thickness or bone
content of the meat.
Duck 180 - 200 60 - 70
Turkey 180
40 - 45 (<10KG)
35 - 40 (>10KG)
Fish 180 20
13OPERATION
COOKING GUIDE
Choosing the best oven settings
The following table is intended as a guide and experience
may show some variation in cooking times necessary
to meet individual requirements. It may be necessary to
change some cooking times and temperatures from your
previous oven. For best results when baking preheat your
oven for 30 minutes.
Conventional cooking
FOOD TEMPERATURE ºC SHELF POSITION
IN OVEN*
Scones Plain or fruit 220 3 10 - 15
Biscuits Rolled 180 3 10 - 15
Spooned 190 3 12 - 15
Shortbread biscuits 160 2 or 3 30 - 35
Meringues Hard - individual 110 3 90
Soft - individual 180 3 15 - 20
Pavlova - 6 egg 110 2 75
Cakes Patty cakes 190 4 15 - 20
Sponge - 4 egg 180 3 20 - 30
Shallow butter cake 180 3 30 - 40
Rich fruit cake 150 3 180
Pastry - shortcrust Cornish pasties 200/180 3 40 - 45
Custard tart 200/180 2 10/20 - 30
Pastry choux Cream puffs 210 3 25 - 30
Yeast goods Bread 210 2 25 - 30
* Counting from the bottom shelf up. Refer to “oven shelf location” section for more detailed information.
TIME IN MINUTES
Fan forced cooking
FOOD TEMPERATURE ºC SHELF POSITION
Scones Plain or fruit 210 Any 10 - 15
Biscuits Rolled 170 3 & 5 10 - 15
Meringues Hard - individual 100 Any 90
Cakes Patty cakes 180 3 & 5 15 - 20
Pastry - shortcrust Cornish pasties 180/160 3 40 - 45
Pastry choux Cream puffs 200 3 & 5 25 - 30
Yeast goods Bread 200 Any 25 - 30
* Counting from the bottom shelf up. Refer to “oven shelf location” section for more detailed information.
OPERATION
14 COOKING GUIDE
IN OVEN*
TIME IN MINUTES
Spooned 180 3 & 5 12 - 15
Shortbread biscuits 150 3 & 5 30 - 35
Soft - individual 165 Any 15 - 20
Pavlova - 6 egg 100 Any 75
Sponge - 4 egg 170 3 20 - 30
Shallow butter cake 170 3 & 5 30 - 40
Rich fruit cake 130 3 180
Custard tart 190/170 3 20 - 30
WARNING
TIPS & INFORMATION
WARNING
GRILLING GUIDE
Grilling hints
WARNING
Always clean the grill/oven dish after every use. Excessive
fat build up may cause a fire.
As a method of cooking, grilling can be used to:
• Enhance the flavours of vegetables, fish, poultry
and meat.
• Seal the surface of the food and retain the
natural juices.
NOTE: Below is a table indicating the door position whilst
grilling for each of the product types.
PRODUCT
TYPE
Underbench Grill in oven models Door FULLY closed
Separate grill Drop down grill
This table shows how to grill different types of meat:
MEAT METHOD
Beef
Lamb
Sausages Prick sausages to stop skin from bursting.
Poultry Divide into serving pieces. Brush with oil.
Fish Brush with oil or melted butter and lemon
Bacon Remove rind. Grill flat.
DESCRIPTION
door
You can use tenderloin, rump, sirloin. Brush
with oil or melted butter, especially if the
meat is very lean.
You can use loin chops, shortloin chops,
chump chops, and forequarter chops.
Remove skin or cut at intervals to stop
curling. Brush with oil or melted butter.
juice.
DOOR POSITION
DURING GRILLING
Door FULLY open
3. Do not place aluminium foil under the food as this
prevents fats and oils from draining away, which
could result in a fire.
4. Baste the food during cooking with butter, olive oil or
marinade.
5. Use tongs to turn food as a fork pierces the surface
allowing juices to escape.
MEAT TIME
Steak 15 - 20 minutes
Chops 20 - 30 minutes
Fish 8 - 10 minutes
Bacon 4 - 5 minutes
Fan grill (multifunction grill in oven models only)
If your appliance has fan grill as a function, this will assist
the grilling process by circulating the heat evenly around
the food. The recommended temperature setting is 180°C
for all fan grilling functions.
1. Place the oven/grill dish on the bottom rack.
2. Place meat/poultry on an oven shelf above the oven/
grill dish.
3. Wipe off any oil or fat which spatters while the oven
is still warm.
There is no need to turn the meat as both sides are
cooked at the same time.
Grilling with separate grill underbench
Your separate grill underbench appliance comes with a
handle accessory to pull out and push in the grill
tray frame.
Guide to better grilling
IMPORTANT
Definite times cannot be given for grilling as it is
dependant on the size of the food and your own tastes.
These times should only be used as a rough guide and
remember to turn the food over halfway through the
cooking process (except with fan grill).
For better grilling results, follow these easy instructions:
1. Remove oven/grill dish and grill insert and preheat
grill for about 3 minutes.
2. Choose only prime cuts of meat or fish. If the cut is
less than 5mm thick it will dry out. If the cut is more
than 40mm thick, the outside may burn whilst the
inside remains raw.
WARNING
Operating the oven may result in a hot grill tray frame
even without the grill being used. As it may be a hot
surface, it is not recommended to touch the grill tray
frame directly.
15GRILLING GUIDE
DEALING WITH COOKING PROBLEMS
PROBLEM CAUSES REMEDY
Uneven cooking Incorrect shelf position Select shelf that places food in the centre of
the oven
Baked products too brown on top Experiment with other trays or dishes
Trays not centralised Centre trays
Air flow in oven uneven Rotate food during cooking
Grill dish affecting thermostat Remove grill dish from oven on bake modes
Baked products too
brown on top
Baked products too
brown on bottom
Cakes have a cracked,
thick crust
Baked products are pale,
flat and undercooked
Cake fallen in the centre Baking temperature too low Raise the temperature
Roast meat and potatoes
not browning in fan oven
Juices running out
of meat
Grilled meats overcooked
on outside and raw
in centre
Grilled chops and
steaks curling
Oven not preheated Preheat the oven
Baking tin too large for the recipe Use correct size tins
Baking tins not evenly spaced Stagger baking tins at least 3cm between tins and
the oven walls
Products not evenly sized or
spaced on trays
Baking temperature too high Lower the temperature
Baking tin too large for the recipe Use correct size tins
Baking tins are dark metal or glass Change to shiny, light tins or lower the
Food too low in the oven Cook one shelf higher
Oven door opened too frequently
during baking
Baking temperature too high Lower the temperature
Grill dish affecting thermostat Remove grill dish from oven on bake modes
Baking temperature too high Lower the temperature
Food too high in the oven Cook one shelf lower
Cake batter over-mixed Mix just long enough to combine ingredients
Pan too deep Check size of pan and use recommended size
Baking tins are dark metal or glass Change to shiny, light tins
Baking temperature too low Raise the temperature
Food too low in the oven Cook one shelf higher
Baking time too short Increase cooking time
Incorrect tin size Use correct tin size
Baking time too short Increase cooking time
Proportions of ingredients incorrect
in the recipe
Opening door too early in baking Do not open the door until the last quarter of
Poor hot air circulation Elevate food onto a rack to allow air circulation
Grill dish affecting thermostat Remove grill dish from oven on bake modes
Ensure products are same size and shape and are
evenly spaced over trays
temperature by 10°C
Don’t open the oven door until at least half of the
cooking time has passed
Check recipe
cooking time
Do not pierce meat with fork, turn with tongs
Grill at lower insert position
Cut into fat every 2cm (1/2 inch)
16 COOKING PROBLEMS
GETTING TO KNOW THE OVEN
Get to know the oven with this ‘Simple Test Cake’
Although we strive for a perfect performing oven, it’s
possible that there will be some variation in colour
when baking. Therefore, we suggest this simple, easy
and delicious to make Simple Test Cake, it can help you
understand your new oven. All ovens do sometimes have
hot or cold spots, therefore it is important to judge with
your eye as you may require to rotate during baking.
‘Simple Test Cake’
125g butter, softened to room temperature
1 cup caster sugar
1 teaspoon pure vanilla essence
4 large eggs
2 cups self-raising flour
Pinch of salt
4 tablespoons (80mL) full-cream milk
Method:
1. Butter base and sides of 2, 20cm straight-sided
round or square cake pans. Then line the base with
grease proof or baking paper.
2. Preheat oven to moderate ‘180ºC’ (170ºC fan forced)
and ensure oven shelf is in the centre position of
oven.
3. Cream softened butter and sugar until light in colour.
4. Add vanilla essence.
5. Then add eggs one at a time, beating well after
each addition.
6. Sift flour and salt into the mixture and beat until well
combined.
7. Add milk and beat or stir to combine.
8. Spoon mixture equally between prepared cake pans.
9. Bake in preheated oven, middle shelf for about 25 to
35 minutes or until when tested with a fine cake
skewer it comes out clean or the edges of the cakes
have come away slightly from the sides of the cake
pans.
10. Remove from oven to wire cake rack and rest for 5
minutes before removing from cake pans.
Cool completely.
To serve: Sandwich together with your favourite jam or
conserve, and dust top with pure icing sugar.
NOTE: If desired, substitute butter for either margarine
or olive oil spread. Recipe is based on the Australian
standard metric 250mL cup and 20mL tablespoon sets.
17ABOUT YOUR OVEN
WARNING
WARNING
WARNING
WARNING
WARNING
CLEANING YOUR APPLIANCE
WARNING
WARNING
WARNING
WARNING
WARNING
• Ensure the oven is electrically isolated before
cleaning. This can be done by switching off
the appliance via the powerpoint or isolating switch
(if available), or the switchboard.
• Do not use steam cleaners, as this may cause
moisture build up.
CAUTION
• Do not use sharp metal implements or utensils on
any surface, as these may leave permanent scratches
or marks.
Enamel
Rub persistent stains vigorously with a nylon scourer or
creamed powder cleansers.
NOTE: You can also use household oven enamel cleaners follow the manufacturer’s instructions carefully.
CAUTION
• Do not use harsh abrasive cleaners, powder cleaners,
steel wool or wax polishes on enamel.
• Do not line the bottom of the oven or grill with foil
or cookware.
Stainless steel
WARNING
• The door glass on this appliance is made from a
tough, durable material that withstands heating and
cooling without breaking. As a precaution however,
do not put cold water on hot glass. Should you have
any questions about the glass in your new appliance,
please contact the Customer Care Centre by dialling
1300 363 640.
• Door glass that is damaged should be immediately
replaced.
CAUTION
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
Oven
WARNING
Always keep your appliance clean. Ensure that fats and
oils do not accumulate around elements, burners or fans.
Keep the oven dish, baking trays, grill dish and grill dish
insert clean, as any fat deposits may catch fire. Wrap your
meats in foil or an oven roasting bag to minimise cleaning.
Any polyunsaturated fats can leave a varnish-like residue
which is very difficult to remove. The upper element can
be released to assist in cleaning.
All grades of stainless steel can stain, discolour or become
greasy. You must clean these areas regularly by following
the procedures below, if you want your appliance to look
its best, perform well and have a long life.
WARNING
Care must be taken when wiping exposed stainless steel
edges.…they can be sharp!
CAUTION
The oven door and control panel are decorated with a
special stainless steel that resists finger marks and should
only be cleaned with warm water and a mild detergent.
DO NOT use stainless steel cleaners, abrasive cleaners or
harsh solvents. NOTE: Make sure you follow the polish or
brushing lines in the steel.
Glass
Glass surfaces on doors and control panels are best
cleaned immediately after soiling. A damp cloth may help
remove baked on food deposits. Oven cleaners can be
used to remove stubborn marks and stains.
Grill
WARNING
Always keep the grill dish and grill dish insert clean, as
any fat deposits may catch fire. Ensure that fats and oils
do not accumulate around the grill element. The grill
element can be released to assist in cleaning the top of
the grill cavity.
18 CLEANING
Cleaning your oven accessories
WARNING
WARNING
Removing the side racks (shelf supports)
Removing the trays and shelves from your appliance
• Slide the dish and shelves towards you until they
reach the front stop.
• Tilt them up at the front to clear the side supports,
taking care not to spill the contents.
• For separate grill underbench model (WVG655),
open the grill door and pull out the grill slide to its full
extent. Carefully lift the dish from the support.
• Lift the dish and shelves clear.
• Wash the dish, insert and shelves in hot soapy water.
• Reverse the above steps to put the grill tray and
shelves back again.
• Ensure that they are placed between the 2
support wires.
• Grasp the shelf supports at the front.
• Pull them firmly inwards.
• After cleaning, reinstall the side racks by inserting the
rear pins first.
Releasing the grill element
WARNING
Make sure the appliance is turned off before you remove
or replace parts, to avoid the possibility of electric shock.
CAUTION
Do not remove the slide mechanism on the separate grill
underbench model (WVG655). The grill dish can easily
be removed for cleaning.
The upper grill element is secured with a hanger clip
which can be removed to help clean the oven cavity
ceiling. To remove the hanging clip push the sides of the
clip in the direction of the arrows. After cleaning raise the
grill element and secure clip back into position.
NOTE: Diagram shows a grill in oven model. Separate grill
models use the same hanger clip arrangement in the grill
compartment.
19CLEANING
CLEANING YOUR APPLIANCE (CONTINUED)
WARNING
WARNING
TIPS & INFORMATION
Removing and replacing the oven light
WARNING
Make sure the appliance is turned off before you remove
or replace parts, to avoid the possibility of electric shock.
• Turn oven light glass anticlockwise to remove it for
globe replacement.
• A special high temperature resistant globe should
be used. This can be purchased from the Customer
Care Centre.
Removing the oven door
IMPORTANT
Your oven is equipped with a door that can be
disassembled in order to clean all the panes of glass.
Remove the door before cleaning.
1. Open the door fully to access the hinges then rotate
the ‘stirrups’ on both hinges fully towards the oven.
2. Slowly close the oven door until it stops against the
‘stirrups’ (about 45°).
Cleaning the oven door
CAUTION
Do not lift the door by the handle. Rough handling will
cause glass to break.
3. Grasp the oven door with a hand each side of the
door and remove it from the oven by pulling it
towards you.
20 CLEANING
4. Lay the oven door with the outer side facing
downwards on something soft and flat (for example a
blanket on a kitchen table) to prevent scratches.
Removing oven door top trim
WARNING
WARNING
• Take hold of the grid embossed sections of the door
trim at each end and press inwards to release the
clips. Remove the door trim by pulling it towards you.
Removing the door glass panels
Cleaning the door glass panels
CAUTION
Do not to use harsh abrasives on the glass panes as the
reflective surface plays a role in the function of the oven.
Do not place glass in dishwasher. Hand wash only with a
soft cloth and warm soapy water. When dry, polish with a
soft cloth and ensure the glass is dry before reassembly.
Removing the bottom trim (on selected models)
1. The bottom trim may be removed for cleaning by
snapping out and lifting away from the glass.
CAUTION
Rough handling, especially around the edges can cause
the glass to break.
1. Lift the black bordered glass panel out of the guide.
2. Repeat this for the smaller clear glass panel (when
fitted).
Re-assembling the bottom trim (on selected
models)
1. Push down to “snap” each side of bottom trim back
into door columns.
21CLEANING
CLEANING YOUR APPLIANCE (CONTINUED)
Re-assembling the door glass panels
1. Insert the smaller clear glass panel (when fitted) first
from above and at an angle to the profile of the door.
2. Repeat for the black bordered glass panel ensuring
the painted surface is facing to the downside.
Re-assembling the top door trim
1. Take hold of the top door trim at each side and
position it to the inside edge of the glass.
2. Push the trim down with its top edge over glass panel
until the clip snaps in on each side of the trim.
3. Push the middle of the trim down to ensure it is
straight and firm against the glass panel.
22
CLEANING
Fitting the oven door
1. Take hold of the oven door with a hand on each side
and with the door at an angle of 45º, position the
recesses at the bottom of the door onto the hinge
arms of the oven. Let the door slide down the hinge
arms as far as it will go.
2. Open the door fully to access the hinges.
3. Rotate the stirrups (see image below) until they lock
into the hook. The oven door may now be closed.
hook stirrup
hook stirrup
23CLEANING
TROUBLESHOOTING
Faults
If there is a problem with the oven and/or grill, please:
• Check the points listed below before calling for
service. It may be possible to avoid a call by fixing the
problem yourself – and so continue cooking.
• For cooking problems refer to “Dealing with
cooking problems”.
NOTE: We may charge for service even in the guarantee
period if your problem is due to the causes listed below.
Data Plate
When you need information, service or spare parts please
be prepared to tell us the:
• Model number
• Serial number
These are shown on the data plate. The data plate is
visible when the oven or grill door is open.
If you need more information, please contact the
Customer Care Centre on 1h300 363 640 (Australia
– Centre is open 8.00am – 5.00pm Monday – Friday
Eastern Standard Time) or 0800 436 245 (New Zealand –
Centre is open 8.00am – 5.00pm Monday – Friday).
If you have a warranty or spare parts enquiry, you should
call the number listed on the back page.
PROBLEM POSSIBLE CAUSE
Oven or grill
not working
Oven light
not working
Oven not
heating
enough
Oven not
working
Timer flashing
on display
Appliance
smoking
when first
used
Door cannot
be replaced
after removal
Excessive heat
or
condensation
on control
panel
or knobs
Hot air
blowing from
above the
door
NOTE: Only authorised personnel should carry out
servicing.
• Time of day not set.
• Power not turned on.
• Gas supply turned off or LPG
bottle empty.
• Controls are incorrectly set.
• Household fuse has blown or
power supply is off.
NOTE: If the household fuse continues
to blow, call the Customer Care Centre.
• Lamp blown or loose in socket.
• Household fuse has blown.
NOTE: If the household fuse continues
to blow, call the Customer Care Centre.
• Foil or trays on bottom of oven.
• Timer is in “AUTO” mode. (Refer to
timer operating instructions)
• Household fuse has blown.
NOTE: If the household fuse continues
to blow, call the Customer Care Centre.
• Gas supply turned off or LPG
bottle empty.
• The oven safety shutdown has
enacted. Reset the controls, wait 90
seconds and then re-start the oven.
NOTE: If safety shutdown persists, call
the Customer Care Centre.
• Power failure or interruption.
NOTE: Reset time of day and any
cooking functions you were using.
(Refer to TIMER operating instructions)
• Protective oils being removed.
• Stirrup not engaged properly.
• Check cooling fan is working by
feeling for air movement at top of
oven door. If no air movement is
detected, call the Customer Care
Centre.
• This is normal.
24 TROUBLESHOOTING
WARNING
WARNING
WARNING
INSTALLING YOUR APPLIANCE
WARNING
To avoid any potential hazard, you must follow our
instructions when you install your appliance. Failure
to install the appliance correctly could invalidate any
warranty or liability claims and lead to prosecution.
• This appliance must be installed by an authorised
person according to all codes and regulations as
stated in the local municipal building code and other
relevant statutory regulations.
• Refer to data plate for rating information. The data
plate is positioned behind the bottom of the oven
door. The circuit diagram is positioned on the top
panel of the appliance.
WARNING
This appliance must be properly earthed.
• Do not lift the appliance by the door handles.
• Prepare the cupboard opening to match your
appliance measurements. (See diagrams)
• Slide appliance into the cupboard, ensuring that the
supply cable (where fitted) does not kink.
• To prevent tipping, use the screws supplied to secure
your oven into the cupboard. Use just 2 screws for
underbench and separate grill underbench ovens, and
4 screws for separate grill wall ovens. Remove the
bottom door in separate grill wall ovens to provide
access to the bottom 2 screwing points.
• For appliances fitted with a flexible supply cord,
if the cord is damaged, it must be replaced by the
manufacturer or its service agent or similarly qualified
person in order to avoid a hazard. The plug must be
accessible after installation.
• Where the appliance is built into a cabinet, the
cabinet material must be capable of withstanding
70°C. Installation into low temperature tolerant
cabinetry (e.g. vinyl coated) may result in
deterioration of the low temperature coating by
discolouring or bubbling.
• If the appliance is installed adjacent to vinyl-wrapped
surfaces, use an installation kit available from the
vinyl-wrap supplier.
• Electrolux Home Products cannot accept
responsibility for damage caused by installation into
low temperature tolerant cabinets.
• After installation, test and ensure that the appliance
operates correctly before handing it over to the
customer.
• If a powerpoint is fitted it must be accessible with the
appliance installed, as the plug must be accessible
after installation.
• This appliance must be mounted on a flat surface for
the full width and depth of the product.
• To avoid overheating, the appliance must not be
installed in a recess or cupboard behind a
decorative door.
It is recommended that this product is not installed
in an unvented living space, particularly if that space
incorporates sleeping quarters.
CAUTION
To avoid any potential hazard, you must follow our
instructions below when you install your appliance.
Failure to install the appliance correctly could invalidate
any warranty or liability claims and lead to prosecution.
This appliance is only suitable for connection to fixed
consumer piping where the maximum over-pressure is
limited to 14kPa or less. Refer clause 5.2.1 and 5.2.2 of
AS5601.1.
Cabinet construction for your appliance
For the best integration within a kitchen, install this
appliance in a standard 600mm wide cupboard that gives
a flush fit with the surrounding cupboard fronts
(Figure A).
A recess of 20mm is ideal. It can also be installed using
a proud fit with the surrounding cupboard (Figure B).
NOTE: Your appliance must be mounted on a flat surface
for the full width and depth of the product.
infill panel
20mm
600mm
Figure A - flush fit (top view)
565mm
cupboard front
Figure B - proud fit (top view)
16mm cleat
cupboard doorcupboard door
25INSTALLATION
INSTALLING YOUR APPLIANCE (CONTINUED)

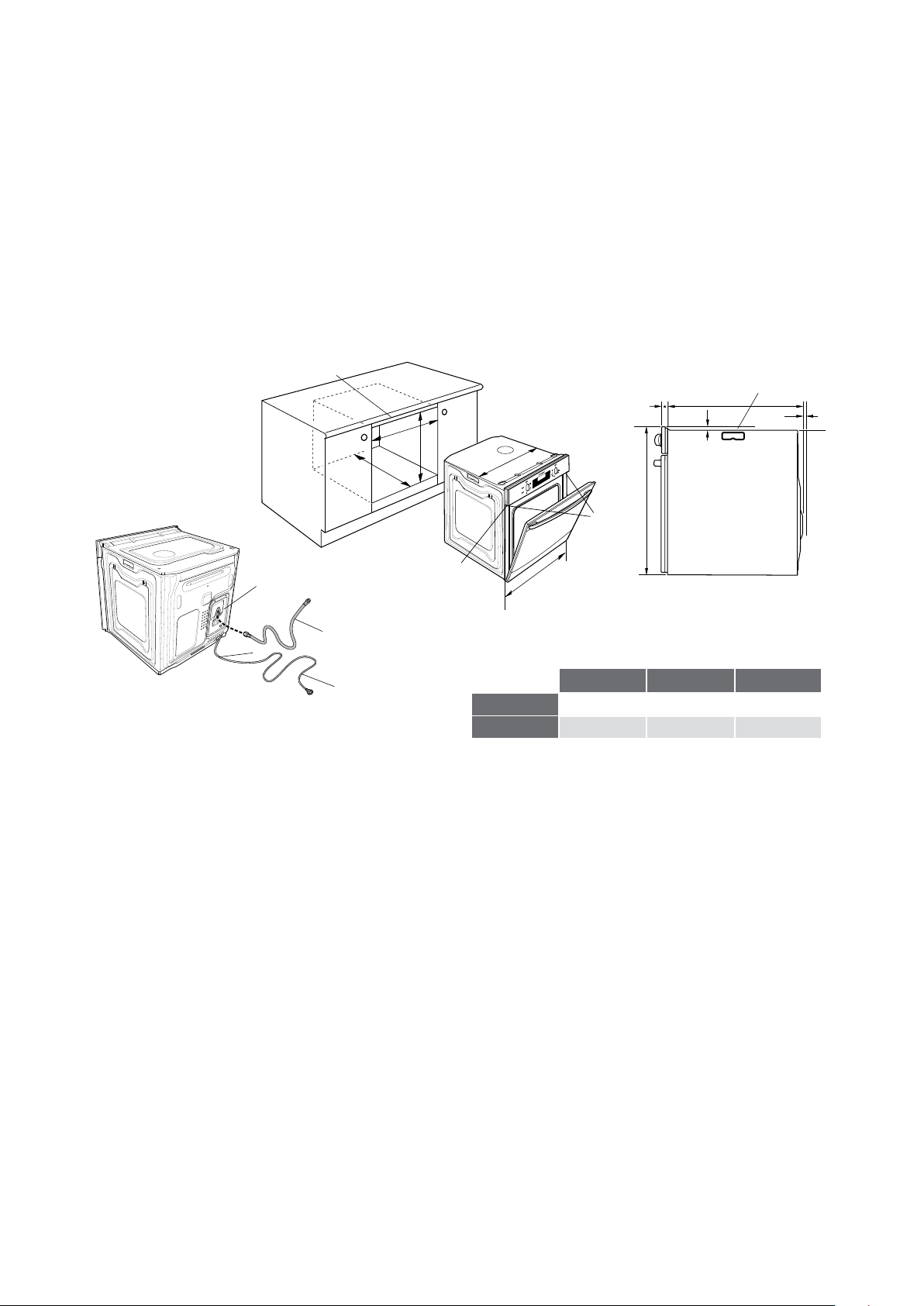

Underbench ovens
Your underbench oven looks best when the control panel
is directly under the benchtop. An upper infill panel
may have to be added if the cooktop placed above the
benchtop is too deep.
Refer to cooktop installation instructions for required
clearance between cooktop and oven.
upper infill
(if required)
A
B
C
561
*20
595
mounting
holes
carry handle
553
15
8 min.
clearance
use long black
D
1.7m flexible gas hose
E
(supplied unfitted)
1.5m electrical
service cord
installation
screws
D Gas connection - 150mm from right hand side
- 220mm from bottom
E Electrical service cord - 50mm from right hand side
- at bottom
GAS TYPE
FLUSH FIT
PROUD FIT
596
A B C
600 600 581min
565 590 560min
26 INSTALLATION
Separate grill underbench ovens
NOTE TO INSTALLER: For separate grill underbench
installations where a cooktop is installed directly above
the appliance, a minimum clearance distance of 10mm
must be allowed for between the bottom of the cooktop
and the top of the separate grill underbench oven.
A
B
C
561
D
1.7m flexible gas hose
(supplied unfitted)
E
1.5m electrical
service cord
D Gas connection - 150mm from right hand side
- 220mm from bottom
E Electrical service cord
- 50mm from right hand side
- at bottom
mounting
holes
*20
15
553
carry handle
8 min.
clearance
GAS TYPE
FLUSH FIT
PROUD FIT
use 25mm long black
installation screws
A B C
600 731 581min
565 723 560min
596
725
27INSTALLATION
INSTALLING YOUR APPLIANCE (CONTINUED)
Separate grill wall oven
561
A
B
C
mounting
holes
use 15mm long black
installation screws
650tmm
min.
D
E
D Gas connection
- 150mm from right hand side
- 220mm from bottom
E Electrical service cord
- 50mm from right hand side
- at bottom
1.7m flexible gas hose
(supplied unfitted)
1.5m electrical
service cord
GAS TYPE
FLUSH FIT
PROUD FIT
596
carry handle
*20
888
553
15
A B C
600 893 581min
565 885 560min
8 min.
clearance
28 INSTALLATION
Recommended cabinet design
NOTE: Powerpoint connection must be accessible with
the appliance installed.
Front View
Area for mounting
of powerpoint.
Supporting shelf
8mm below door
line to give perfect
alignment of cooker
& cupboard (kick
panel notched to
suit).
720mm Module(s)
Kick Panel
Cleat (2)
Infill Panel (2)
Cooker Platform
Bench Top
720mm Module(s)
29INSTALLATION

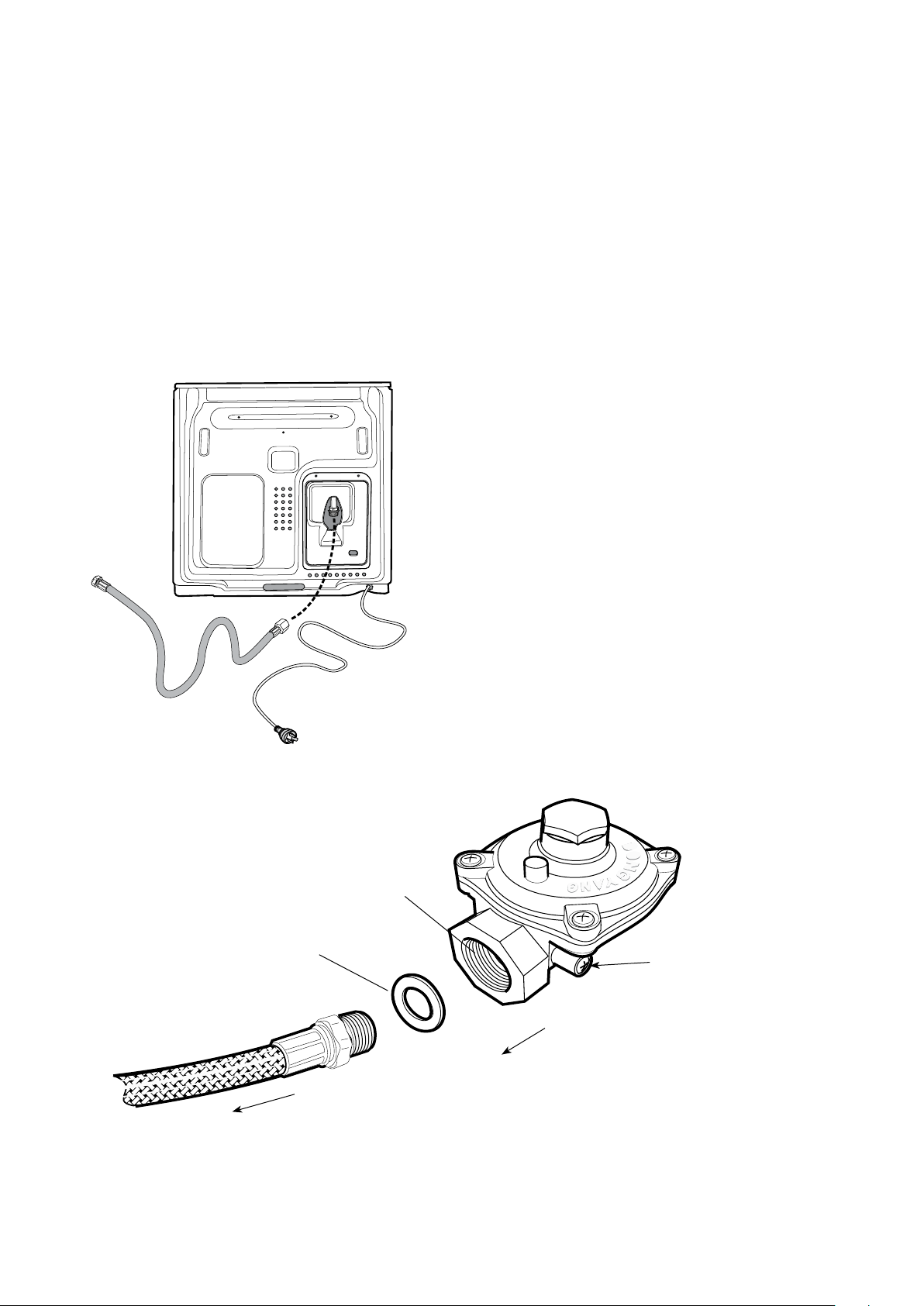

GAS INSTALLATION INFORMATION
Gas Connection
Before commencing installation, check to ensure the type
of gas to which the appliance is intended to be connected
matches the gas type given on the appliance data plate.
Check the data plate (located behind the oven door) to
determine gas type. A gas type label is located on the
back panel near the gas inlet.
A 1700mm long flexible hose is supplied in the pack for
installation purposes.
Connecting flexible hose
• Place a spanner on the flats provided on the gas inlet
to brace the inlet against the action of wrenching
when connecting the hose to the appliance gas inlet.
Failure to do so may damage the appliance.
• An approved thread sealing tape or compound is
required for the connection between the hose and
the appliance gas inlet.
• Ensure there is no kink in the gas hose when the
appliance is in the installed position.
Appliances for operation on N.G. & S.N.G.
For N.G. and S.N.G appliances the supplied N.G. regulator
must be fitted. For L.P.G appliances (Propane or Universal
LP) the test point fitting supplied must be fitted.
NOTE: The inlet of the regulator or test point fitting should
be fitted to the consumer piping first. The arrow on the
regulator or test point fitting indicates the direction of gas
flow. Then connect the hose to the outlet of the regulator
or test point fitting using the swivel connection on the
hose and fibre washer supplied.
Ensure the regulator or test point fitting is in a position
that is accessible with the appliance installed and
which will allow the appliance to be withdrawn without
disconnecting the hose.
Check all joints and ensure that connections are sound.
Internal flange
Important: flat fibre washer
must be installed
to appliance
N.G. Regulator
Pressure point test
Gas flow
30 INSTALLATION
Operating Pressures
Supply and operating pressures for various gases and
corresponding injector sizes for each burner.
GAS TYPE
NG & SNG
UNIVERSAL
LP
SUPPLY
PRESSURE
(KPA)
1.13 - 5.00 1.00 1.50
2.75
NOMINAL
TEST POINT
PRESSURE
(KPA)
2.75 0.82
OVEN
INJECTOR
Testing the operation of the appliance
This product has an Electronic Burner Control with
a flame safeguard system, which includes a safety
shutdown function that operates when the presence of a
flame is not detected within a prescribed period.
It may be necessary to interrupt the operation of the
control system in order to facilitate purging of air from
the appliance.
During the purging procedure the product should be
closely monitored to ensure that the ignition spark can
be observed through the round hole in the left hand side
of the cover on the bottom of the oven, and that the
solenoid valve can be heard to open and close.
1. After connecting the gas and leak testing the gas
connection, plug in the service cord and turn on
the power.
2. Set the time of day clock (if fitted).
3. Purging procedure:
a. Turn on the oven.
b. The unit will commence sparking and the
solenoid valve will open for a short period. If a
flame is not established, the controller will shut
the solenoid valve and stop sparking, then pause
for a moment before repeating this cycle. At this
point if there is still no flame, the control system
will go into safety shutdown.
c. If the control system does go into safety
shutdown, turn off all the controls and switch off
the power supply for a few seconds.
d. Then turn the power back on and repeat steps 2.
to 3.c. until the gas ignites.
NOTE: If the power supply is not switched off, then a delay
of 90 seconds will be required after each safety shutdown
before a new ignition cycle can be attempted. For more
details about how the Electronic Burner Control works
refer to ‘Electronic Burner Control’.
4. Check the manometer zero point is correct.
5. Connect the manometer to the cooker pressure
test point. This is located on the regulator or LPG
inlet fitting.
6. Check the operating pressure (refer table above).
For LPG Cookers: Adjust the regulator if necessary
(this may be remote from the cooker).
For NG Cookers: The outlet pressure should not vary from
the nominal outlet pressure of 1.00kPa by more than
±0.20kPa.
If the regulator apppears to not be performing
satisfactorily, then check the following points:
a. If the outlet pressure is consistently too low
then the inlet pressure may be too low and
adjustment of an upstream regulator may be
needed, or an upstream regulator or valve with
insufficient flow capacity may be present in the
gas supply line. If this is suspected then it may
be necessary to repeat the checks whilst
measuring both the inlet and outlet pressure to
determine
if the inlet pressure is in the range 1.13 – 5kPa.
b. Check that the regulator has been fitted to the
gas supply line in the correct orientation, the
arrow on the base of the body indicates the
direction of gas flow.
Once these checks have been completed, if the regulator
still fails to perform in a satisfactory manner it should be
replaced.
7. Observe the flame appearance on the burner. If it
is much larger or much smaller than expected, the
injector size may require checking. Where a flame is
unsatisfactory refer to the servicing instructions and
correct the fault if possible.
8. Check the operation of the timer, light and fan.
If the appliance cannot be adjusted to perform correctly,
inform the customer of the problem and affix an
appropriate
warning notice to the appliance. If the fault appears to
be dangerous, the appliance should be disconnected.
However, if only a minor fault exists, the customer may
wish to use the appliance while awaiting service.
The customer should be advised that, in the event of a
fault, they should contact the manufacturer’s local service
organisation or the retailer from whom the appliance
was purchased.
31INSTALLATION
NOTES
32 NOTES
NOTES
NOTES
33
NOTES
34 NOTESNOTES
Warranty
FOR SALES IN AUSTRALIA AND NEW ZEALAND
APPLIANCE: BUILT-IN OVEN, COOKTOP
AND FREESTANDING COOKERS
This document sets out the terms and conditions of the product
warranties for Electrolux Appliances. It is an important document.
Please keep it with your proof of purchase documents in a safe place
for future reference should you require service for your Appliance.
1. In this warranty:
(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has
the same meaning referred to in the ACL;
(b) ‘ACL’ means Schedule 2 to the Competition and Consumer Act 2010;
(c) ‘Appliance’ means any Electrolux product purchased by you and
accompanied by this document;
(d) ‘ASC’ means Electrolux authorised service centres;
(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163
O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in
respect of Appliances purchased in Australia and Electrolux (NZ)
Limited (collectively ‘Electrolux’) of 3-5 Niall Burgess Road, Mount
Wellington, in respect of Appliances purchased in New Zealand;
(f) ‘major failure’ as referred to in clause 10 of this warranty has the
same meaning referred to in the ACL and includes a situation when
an Appliance cannot be repaired or it is uneconomic for Electrolux, at
its discretion, to repair an Appliance during the Warranty Period;
(g) ‘Warranty Period’ means the Appliance is warranted against
manufacturing defects in Australia for 24 months and in New Zealand
for 24 months, following the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having purchased
the Appliance for re-sale, and ‘your’ has a corresponding meaning.
2. This warranty only applies to Appliances purchased and used in Australia
or New Zealand and used in normal domestic applications and is in
addition to (and does not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia or New Zealand.
3. During the Warranty Period Electrolux or its ASC will, at no extra charge
if your Appliance is readily accessible for service, without special
equipment and subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Electrolux or its ASC may
use remanufactured parts to repair your Appliance. You agree that
any replaced Appliances or parts become the property of Electrolux.
This warranty does not apply to light globes, batteries, lters or similar
perishable parts.
4. Parts and Appliances not supplied by Electrolux are not covered by
this warranty.
5. To the extent permitted by law, you will bear the cost of transportation,
travel and delivery of the Appliance to and from Electrolux or its ASC. If
you reside outside of the service area, you will bear the cost of:
(a) travel of an authorised representative;
(b) transportation and delivery of the Appliance to and from Electrolux or
its ASC.
In all instances, unless the Appliance is transported by Electrolux or an
Electrolux authorised representative, the Appliance is transported at the
owner’s cost and risk while in transit to and from Electrolux or its ASC.
6. Proof of purchase is required before you can make a claim under
this warranty.
7. You may not make a claim under this warranty unless the defect claimed
is due to faulty or defective parts or workmanship. Electrolux is not liable
in the following situations (which are not exhaustive):
(a) the Appliance is damaged by:
(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with
the Appliance;
(b) the Appliance is modied without authority from Electrolux in writing;
(c) the Appliance’s serial number or warranty seal has been removed
or defaced;
(d) the Appliance was serviced or repaired by anyone other than
Electrolux, an authorised repairer or ASC.
8. This warranty, the contract to which it relates and the relationship
between you and Electrolux are governed by the law applicable where
the Appliance was purchased. Where the Appliance was purchased in
New Zealand for commercial purposes the Consumer Guarantee Act
does not apply.
9. To the extent permitted by law and subject to your non-excludable
statutory rights and warranties, Electrolux excludes all warranties and
liabilities (other than as contained in this document) including liability for
any loss or damage whether direct or indirect arising from your purchase,
use or non use of the Appliance.
10. For Appliances and services provided by Electrolux in Australia,
the Appliances come with a guarantee by Electrolux that cannot be
excluded under the ACL. You are entitled to a replacement or refund
for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Appliance
repaired or replaced if the Appliance fails to be of acceptable quality and
the failure does not amount to a major failure.
The benets to you given by this warranty are in addition to your other
rights and remedies under a law in relation to the Appliances or services
to which the warranty relates.
11. At all times during the Warranty Period, Electrolux shall, at its discretion,
determine whether repair, replacement or refund will apply if an
Appliance has a valid warranty claim applicable to it.
12. For Appliances and services provided by Electrolux in New Zealand,
the Appliances come with a guarantee by Electrolux pursuant to the
provisions of the Consumer Guarantees Act, the Sale of Goods Act and
the Fair Trading Act.
13. To enquire about claiming under this warranty, please follow these steps:
(a) carefully check the operating instructions, user manual and the terms
of this warranty;
(b) have the model and serial number of the Appliance available;
(c) have the proof of purchase (e.g. an invoice) available;
(d) telephone the numbers shown below.
14. You accept that if you make a warranty claim, Electrolux and its ASC
may exchange information in relation to you to enable Electrolux to meet
its obligations under this warranty.
Before calling for service, please ensure that the steps listed in clause 13 above have been followed.
FOR SERVICE
or to nd the address of your nearest
state service centre in Australia
PLEASE CALL 13 13 49
For the cost of a local call (Australia only)
FOR SERVICE
or to nd the address of your nearest
authorised service centre in New Zealand
FREE CALL 0800 10 66 10
(New Zealand only)
GOV_Warr_Aug13
Important Notice
SERVICE AUSTRALIA
ELECTROLUX HOME PRODUCTS
www.electrolux.com.au
SERVICE NEW ZEALAND
ELECTROLUX (NZ) Limited
www.electrolux.co.nz
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in Australia
PLEASE CALL 13 13 50
For the cost of a local call (Australia only)
FOR SPARE PARTS
or to nd the address of your nearest
state spare parts centre in New Zealand
FREE CALL 0800 10 66 20
(New Zealand only)
35WARRANTY
For more information on all Westinghouse
appliances, or for dimension and installation
information, call into your retailer, phone or email
our customer care team or visit our website:
AUSTRALIA
phone: 1300 363 640
fax: 1800 350 067
email: customercare@electrolux.com.au
web: www.westinghouse.com.au
NEW ZEALAND
phone: 0800 436 245
fax: 0800 225 088
email: customercare@electrolux.co.nz
web: www.westinghouse.co.nz
TOP SERVICE
Top Service encompasses the after sales service
provided by The Electrolux Group to consumers
including delivery, home service and spare parts.
Westinghouse. We are part of the Electrolux family.
Share more of our thinking at www.electrolux.com.au
and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation.
Used under license. All Rights Reserved.
P/No: 0342 001 615 Issue A. ECN 14A002A
© 2014 Electrolux Home Products Pty Ltd.
ABN 51 004 762 341
WMAN_GASBIC_NOV14
Loading...
