Page 1
Model No. WETL30708.0
Serial No.
Write the serial number in the
space above for reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if there are missing parts,
please contact us at the numbers
or addresses listed below:
Call: 08457 089 009
USER'S MANUAL
Outside UK: 0 (44) 113 3877133
Fax: 0 (44) 113 3877125
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG
UK
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Page 2
TABLE OF CONTENTS
ARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
W
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

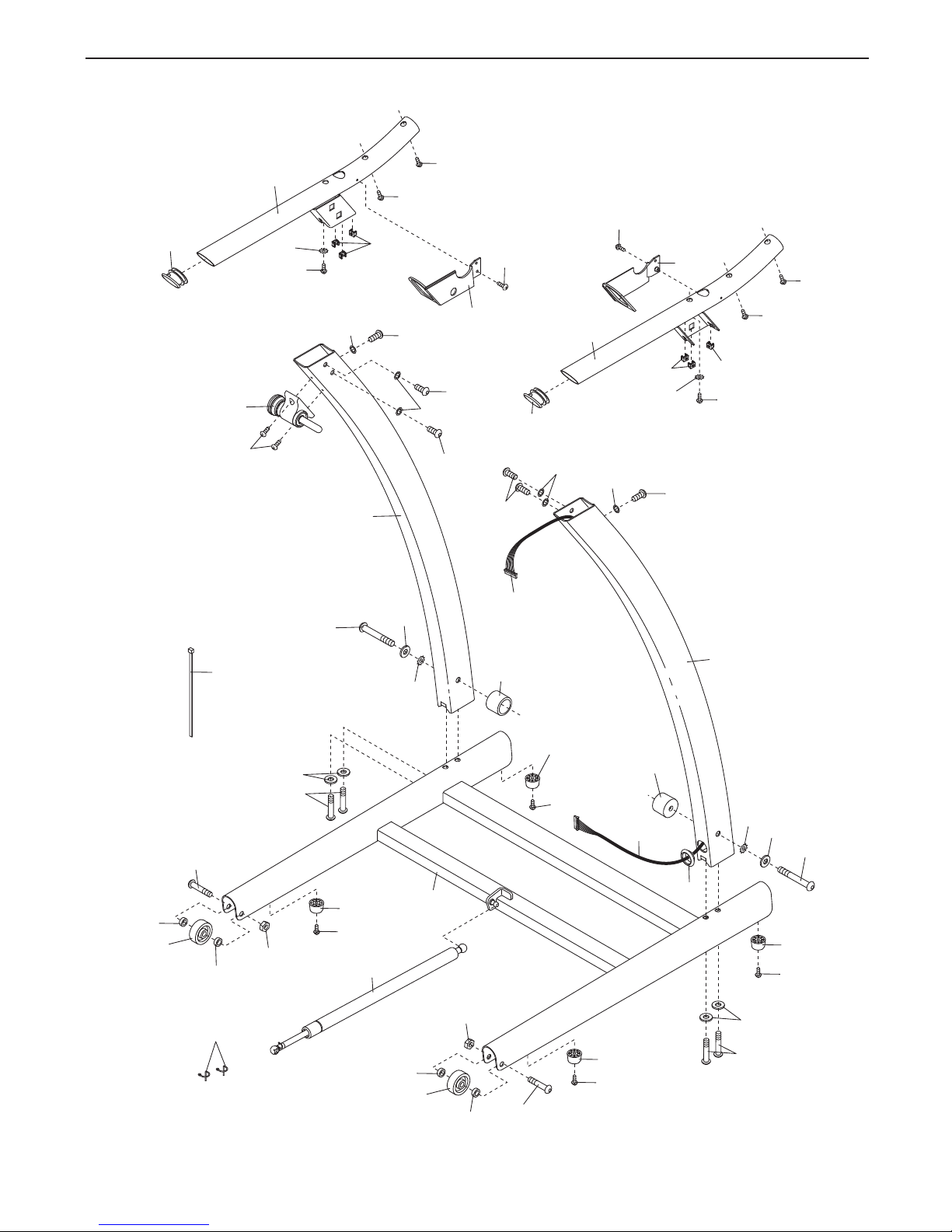

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decal(s) may not be shown at actual
size.
WESLO is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
umes no responsibility for personal injury or property damage sustained by or through the use of
s
this product.
1. Before beginning this or any exercise program, consult your physician. This is especially important for persons over age 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described in this
manual.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and
2 ft. (0.6 m) on each side. Do not place the
treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons weighing 265 lbs. (120 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes; never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
11. When connecting the power cord (see page
15), plug the power cord into an earthed cir-
cuit. No other appliance should be on the
same circuit. When replacing the fuse, an
ASTA approved BS1362 type should be fitted
to the fuse carrier. A 13 amp fuse should be
used.
12. If an extension cord is needed, use only a 3conductor, 14-gauge (1 mm
longer than 5 ft. (1.5 m).
13. Keep the power cord away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 17).
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
18. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the reset/off circuit
breaker.)
19. The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The pulse sensor is intended only as an exercise aid in determining heart rate trends in
general.
2
) cord that is no
3
Page 4
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
SSEMBLY on page 6, and HOW TO FOLD
A
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
24. Never drop or insert any object into any
opening on the treadmill.
DANGER: Always unplug the power
25.
cord immediately after use, before cleaning
the treadmill, and before performing the
aintenance and adjustment procedures de-
m
scribed in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service representative only.
23. Inspect and properly tighten all parts of the
treadmill regularly.
SAVE THESE INSTRUCTIONS
26. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
4
Page 5
BEFORE YOU BEGIN
Thank you for selecting the new WESLO®COMPACT
L treadmill. The COMPACT SL treadmill offers a selec-
S
tion of features designed to make your workouts at
home more effective. And when youʼre not exercising,
the unique treadmill can be folded up, requiring less
han half the floor space of other treadmills.
t
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Handrail
Storage Latch
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Pulse Sensor
Key/Clip
Upright
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Platform Cushion
Incline Pin
5
Page 6
ASSEMBLY
5/16" Star
Washer (2)–6
M10 Star
Washer (8)–2
M4.2 x 19mm
Screw (10)–6
M5 Star
Washer (12)–2
M10 Flat
Washer (16)–4
M8 x 16mm Bolt
(17)–6
M5 x 16mm
Screw (13)–2
M4.2 x 19mm
Tek Screw (14)–4
M10 x 53mm
Patch Bolt (18)–4
M10 x 110mm
Bolt (15)–2
M10 Washer
(4)–2
#10 x 1" Tek Screw
(43)–2
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
ispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
d
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , and wire cutters .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
6
Page 7
1. Make sure that the power cord is unplugged.
Orient the Base (101) as shown.
Attach four Base Feet (100) to the Base (101) in
he locations shown with four M4.2 x 19mm Tek
t
Screws (14).
1
14
00
1
14
101
14
100
100
14
100
2. Identify the Right Upright (98), which has a large
hole in the location shown.
Orient the Right Upright (98) and the Base (101)
as shown. Attach the Right Upright to the Base
with two M10 x 53mm Patch Bolts (18) and two
M10 Flat Washers (16); do not fully tighten the
Patch Bolts yet.
2
98
Large
Hole
101
16
18
7
Page 8
. Orient the Left Upright (96) and the Base (101)
3
as shown. Attach the Left Upright to the Base
with two M10 x 53mm Patch Bolts (18) and two
M10 Flat Washers (16); do not fully tighten the
atch Bolts yet.
P
3
101
96
16
18
4. With the help of a second person, raise the
Uprights (96, 98) so the Base (101) is flat on the
floor as shown. Next, position the front of the
Frame (67) between the Uprights.
See the inset drawing. Locate the wire tie inside the lower end of the Right Upright (98).
Wrap the wire tie around the end of the Wire
Harness (97). Next, locate the opposite end of
the wire tie, which is extending from the top of
the Right Upright. Pull the wire tie until the Wire
Harness is routed completely through the Right
Upright.
4
Wire
Tie
97
Wire
Tie
96
98
98
Wire
Tie
67
97
101
8
Page 9
5. Have a second person raise the Frame (67) and
hold it until step 6 is completed.
old an Upright Spacer (54) between the Right
H
Upright (98) and the Frame (67) as shown.
ttach the Right Upright to the Frame with an
A
M10 x 110mm Bolt (15), an M10 Washer (4),
and an M10 Star Washer (8); do not fully
tighten the Patch Bolt yet. Be careful not to
pinch the Wire Harness (97).
5
8
9
67
54
4
15
6. Hold the remaining Upright Spacer (54) between
the Left Upright (96) and the Frame (67) as
shown. Attach the Left Upright to the Frame with
an M10 x 110mm (15), an M10 Washer (4), and
an M10 Star Washer (8); do not tighten the
Patch Bolt yet.
97
8
6
96
67
54
8
4
15
9
Page 10
7. Have a second person lift and hold the Frame
(67) until step 8 is completed.
ext, place the cylinder end of the Gas Spring
N
(1) near the bracket on the Base (101).
See the two small inset drawings. Using your fingernail or the end of a screwdriver, press on the
end of the Gas Spring Pin (7) to loosen it from
the Gas Spring (1). Next, rotate the Gas Spring
Pin and pull it out of the Gas Spring. Be careful
to avoid losing the Gas Spring Pin.
7
67
7
See the lower drawing. Press the cylinder end
of the Gas Spring (1) onto the ball on the
bracket. Next, insert the end of the Gas Spring
Pin (7) through two of the small holes in the end
of the Gas Spring. Then, rotate the Gas Spring
Pin until it clips onto the Gas Spring.
8. Raise the Gas Spring (1) to a vertical position.
Remove the Gas Spring Pin (7) from the raised
end of the Gas Spring as described in step 7. If
necessary, rotate the Gas Spring to align the
end of the Gas Spring with the ball on the
bracket on the Frame (67).
Then, press the end of the Gas Spring (1) onto
the ball. Note: It may be necessary to move
the Frame forward or backwards as you
press the Gas Spring onto the ball.
101
1
7
Bracket
7
Cylinder
Bracket
7
1
Holes
8
67
Bracket
7
1
See the lower drawing. Insert the Gas Spring
Pin (7) into the two indicated small holes in the
end of the Gas Spring (1) Then, rotate the Gas
Spring Pin until it clips onto the Gas Spring.
Note: Extra Gas Spring Pins are included.
Lower the Frame (67) to the floor.
Holes
1
7
10
Page 11
9. Identify the Right Handrail Cover (95) and the
Left Handrail Cover (93). Slide the end of the
Right Handrail (94) through the hole in the Right
andrail Cover, and slide the end of Left
H
Handrail (92) through the hole in the Left
andrail Cover.
H
Attach the Handrail Covers (93, 95) to the
Handrails (92, 94) with two M4.2 x 19mm
Screws (10) in the locations shown.
9
Hole
95
94
10
3
9
10
Hole
92
10. Set the Console (52) face down on a soft surface to avoid scratching the Console. Hold the
Right Handrail (94) near the Console as shown.
Insert the console wire into the large hole on the
side of the Right Handrail and out the hole on
top as shown.
10
94
Large
Hole
Console
Wire
52
11
Page 12
11. Attach the Right Handrail (94) to the Console
(52) with an M5 x 16mm Screw (13), an M5 Star
Washer (12), and two M4.2 x 19mm Screws
10). Make sure that no wires are pinched.
(
Start all three Screws before tightening any
f them. Tighten the M5 x 16mm Screw and
o
then tighten the M4.2 x 19mm Screws. Do not
overtighten the Screws.
Attach the Left Handrail (92) to the other side
of the Console (52) in the same way. Note:
There are no wires on the left side of the
Console.
Remove the plastic ties from the Right Handrail
(94) and the Left Handrail (92). If necessary,
press the M8 Cage Nuts (41) into place.
11
92
1
12
12
94
3
13
41
10
41
10
52
12. Have a second person hold the Console (52)
near the Right Upright (98) and the Left Upright
(not shown).
Connect the Wire Harness (97) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON. Remove the wire tie from the
Wire Harness. Insert the connectors and excess
wire into the Right Upright (98).
Next, set the Console (52) onto the top of the
Right Upright (98) and the Left Upright (not
shown). Make sure that no wires are pinched.
12
97
52
Console
Wire
98
Wire
Tie
Console
Wire
97
12
Page 13
13. Attach the Console (52) to the Uprights (96, 98)
with six M8 x 16mm Bolts (17) and six 5/16" Star
Washers (2). Start all six Bolts before tighten-
ing any of them.
3
1
2
5
17
2
2
17
2
96
17
2
98
14. With the help of a second person, lower the
Uprights (96, 98) as shown.
See the lower drawing. Position the Uprights
(96, 98) so that the Frame (67) is centered between the Uprights.
Firmly tighten the M10 x 53mm Patch Bolts (18)
and the M10 x 110mm Bolt (15) on each side of
the treadmill (only one side is shown). Do not
overtighten the M10 x 110mm Bolts.
14
96
Side View
96, 98
View from Above
67
15
18
98
13
Page 14
15. Attach the Latch Housing (62) to the Left Upright
(96) with two #10 x 1" Tek Screws (43). Make
sure that the Latch Housing is oriented as
hown. Do not overtighten the Screws.
s
15
43
62
96
16. Place the treadmill in the storage position (see
HOW TO FOLD AND MOVE THE TREADMILL
on page 20).
Insert the Incline Pins (24) at the desired incline
16
24
24
level (see HOW TO CHANGE THE INCLINE OF
THE TREADMILL on page 19
).
Lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 21).
17. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure place; the large hex key is used to adjust the walking
belt (see pages 23 and 24). To protect the floor or carpet, place a mat under the treadmill.
14
Page 15
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with high-performance lubricant. IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deterio-
ate the walking belt and cause excessive wear.
r
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped
with a power cord having an equipment-earthing conductor and an
earthing plug. IMPORTANT: If the power cord is damaged, it
must be replaced with a manufacturer-recommended power
cord.
See drawing 1. Plug the indicated end of the power cord into the
socket on the treadmill.
See drawing 2. Press the pins on the power cord into the metal clips
in the adapter as shown. Close the adapter cover over the end of the
power cord and tighten the screw in the adapter. IMPORTANT:
Make sure that the adapter cover is secure and the screw has
been tightened before using the power cord.
See drawing 3. Plug the power cord into an appropriate outlet that is
properly installed and earthed in accordance with all local codes and
ordinances. IMPORTANT: The treadmill is not compatible with
RCD-equipped outlets.
1
2
Screw
Adapter
3
Socket on Treadmill
Adapter
Cover
Pins
Metal
Clips
Outlet
DANGER: Improper connection of the equipment-earthing conductor can result in an in-
creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as
to whether the product is properly earthed. Do not modify the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
15
Page 16
CONSOLE DIAGRAM
Key
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features
designed to make your workouts more effective. When
you select the manual mode of the console, you can
change the speed of the treadmill with the touch of a
button. As you exercise, the console will display continuous exercise feedback. You can even measure
your heart rate using the built-in handgrip pulse sensor.
The console also features four speed workouts. Each
workout controls the speed of the treadmill as it guides
you through an effective exercise session.
Clip
To turn on the power, see page 17. To use the manual mode of the console, see page 17. To use a
speed workout, see page 19.
IMPORTANT: If there are sheets of clear plastic on
the console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 24).
16
Page 17
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 15). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
Reset
Position
power cord. Switch the circuit breaker to the reset position.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 16),
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the displays will light. IMPORTANT: In an emergency
situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the position of the clip.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
When the key is inserted,
the manual mode will be
selected. If you have selected a speed workout,
reselect the manual
mode by pressing the
Workout Select button repeatedly until only zeros
appear in the displays.
3. Start the walking belt.
To start the walking belt, press the Start button or
the Digital Speed increase button. The walking belt
will begin to move at 2 km/h. As you exercise,
change the speed of the walking belt as desired by
pressing the Digital Speed increase and decrease
buttons. Each time you press a button, the speed
setting will change by 0.1 km/h; if you hold down a
button, the speed setting will change in increments
of 0.5 km/h.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To restart
the walking belt, press the Start button or the Digital
Speed increase button.
17
Page 18
4. Follow your progress with the displays.
The lower left
isplay—As you exer-
d
cise, the lower left dis-
lay can show the
p
elapsed time and the
distance that you have
walked or run.
The lower right
display—The lower
right display can show
the speed of the walking
belt and the approximate number of calories
that you have burned. The display also shows your
heart rate when you use the handgrip pulse sensor
(see step 5).
The upper display—
The upper display can
show the elapsed time,
the distance that you
have walked or run, the
speed of the walking
belt, or the approximate number of calories you
have burned. Press the Display Mode button repeatedly until the upper display shows the information that you are most interested in viewing. Note:
While information is shown in the upper display, the
same information will not be shown in the lower left
or right display.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
Note: The console can
display speed and distance in either kilometers or miles. To see
which unit of measure-
ment is selected, remove the key, insert the key
into the console while holding down the Stop button, and then release the Stop button. An “M” for
etric kilometers or an “E” for English miles will ap-
m
pear in the upper display. Press the Digital Speed
ncrease button to change the unit of measurement
i
if desired. When the desired unit of measurement is
selected, remove the key and then reinsert it.
5. Measure your heart rate if desired.
Before using the handgrip pulse sensor, remove the sheets of clear
plastic from the metal
contacts. In addition,
make sure that your
Metal
Contacts
hands are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts—avoid moving
your hands. When your pulse is detected, the small
heart symbol in the lower right display will flash,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
6. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, remove the key from the console, and put it in a secure
place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmillʼs electrical components may wear prematurely.
18
Page 19
HOW TO USE A SPEED WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
7.
1
2. Select one of the four speed workouts.
To select a speed workout, press the Workout
Select button repeatedly
until the number of the
desired workout appears
in the upper display. The
maximum speed setting of the selected workout
will appear in the lower right display.
Each workout is divided into 30 one-minute segments. One speed setting is programmed for each
segment. Note: The same speed setting may be
programmed for consecutive segments.
3. Press the Start button or the Digital Speed increase button to start the workout.
A moment after you press the button, the treadmill
will automatically adjust to the first speed setting of
the workout. Hold the handrails and begin walking.
To stop the workout temporarily, press the Stop
button. The time will begin to flash in the display.
To restart the workout, press the Start button or the
igital Speed increase button. The walking belt will
D
begin to move at 2 km/h. When the next segment of
he workout begins, the treadmill will automatically
t
adjust to the speed setting for the next segment.
4. Follow your progress with the displays.
See step 4 on page 18.
5. Measure your heart rate if desired.
See step 5 on page 18.
6. When you are finished exercising, remove the
key from the console.
See step 6 on page 18.
HOW TO CHANGE THE INCLINE OF THE TREADMILL
To vary the intensity of your exercise, you can change
the incline of the treadmill. There are three incline levels. Before changing the incline, remove the key
and unplug the power cord. Next, fold the treadmill
to the storage position (see page 20).
At the end of each segment of the workout, a series of tones will sound. In addition, if a different
speed setting is programmed for the next segment,
the speed setting will flash in the display to alert
you. When the next segment begins, the speed of
the walking belt will automatically adjust to the
speed setting for the next segment.
The workout will continue in this way until you have
walked or run for 30 minutes. The walking belt will
then slow to a stop.
If the speed setting for the current segment is too
high or too low, you can override the setting by
pressing the Digital Speed buttons; however,
when the next segment begins, the treadmill
will automatically adjust to the speed setting
for the next segment.
To change the incline, first remove the incline pin from
one of the incline legs. Adjust the incline leg to the desired position, and then fully reinsert the incline pin.
Adjust the other incline leg in the same way. CAUTION:
Before using the treadmill, make sure that both incline legs are at the same height and that both incline pins are fully inserted into the incline legs.
After you have adjusted the incline legs, lower the
treadmill (see page 21).
Incline
Pin
Incline
Incline
Pin
Leg
19
Page 20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Remove the key and unplug the power cord. CAUTION:
ou must be able to safely lift 45 lbs. (20 kg) to raise,
Y
lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the pos-
sibility of injury, do not lift the frame by the plastic
foot rails. Make sure to bend your legs and keep your
back straight as you raise the frame. Raise the frame
about halfway to the vertical position.
Frame
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob
to the left and hold it. Raise the frame until the hole in the
latch plate is aligned with the latch pin. Slowly release
the latch knob; make sure that the latch pin is fully in-
serted into the latch plate.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).
Frame
Latch Pin
Latch Knob
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the
storage position as described above. Make sure that the
latch pin is fully inserted into the latch plate.
1. Hold one handrail and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To
reduce the risk of injury, use extreme caution while
moving the treadmill. Do not move the treadmill over
an uneven surface.
3. Place a foot against one of the wheels, and carefully
lower the treadmill until it is resting in the storage position.
Latch
Plate
Handrail
Wheel
20
Page 21
HOW TO LOWER THE TREADMILL FOR USE
. Hold the treadmill with your right hand as shown. Pull the
1
latch knob to the left and hold it. Pivot the frame down
until it is past the latch pin. Slowly release the latch knob.
2. Hold the metal frame firmly with both hands and lower
it to the floor. CAUTION: Do not grip only the plastic
foot rails or drop the frame to the floor. Bend your
legs and keep your back straight.
Frame
atch Pin
L
Latch Knob
Frame
21
Page 22
TROUBLESHOOTING
ost treadmill problems can be solved by following the steps below. Find the symptom that applies, and
M
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See page 15.) If an ex-
tension cord is needed, use only a 3-conductor, 14-gauge (1 mm
(1.5 m). IMPORTANT: The treadmill is not compatible with RCD-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
PROBLEM:The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM:The displays of the console do not function properly
c
Tripped
Position
2
) cord that is no longer than 5 ft.
Reset
Position
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the four #10 x 1" Screws
(75) and carefully remove the Motor Hood (72).
a
75
75
72
75
75
22
Page 23
Locate the Reed Switch (55) and the Magnet (49)
on the left side of the Pulley (58). Turn the Pulley
/8 in.
until the Magnet is aligned with the Reed Switch.
ake sure that the gap between the Magnet and
M
the Reed Switch is about 1/8 in. (3 mm). If nec-
ssary, loosen the M4 x 13mm Tek Screw (29),
e
1
9
2
55
move the Reed Switch slightly, and then retighten
the Screw. Reattach the Motor Hood (not shown),
and run the treadmill for a few minutes to check for
a correct speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 14-gauge (1 mm
than 5 ft. (1.5 m).
58
49
Top
View
2
) cord that is no longer
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG
b
2–3in.
THE POWER CORD. Using the hex key, turn both
idler roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
Idler Roller Bolts
treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
23
Page 24
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
nd UNPLUG THE POWER CORD. If the walking
a
belt has shifted to the left, use the hex key to turn
he left idler roller bolt clockwise 1/2 of a turn; if the
t
walking belt has shifted to the right, turn the left
bolt counterclockwise 1/2 of a turn. Be careful not to
overtighten the walking belt. Then, plug in the
power cord, insert the key, and run the treadmill for
a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each
edge of the walking belt 2 to 3 in. (5 to 7 cm) off the
walking platform. Be careful to keep the walking
belt centered. Then, plug in the power cord, insert
the key, and carefully walk on the treadmill for a few
minutes. Repeat until the walking belt is properly
tightened.
a
b
24
Page 25
EXERCISE GUIDELINES
WARNING: Before beginning this
r any exercise program, consult your physi-
o
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
Page 26
PART LIST—Model No. WETL30708.0 R0908A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
ey No. Qty. Description Key No. Qty. Description
K
11Gas Spring
265/16" Star Washer
3
42M10 Washer
52M10 Jam Nut
61M4 Ground Bolt
72Gas Spring Pin
8 2 M10 Star Washer
92M10 x 47mm Bolt
10 15 M4.2 x 19mm Screw
11 1 4 mm Hex Key
12 2 M5 Star Washer
13 2 M5 x 16mm Screw
14 10 M4.2 x 19mm Tek Screw
15 2 M10 x 110mm Bolt
16 4 M10 Flat Washer
17 6 M8 x 16mm Bolt
18 4 M10 x 53mm Patch Bolt
19 5 M8 Locknut
20 1 Latch Plate
21 4 Plastic Fastener
22 2 M8 Flange Nut
23 2 M10 Locknut
24 2 Incline Pin
25 2 #8 x 3/4" Screw
26 2 Insert Nut
27 2 Motor Bolt
28 2 M8 x 35mm Bolt
29 3 M4 x 13mm Tek Screw
30 12 M5 x 25 mm Screw
31 4 M8 x 30mm Bolt
32 4 M4.2 x 13mm Belt Guide Screw
33 2 Idler Roller Bolt
34 2 M8 x 20mm Bolt
35 2 M8.4 Star Washer
36 2 M6 Star Washer
37 2 Roller Washer
38 8 M4.2 x 13mm Screw
39 3 M4.2 Star Washer
40 1 M8 x 98mm Bolt
41 6 M8 Cage Nut
42 4 U-nut
43 2 #10 x 1" Tek Screw
44 1 Right Idler Roller Bracket
45 1 M4.2 x 10mm Ground Screw
46 2 M4.2 x 10mm Screw
47 2 Platform Cushion
48 1 5 mm Hex Key
49 1 Magnet
50 1 Left Foot Rail
2 M10 x 51mm Bolt
51 2 Isolator
52 1 Console
3 2 Belt Guide
5
54 2 Upright Spacer
55 1 Reed Switch
56 1 Reed Switch Clamp
57 2 Frame Cap
58 1 Drive Roller/Pulley
59 1 Drive Belt
60 1 Filter
61 4 Wire Tie
62 1 Latch Housing
63 1 M4 Nut
64 1 Right Foot Rail
65 1 Walking Platform
66 1 Walking Belt
67 1 Frame
68 1 Left Idler Roller Bracket
69 1 Idler Roller
70 1 Right Rear Foot
71 1 Left Rear Foot
72 1 Motor Hood
73 1 Console Crossbar
74 1 6 mm Hex Key
75 4 #10 x 1" Screw
76 1 Controller
77 1 Electronics Plate
78 1 Transformer
79 1 Ground Wire w/Decal
80 1 Motor Spacer
81 1 Drive Motor
82 2 Motor Isolator
83 1 Motor Bracket
84 1 Power Cord Adapter
85 1 Power Cord
86 1 Belly Pan
87 1 Controller Ground Wire
88 1 Receptacle
89 1 Reset/Off Circuit Breaker
90 1 Belly Pan Grommet
91 2 Handrail Cap
92 1 Left Handrail
93 1 Left Handrail Cover
94 1 Right Handrail
95 1 Right Handrail Cover
96 1 Left Upright
97 1 Wire Harness
98 1 Right Upright
99 2 Grommet
100 4 Base Foot
26
Page 27
Key No. Qty. Description Key No. Qty. Description
101 1 Base
102 4 Wheel Spacer
103 2 Wheel
04 1 Key/Clip
1
105 16 8" Wire Tie
06 1 Latch Warning Decal
1
*–4" Green Wire, F/R
*–4" Black Wire, M/F
*–6" Red Wire, M/F
*–6" White Wire, 2F
*–10" White Wire, 2F
*
– 10" Blue Wire, 2F
*–8" Blue Wire, 2F
*
– 4" Blue Wire, M/F
*–4" Black Wire, 2F
*–Userʼs Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated.
27
Page 28
30
30
14
55
42
42
50
29
51
47
21
32
53
19
29
57
56
59
31
57
58
65
14
53
32
19
42
42
21
47
51
29
66
67
64
33
36
38
39
19
71
70
19
36
44
68
69
39
38
31
19
40
33
30
30
30
30
30
30
30
31
31
28
28
37
37
10
61
106
30
11
48
49
74
26
26
25
20
3
23
23
3
24
24
EXPLODED DRAWING A—Model No. WETL30708.0 R0908A
28
Page 29
72
84
85
81
34
34
35
22
83
80
35
22
27
82
79
87
88
89
14
90
86
14
14
14
6
63
38
39
76
38
38
77
46
78
38
60
99
75
75
75
75
EXPLODED DRAWING B—Model No. WETL30708.0 R0908A
29
Page 30
17
10
13
41
41
2
17
10
95
94
9
2
10
93
41
13
91
10
17
2
17
2
17
91
2
97
98
96
15
54
15
54
100
16
18
100
18
100
14
101
97
9
102
103
105
99
5
5
4
4
12
12
14
14
14
16
100
102
102
102
103
9
10
10
43
62
7
1
8
8
EXPLODED DRAWING C—Model No. WETL30708.0 R0908A
30
Page 31
73
104
10
10
10
45
52
EXPLODED DRAWING D—Model No. WETL30708.0 R0908A
31
Page 32
ORDERING REPLACEMENT PARTS
o order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to pro-
T
vide the following information when contacting us:
• the model number and the serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the part(s) (see the PART LIST and the EXPLODED DRAWING near the
end of this manual)
RECYCLING INFORMATION
This electronic product must not be disposed of in municipal waste. To
preserve the environment, this product must be recycled after its useful
life as required by law.
Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information
about safe and correct disposal methods, please contact your local city office or
the establishment where you purchased this product.
Part No. 266718 R0908A Printed in China © 2008 ICON IP, Inc.
Loading...
