modular
•
KombiSIGN 50
Signal Towers

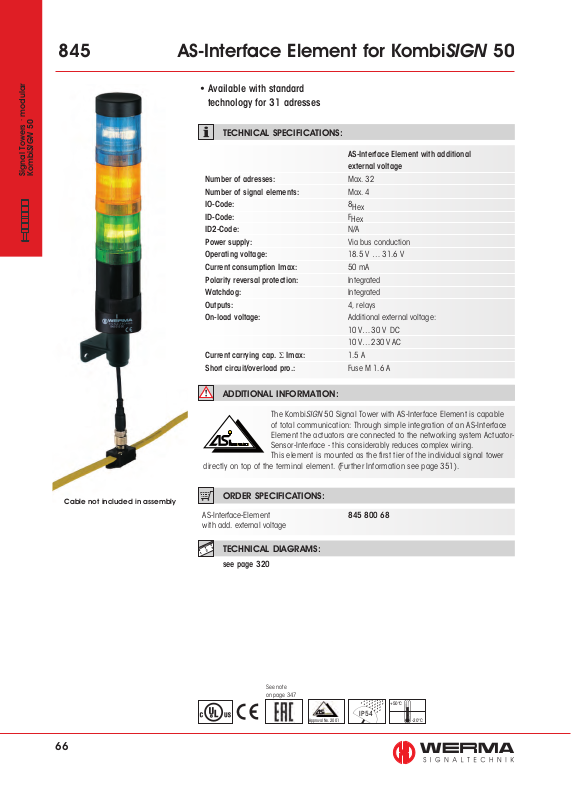

AS-Interface Element for KombiSIGN 50845
• Available with standard
technology for 31 adresses
TECHNICAL SPECIFICATIONS:
AS-Interface Element with additional
external voltage
Number of adresses: Max. 32
Number of signal elements: Max. 4
IO-Code: 8
ID-Code: F
ID2-Code: N/A
Power supply: Via bus conduction
Operating voltage: 18.5 V … 31.6 V
Current consumption Imax: 50 mA
Polarity reversal protection: Integrated
Watchdog: Integrated
Outputs: 4, relays
On-load voltage: Additional external voltage:
10 V…30 V DC
10 V…230 V AC
Current carrying cap. Σ Imax: 1.5 A
Short circuit/overload pro.: Fuse M 1.6 A
Hex
Hex
Cable not included in assembly
ADDITIONAL INFORMATION:
The KombiSIGN 50 Signal Tower with AS-Interface Element is capable
of total communication: Through simple integration of an AS-Interface
Element the actuators are connected to the networking system ActuatorSensor-Interface - this considerably reduces complex wiring.
This element is mounted as the first tier of the individual signal tower
directly on top of the terminal element. (Further Information see page 351).
ORDER SPECIFICATIONS:
AS-Interface-Element 845 800 68
with add. external voltage
TECHNICAL DIAGRAMS:
see page 320
66
See note
on page 347
Approval No.
2001
IP 54
+50°C
-20°C
