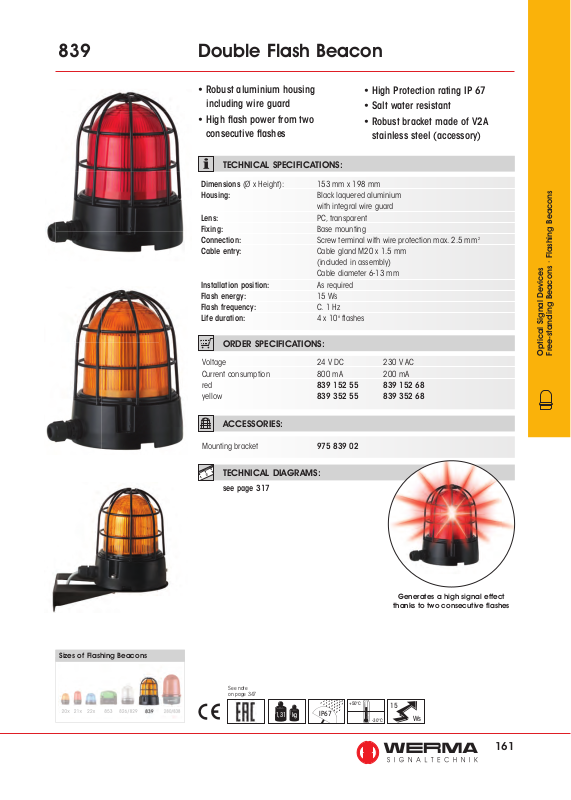

Double Flash Beacon839
• Robust aluminium housing
including wire guard
• High fl ash power from two
consecutive fl ashes
• High Protection rating IP 67
• Salt water resistant
• Robust bracket made of V2A
stainless steel (accessory)
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 153 mm x 198 mm
Housing: Black laquered aluminium
with integral wire guard
Lens: PC, transparent
Fixing: Base mounting
Connection: Screw terminal with wire protection max. 2.5 mm
Cable entry: Cable gland M20 x 1.5 mm
(included in assembly)
Cable diameter 6-13 mm
Installation position: As required
Flash energy: 15 Ws
Flash frequency: C. 1 Hz
Life duration: 4 x 10
6
fl ashes
ORDER SPECIFICATIONS:
Voltage 24 V DC 230 V AC
Current consumption 800 mA 200 mA
red 839 152 55 839 152 68
yellow 839 352 55 839 352 68
2
Optical Signal Devices
Free-standing Beacons · Flashing Beacons
Sizes of Flashing Beacons
ACCESSORIES:
Mounting bracket 975 839 02
TECHNICAL DIAGRAMS:
see page 317
See note
on page 347
1,31
IP67
kg
+50°C
Generates a high signal effect
thanks to two consecutive flashes
15
-30°C
Ws
161
