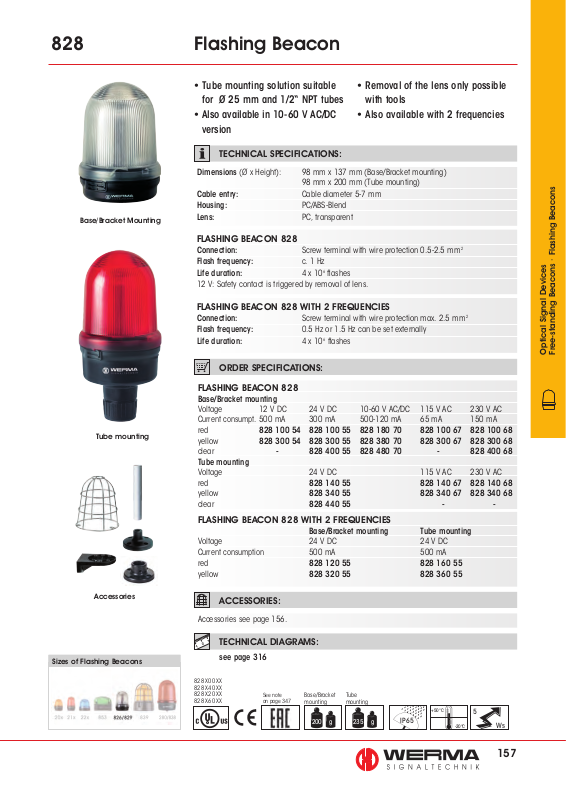

Flashing Beacon828
Base/Bracket Mounting
• Tube mounting solution suitable
for Ø 25 mm and 1/2“ NPT tubes
• Also available in 10-60 V AC/DC
• Removal of the lens only possible
with tools
• Also available with 2 frequencies
version
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 98 mm x 137 mm (Base/Bracket mounting)
98 mm x 200 mm (Tube mounting)
Cable entry: Cable diameter 5-7 mm
Housing: PC/ABS-Blend
Lens: PC, transparent
FLASHING BEACON 828
Connection: Screw terminal with wire protection 0.5-2.5 mm
Flash frequency: c. 1 Hz
Life duration: 4 x 10
12 V: Safety contact is triggered by removal of lens.
FLASHING BEACON 828 WITH 2 FREQUENCIES
Connection: Screw terminal with wire protection max. 2.5 mm
Flash frequency: 0.5 Hz or 1.5 Hz can be set externally
Life duration: 4 x 10
6
fl ashes
6
fl ashes
2
2
Optical Signal Devices
Free-standing Beacons · Flashing Beacons
Tube mounting
Accessories
Sizes of Flashing Beacons
ORDER SPECIFICATIONS:
FLASHING BEACON 828
Base/Bracket mounting
24
Voltage 12 V DC
Current consumpt.
500 mA 300 mA 500-120 mA 65 mA 150 mA
10-60 V AC/DC 115 V AC 230 V AC
V DC
red 828 100 54 828 100 55 828 180 70 828 100 67 828 100 68
yellow 828 300 54 828 300 55 828 380 70 828 300 67 828 300 68
clear - 828 400 55 828 480 70 - 828 400 68
Tube mounting
24
Voltage
115 V AC 230 V AC
V DC
red 828 140 55 828 140 67 828 140 68
yellow 828 340 55 828 340 67 828 340 68
clear 828 440 55 - -
FLASHING BEACON 828 WITH 2 FREQUENCIES
Base/Bracket mounting Tube mounting
Voltage
Current consumption
24
V DC
500 mA 500 mA
24
V DC
red 828 120 55 828 160 55
yellow 828 320 55 828 360 55
ACCESSORIES:
Accessories see page 156.
TECHNICAL DIAGRAMS:
see page 316
828 X00 XX
828 X40 XX
828 X20 XX
828 X60 XX
See note
on page 347
Base/Bracket
mounting
200 g 235 g
Tube
mounting
IP 65
+50°C
-20°C
5
Ws
157
