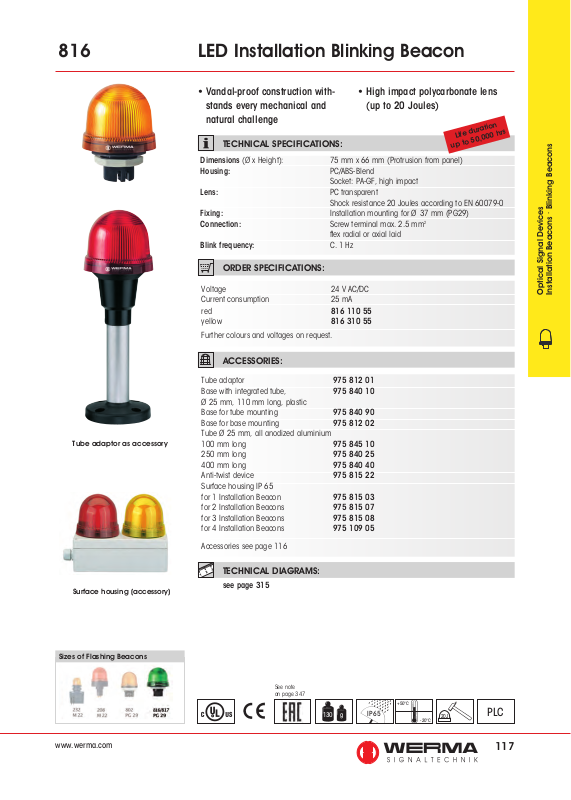

816
LED
Installation Blinking Beacon
• Vandal-proof construction withstands every mechanical and
• High impact polycarbonate lens
(up to 20 Joules)
natural challenge
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 75 mm x 66 mm (Protrusion from panel)
Housing: PC/ABS-Blend
Socket: PA-GF, high impact
Lens: PC transparent
Shock resistance 20 Joules according to EN 60079-0
Fixing: Installation mounting for Ø 37 mm (PG29)
Connection: Screw terminal max. 2.5 mm
fl ex radial or axial laid
Blink frequency: C. 1 Hz
2
ORDER SPECIFICATIONS:
Voltage 24 V AC/DC
Current consumption 25 mA
red 816 110 55
yellow 816 310 55
Further colours and voltages on request.
ACCESSORIES:
Life duration
up to 50,000 hrs
Blinking Beacons
•
Optical Signal Devices
Installation Beacons
Tube adaptor as accessory
Surface housing (accessory)
Tube adaptor 975 812 01
Base with integrated tube, 975 840 10
Ø 25 mm, 110 mm long, plastic
Base for tube mounting 975 840 90
Base for base mounting 975 812 02
Tube Ø 25 mm, all anodized aluminium
100 mm long 975 845 10
250 mm long 975 840 25
400 mm long 975 840 40
Anti-twist device 975 815 22
Surface housing IP 65
for 1 Installation Beacon 975 815 03
for 2 Installation Beacons 975 815 07
for 3 Installation Beacons 975 815 08
for 4 Installation Beacons 975 109 05
Accessories see page 116
TECHNICAL DIAGRAMS:
see page 315
Sizes of Flashing Beacons
www.werma.com
See note
on page 347
130 g
IP 65
+50°C
-20°C
20J
PLC
117
