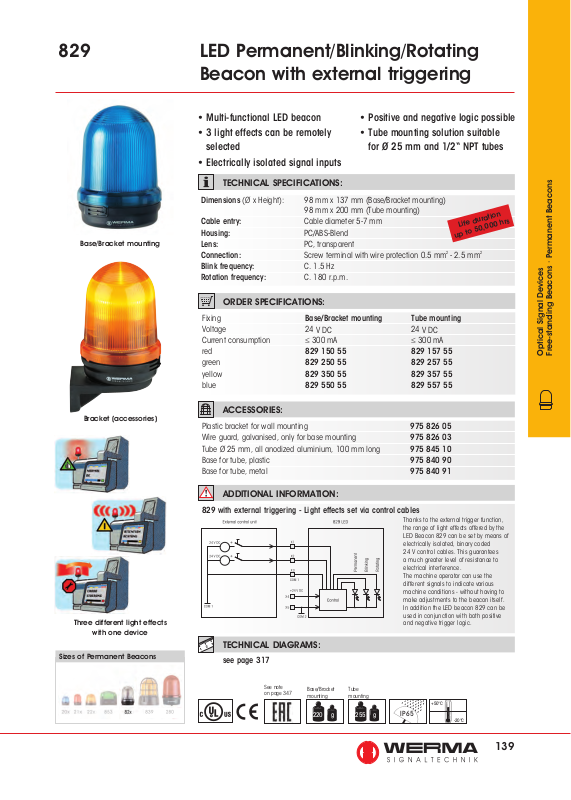

Werma 829 LED Permanent/Blinking/Rotating Beacon with external triggering Catalog Page

829 LED Permanent/Blinking/Rotating

Beacon with external triggering

Base/Bracket mounting

• Multi-functional LED beacon

• 3 light effects can be remotely
selected

• Positive and negative logic possible

• Tube mounting solution suitable
for Ø 25 mm and 1/2“ NPT tubes

• Electrically isolated signal inputs

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 98 mm x 137 mm (Base/Bracket mounting)
98 mm x 200 mm (Tube mounting)

Cable entry: Cable diameter 5-7 mm
Housing: PC/ABS-Blend
Lens: PC, transparent
Connection: Screw terminal with wire protection 0.5 mm
Blink frequency: C. 1.5 Hz
Rotation frequency: C. 180 r.p.m.

ORDER SPECIFICATIONS:

Fixing Base/Bracket mounting Tube mounting
Voltage 24
Current consumption ≤ 300 mA ≤ 300 mA
red 829 150 55 829 157 55
green 829 250 55 829 257 55
yellow 829 350 55 829 357 55
blue 829 550 55 829 557 55

24

V DC

V DC

2

- 2.5 mm

Life duration

up to 50,000 hrs

2

Optical Signal Devices

Free-standing Beacons · Permanent Beacons

Bracket (accessories)

Three different light effects

with one device

Sizes of Permanent Beacons

ACCESSORIES:

Plastic bracket for wall mounting 975 826 05
Wire guard, galvanised, only for base mounting 975 826 03
Tube Ø 25 mm, all anodized aluminium, 100 mm long 975 845 10
Base for tube, plastic 975 840 90
Base for tube, metal 975 840 91

ADDITIONAL INFORMATION:

829 with external triggering - Light effects set via control cables

Thanks to the external trigger function,
the range of light effects offered by the
LED Beacon 829 can be set by means of
electrically isolated, binary coded
24 V control cables. This guarantees
a much greater level of resistance to
electrical interference.
The machine operator can use the
different signals to indicate various
machine conditions - without having to
make adjustments to the beacon itself.
In addition the LED beacon 829 can be
used in conjunction with both positive
and negative trigger logic.

TECHNICAL DIAGRAMS:

see page 317

See note
on page 347

Base/Bracket
mounting

220 g 255 g

Tube
mounting

IP 65

+50°C

-20°C
