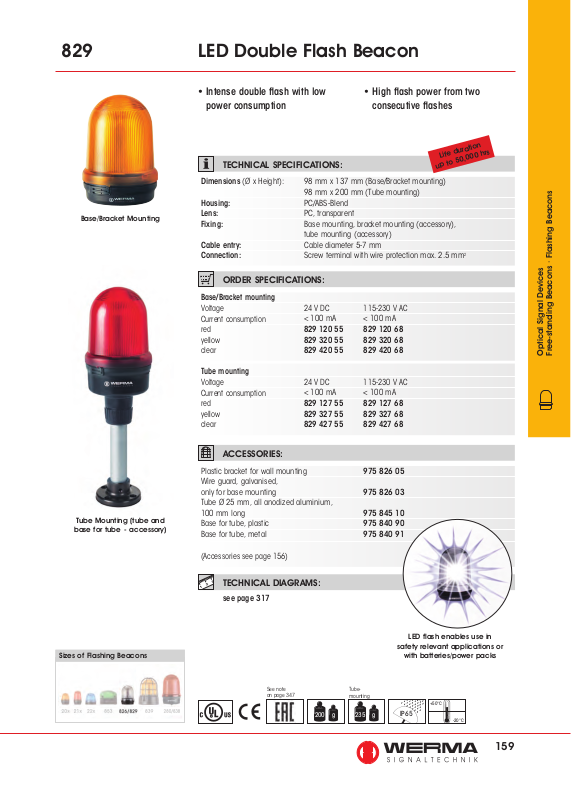

Werma 829 LED Double Flash Beacon Catalog Page

829 LED Double Flash Beacon

Base/Bracket Mounting

• Intense double fl ash with low
power consumption

TECHNICAL SPECIFICATIONS:

• High fl ash power from two
consecutive fl ashes

Life duration

up to 50,000 hrs

Dimensions (Ø x Height): 98 mm x 137 mm (Base/Bracket mounting)
98 mm x 200 mm (Tube mounting)

Housing: PC/ABS-Blend
Lens: PC, transparent
Fixing: Base mounting, bracket mounting (accessory),

tube mounting (accessory)

Cable entry: Cable diameter 5-7 mm
Connection: Screw terminal with wire protection max. 2.5 mm

ORDER SPECIFICATIONS:

Base/Bracket mounting

Voltage 24 V DC 115-230 V AC
Current consumption
red 829 120 55 829 120 68
yellow 829 320 55 829 320 68
clear 829 420 55 829 420 68

< 100 mA < 100 mA

2

Optical Signal Devices

Free-standing Beacons · Flashing Beacons

Tube Mounting (tube and

base for tube - accessory)

Sizes of Flashing Beacons

Tube mounting

Voltage 24 V DC 115-230 V AC
Current consumption

< 100 mA < 100 mA
red 829 127 55 829 127 68
yellow 829 327 55 829 327 68
clear 829 427 55 829 427 68

ACCESSORIES:

Plastic bracket for wall mounting 975 826 05
Wire guard, galvanised,
only for base mounting 975 826 03
Tube Ø 25 mm, all anodized aluminium,
100 mm long 975 845 10
Base for tube, plastic 975 840 90
Base for tube, metal 975 840 91

(Accessories see page 156)

TECHNICAL DIAGRAMS:

see page 317

safety relevant applications or

LED flash enables use in

with batteries/power packs

See note

on page 347

Tube­mounting

200 g 235 g

IP 65

+50°C

-20°C

159
