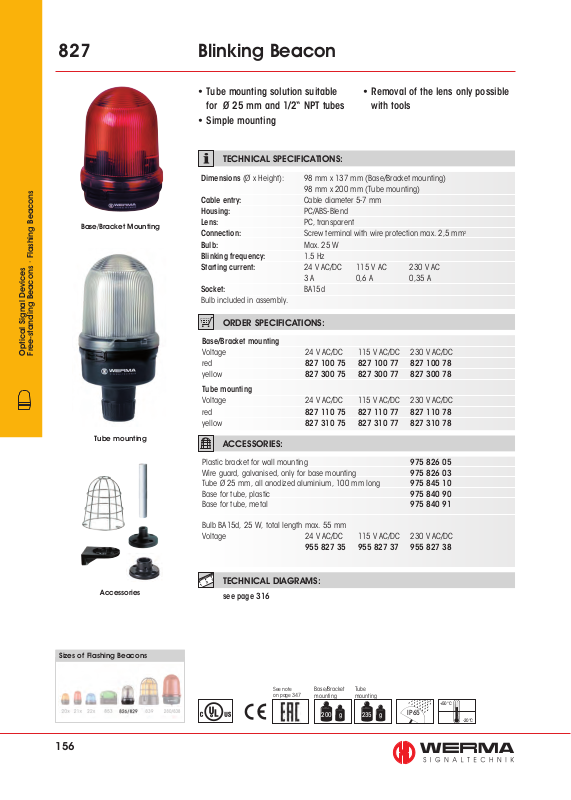

Werma 827 Blinking Beacon Catalog Page

Blinking Beacon827

Base/Bracket Mounting

Optical Signal Devices

Free-standing Beacons · Flashing Beacons

Tube mounting

• Tube mounting solution suitable
for Ø 25 mm and 1/2“ NPT tubes

• Removal of the lens only possible
with tools

• Simple mounting

TECHNICAL SPECIFICATIONS:

Dimensions (Ø x Height): 98 mm x 137 mm (Base/Bracket mounting)
98 mm x 200 mm (Tube mounting)

Cable entry: Cable diameter 5-7 mm
Housing: PC/ABS-Blend
Lens: PC, transparent
Connection: Screw terminal with wire protection max. 2,5 mm
Bulb: Max. 25 W
Blinking frequency: 1.5 Hz
Starting current: 24 V AC/DC 115 V AC 230 V AC
3 A 0,6 A 0,35 A
Socket: BA15d

Bulb included in assembly.

ORDER SPECIFICATIONS:

Base/Bracket mounting

Voltage 24 V AC/DC 115 V AC/DC 230 V AC/DC
red 827 100 75 827 100 77 827 100 78
yellow 827 300 75 827 300 77 827 300 78

Tube mounting

Voltage 24 V AC/DC 115 V AC/DC 230 V AC/DC
red 827 110 75 827 110 77 827 110 78
yellow 827 310 75 827 310 77 827 310 78

ACCESSORIES:

2

Accessories

Sizes of Flashing Beacons

Plastic bracket for wall mounting 975 826 05
Wire guard, galvanised, only for base mounting 975 826 03
Tube Ø 25 mm, all anodized aluminium, 100 mm long 975 845 10
Base for tube, plastic 975 840 90
Base for tube, metal 975 840 91

Bulb BA15d, 25 W, total length max. 55 mm
Voltage 24 V AC/DC 115 V AC/DC 230 V AC/DC
955 827 35 955 827 37 955 827 38

TECHNICAL DIAGRAMS:

see page 316

See note
on page 347

Base/Bracket
mounting

200 g 235 g

Tube
mounting

+50°C

IP 65

-20°C

156
