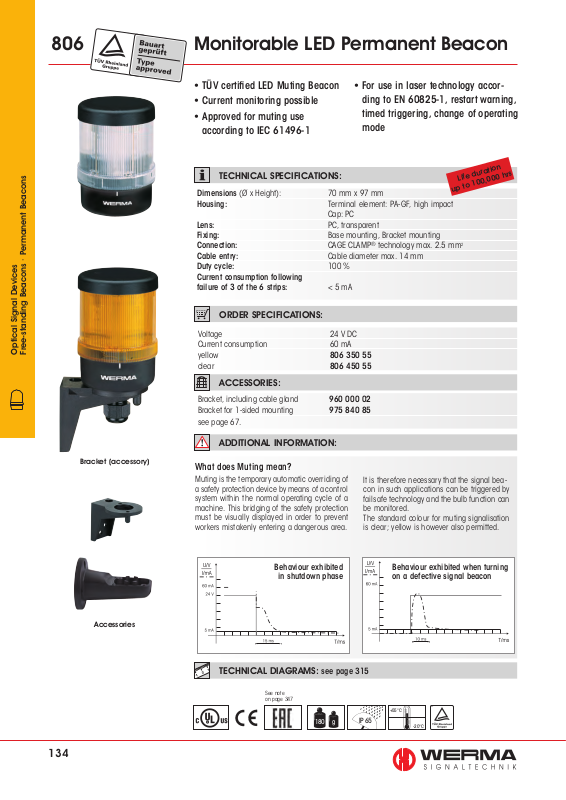

806
Monitorable LED Permanent Beacon
Optical Signal Devices
Free-standing Beacons · Permanent Beacons
• TÜV certified LED Muting Beacon
• Current monitoring possible
• Approved for muting use
according to IEC 61496-1
• For use in laser technology according to EN 60825-1, restart warning,
timed triggering, change of operating
mode
TECHNICAL SPECIFICATIONS:
Dimensions (Ø x Height): 70 mm x 97 mm
Housing: Terminal element: PA-GF, high impact
Cap: PC
Lens: PC, transparent
Fixing: Base mounting, Bracket mounting
Connection: CAGE CLAMP
Cable entry: Cable diameter max. 14 mm
Duty cycle: 100 %
Current consumption following
failure of 3 of the 6 strips: < 5 mA
®
technology max. 2.5 mm
ORDER SPECIFICATIONS:
Voltage 24 V DC
Current consumption 60 mA
yellow 806 350 55
clear 806 450 55
Life duration
up to 100,000 hrs
2
Bracket (accessory)
Accessories
ACCESSORIES:
Bracket, including cable gland 960 000 02
Bracket for 1-sided mounting 975 840 85
see page 67.
ADDITIONAL INFORMATION:
What does Muting mean?
Muting is the temporary automatic overriding of
a safety protection device by means of a control
system within the normal operating cycle of a
machine. This bridging of the safety protection
must be visually displayed in order to prevent
workers mistakenly entering a dangerous area.
Behaviour exhibited
in shutdown phase
It is therefore necessary that the signal beacon in such applications can be triggered by
failsafe technology and the bulb function can
be monitored.
The standard colour for muting signalisation
is clear; yellow is however also permitted.
Behaviour exhibited when turning
on a defective signal beacon
134
TECHNICAL DIAGRAMS:
See note
on page 347
see page 315
180 g
IP 65
+55°C
-20°C
