Wells MOD-200 Installation Manual
ELECTRICAL
MOD-200
MOD-200T
ALL MODELS WITH A 'D' OR 'DM'
240
208
AMPSVOLTS WATTSMODELS PHASE
2400
2480
SUFFIX HAVE THE SAME ELECTRICAL
FIELD
WIRING
GAUGE
SINGLE8.7208 1800MOD-200
SPECIFICATIONS AS THE STANDARD
12 AWB Cu
12 AWB CuSINGLE10.0
14 AWB CuSINGLE11.9
14 AWB CuSINGLE13.8240 3300MOD-200T
TEMP.
RATING
75°C
75°C
90°C
90°C
MOD-200 OR MOD-200T MODELS.

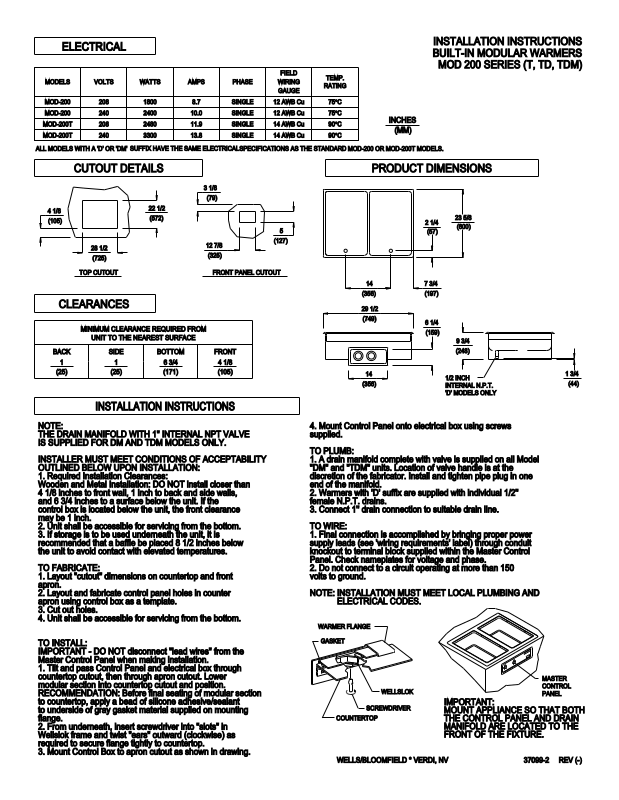

INSTALLATION INSTRUCTIONS
BUILT-IN MODULAR WARMERS
MOD 200 SERIES (T, TD, TDM)
INCHES
(MM)
CUTOUT DETAILS
3 1/8
(79)
4 1/8
(105)
28 1/2
(725)
22 1/2
(572)
12 7/8
(325)
FRONT PANEL CUTOUTTOP CUTOUT
CLEARANCES
MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM FRONT
1 1 6 3/4 4 1/8
(25) (25) (171) (105)
INSTALLATION INSTRUCTIONS
NOTE:
THE DRAIN MANIFOLD WITH 1" INTERNAL NPT VALVE
IS SUPPLIED FOR DM AND TDM MODELS ONLY.
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. Required Installation Clearances:
Wooden and Metal Installation: DO NOT install closer than
4 1/8 inches to front wall, 1 inch to back and side walls,
and 6 3/4 inches to a surface below the unit. If the
control box is located below the unit, the front clearance
may be 1 inch.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.
TO FABRICATE:
1. Layout "cutout" dimensions on countertop and front
apron.
2. Layout and fabricate control panel holes in counter
apron using control box as a template.
3. Cut out holes.
4. Unit shall be accessible for servicing from the bottom.
TO INSTALL:
IMPORTANT - DO NOT disconnect "lead wires" from the
Master Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
countertop cutout, then through apron cutout. Lower
modular section into countertop cutout and position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to underside of gray gasket material supplied on mounting
flange.
2. From underneath, insert screwdriver into "slots" in
Wellslok frame and twist "ears" outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in drawing.
5
(127)
PRODUCT DIMENSIONS
2 1/4
14
(356)
29 1/2
(749)
14
(356)
7 3/4
(197)
6 1/4
4. Mount Control Panel onto electrical box using screws
supplied.
TO PLUMB:
1. A drain manifold complete with valve is supplied on all Model
"DM" and "TDM" units. Location of valve handle is at the
discretion of the fabricator. Install and tighten pipe plug in one
end of the manifold.
2. Warmers with 'D' suffix are supplied with individual 1/2''
female N.P.T. drains.
3. Connect 1'' drain connection to suitable drain line.
TO WIRE:
1. Final connection is accomplished by bringing proper power
supply leads (see 'wiring requirements' label) through conduit
knockout to terminal block supplied within the Master Control
Panel. Check nameplates for voltage and phase.
2. Do not connect to a circuit operating at more than 150
volts to ground.
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
WARMER FLANGE
GASKET
WELLSLOK
SCREWDRIVER
COUNTERTOP
WELLS/BLOOMFIELD * VERDI, NV
23 5/8
(600)
(57)
(159)
9 3/4
(248)
1/2 INCH
INTERNAL N.P.T.
'D' MODELS ONLY
IMPORTANT:
MOUNT APPLIANCE SO THAT BOTH
THE CONTROL PANEL AND DRAIN
MANIFOLD ARE LOCATED TO THE
FRONT OF THE FIXTURE.
37099-2 REV (-)
