CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Class HC Fitness Product
TABLE OF CONTENTS
Keep hands and
fingers clear of
this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING are attached in the centre of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
WARNING DECAL PLACEMENT
The decals shown here have
been placed on the resistance
system. If a decal is missing,
or if it is not legible, please call
our Customer Service
Department to order a free
replacement decal (see the
back cover of this manual).
Apply the replacement decal in
the location shown.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight system.
1. Read all instructions in this manual before
using the weight system. Use the weight system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight system are adequately informed of all precautions.
3. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.
4. Use the weight system only on a level surface. Cover the floor beneath the weight system to protect the floor.
5. Make sure all parts are properly tightened
each time the weight system is used. Replace
any worn parts immediately.
6. Keep children under 12 and pets away from
the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
10. Pull on the low pulley cable only while sitting
on the bench or standing on the base plate.
Pull on the high pulley cables only while sitting on the bench, with the seat in one of the
three positions closest to the upright base, or
while standing on the base plate.
11. The crossbar is not designed to be used for
pull-up exercises. Do not hang on the crossbar.
12. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
13. Always disconnect the lat bar from the high
pulley cables when performing an exercise
that does not require it.
14. Make sure the storage knob is in place and
fully tightened each time the weight system is
used.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
9. The weight system is designed to support a
maximum user weight of 136 kg (300 lbs.).
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the versatile WEIDER®FLEX
8960 weight system. The weight system offers a selection of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the weight system
will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight system. If you have questions after
ASSEMBLED
DIMENSIONS:
Height: 190.5 cm (75 in.)
Width: 101.6 cm (40 in.)
Depth: 198.1 cm (78 in.)
Upright
reading this manual, please call our Customer Service
Department at
please note the product model number and serial number before calling. The model number is WEEVSY09230. The serial number can be found on a decal
attached to the weight system (see the front cover of
this manual).
Before reading further, please review the drawing below
and familiarise yourself with the parts that are labelled.
08457 089 009. To help us assist you,
High Pulley
Lat Bar
Low Pulley
Weight Stack
Low Pulley
Base Plate
Leg Press Strap
Backrest
Seat
Leg Lever
Ankle Strap
4
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the weight system can be assembled successfully by anyone. However, it is important to
realise that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.

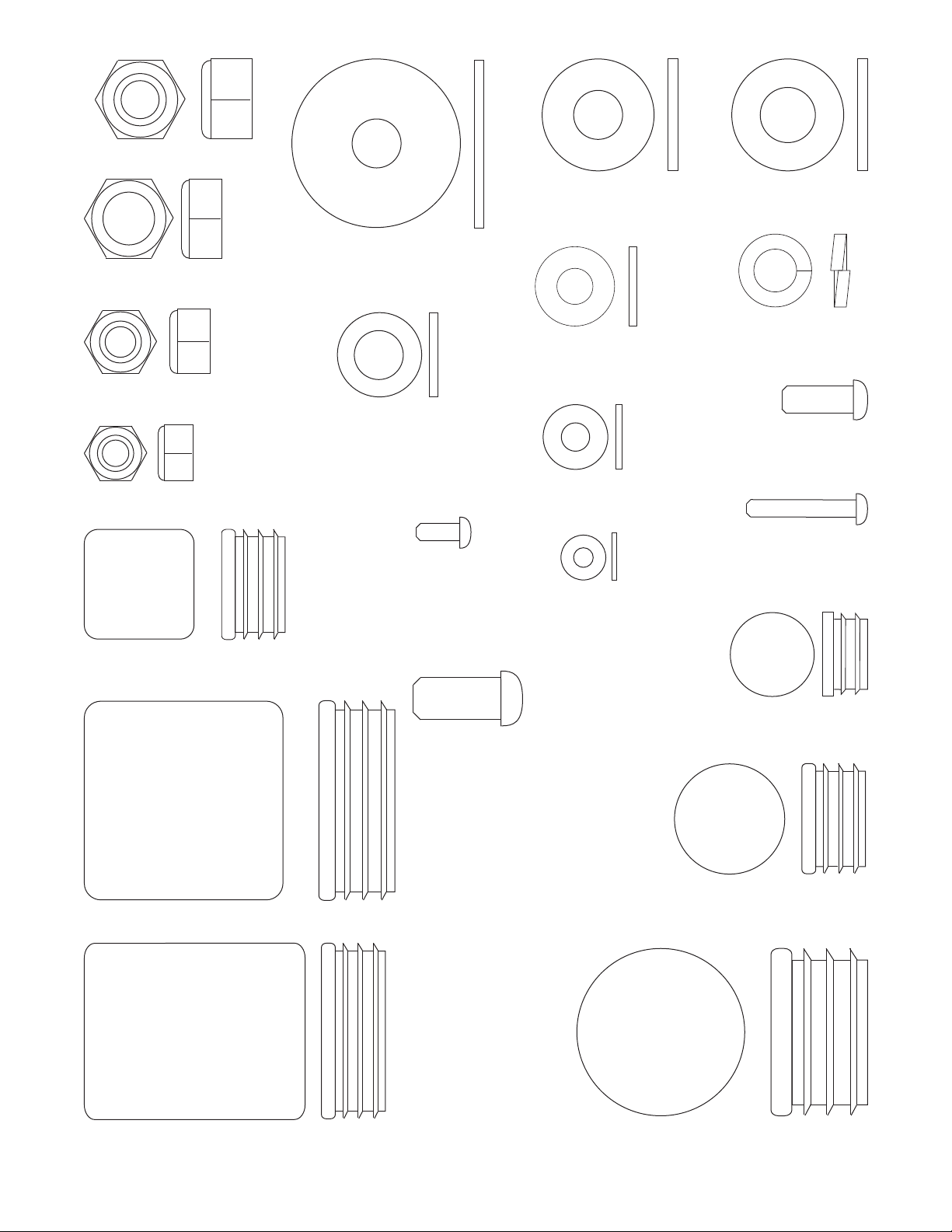

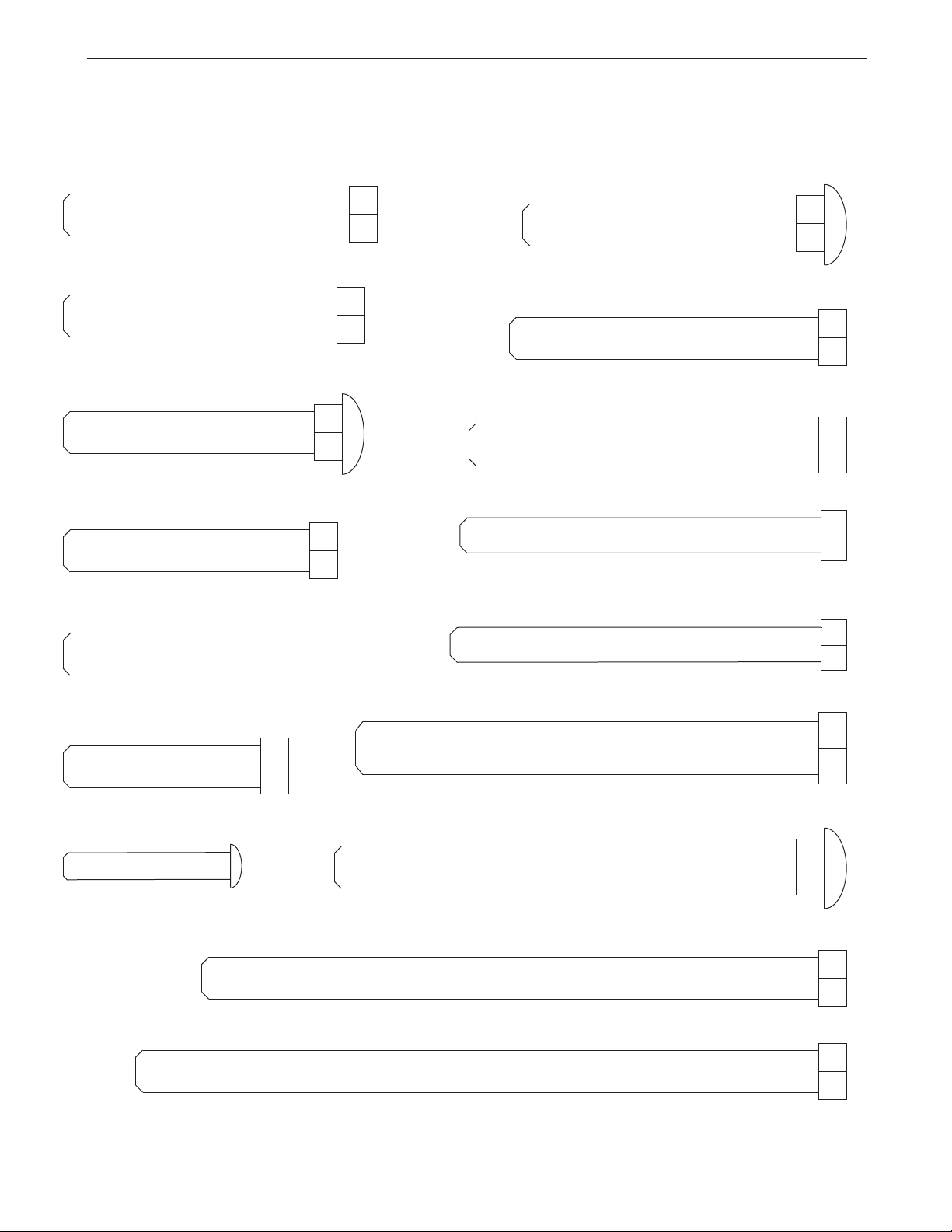

• For help identifying small parts, use the PART
IDENTIFICATION CHART in the centre of the
manual.
The following tools (not included) are required
for assembly:
• Two adjustable spanners
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end spanners, or a set of ratchet spanners.
1.
Before beginning assembly, make sure you
have read and understood the information in
the box above. This brief introduction will
save you more time than it takes to read it!
Press two 45mm Square Inner Caps (42) into the
ends of the Base (1).
Attach four Plastic Feet (53) to the Base (1) with
four M4 x 25mm Screws (56) and four M4
Washers (92).
Attach a Wheel (31) to the outside of the Base (1)
with an M12 x 105mm Bolt (81), three M12
Washers (62), a 42mm Spacer (93), and an M12
Nylon Locknut (84).
Locknut; the Wheel must be able to turn easily.
Attach the other Wheel (31) in the same
manner.
Do not overtighten the
1
31
1
53
92
53
92
56
53
92
56
93
81
31
42
62
92
62
42
84
53
56
5
2. Insert two M10 x 62mm Carriage Bolts (83) into
the bottom of the Base (1). (Note: It may be
helpful to place a peice of tape over the bolt
heads to hold them in place.)
on the floor. Attach the Upright (3) to the Base
with the Bolts and two M10 Nylon Locknuts (76).
Do not tighten the Locknuts yet.
Set the Base flat
2
3
76
1
83
3. Attach the Top Upright (4) to the Upright (3) with
four M10 x 20mm Bolts (68) and four M10 Split
Washers (43).
4. Orient the two Weight Guides (8) so that the indicated holes are closer to the bottom. Attach the
Weight Guides to the Base (1) with two M10 x
62mm Bolts (63), four M10 Washers (75), four
10mm Spacers (94), and two M10 Nylon
Locknuts (76).
Slide two Weight Bumpers (39) onto the Weight
Guides (8).
3
4
43
68
3
43
4
Holes
8
76
75
94
76
39
1
94
75
39
75
63
6

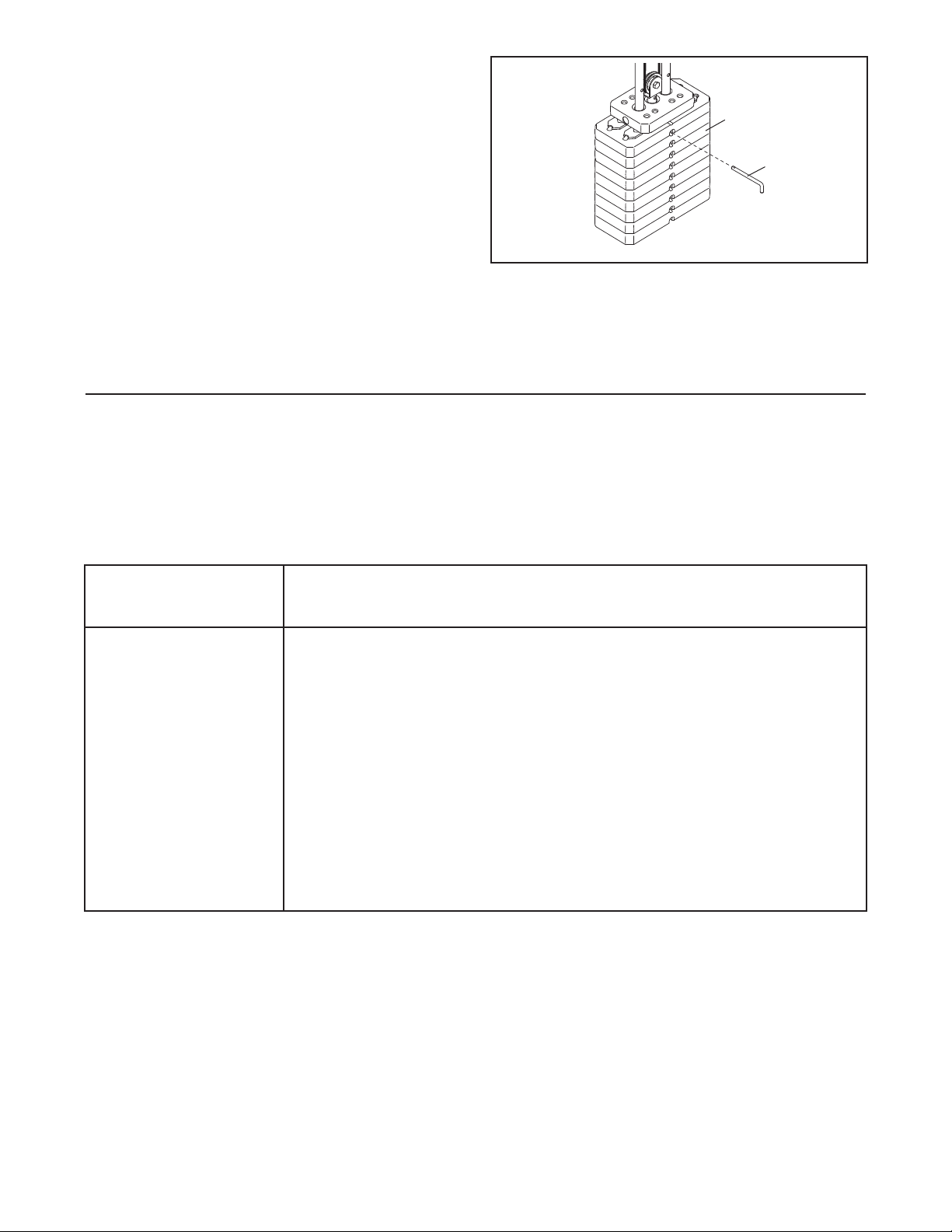

5. Slide the nine Weights (35) onto the Weight
Guides (8) with the pin grooves on the side
shown.
5
Lubricate
8
Press the Weight Tube Bumper (18) into the
Weight Tube (44). Insert the Weight Tube into the
stack of Weights (35).
Lubricate the indicated holes in the Top Weight
(86) with grease. Slide the Top Weight onto the
Weight Guides (8).
Weight Tube (44) rests in the groove on the
bottom of the Top Weight.
6. Press a 45mm Square Inner Cap (42) into the
Top Frame (9).
Attach the Top Frame (9) to the Top Upright (4)
with an M10 x 65mm Bolt (79), an M10 Split
Washer (43), and an M10 Large Washer (90).
Make sure the pin on the
86
Pin
44
18
35
Pin
Groove
6
42
79
43
90
9
Attach the Top Frame (9) to the Weight Guides
(8) with an M10 x 155mm Bolt (85), two M10
Washers (75), and an M10 Nylon Locknut (76).
Tighten the two M10 Nylon Locknuts (76) used
in step 2.
7. Press two 38mm Round Inner Caps (40) into the
ends of the Crossbar (10).
Attach the two Eyebolts (34) to the Crossbar (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65).
the Eyebolts must be able to rotate freely.
Attach the Crossbar (10) to the Top Frame (9)
with two M10 x 56mm Bolts (70), two M10 Small
Washers (91), and two M10 Nylon Locknuts (76).
Be sure the Crossbar is attached as shown in
the inset drawing. If the ends point away from
the Top Frame, turn the Crossbar around and
reattach it.
Do not overtighten the Locknuts;
76
75
85
8
7
9
76
65
59
34
40
91
75
4
65
59
10
40
34
70
10
9
7

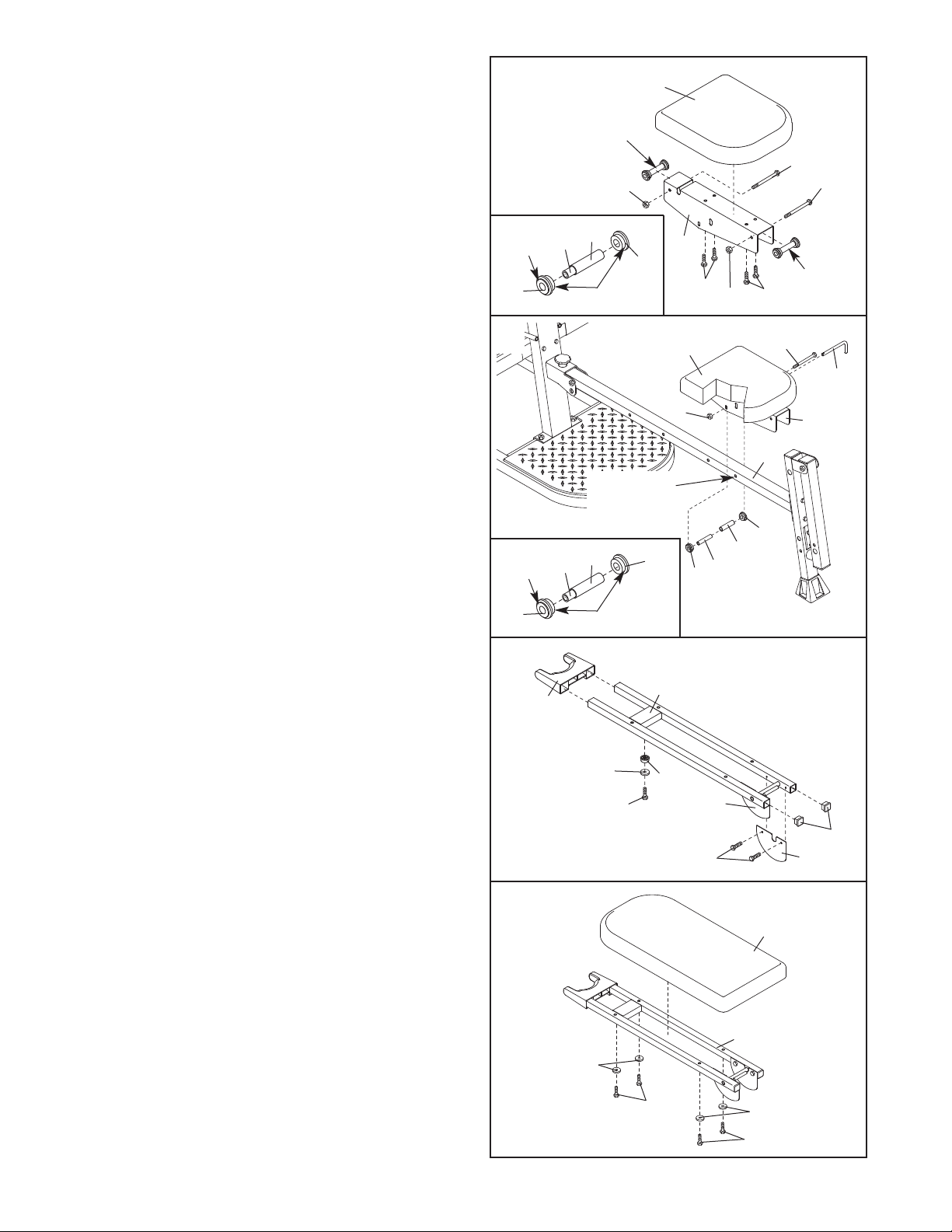

8. Press two 40mm x 50mm Inner Caps (41) into
the ends of the Cross Frame (11).
Orient the Cross Frame (11) as shown, with the
welded tube near the top. Attach the Cross Frame
to the Upright (3) with two M10 x 105mm
Carriage Bolts (73), two M10 Washers (75), and
two M10 Nylon Locknuts (76).
8
Welded
Tube
76
75
41
75
3
11
9. Press a 40mm x 50mm Inner Cap (41) into the
top of the Front Leg (6). Press the Front Leg Foot
(27) onto the bottom of the Front Leg.
the front of the Front Leg Foot is taller and
slants more than the back.
Press a 40mm x 50mm Inner Cap (41) into the
end of the Bench Frame (5).
Attach the Bench Frame (5) to the Front Leg (6)
with two M10 x 57mm Carriage Bolts (61) and
two M10 Nylon Locknuts (76).
Locknuts yet.
10. Lubricate the M10 x 80mm Bolt (66) with grease.
Attach the Bench Frame (5) to the Upright (3)
with the Bolt and an M10 Nylon Locknut (76) at
the indicated hole.
Locknut; the Bench Frame must be able to
pivot easily.
Do not overtighten the
Do not tighten the
Note that
9
10
41
41
73
5
41
76
6
Back
3
30
Lubricate
61
27
Tighten the Knob (30) into the Upright (3) and the
Bench Frame (5).
11. Attach the Leg Lever Bumper (55) to the Front
Leg (6) with the M4 x 25mm Screw (56).
Press two 45mm Square Inner Caps (42) into the
ends of the Leg Lever (7).
Lubricate an M10 x 70mm Bolt (64) with grease.
Attach the Leg Lever (7) to the Front Leg (6) with
the Bolt and an M10 Nylon Locknut (76).
overtighten the Locknut; the Leg Lever must
be able to pivot easily.
Do not
11
76
76
66
6
64
55
Lubricate
56
Hole
5
42
7
42
8
12. Lubricate two Small Wheels (47) with grease. Slide
a Steel Tube (57) into a 32mm Spacer (46). Orient
the Wheels as shown in the inset drawing, and
slide them onto the ends of the Steel Tube.
12
13
Wheel
Assembly
Attach the wheel assembly to the indicated set of
holes in the Seat Carriage (12) with an M8 x
84mm Bolt (60) and an M8 Nylon Locknut (65).
not overtighten the Locknut; the Small Wheels
(47) must pivot freely. Repeat with another
wheel assembly and an M8 x 82mm Bolt (95).
Orient the Seat (13) and the Seat Carriage (12)
as shown. Attach the Seat to the Seat Carriage
with four M6 x 16mm Screws (82).
13. Lubricate two Small Wheels (47) with grease. Slide
a Steel Tube (57) into a 32mm Spacer (46). Orient
the Wheels as shown in the inset drawing, and
slide them onto the ends of the Steel Tube.
Set the Seat Carriage (12) on the Bench Frame
(5). Have one person press the Seat (13) against
the Bench Frame. Press the wheel assembly tight
against the bottom of the Bench Frame and attach
it to the lowest set of holes in the Seat Carriage
with an M8 x 84mm Bolt (60) and an M8 Nylon
Locknut (65).
the Small Wheels (47) must pivot freely.
Do not overtighten the Locknut;
Do
Small
Side
47
13
Small
Side
46
57
Large Side
Adjustment
46
57
65
Hole
47
47
65
12
13
47
658282
46
57
95
60
Wheel
Assembly
60
45
12
5
47
Slide the Seat Pin (45) through the Seat Carriage
(12) and an adjustment hole in the Bench Frame
(5).
14. Press two 25mm Square Inner Caps (54) into the
indicated ends of the Backrest Frame (15). Press
the Backrest Cap (16) onto the other end of the
Backrest Frame. Attach a Plastic Foot (53) to the
Backrest Frame with an M4 Washer (92), and an
M4 x 25mm Screw (56).
Attach a Guard Plate (17) to the inside of the
Backrest Frame (15) with two M4 x 10mm Screws
Attach the other Guard Plate in the same
(96).
manner.
15. Orient the Backrest (14) as shown. Attach the
Backrest to the Backrest Frame (15) with four M6
x 38mm Screws (58) and four M6 Washers (77).
14
15
47
16
Large Side
92
56
77
15
53
96
17
54
17
14
15
58
77
58
9
16. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
vertically over the Seat Carriage and slide the
rod into the slot, as shown in the inset drawing.
16
Rod
15
Rod
12
15
Slot
12
17. Locate the Long Cable (80). Slide one end of
the Cable through the Swivel Arm (22) as shown
in the inset drawing. Make sure the Cable is the
indicated side of the rod in the Swivel Arm.
Wrap the Long Cable (80) around a Large Pulley
(28). Attach the Pulley and a Arm Pulley Cover
(87) to the Swivel Arm (22) with an M10 x 45mm
Bolt (2) and an M10 Nylon Locknut (76).
18. Wrap the Long Cable (80) under a Large Pulley
(28). Attach the Pulley and a pair of Pulley
Covers (29) to the Upright (3) with an M10 x
140mm Bolt (72), an M10 Washer (75), and an
M10 Nylon Locknut (76).
small tabs on the Pulley Covers are in the
indicated position.
Make sure that the
17
18
Rod
76
Small
Ta b
22
80
22
2
87
80
76
28
29
28
80
29
75
72
10
3
19. Wrap the Long Cable (80) over a Large Pulley
(28). Attach the Pulley to the Top Frame (9) with
an M10 x 70mm Bolt (64).
Locknut onto the Bolt yet.
Do not thread a
19
9
64
28
80
20. Thread an M12 Locknut (97) halfway onto the
Weight Tube “U”-bracket (38). Tighten the Weight
Tube “U”-bracket into the Weight Tube (44).
Tighten the M12 Locknut against the Weight Tube.
Wrap the Long Cable (80) under the Small Pulley
(67) in the direction shown. Attach the Pulley to
the Weight Tube “U”-bracket (38) with an M10 x
45mm Bolt (2) and an M10 Nylon Locknut (76).
21. Wrap the Long Cable (80) over a Large Pulley
(28). Attach the Pulley to the Top Frame (9) with
the M10 x 70mm Bolt (64) used in step 19, and
an M10 Nylon Locknut (76).
20
21
28
64
44
76
80
97
9
67
38
2
76
22. Wrap the Long Cable (80) under a Large Pulley
(28). Attach the Pulley and a pair of Pulley
Covers (29) to the Upright (3) with an M10 x
140mm Bolt (72), an M10 Washer (75), and an
M10 Nylon Locknut (76).
small tabs on the Pulley Covers are in the
indicated position.
Make sure that the
11
22
80
76
29
80
Small
Ta b
28
75
3
72
23. Have a second person lift the Top Weight (not
shown) to create slack in the Long Cable (80).
Slide one end of the Cable through the Swivel
Arm (22).
cated side of the rod in the Swivel Arm.
Make sure the Cable is on the indi-
23
2
Rod
22
Wrap the Long Cable (80) around a Large Pulley
(28). Attach the Pulley and a Arm Pulley Cover
(87) to the Swivel Arm (22) with an M10 x 45mm
Bolt (2) and an M10 Nylon Locknut (76).
24. Locate the Bench Cable (32). It has three ends,
two that are the same length, and a third that is
shorter.
Route the short end of the Bench Cable (32)
through the hole in the Front Leg (6), and attach it
inside the slot in the Leg Lever (7) with an M10 x
62mm Bolt (63), two M10 Washers (75), and an
M10 Nylon Locknut (76).
25. Wrap the Bench Cable (32) under a Large Pulley
(28). Attach the Pulley and a pair of Pulley
Covers (29) inside the hole in the Front Leg (6)
with an M10 x 65mm Bolt (79), two 8mm Spacers
(52), two M10 Washers (75), and an M10 Nylon
Locknut (76).
the Pulley Covers are on the bottom.
Slide the two free ends of the Bench Cable (32)
onto the eyebolt welded to the bottom of the
Bench Frame (5).
Make sure that the small tabs on
24
25
Eyebolt
76
32
32
Small
Ta b
29
76
75
28
76
29
75
87
6
28
5
80
7
63
75
6
75
79
52
52
26. Locate the two Short Cables (33). Wrap a Short
Cable over a Large Pulley (28). Attach the Pulley
and a pair of Pulley Covers (29) to a Pulley
Housing (21) with an M10 x 50mm Bolt (71) and
an M10 Nylon Locknut (76).
small tabs on the Pulley Covers are on the
bottom.
Repeat this step with the other Short Cable
(33).
Make sure that the
12
26
Small
Ta b
29
76
21
71
29
28
33
27. Press two 19mm Round Inner Caps (78) into the
ends of a Pad Tube (89). Slide the Tube into the
hole in the Leg Lever (7). Slide two Foam Pads
(26) onto the Pad Tube.
Attach the other Pad Tube (89) to the Front
Leg (6) in the same manner.
27
89
6
78
26
7
28. Attach the “FLEX 8960” exercise decal to the
Upright (3) and the Top Upright (4).
should be centred on the Upright and Top
Upright, and the top of the decal should be six
inches below the Top Frame (9). Be careful
not to wrinkle the decal.
The decal
28
78
26
6”
89
9
4
3
29.
Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the weight system, pull the long cable a few times to be sure that it moves smoothly over the
pulleys. If the cable does not move smoothly, find and correct the problem.
not properly installed, they may be damaged when heavy weight is used. See the CABLE DIAGRAM
on page 17 for proper cable routing.
IMPORTANT: If the cables are
13
ADJUSTMENTS
This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 18 for important information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
Make sure all parts are properly tightened each time you use the weight system. Replace worn parts immediately.
The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ATTACHING THE HIGH PULLEYS AND LEG LEVER
To attach a high pulley, slide the eyebolt on the Pulley
Housing (21) onto the Eyebolt (34). Attach the end of
the Short Cable (33) without the ball to the end of the
Long Cable (80) with a Cable Clip (51).
other high pulley in the same manner.
To use the Leg Lever (not shown), attach the ends of
the Bench Cable (32) to the ends of the Long Cable
(80) with two Cable Clips (51). Note that only one
side of the Bench Cable is shown.
Remove the Pulley Housings (21), or detach the
Bench Cable (32), when not in use.
ADJUSTING THE SEAT
The Seat (13) can be secured to any of four positions
on the Bench Frame (5). To move the Seat, remove
the Seat Pin (45) and slide the Seat to the desired
position. Engage the Seat Carriage (12) and an
adjustment hole in the Bench Frame with the Seat Pin.
Attach the
21
34
Ball
33
80
51
32
45
For some exercises the Seat Carriage (12) must be
able to roll freely on the Bench Frame (5). To allow
this to happen, remove the Seat Pin (45) from the
Seat Carriage.
LOCKING THE WEIGHT STACK
To prevent unapproved use of the weight system,
insert the Locking Pin (37) into the indicated hole in
one of the Weight Guides (8). Secure the Locking Pin
with the Lock (74).
Remove the Lock (74) and the Locking Pin (37) to
use the weight system.
13
12
5
8
74
37
14
ATTACHING THE ACCESSORIES
To use the Lat Bar (19), first attach the high pulleys to
the weight system (see ATTACHING THE HIGH PULLEYS on page 14). Then attach the Lat Harnesses
(88) to the Short Cables (33) with two Cable Clips
(51).
The Handles (not shown) can be attached to the
Short Cables (33) in the same manner.
The Handles (not shown), the Ankle Strap (not
shown), or the Leg Press Strap (not shown) can be
attached to the Long Cable (not shown) in a similar
manner.
ADJUSTING THE BACKREST
The Backrest (14) can be used in a level position or
one of three inclined positions. To use the Backrest in
a level position, secure the Seat Carriage (12) to the
adjustment hole in the Bench Frame (5) closest to the
Front Leg (6) (see ADJUSTING THE SEAT on page
14). To use the Backrest in an inclined position,
secure the Seat Carriage to one of the other three
adjustment holes in the Bench Frame. Rest the
Backrest against the Upright (3) or the Top Upright (4).
33
51
33
51
88
4
3
14
19
12
Slot
88
14
Rod
13
For row exercises, the seat must be able to roll freely
(see ADJUSTING THE SEAT on page 14), the leg
press strap must be attached (see ATTACHING THE
ACCESSORIES, above), and the Backrest (14) must
be removed. To remove the Backrest, hold it vertically
over the Seat (13) and lift the rod out of the slot in the
Seat Carriage (12) (see the inset drawing).
STORING THE WEIGHT SYSTEM
To store the weight system, slide the ends of the
Bench Cable (32) onto the eyebolt on the bottom of the
Bench Frame (5). Then remove the backrest (see
ADJUSTING THE BACKREST above). Make sure the
Seat Pin (not shown) is fully engaged into the Seat
Carriage (12) and the Bench Frame. Next, remove the
Knob (30) from the Upright (3). Lift the Front Leg (6)
toward the Crossbar (not shown), and tighten the Knob
into the side of the Upright and the Bench Frame.
WARNING: Be careful not to
pinch your fingers when raising the front Leg
(6). Make sure the storage Knob (30) is in place
and fully tightened each time the weight system is used.
3
Eyebolt
30
5
6
5
6
32
12
15
CHANGING THE WEIGHT SETTING
To change the weight setting, insert the Weight Pin
(36) under one of the Weights (35). Make sure to
insert the Weight Pin until the bent end of the Weight
Pin is touching the Weights, and turn the bent end
downward. The weight setting can be changed from
2,7 kg (6 lbs) to 53,7 kg (118,5 lbs), in increments of
5,6 kg (12,5 lbs.).
leys, the actual amount of resistance at each
exercise station will vary from the weight setting.
Refer to the WEIGHT RESISTANCE CHART below
to find the actual amount of resistance at each
station.
Note: Due to the cables and pul-
35
36
WEIGHT RESISTANCE CHART
The chart below shows the approximate weight resistance at each exercise station. “Top” refers to the 6 lb. top
weight. The other numbers refer to the 12,5 lb. weight plates.
may vary due to differences in individual weight plates as well as friction between the cables, pulleys,
and weight guides. Note: 1 kg = 2,2 pounds
Note: The actual resistance at each station
WEIGHT
Top
1
2
3
4
5
6
7
8
9
HIGH PULLEY
(lbs.)
20
34
48
65
79
93
107
121
135
149
LOW PULLEY
(lbs.)
24
37
50
61
74
87
100
113
126
139
LEG LEVER
(lbs.)
23
34
44
54
66
79
92
105
118
131
16
CABLE DIAGRAM
The cable diagram shows the proper routing of the Long Cable (80). Use the diagram to make sure that the
cable and the pulley covers have been assembled correctly. If the cable has not been correctly routed, the
weight system will not function properly and damage may occur. The numbers show the correct route for the
Make sure that the cable traps do not touch or bind the cable.
cable.
Long Cable (80)
5
3
4
6
7
2
1
17
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
MUSCLE BUILDING
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets performed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
TONING
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
WEIGHT LOSS
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
CROSS TRAINING
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise bike, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
PERSONALISING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing
it during the first few months of your exercise program.
You should progress at your own pace and be sensitive
to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immediately and
begin cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet
are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasising areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompanying this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
18
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L

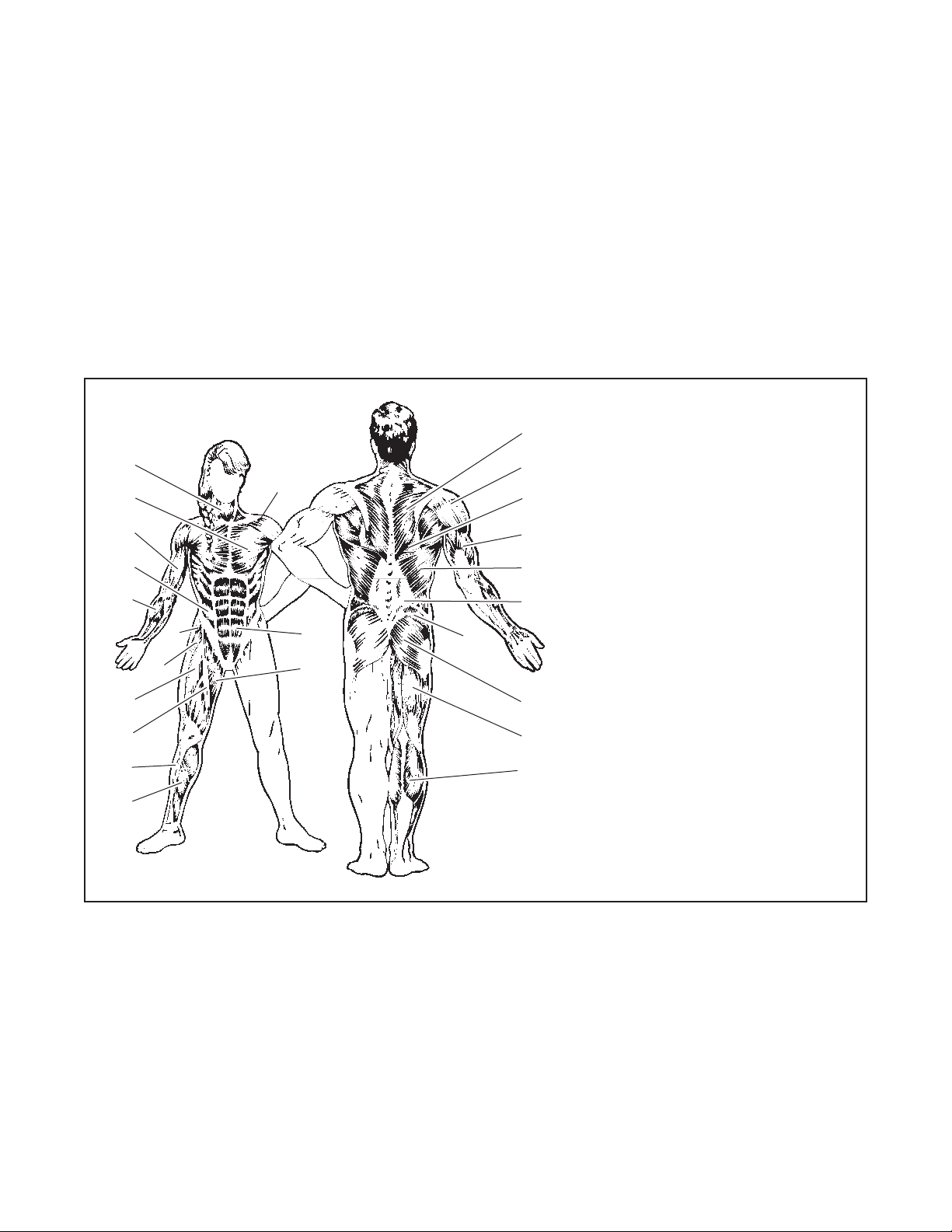

MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning workout.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarising
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the
date, the exercises performed, the resistance used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. Remember, the key to achieving the greatest results is to make exercise a regular
and enjoyable part of your everyday life.
19
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness Ltd. office, or write:
ICON Health & Fitness, Ltd.
Customer Service Department
Unit 4, Revie Road Industrial Estate
Revie Road
Beeston
Leeds, LS118JG
UK
Tel:
08457 089 009
Outside the UK: 0 (444) 113 387 7133
Fax: 0 (444) 113 387 7125
To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER of the product (WEEVSY09230)
®
• The NAME of the product (WEIDER
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING at the
centre of this manual)
FLEX 8960 weight system)
Part No. 198116 R1003A Printed in China © 2003 ICON Health & Fitness, Inc.
This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part from the PART LIST in the centre of this manual. Important:
Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts
bags, check to see if it has been pre-assembled.
Note: Assembly is divided into four stages: 1) frame assembly, 2) arm
assembly, 3) cable assembly, and 4) seat assembly. The hardware for
each stage is packaged separately. WAIT UNTIL YOU BEGIN EACH
ASSEMBLY STAGE TO OPEN THE PARTS BAG LABELLED FOR THAT
ASSEMBLY STAGE.
M10 x 62mm Bolt (63)
M10 x 56mm Bolt (70)
M10 x 70mm Bolt (64)
M10 x 65mm Bolt (79)
M10 x 50mm Bolt (71)
M10 x 57mm Carriage Bolt (61)
M10 x 80mm Bolt (66)
M10 x 62mm Carriage Bolt (83)
M10 x 105mm Carriage Bolt (73)
M10 x 140mm Bolt (72)
M6 x 38mm Screw (58)
M8 x 84mm Bolt (60)
M10 x 155mm Bolt (85)
M12 x 105mm Bolt (81)
M10 x 45mm Bolt (2)
M8 x 82mm Bolt (95)
PART IDENTIFICATION CHART—Model No. WEEVSY09230 R1003A
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST in the centre of this manual.
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
Note: Some small parts
M6 Washer (77)
M8 Washer (59)
M10 Nylon Locknut (76)
M8 Nylon Locknut (65)
M10 Split Washer (43)
25mm Round Inner Cap (69)
45mm Square Inner Cap (42)
38mm Round Inner Cap (40)
19mm Round Inner Cap (78)
25mm Square Inner Cap (54)
M4 x 25mm Screw (56)
M10 x 20mm Bolt (68)
M6 x 16mm Screw (82)
M12 Nylon Locknut (84)
M10 Small Washer (91)
M10 Large Washer (90)
M4 Washer (92)
40mm x 50mm Inner Cap (41)
M4 x 10mm Screw (96)
M12 Nut (97)
M10 Washer (75) M12 Washer (62)
REMOVE THIS PART LIST/EXPLODED DRAWING
81
FROM THE MANUAL
SAVE THIS PART LIST/EXPLODED DRAWING FOR FUTURE REFERENCE
PART LIST—Model No. WEEVSY09230 R1003A
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 3 M10 x 45mm Bolt
3 1 Upright
4 1 Top Upright
5 1 Bench Frame
6 1 Front Leg
7 1 Leg Lever
8 2 Weight Guide
9 1 Top Frame
10 1 Crossbar
11 1 Cross Frame
12 1 Seat Carriage
13 1 Seat
14 1 Backrest
15 1 Backrest Frame
16 1 Backrest Cap
17 2 Guard Plate
18 1 Weight Tube Bumper
19 1 Lat Bar
20 2 Handgrip
21 2 Pulley Housing
22 2 Swivel Arm
23 2 Grip Tape
24 4 Retainer Ring
25 4 Arm Bushing
26 4 Foam Pad
27 1 Front Leg Foot
28 9 Large Pulley
29 10 Pulley Cover
30 1 Knob
31 2 Wheel
32 1 Bench Cable
33 2 Short Cable
34 2 Eyebolt
35 9 Weight
36 1 Weight Pin
37 1 Lock Pin
38 1 Weight Tube “U”-bracket
39 2 Weight Bumper
40 2 38mm Round Inner Cap
41 4 40mm x 50mm Inner Cap
42 5 45mm Square Inner Cap
43 5 M10 Split Washer
44 1 Weight Tube
45 1 Seat Pin
46 3 32mm Spacer
47 6 Small Wheel
48 1 Leg Press Strap
49 2 Handle
50 1 Ankle Strap
51 4 Cable Clip
52 2 8mm Spacer
53 5 Plastic Foot
54 2 25mm Square Inner Cap
55 1 Leg Lever Bumper
56 6 M4 x 25mm Screw
57 3 Steel Tube
58 4 M6 x 38mm Screw
59 2 M8 Washer
60 2 M8 x 84mm Bolt
61 2 M10 x 57mm Carriage Bolt
62 6 M12 Washer
63 3 M10 x 62mm Bolt
64 2 M10 x 70mm Bolt
65 5 M8 Nylon Locknut
66 1 M10 x 80mm Bolt
67 1 Small Pulley
68 4 M10 x 20mm Bolt
69 2 25mm Round Inner Cap
70 2 M10 x 56mm Bolt
71 2 M10 x 50mm Bolt
72 2 M10 x 140mm Bolt
73 2 M10 x 105mm Carriage Bolt
74 1 Lock
75 14 M10 Washer
76 23 M10 Nylon Locknut
77 4 M6 Washer
78 4 19mm Round Inner Cap
79 2 M10 x 65mm Bolt
80 1 Long Cable
81 2 M12 x 105mm Bolt
82 4 M6 X 16mm Screw
83 2 M10 x 62mm Carriage Bolt
84 2 M12 Nylon Locknut
85 1 M10 x 155mm Bolt
86 1 Top Weight
87 2 Arm Pulley Cover
88 2 Lat Harness
89 2 Pad Tube
90 1 M10 Large Washer
91 2 M10 Small Washer
92 5 M4 Washer
93 2 42mm Spacer
94 4 10mm Spacer
95 1 M8 x 82mm Screw
96 4 M4 x 10mm Screw
97 1 M12 Locknut
# 1 User’s Manual
# 1 Exercise Guide
# 1 Grease Pak
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
41
66
32
76
5
78
76
76
41
64
26
26
78
79
42
78
26
63
32
75
52
28
52
76
75
6
55
61
76
27
26
78
42
7
56
75
75
29
29
33
28
21
76
71
29
29
28
33
21
76
71
29
29
29
29
4
68
76
28
30
3
72
73
76
43
43
23
23
80
80
28
76
22
2
76
41
25
24
24
25
22
41
76
11
2
28
75
75
24
24
16
14
53
15
77
58
56
58
58
58
54
17
17
96
77
49
50
48
51
20
19
20
65
47
47
46
46
82
65
60
60
45
95
12
13
57
57
57
65
82
62
81
31
42
62
84
62
42
31
62
81
1
83
56
53
53
56
83
84
75
75
63
63
8
8
56
53
56
53
85
67
76
2
38
37
74
35
36
44
18
39
39
86
75
75
76
87
87
88
88
89
89
76
9
43
79
28
64
65
59
10
76
91
91
34
70
34
40
65
59
40
76
42
76
76
75
69
69
92
94
94
93
93
92
92
92
92
90
62
62
97
EXPLODED DRAWING—Model No. WEEVSY09230 R1003A
Loading...
