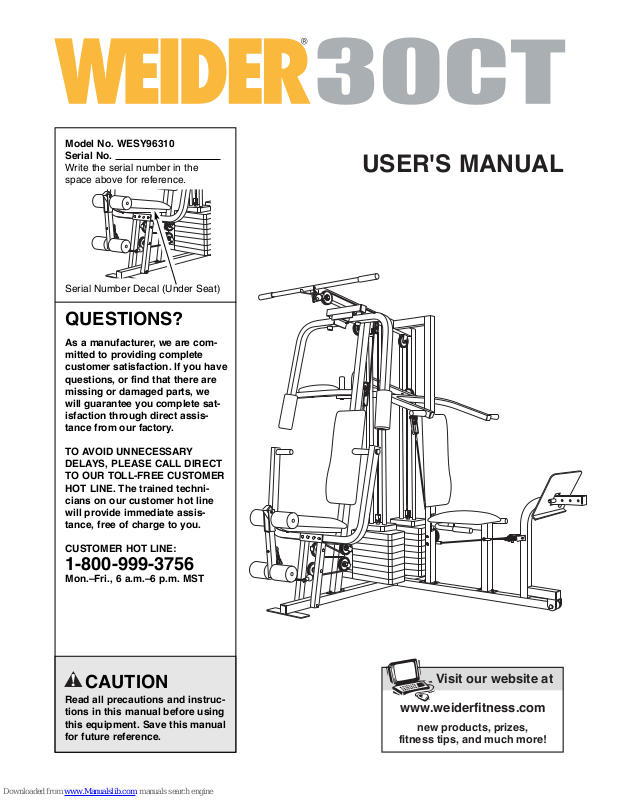

Weider 30ct User Manual

USER'S MANUAL

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you have
questions, or find that there are
missing or damaged parts, we
will guarantee you complete sat­isfaction through direct assis­tance from our factory.

TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni­cians on our customer hot line
will provide immediate assis­tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

Model No. WESY96310
Serial No.

Write the serial number in the
space above for reference.

Serial Number Decal (Under Seat)

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

Visit our website at

www.weiderfitness.com

new products, prizes,

fitness tips, and much more!

2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

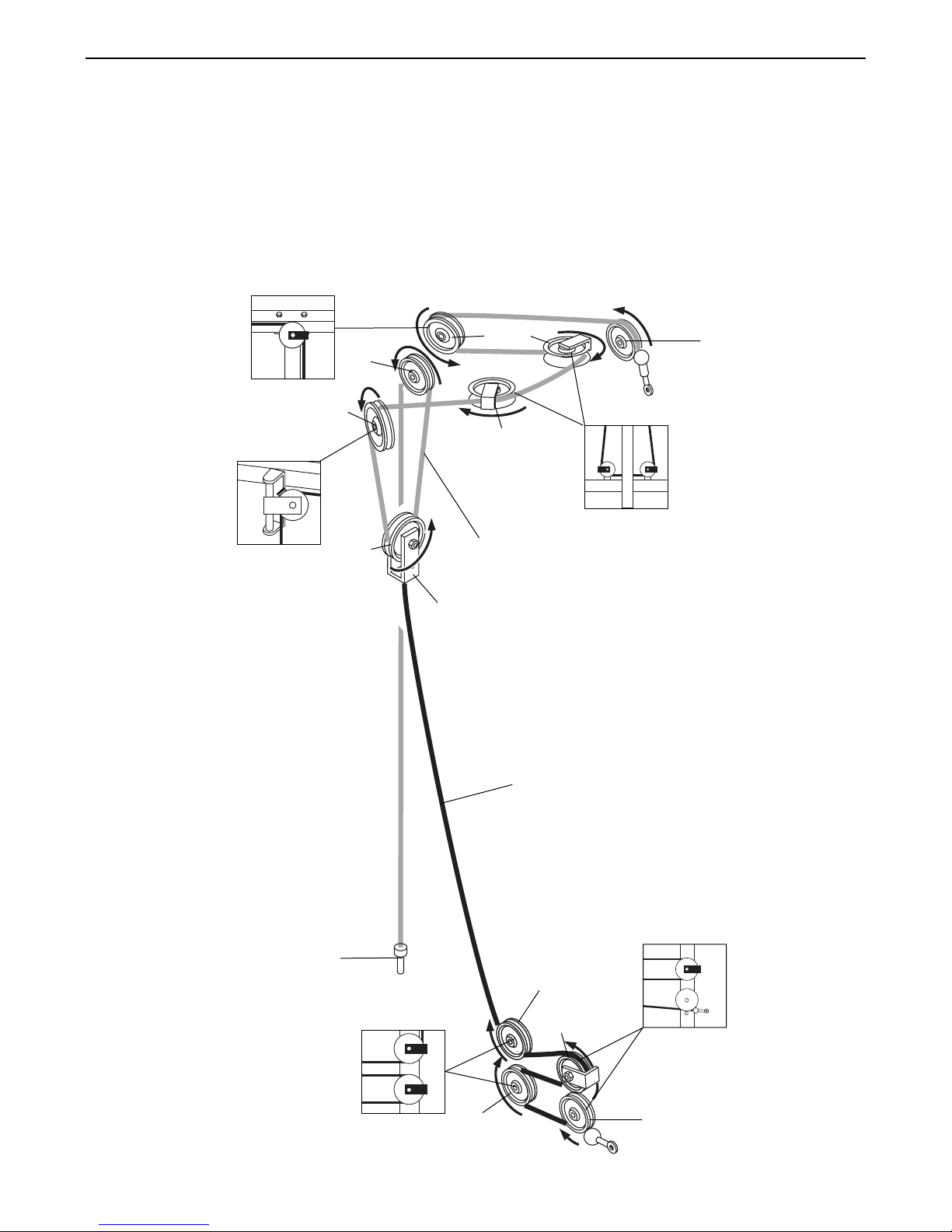

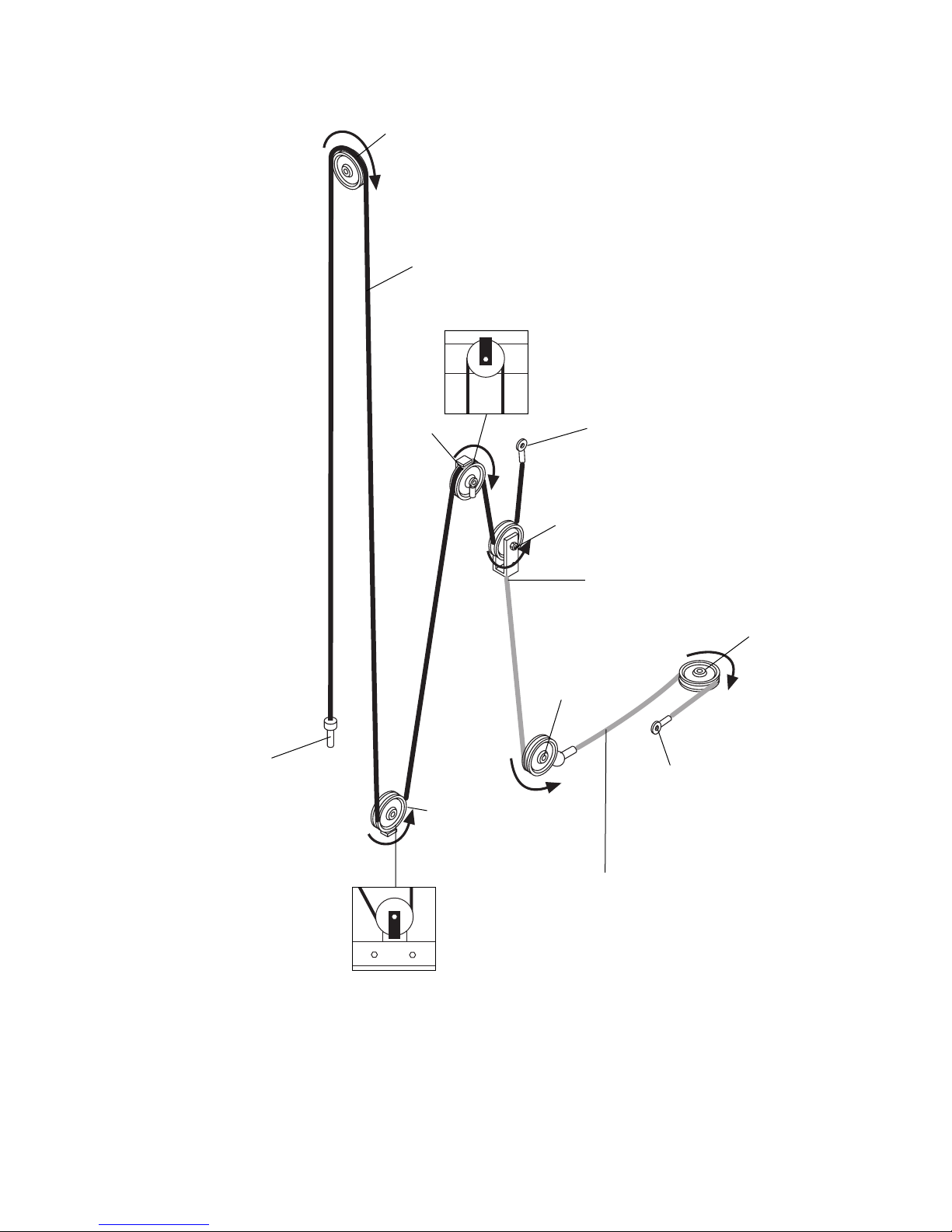

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

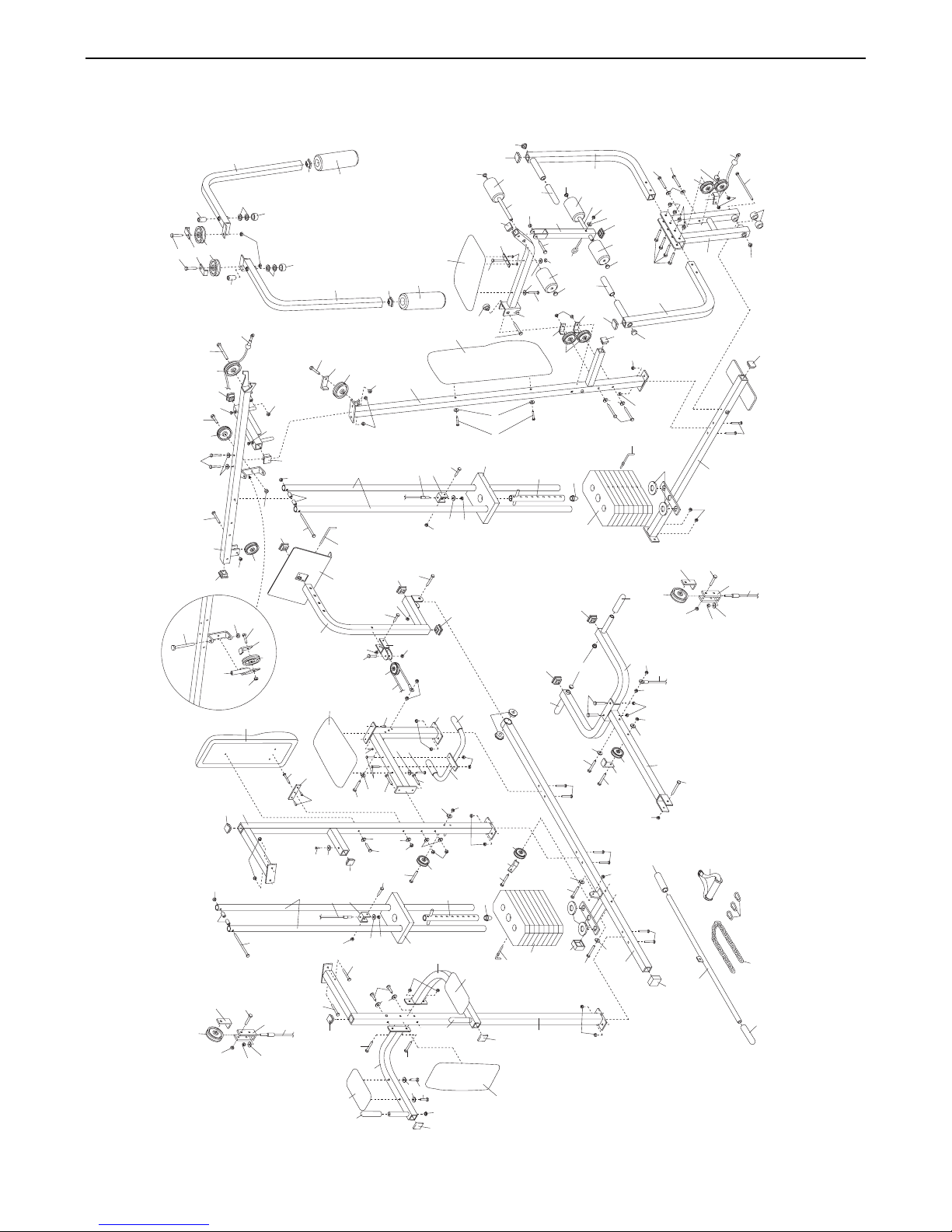

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached to the center of
this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before
beginning assembly.

WEIDER is a registered trademark of ICON Health & Fitness, Inc.

TABLE OF CONTENTS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the weight system.

1. Read all instructions in this manual and in
the accompanying literature before using the
weight system. Use the weight system only
as described in this manual.

2. It is the responsibility of the owner to ensure
that all users of the weight system are ade­quately informed of all warnings and precau­tions.

3. The weight system is intended for home use
only. Do not use the weight system in any
commercial, rental, or institutional setting.

4. Use the weight system only on a level sur­face. Cover the floor beneath the weight sys­tem to protect the floor.

5. Make sure all parts are properly tightened
each time you use the weight system.
Replace any worn parts immediately.

6. Keep children under the age of 12 and pets
away from the weight system at all times.

7. Always stand on a foot plate when perform­ing an exercise that could cause the weight
system to tip.

8. Always wear athletic shoes for foot protec­tion.

9. Never release the press arm, butterfly arms,
military press arm, leg lever, lat bar or nylon
strap while weights are raised. The weights
will fall with great force.

10. Do not use the VKR station when either
weight stack is in use.

11. Keep hands and feet away from moving parts.

12. Make sure that the cables remain on the pul­leys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on all of the pulleys.

13. Always disconnect the lat bar from the
weight system when performing an exercise
that does not use the lat bar.

14. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cool­ing down.

15. The warning decals
shown here have been
placed on the weight
system in the loca­tions shown on page

4. If a decal is missing
or illegible, please call
our Customer Service
Department toll-free at
1-800-999-3756,
Monday through
Friday, 6 a.m. until 6
p.m. Mountain Time,
to order a free
replacement decal.
Apply the replacement
decal in the location
shown.

3

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

IMPORTANT PRECAUTIONS

Keep hands and
fingers clear of
this area.

• Keep clear of
this area.

Decal 1

Decal 3

Decal 2

BEFORE YOU BEGIN

4

ASSEMBLED
DIMENSIONS:
Height: 76 in.
Width: 89 in.
Length: 64 in.

Foot Plate

Low Pulley
Station

High Pulley Station

Lat Bar

Leg Lever

Butterfly Arms

Military Press Arm

Press Arm

Weight Stacks

Backrests

VKR Arms

Decal 1

Decal 1

Decal 1

Decal 2

Decal 3

Leg

Press

Plate

Thank you for selecting the versatile WEIDER®30CT
weight system. The WEIDER

®

30CT offers a selection
of weight stations designed to develop every major
muscle group of the body. Whether your goal is to tone
your body, build dramatic muscle size and strength, or
improve your cardiovascular system, the 30CT will
help you to achieve the specific results you want.

For your benefit, read this manual carefully before
using the WEIDER

®

30CT weight system. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number is
WESY96310. The serial number can be found on a
decal attached to the weight system (see the front
cover of this manual).

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.

5

1

8

11

51

27

1

1

4

3

1

51

5

1. Before beginning assembly, be sure that you

have read and understand the information in
the box above.

Locate and open the parts bag labeled
“FRAME ASSEMBLY.”

Press two 2” Square Outer Caps (51) onto the
Stabilizer (5) in the indicated locations. Press a 2”
Square Inner Cap (27) into the end of the Base
(4).

Insert six 5/16” x 2 1/2” Carriage Bolts (1) up
through the Stabilizer (5). Insert two 5/16” x 2 1/2”
Carriage Bolts up through the Base (4).

Attach the Base (4) to the Stabilizer (5) with two
5/16” x 2 3/4” Bolts (11), two 5/16” Washers (8),
and two 5/16” Nylon Locknuts (3). Do not tighten

the Nylon Locknuts yet.

FRAME ASSEMBLY

1

Before beginning assembly, carefully read the
following information and instructions:

• Assembly requires two people.

• As you assemble the weight system, make sure

all parts are oriented as shown in the drawings.

• Tighten all parts as you assemble them, unless

instructed to do otherwise.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing
materials until assembly is completed.

• Assembly is divided into five stages: 1) frame
assembly, 2) arm assembly, 3) cable assembly,

4) seat assembly, and 5) VKR assembly. The
hardware for each stage is packaged separately.
Wait until you begin each assembly stage to open
the parts bag labeled for that assembly stage.

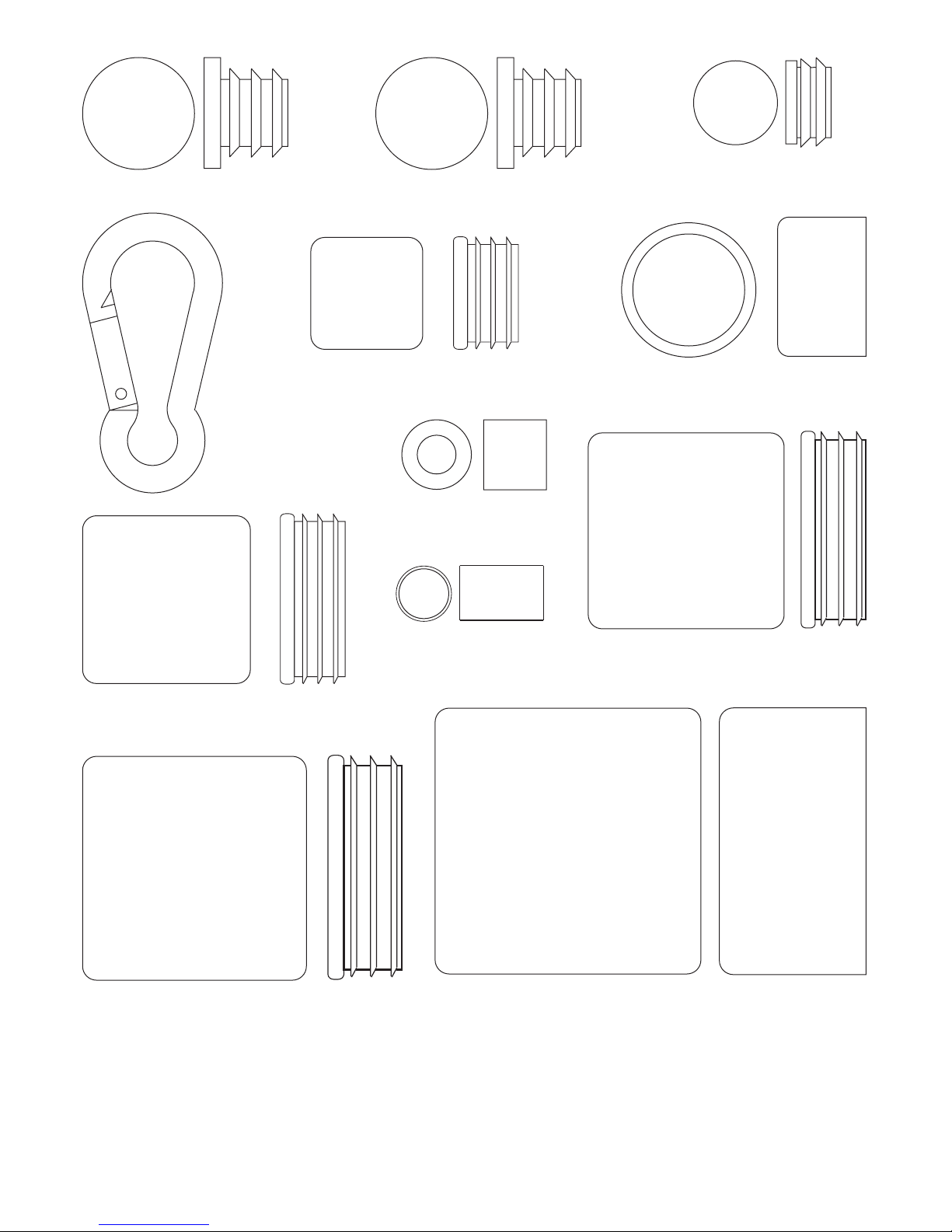

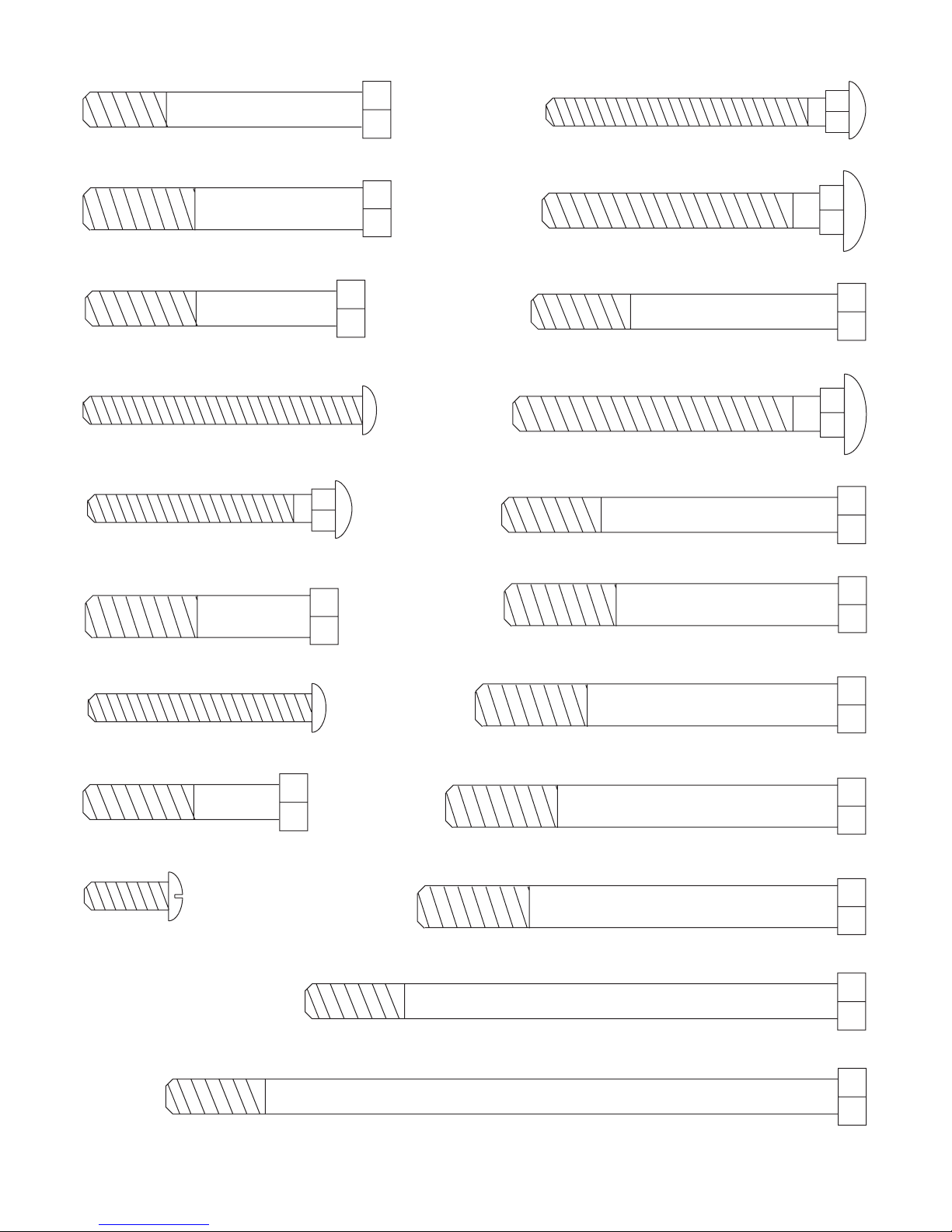

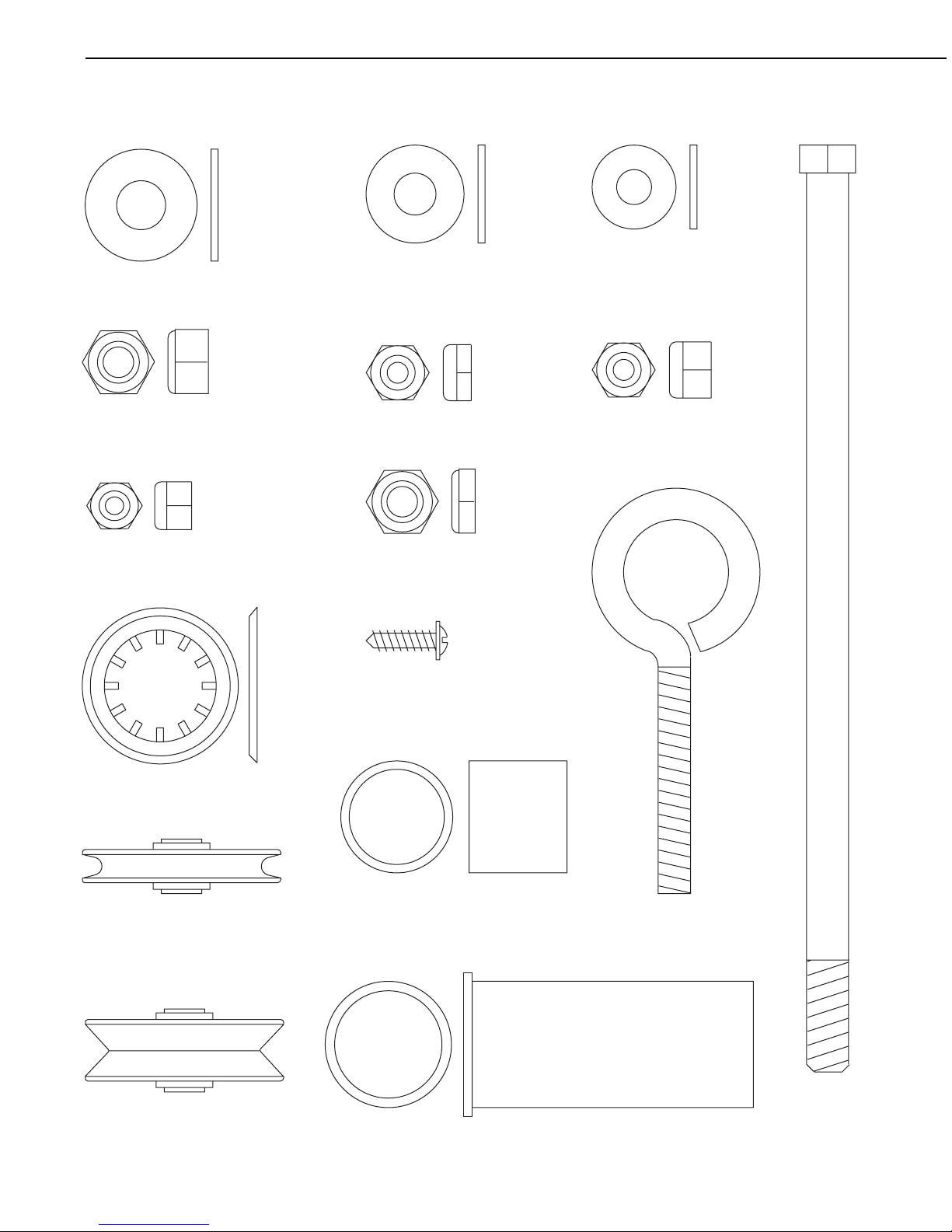

• For help identifying small parts, use the PART

IDENTIFICATION CHART in the center of this
manual. Note: Some small parts may have been

pre-attached for shipping. If a part is not in the
parts bag, check to see if it has been pre­attached.

The following tools (not included) are required
for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,
and soapy water.

Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

Everything in this manual is designed to ensure
that the weight system can be assembled suc­cessfully by anyone. However, it is important to
realize that the versatile weight system has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.

ASSEMBLY

6

2. Press a 2” Square Inner Cap (27) into the Leg
Press Upright (56). Press a 2” Square Inner Cap
into the VKR Upright (74).

Slide the VKR Upright (74) and the Leg Press
Upright (56) onto the indicated 5/16” x 2 1/2”
Carriage Bolts (1) in the Stabilizer (5). Note: The

high side of the brackets on the VKR Upright
and Leg Press Upright should be on the side
shown. Hand tighten four 5/16” Nylon Locknuts
(3) onto the Carriage Bolts. Do not tighten the
Nylon Locknuts yet.

Attach the Rubber Bumper (91) to the Leg Press
Upright (56) with the #8 x 1/2” Self-tapping Screw
(87).

3. Press a 1” Square Inner Cap (6) into the Front
Upright (42).

Slide the Front Upright (42) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Base (4). Hand­tighten a 5/16” Nylon Locknut (3) onto each
Carriage Bolt. Do not tighten the Nylon

Locknuts yet.

2

27

27

1

1

56

74

3

3

3

3

5

High Sides

of Brackets

3

42

6

4

1

3

87

91

Bracket

7

4. Press a 2” Square Inner Cap (27) into the end of
the Top Frame (55). Press a 1 3/4” Square Inner
Cap (44) into each end of the crossbar on the Top
Frame. Press two Round Inner Caps (102) into
the top of the crossbar.

Attach the Top Frame (55) to the VKR Upright
(74) and the Leg Press Upright (56) with two
5/16” x 2 3/4” Bolts (11) and two 5/16” Nylon
Locknuts (3).

Attach the Top Frame (55) to the Front Upright
(42) with two 5/16” x 2 3/4” Bolts (11), two 5/16”
Washers (8), and two 5/16” Nylon Locknuts (3).

5. Slide the Rear Seat Frame (100) onto the indicat­ed 5/16” x 2 1/2” Carriage Bolts (1) in the
Stabilizer (5). Hand-tighten two 5/16” Nylon
Locknuts (3) onto the Carriage Bolts.

Attach the other end of the Rear Seat Frame
(100) to the Leg Press Upright (56) with two 5/16”
x 2 3/4” Bolts (11), two 5/16” Washers (8), and two
5/16” Nylon Locknuts (3).

Attach the Handle (82) to the Rear Seat Frame
(100) with two 5/16” x 2 1/2” Carriage Bolts (1)
and two 5/16” Nylon Locknuts (3).

Tighten all 5/16” Nylon Locknuts (3) used in
steps 1–5.

6. Set two Weight Bumpers (19) on the bracket on
the Base (4) as shown. Set two Weight Bumpers
on the bracket on the Stabilizer (5).

Stack eight Weights (25) onto each set of Weight
Bumpers (19). Be sure that the pin grooves are

all on the same side of each stack of Weights.

Be careful not to tip either stack of Weights
(25) until step 8 is complete.

4

27

55

3

3

8

102

44

44

11

11

56

42

Crossbar

5

1

1

11

82

100

5

56

8

3

3

3

25

25

19

5

19

74

Pin

Grooves

6

Pin
Grooves

Bracket

4

8

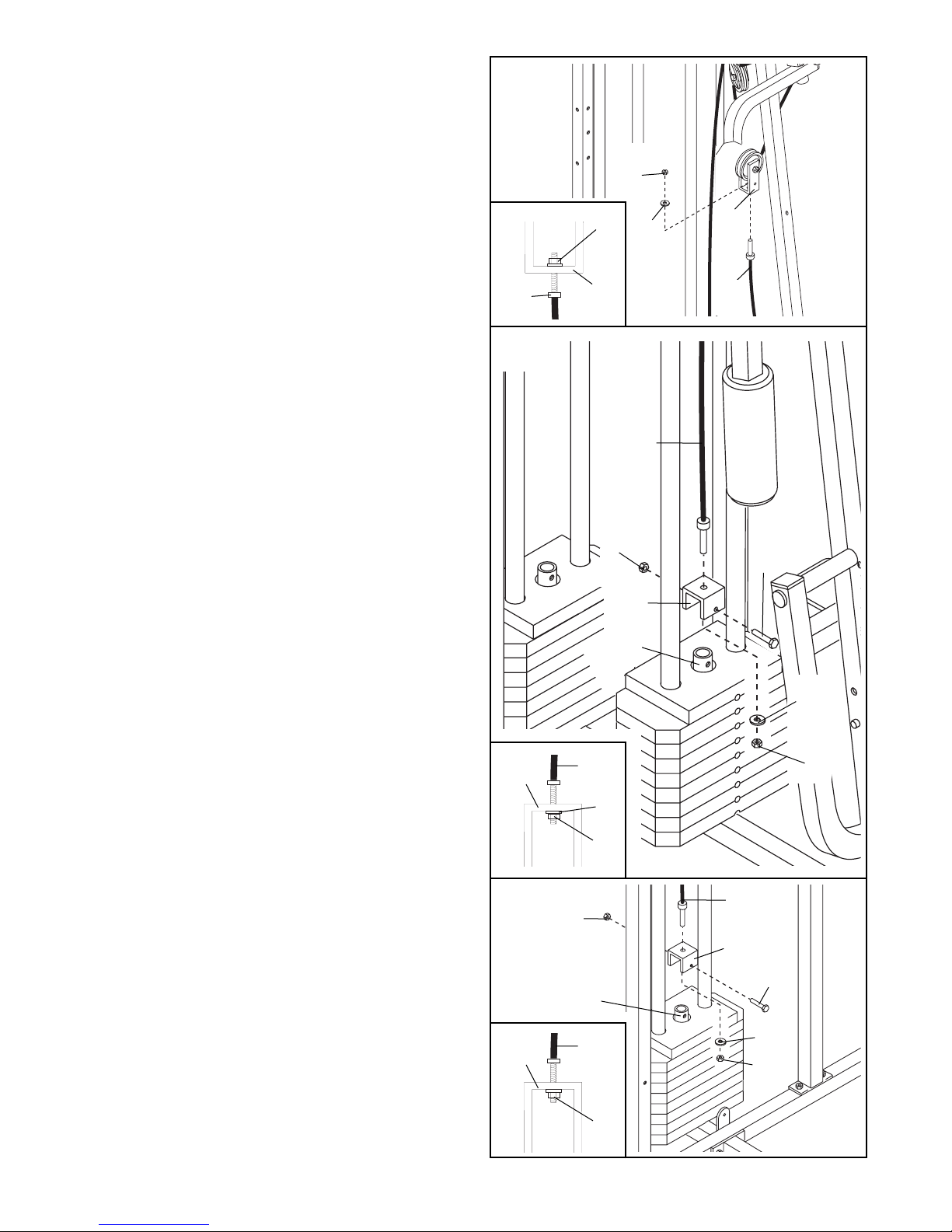

7. Press a Weight Tube Bumper (64) into the end of
a Weight Tube (63). Insert the Weight Tube into
the front stack of Weights (25). Be sure that the

pin on the Weight Tube is sitting in the pin
grooves in the top Weight.

Lubricate the inside of the holes in a Top Weight
(65). Set the Top Weight onto the front stack of
Weights (25). Insert both Long Weight Guides
(62) into the stack of Weights. Be sure that the

holes in the Weight Guides are at the top, as
shown.

8. Press a Weight Tube Bumper (64) into the end of
the other Weight Tube (63). Insert the Weight
Tube into the rear stack of Weights (25). Be sure

that the pin on the Weight Tube is sitting in
the pin grooves in the top Weight.

Lubricate the inside of the holes in the other Top
Weight (65). Set the Top Weight onto the rear
stack of Weights (25). Insert both Short Weight
Guides (73) into the stack of Weights. Be sure

that the holes in the Weight Guides are at the
top, as shown.

7

Holes

Lubricate

62

65

Pin

63

64

Pin Grooves

Holes

Lubricate

73

65

Pin

63

64

Pin Grooves

25

25

8

9

9. Attach the upper ends of the Short Weight Guides
(73) to the Top Frame (55) with a 5/16” x 6” Bolt
(60), two 1/2” x 3/4” Spacers (61), and a 5/16”
Nylon Locknut (3).

Attach the upper ends of the Long Weight Guides
(62) to the Top Frame (55) with a 5/16” x 6” Bolt
(60), two 1/2” x 3/4” Spacers (61), and a 5/16”
Nylon Locknut (3).

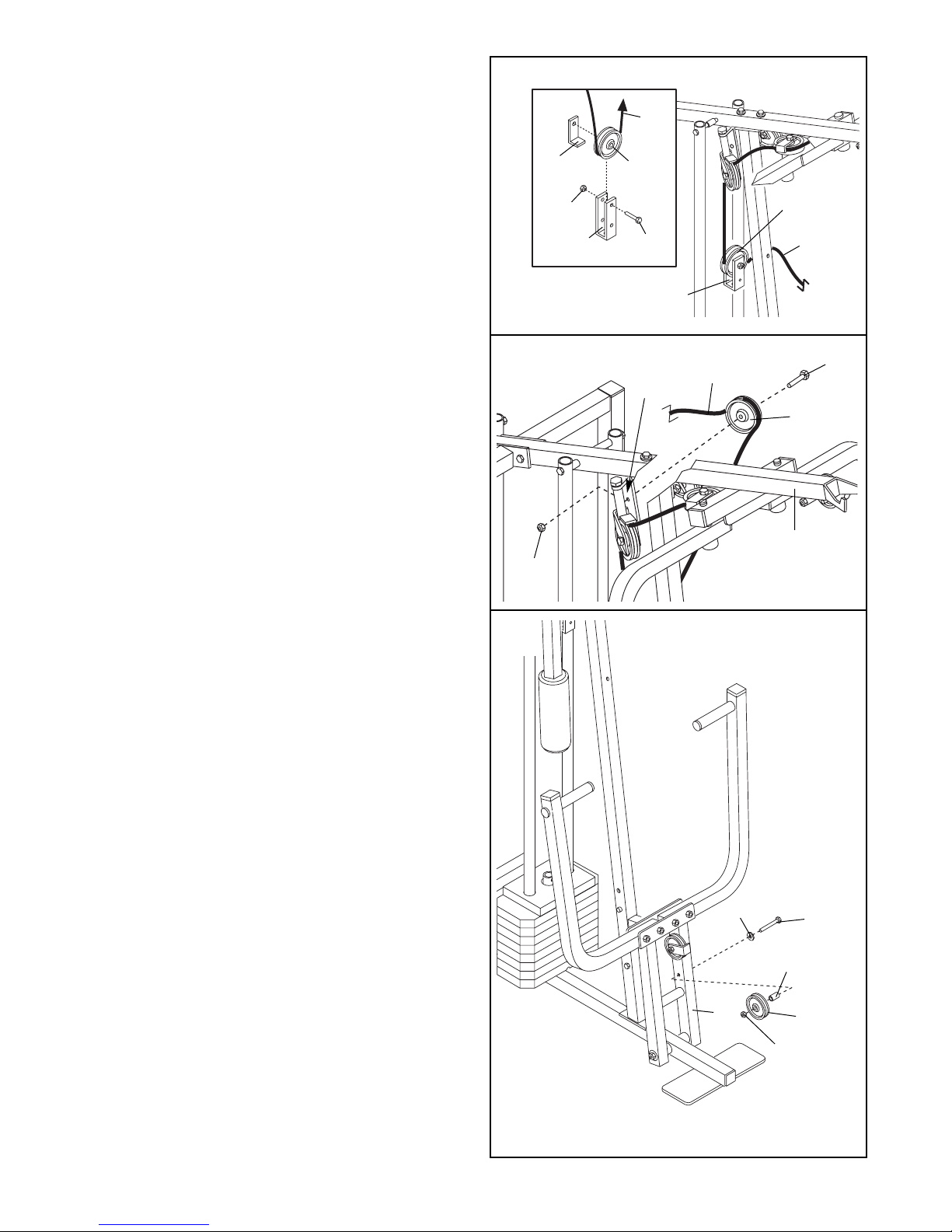

10. Locate and open the parts bag labeled “ARM

ASSEMBLY.”

Be sure there is a Bushing (98) in each side of the
Stabilizer (5). Press three 2” Square Inner Caps
(27) into the ends of the Leg Press Arm (96).

Lubricate a 3/8” x 3 1/4” Bolt (67). Attach the Leg
Press Arm (96) to the Stabilizer (5) with the Bolt
and a 3/8” Nylon Locknut (21). Do not overtighten

the Nylon Locknut; the Leg Press Arm must be
able to pivot freely.

Align the welded tubes on the Leg Press Plate
(95) with one set of holes in the Leg Press Arm
(96). Attach the Leg Press Plate to the Leg Press
Arm with the Press Pin (97).

11. Press a 1” x 7/8” Plastic Bushing (90) onto each
welded spacer on the Press Frame (17). Slide the
Press Frame into place onto the Base (4). Note:

This will be a tight fit. The Plastic Bushings
should fit on each end of the indicated tube in
the Base. Make sure that the pulleys are on
the side shown.

Lubricate the 3/8” x 8” Bolt (59). Attach the Press
Frame (17) to the Base (4) with the Bolt and a
3/8” Nylon Locknut (21).

11

17

Pulleys

must be on

this side

59

Lubricate

Welded Spacers

21

4

Tube

90

9

10

ARM ASSEMBLY

61

61

3

3

60

73

62

55

27

Welded

Tube

27

67

27

96

21

Lubricate

97

5

98

95

60

10

12. Press a 1” Round Inner Cap (49) into one of the
Press Arms (46). Press a 1 3/4” Square Inner
Cap (44) into the Press Arm.

Attach the Press Arm (46) to one side of the
Press Frame (17) with two 5/16” x 2 1/2” Bolts
(22) and two 5/16” Nylon Locknuts (3).

Assemble the other Press Arm (46) in the same
manner.

13. Identify the Right Arm (48) and the Left Arm (47).
Note the position of the welded bracket on each
Arm. Arm identification is very important for

step 14.

Attach a “V”-Pulley (50) and a Long Cable Trap
(31) to the Right Arm (48) with a 3/8” x 2 1/2” Bolt
(86) and a 3/8” Nylon Locknut (21). Do not tight-

en the Nylon Locknut yet.

Attach a “V”-Pulley (50) and a Long Cable Trap
(31) to the Left Arm (47) in the same manner.

14. Lubricate both axles on the Top Frame (55).

Slide the Right Arm (48) onto the right axle on the
Top Frame (55). Note: Be careful not to con-

fuse the Right Arm with the Left Arm (47);
refer to step 13 to identify the Right Arm. Be
sure that the upper end of the Right Arm is
behind the indicated bracket on the Top
Frame.

Tap two 1” Retainers (69) and a 1” Round Cover
Cap (70) onto the axle on the Top Frame (55). Be

sure that the teeth on the Retainers bend
toward the Round Cover Cap, as shown in the
inset drawing.

Attach the Left Arm (47) in the same manner.

Press two 1 3/4” Square Inner Caps (44) into the
lower ends of the Right and Left Arms (47, 48).
Wet the lower end of each Arm with soapy water.
Slide a 10” Pad (45) onto the lower end of each
Arm.

12

13

86

31

31

50

50

21

Welded

Brackets

48

47

44

49

46

46

17

22

3

55

Bracket

Lubricate
Axle

47

69

70

44

45

44

14

69

70

Axle

45

48

11

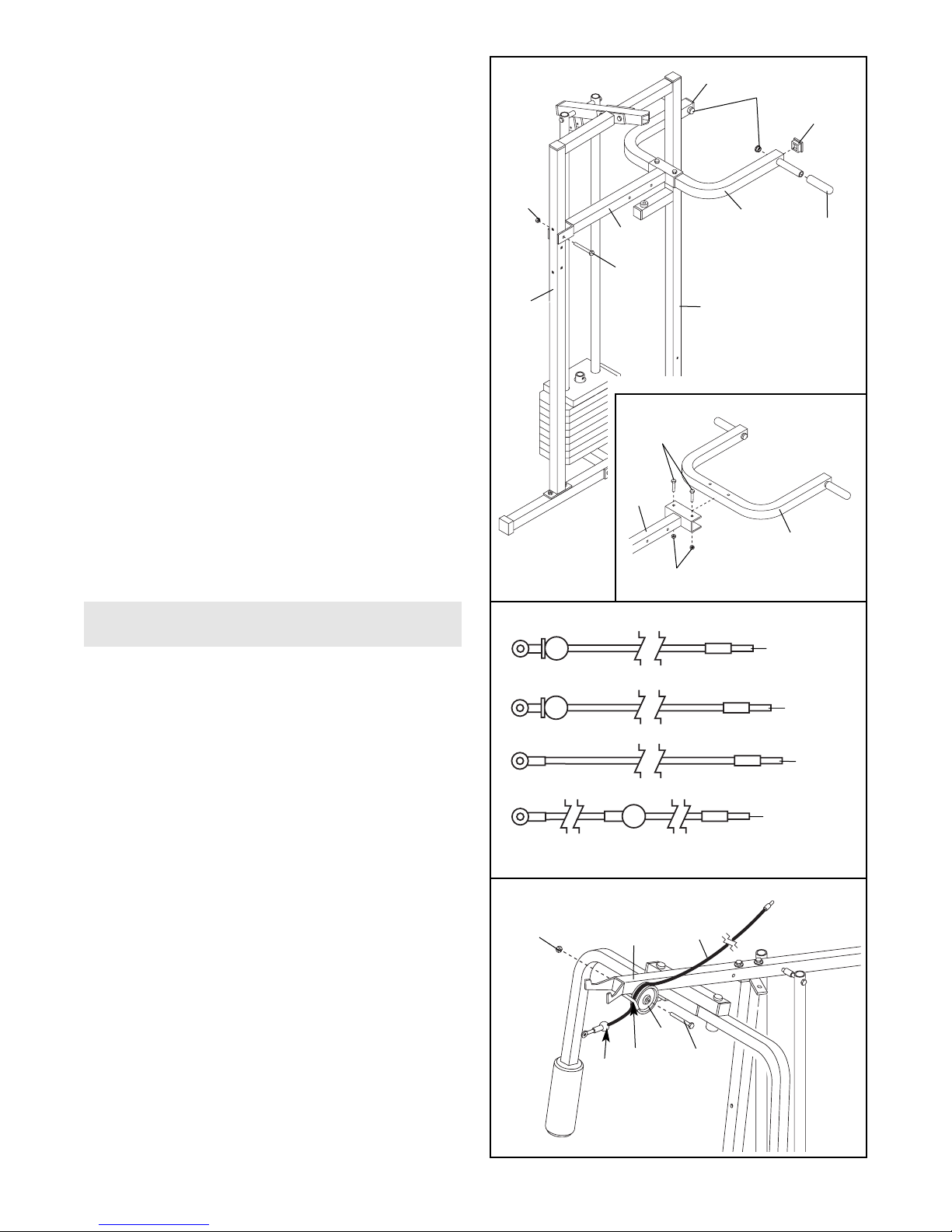

15. See the inset drawing. Attach the Military Press
Arm (84) to the Pivot Arm (101) with two 5/16” x
2 1/4” Bolts (33) and two 5/16” Nylon Locknuts
(3).

Press two 1 1/2” Square Inner Caps (32) into the
indicated end of the Military Press Arm (84).
Press two 1” Round Inner Caps (49) into the
Military Press Arm. Slide two 5” Plastic Grips (83)
onto the Military Press Arm.

Attach the Military Press Arm (84) to the VKR
Upright (74) with a 3/8” x 3 1/4” Bolt (67) and a
3/8” Nylon Locknut (21).

16. Locate and open the parts bags labeled

“CABLE ASSEMBLY” and “PULLEYS.”

During steps 16 through 36, refer to the CABLE
DIAGRAMS on pages 25 and 26 of this manual
to verify proper cable routing. Before beginning
this section, fully unwind the four Cables. Identify
the four Cables by comparing the lengths and
ends of the Cables. The approximate length of
each Cable is listed (in inches) after the key num­ber in the drawing.

IMPORTANT: While assembling the cables, do
not overtighten the bolts and nuts attaching
the pulleys; the pulleys must be able to turn
freely.

17. Locate the High Cable (58). Wrap the High
Cable around a 3 1/2” Pulley (15). Attach the
Pulley to the Top Frame (55) with a 3/8” x 3 3/4”
Bolt (88) and a 3/8” Nylon Locknut (21). Be sure

that the ball on the Cable is on the indicated
side of the Pulley, and that the Cable is
between the Pulley and the hook.

17

55

21

58

Ball

Hook

15

49

32

83

84

84

101

101

21

67

5674

33

3

16

23—79”

58—147”

72—194”

99—63”

CABLE ASSEMBLY

32

15

88

12

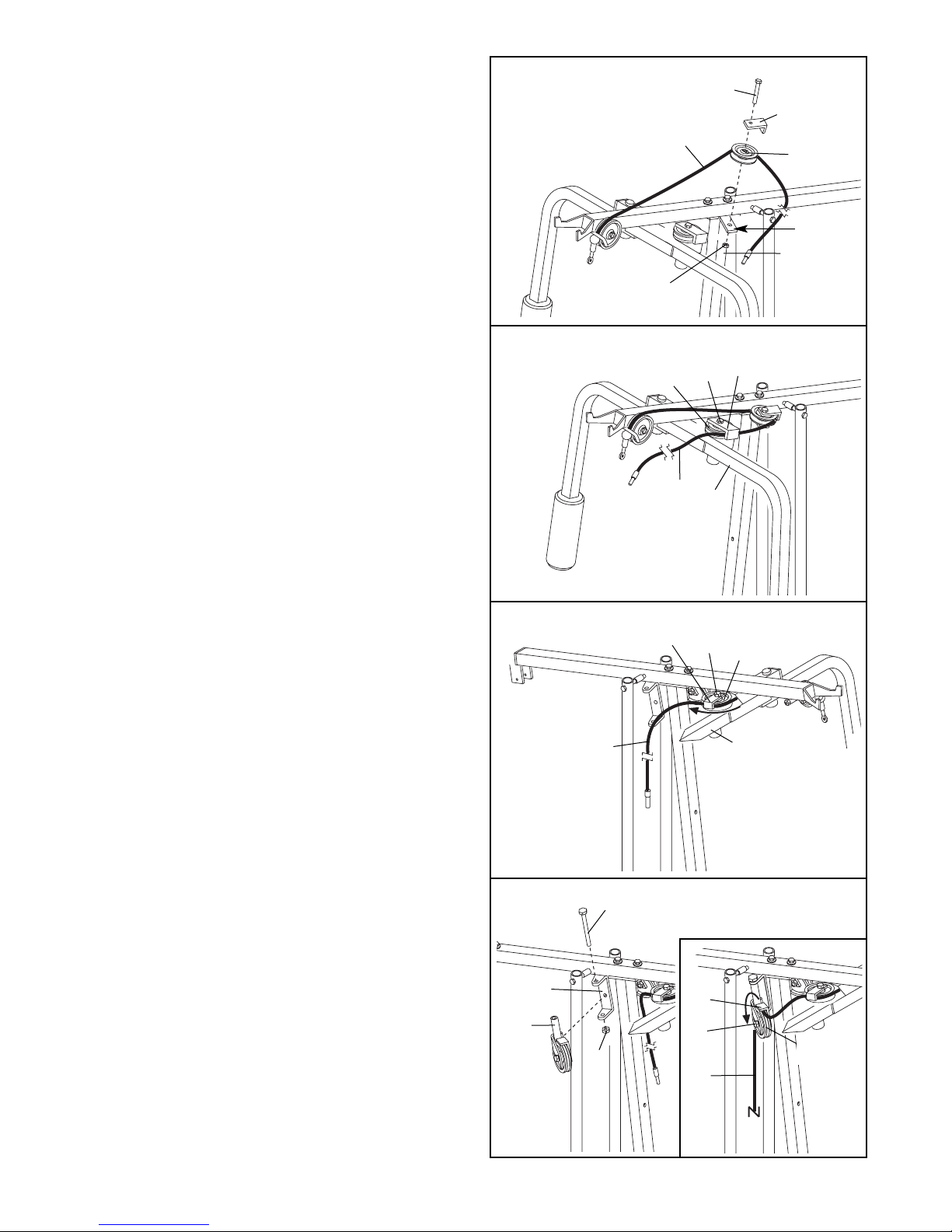

18. Wrap the High Cable (58) around a “V”-Pulley
(50). Attach the Pulley and a Long Cable Trap
(31) to the indicated bracket on the Front Upright
(42) with a 3/8” x 2 1/2” Bolt (86) and a 3/8” Nylon
Locknut (21). Be sure that the Long Cable Trap

is positioned to hold the Cable in place.

19. Route the High Cable (58) around the “V”-Pulley
(50) on the Left Arm (47). Be sure that the Cable

is in the groove of the Pulley and that the
Long Cable Trap (31) is positioned to hold the
Cable in place. Tighten the 3/8” x 2 1/2” Bolt (86)

and the 3/8” Nylon Locknut (not shown).

20. Route the High Cable (58) around the “V”-Pulley
(50) on the Right Arm (48). Be sure that the

Cable is in the groove of the Pulley and that
the Long Cable Trap (31) is turned to hold the
Cable in place. Tighten the 3/8” x 2 1/2” Bolt (86)

and the 3/8” Nylon Locknut (not shown).

21. Attach the Pulley Bracket (20) to the Top Frame
(55) with the 5/16” x 5” Bolt (68) and a 5/16”
Nylon Locknut (3). Do not overtighten the

Nylon Locknut; the Pulley Bracket must be
able to move freely.

See the inset drawing. Route the High Cable (58)
around the 3 1/2” Pulley (15) attached to the
Pulley Bracket (20). Tighten the 3/8” x 2” Bolt (12)
and a 3/8” Nylon Locknut (not shown). Be sure

that the Cable is in the groove of the Pulley
and that the Cable Trap (66) is turned to hold
the Cable in place.

21

18

86

86

31

31

50

50

21

58

58

19

20

42

47

86

31

50

58

20

68

3

55

48

Bracket

58

15

66

12

13

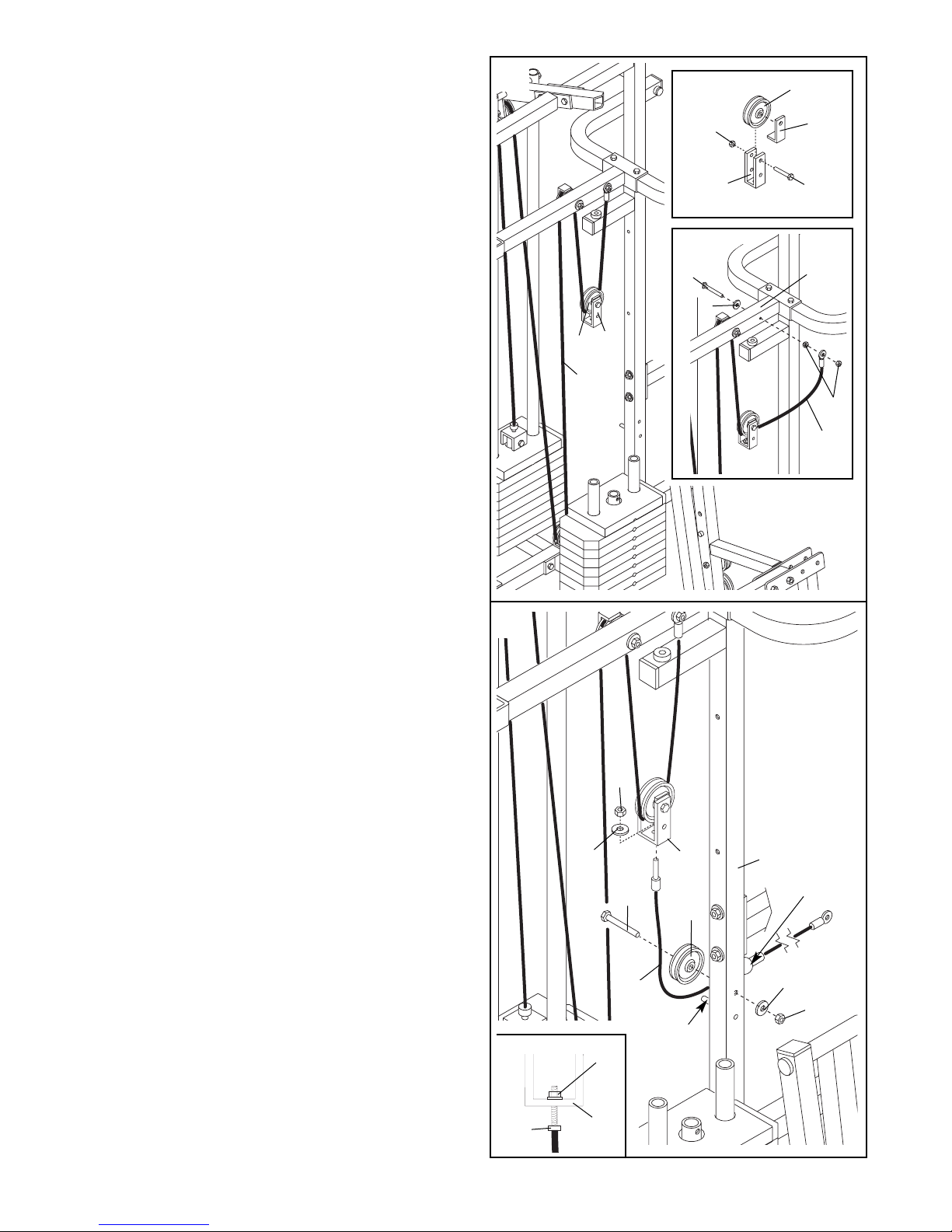

22. See the inset drawing. Attach a 3 1/2” Pulley (15)
and a Cable Trap (66) to the upper hole in a Long
“U”-Bracket (57) with a 3/8” x 2” Bolt (12) and a
3/8” Nylon Locknut (21). Be sure that the Cable

Trap is inside the Long “U”-Bracket. Note:
This may come pre-assembled.

Route the High Cable (58) between the Cable
Trap (66) and the 3 1/2” Pulley (15) shown in the
inset drawing. Be sure that the Cable is in the

groove of the Pulley and that the Cable and
Pulley move smoothly.

23. Wrap the High Cable (58) around a 3 1/2” Pulley
(15). Attach the Pulley to the bracket on the Top
Frame (55) with a 3/8” x 2” Bolt (12) and a 3/8”
Nylon Locknut (21). Be sure that the Cable is in

the groove of the Pulley and that the Cable
and Pulley move smoothly.

24. Note: This assembly step shows how to com­plete the assembly of several pre-attached
parts.

The 5/8” x 9/16” Spacer (7) has been pre­attached on the outside of the 3 1/2” Low Pulley
(76) for shipping purposes. Remove the 3/8”
Nylon Locknut (21), the Spacer, and the Pulley
from the 3/8” x 3 3/4” Bolt (88). Do not remove

the Bolt. The Bolt has been shown removed
for part identification.

Reattach the 3 1/2” Low Pulley (76) to the 3/8” x
3 3/4” Bolt (88) with the 5/8” x 9/16” Spacer (7)
between the Pulley and the Press Frame (17). Do

not tighten the 3/8” Nylon Locknut (21) yet.

Be sure that the 3/8” x 3 3/4” Bolt (88), the
3/8” Washer (9), the 5/8” x 9/16” Spacer (7),
the
3 1/2” Low Pulley (76), and the 3/8” Nylon
Locknut (21) are oriented as shown.

22

58

15

15

66

21

12

57

Bracket

55

21

12

15

58

23

24

58

57

21

17

76

7

9

88

14

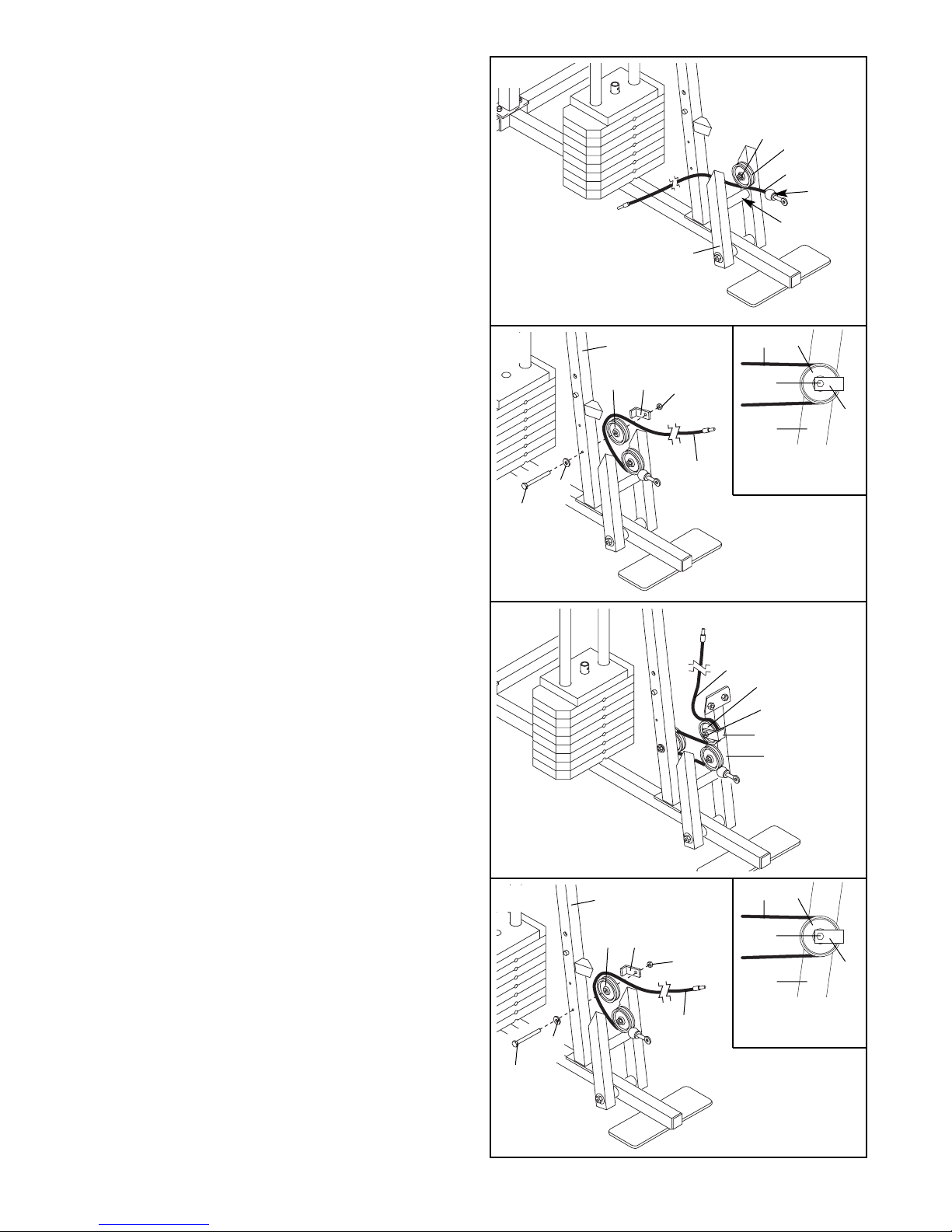

25. Locate the Low Cable (23). Route the Low
Cable under the 3 1/2” Low Pulley (76) attached
to the lower hole in the Press Frame (17). Be

sure that the ball on the Cable is on the indi­cated side of the Press Frame and that the
Cable is between the Pulley and the crossbar
on the Press Frame. Tighten the 3/8” Nylon

Locknut (21) and the 3/8” x 3 3/4” Bolt (not
shown).

26. Wrap the Low Cable (23) around a 3 1/2” Pulley
(15). Attach the Pulley and a Cable Trap (66) to
the lower hole in the Front Upright (42) with a 3/8”
x 3 3/4” Bolt (88), a 3/8” Washer (9), and a 3/8”
Nylon Locknut (21). See the inset drawing. Be

sure that the Cable Trap (66) is turned to hold
the Cable in place and that the Cable and
Pulley move smoothly.

27. Route the Low Cable (23) around the 3 1/2”
Pulley (15) attached to the upper hole in the
Press Frame (17). Be sure that the Cable Trap

(66) is turned to hold the Cable in place and
that the Cable is routed around the Pulley as
shown. Tighten the 3/8” Nylon Locknut (21) and

the 3/8” x 3 1/2” Bolt (not shown).

28. Wrap the Low Cable (23) around a 3 1/2” Pulley
(15). Attach the Pulley and a Cable Trap (66) to
the upper hole in the Front Upright (42) with a
3/8” x 3 3/4” Bolt (88), a 3/8” Washer (9), and a
3/8” Nylon Locknut (21). See the inset drawing.

Be sure that the Cable Trap is turned to hold
the Cable in place and that the Cable and
Pulley move smoothly.

28

25

23

26

27

21

17

Ball

23

21

15

42

Inset shows view

from other side

42

21

88

9

23

23

15

15

66

66

Inset shows view

from other side

42

21

88

9

23

15

66

66

42

21

23

17

66

15

76

Crossbar

21

15

29. Attach the end of the Low Cable (23) to the Long
“U”-Bracket (57) with a 1/4” Nylon Locknut (2)
and a 1/4” Washer (10). Do not completely

tighten the Nylon Locknut; it should be
threaded onto the end of the Cable so only a
couple of threads are showing above the
Nylon Locknut, as shown in the inset drawing.

30. Attach the High Cable (58) to a Small “U”-Bracket
(71) with a 1/4” Nylon Locknut (2) and a 1/4”
Washer (10). Do not completely tighten the

Nylon Locknut; it should be threaded onto the
end of the Cable only a couple of turns, as
shown in the inset drawing.

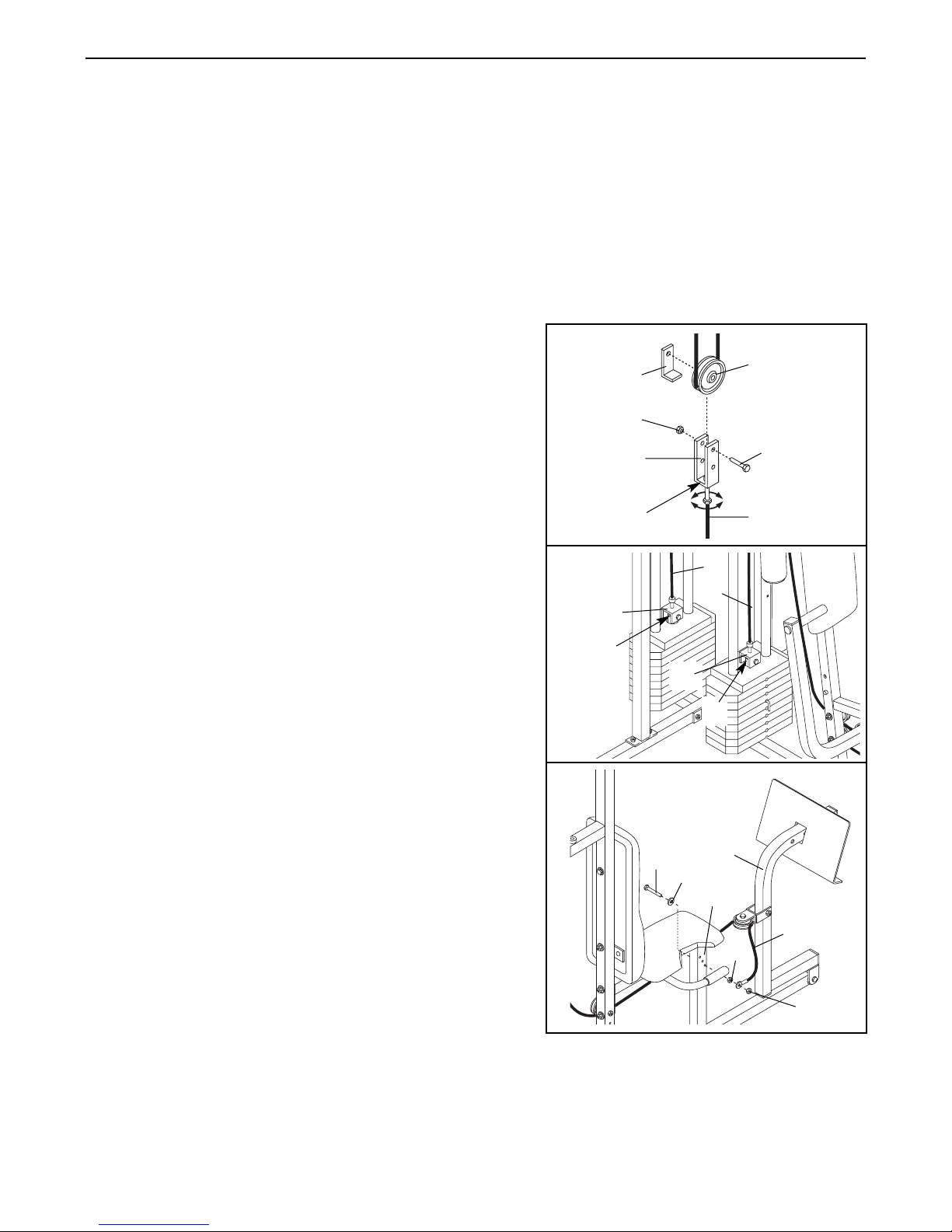

Attach the Small “U”-Bracket (71) to the indicated
Weight Tube (63) with a 5/16” x 1 3/4” Bolt (24)
and a 5/16” Nylon Locknut (3).

31. Locate the Military Press Cable (72). Attach the
Military Press Cable to the other Small “U”­Bracket (71) with a 1/4” Nylon Locknut (2) and a
1/4” Washer (10). Do not completely tighten the

Nylon Locknut; it should be threaded onto the
end of the Cable only a couple of turns, as
shown in the inset drawing.

Attach the Small “U”-Bracket (71) to the indicated
Weight Tube (63) with a 5/16” x 1 3/4” Bolt (24)
and a 5/16” Nylon Locknut (3).

31

29

10

58

24

71

10

2

30

57

23

3

24

63

71

10

2

3

72

2

2

57

23

58

10

2

71

72

2

71

63

16

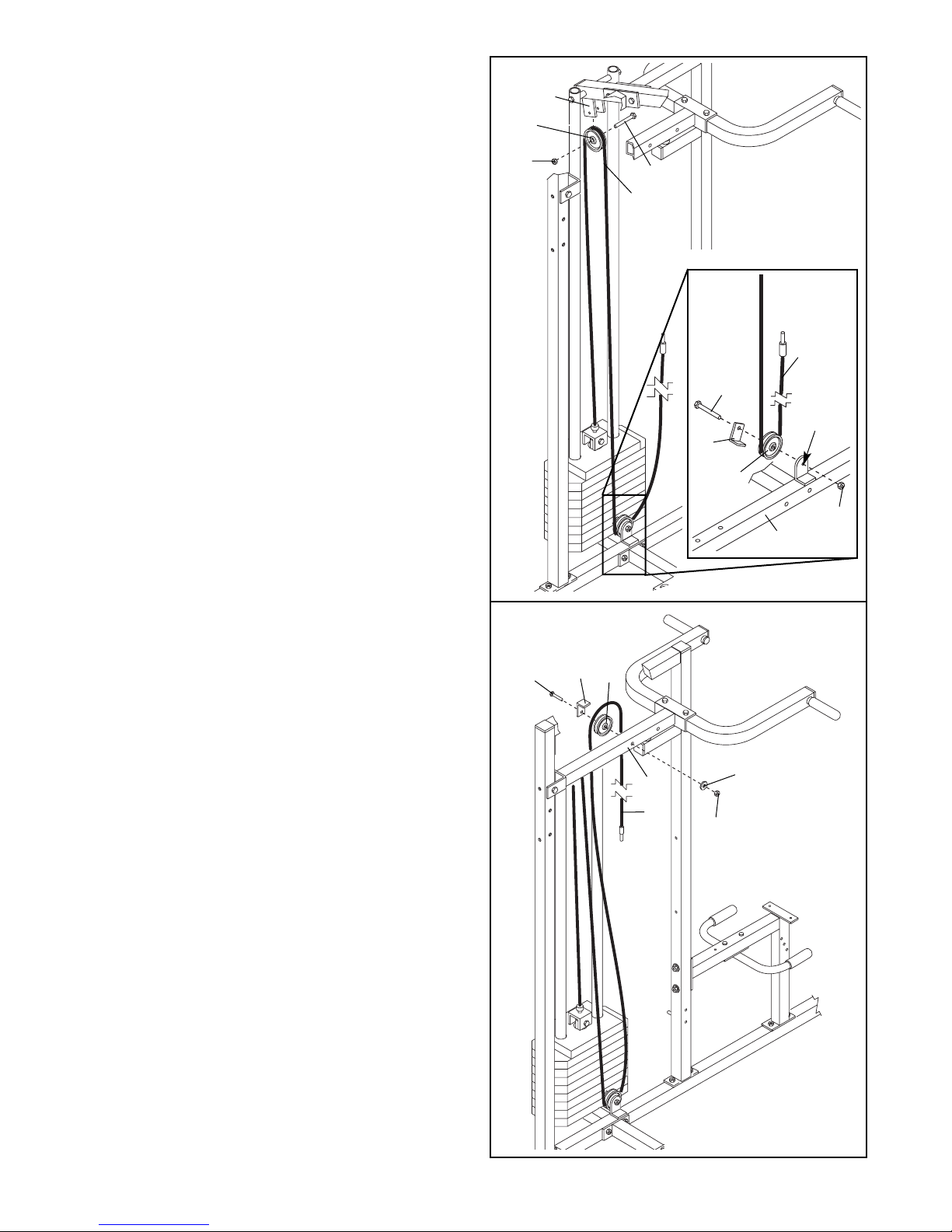

32. Wrap the Military Press Cable (72) around a
3 1/2” Pulley (15). Attach the Pulley to the Top
Frame (55) with a 3/8” x 2” Bolt (12) and a 3/8”
Nylon Locknut (21).

See the inset drawing. Wrap the Military Press
Cable (72) around a 3 1/2” Pulley (15). Attach the
Pulley and a Cable Trap (66) to the bracket on
the Stabilizer (5) with a 3/8” x 2” Bolt (12) and a
3/8” Nylon Locknut (21). Be sure that the Cable

Trap is turned to hold the Cable in place.

33. Wrap the Military Press Cable (72) around a
3 1/2” Pulley (15). Attach the Pulley and a Cable
Trap (66) to the Pivot Arm (101) with the 3/8” x
3 3/4” Bolt (88), a 3/8” Washer (9), and a 3/8”
Nylon Locknut (21). Be sure that the Nylon

Locknut is on the side shown and that the
Cable Trap is positioned to hold the Cable in
place.

32

33

5

88

72

21

66

101

15

Bracket

9

66

12

72

15

15

21

21

55

12

72

17

34. See inset drawing A. Attach a 3 1/2” Pulley (15)
and a Cable Trap (66) to the upper hole in a Long
“U”-Bracket (57) with a 3/8” x 2” Bolt (12) and a
3/8” Nylon Locknut (21). Be sure that the Cable

Trap is inside the Long “U”-Bracket. (Note:
This may come pre-assembled.)

Route the Military Press Cable (72) between the
Cable Trap (66) and the 3 1/2” Pulley (15). Be

sure that the Cable is in the groove of the
Pulley and that the Cable and Pulley move
smoothly.

See inset drawing B. Slide a 5/16” Washer (8)
onto a 5/16” x 2 3/4 Bolt (11). Insert the Bolt
through the Pivot Arm (101) from the indicated
side. Tighten a 5/16” Nylon Jamnut (93) onto the
Bolt. Slide the end of the Military Press Cable
(72) onto the end of the Bolt. Thread another
5/16” Nylon Jamnut onto the Bolt. Do not fully

tighten the second Jamnut. There must be
room between the two Jamnuts for the end of
the Cable to pivot.

35. Locate the Leg Press Cable (99). Attach the end
of the Leg Press Cable to the Long “U”-Bracket
(57) with a 1/4” Nylon Locknut (2) and a 1/4”
Washer (10). Do not completely tighten the

Nylon Locknut; it should be threaded onto the
end of the Cable only a couple of turns, as
shown in the inset drawing.

Wrap the Leg Press Cable (99) around a 3 1/2”
Pulley (15). Attach the Pulley to the Leg Press
Upright (56) with the 3/8” x 3 1/2” Bolt (16), a 3/8”
Flat Washer (9), and a 3/8” Nylon Locknut (21).

The ball on the Cable must be on the indicat­ed side of the Pulley. Be sure that the Cable is
between the Pulley and the welded rod and
that the Cable and Pulley move smoothly.

34

35

56

Ball

9

21

15

2

10

16

72

15

21

57

A

B

12

101

8

15

66

57

93

2

57

57

99

99

Welded

Rod

72

11

18

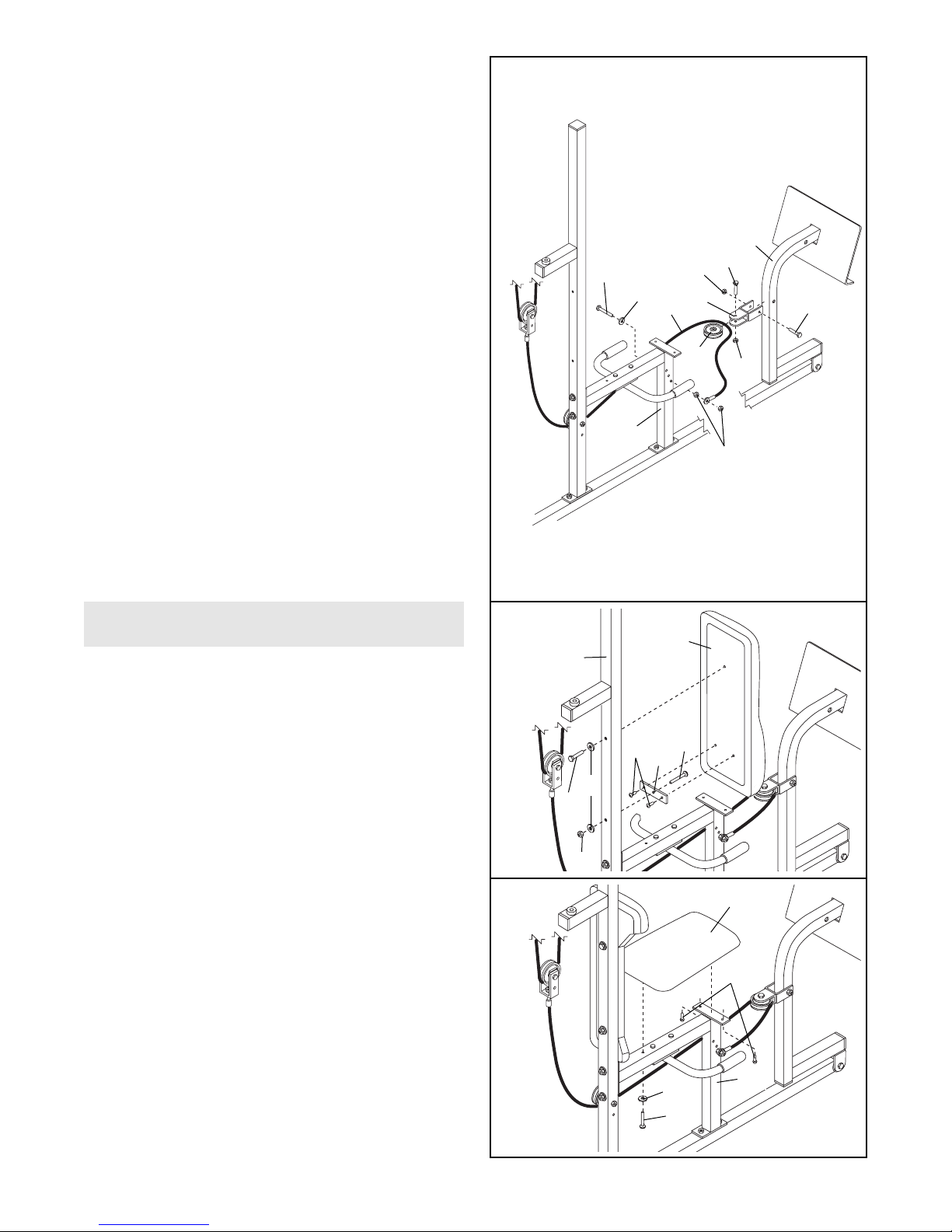

36. Attach the Press Bracket (94) to the Leg Press
Arm (96) with a 3/8” x 3” Bolt (103) and a 3/8”
Nylon Jamnut (104).

Wrap the Leg Press Cable (99) around a 3 1/2”
Pulley (15). Attach the Pulley to the Press Bracket
(94) with the 3/8” x 2” Bolt (12) and a 3/8” Nylon
Locknut (21).

Slide a 5/16” Washer (8) onto a 5/16” x 2 3/4” Bolt
(11). Insert the Bolt through the lowest hole in the
Rear Seat Frame (100) from the indicated side.
(Note: The three holes are for cable adjustment.)
Tighten a 5/16” Nylon Jamnut (93) onto the Bolt.
Slide the end of the Leg Press Cable (99) onto
the end of the Bolt. Thread another 5/16” Nylon
Jamnut onto the Bolt. Do not fully tighten the

second Jamnut; there must be room between
the two Jamnuts for the end of the Cable to
pivot.

37. Locate and open the parts bag labeled “SEAT
ASSEMBLY.”

Insert a 1/4” x 2 1/2” Carriage Bolt (92) through
the center hole in a Seat Plate (37). Attach the
Seat Plate to the Rear Backrest (85) with two 1/4”
x 3/4” Screws (18).

Insert the 1/4” x 2 1/2” Carriage Bolt (92) through
the indicated hole in the Leg Press Upright (56).
Tighten a 1/4” Nylon Locknut (2) with a 1/4”
Washer (10) onto the Carriage Bolt. Attach the top
of the Rear Backrest (85) to the Leg Press
Upright with a 1/4” x 2 1/2” Screw (43) and a 1/4”
Washer (10).

38. Attach one end of a Seat (13) to the Rear Seat
Frame (100) with two 1/4” x 3/4” Screws (18).
Attach the other end of the Seat to the Rear Seat
Frame with a 1/4” Washer (10) and a 1/4” x 2 1/2”
Screw (43).

38

36

37

SEAT ASSEMBLY

11

103

96

94

12

21

100

93

85

56

92

18

18

43

2

10

100

43

13

8

104

99

10

37

15

19

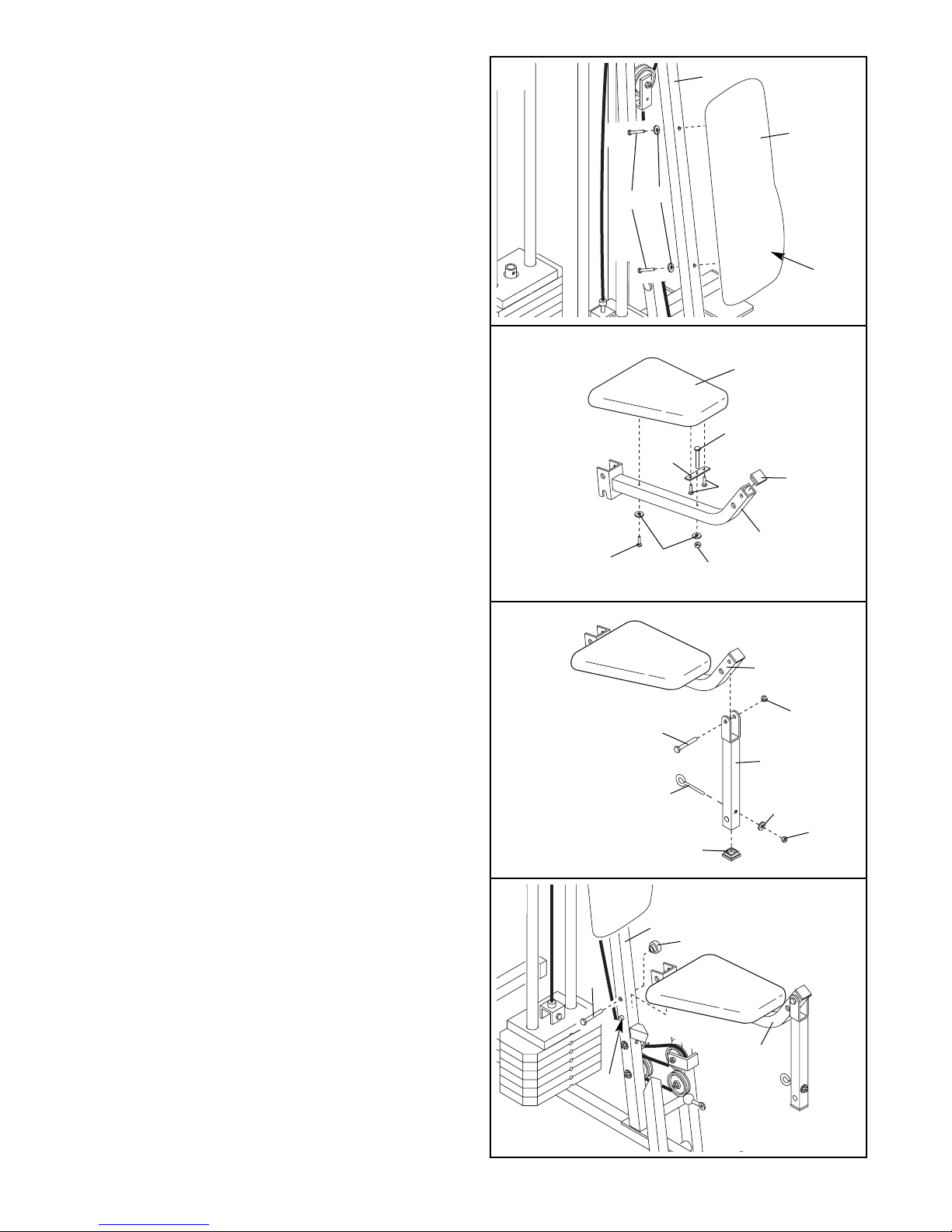

39. Attach the Front Backrest (41) to the Front
Upright (42) with two 1/4” x 2 1/2” Screws (43)
and two 1/4” Washers (10). Note: The Backrest

must be oriented as shown.

40. Press a 1 1/2” Square Inner Cap (32) into the
Front Seat Frame (36).

Insert a 1/4” x 2” Carriage Bolt (38) through the
center hole in the Seat Plate (37). Attach the Seat
Plate to the Seat (13) with two 1/4” x 3/4” Screws
(18).

Insert the 1/4” x 2” Carriage Bolt (38) through the
indicated hole in the Front Seat Frame (36).
Tighten a 1/4” Nylon Locknut (2) with a 1/4”
Washer (10) onto the Carriage Bolt.

Attach the other end of the Seat (13) to the Front
Seat Frame (36) with a 1/4” Washer (10) and a
1/4” x 2” Machine Screw (81).

41. Press a 1 1/2” Square Inner Cap (32) into the Leg
Lever (29).

Lubricate the 5/16” x 2 1/4” Bolt (33). Attach the
Leg Lever (29) to the Front Seat Frame (36) with
the Bolt and a 5/16” Nylon Locknut (3).

Insert the 5/16” x 2” Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten a
5/16” Washer (8) and a 5/16” Nylon Locknut (3)
onto the Eyebolt.

42. Rest the Front Seat Frame (36) on the indicated
pin in the Front Upright (42). Attach the Front
Seat Frame to the Front Upright with a 5/16” x
2 3/4” Carriage Bolt (14) and the Seat Knob (40).

42

39

41

Thick

End

42

40

41

10

13

38

32

36

10

81

37

2

3

8

3

29

33

35

32

18

43

36

36

42

40

14

Pin

20

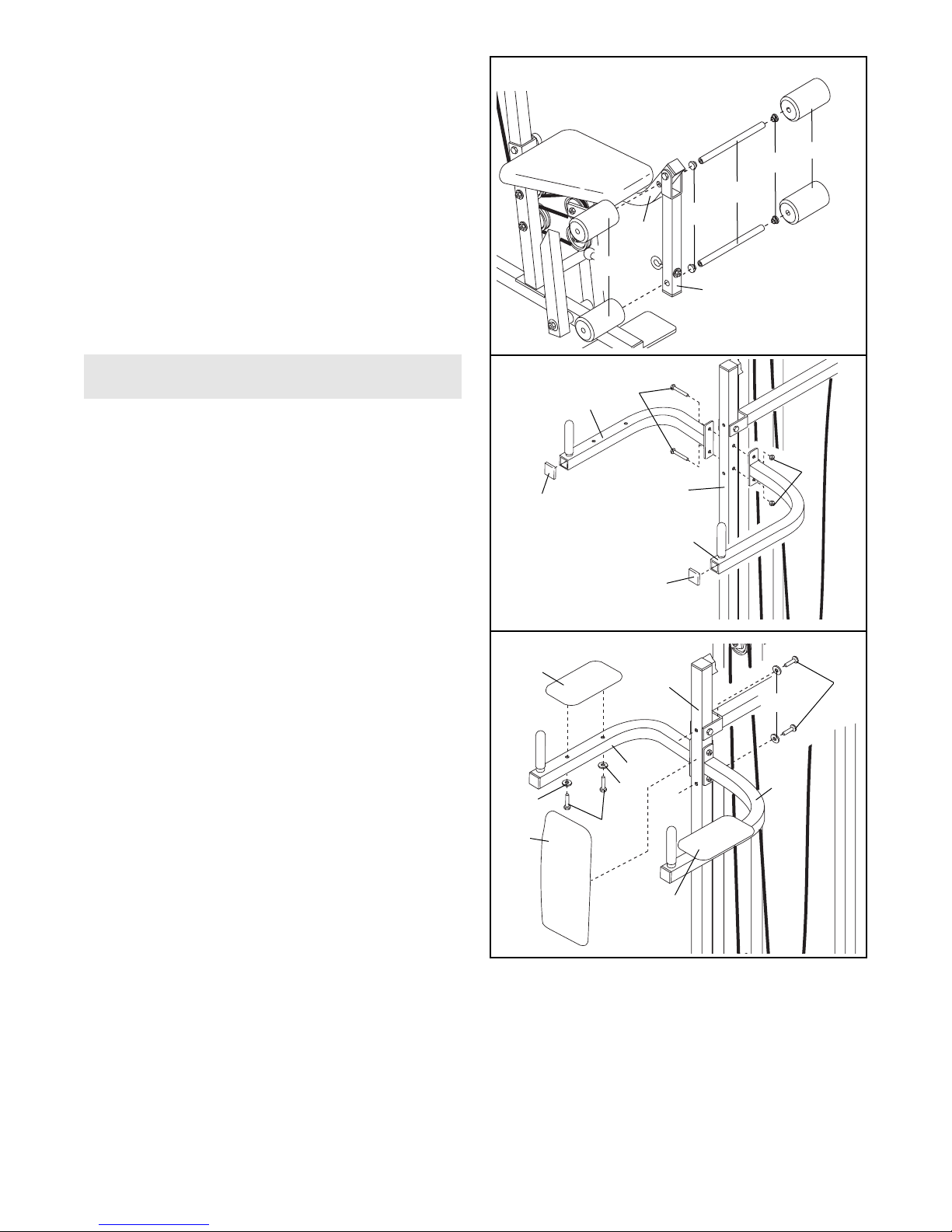

43. Press two 3/4” Round Inner Caps (34) into each
Pad Tube (28).

Insert a Pad Tube (28) into the Front Seat Frame
(36). Slide a Foam Pad (30) onto each end of the
Pad Tube.

Insert the other Pad Tube (28) into the Leg Lever
(29). Slide a Foam Foam Pad (30) onto each end
of the Pad Tube.

44. Locate and open the parts bag labeled “VKR

ASSEMBLY.”

Press two 1 1/2” Square Inner Caps (32) into the
ends of the Left and Right VKR Arms (79, 80).

Attach the Left and Right VKR Arms (79, 80) to
the VKR Upright (74) with two 5/16” x 3” Bolts
(75) and two 5/16” Nylon Locknuts (3).

45. Attach the VKR Backrest (77) to the VKR Upright
(74) with two 1/4” x 2 1/2” Screws (43) and two
1/4” Washers (10).

Attach a VKR Armrest (78) to the Right VKR Arm
(80) with two 1/4” x 2” Machine Screws (81) and
two 1/4” Washers (10).

Attach a VKR Armrest (78) to the Left VKR Arm
(79) in the same manner.

43

44

79

80

75

74

3

32

32

81

45

VKR ASSEMBLY

79

30

30

34

34

28

36

29

78

74

78

43

10

10

10

80

77

46. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on page 21 of this manual.

Before using the weight system, pull each cable a few times to be sure that the cables move smoothly over
the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If the

cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE
DIAGRAMS on pages 25 and 26 of this manual for proper cable routing. If there is any slack in the
cables, you will need to remove it by tightening the cables. See TROUBLE-SHOOTING AND MAINTE­NANCE on page 24.

21

The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise
guide accompanying this manual to see how the weight system should be set up for each exercise. IMPOR-

TANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct start­ing position for the exercise to be performed. If there is any slack in the cables or chain as an exercise
is performed, the effectiveness of the exercise will be reduced.

58

39

52

53

53

54

26

26

25

25

53

52

23

53

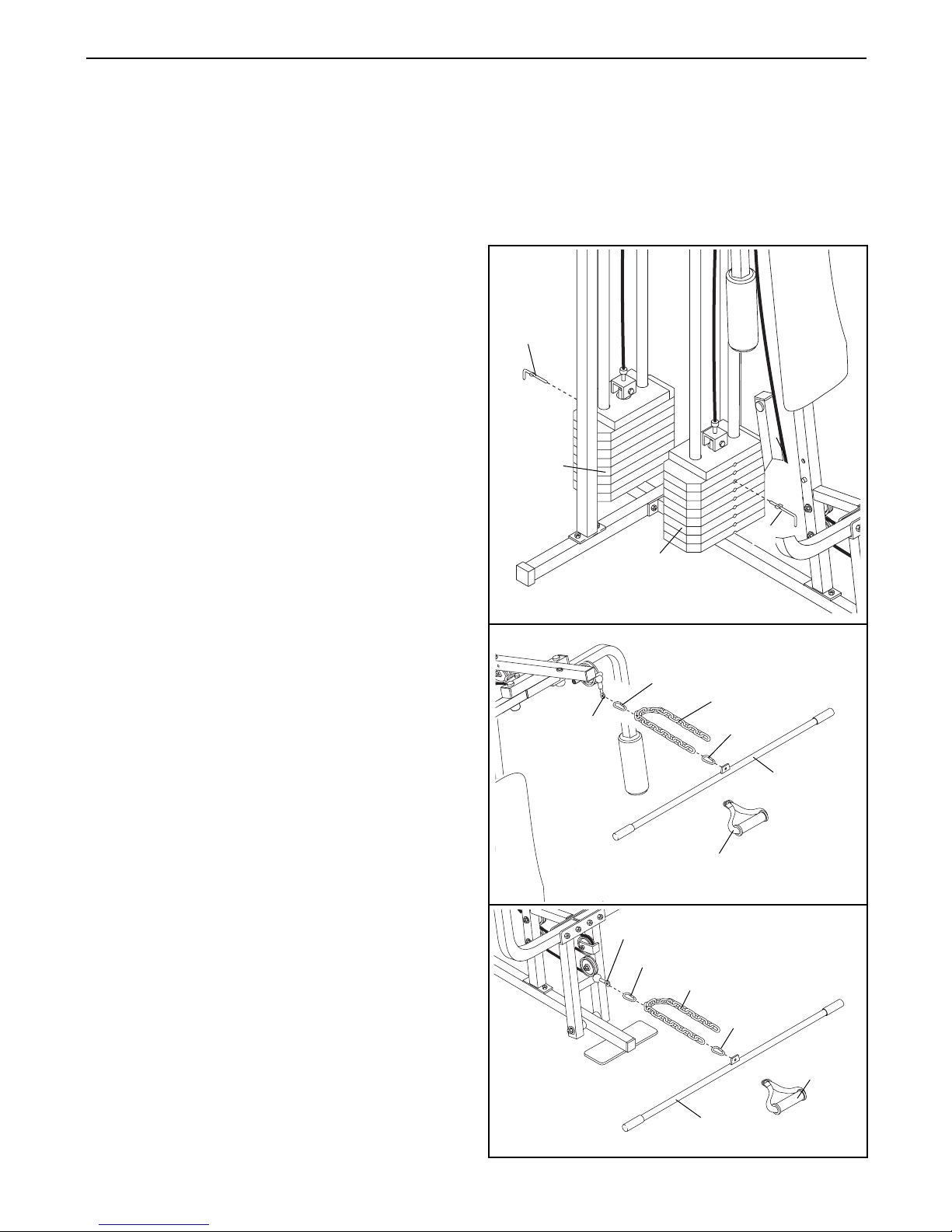

CHANGING THE WEIGHT SETTING

The weight system features two weight stacks. The
front weight stack is connected to the upper and
lower pulleys, the press arm, and the butterfly arms.
The rear weight stack is connected to the military
press arm and leg press.

To change the weight setting of either weight stack,
insert a Weight Pin (26) under the desired Weight
(25). Insert the Weight Pin until the bent end of the
Weight Pin is touching the Weights, and turn the bent
end downward. The weight setting of either weight
stack can be changed from 6.5 pounds to 106.5
pounds, in increments of 12.5 pounds. Note: Due to

the cables and pulleys, the amount of resistance
at each exercise station may vary from the weight
setting. Use the WEIGHT RESISTANCE CHART on
page 23 to find the approximate amount of resis­tance at each weight station.

ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION

Attach the Lat Bar (54) to the High Cable (58) with a
Cable Clip (53). For some exercises, the Chain (52)
should be attached between the Lat Bar and the High
Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the High Cable so
the Lat Bar is in the correct starting position for
the exercise to be performed.

The Nylon Strap (39) can be attached in the same
manner.

ATTACHING THE LAT BAR OR NYLON STRAP TO
THE LOW PULLEY STATION

Attach the Lat Bar (54) to the Low Cable (23) with a
Cable Clip (53). For some exercises, the Chain (52)
should be attached between the Lat Bar and the Low
Cable with two Cable Clips. Adjust the length of the

Chain between the Lat Bar and the Low Cable so
the Lat Bar is in the correct starting position for
the exercise to be performed.

The Nylon Strap (39) can be attached in the same
manner.

39

54

ADJUSTMENTS

22

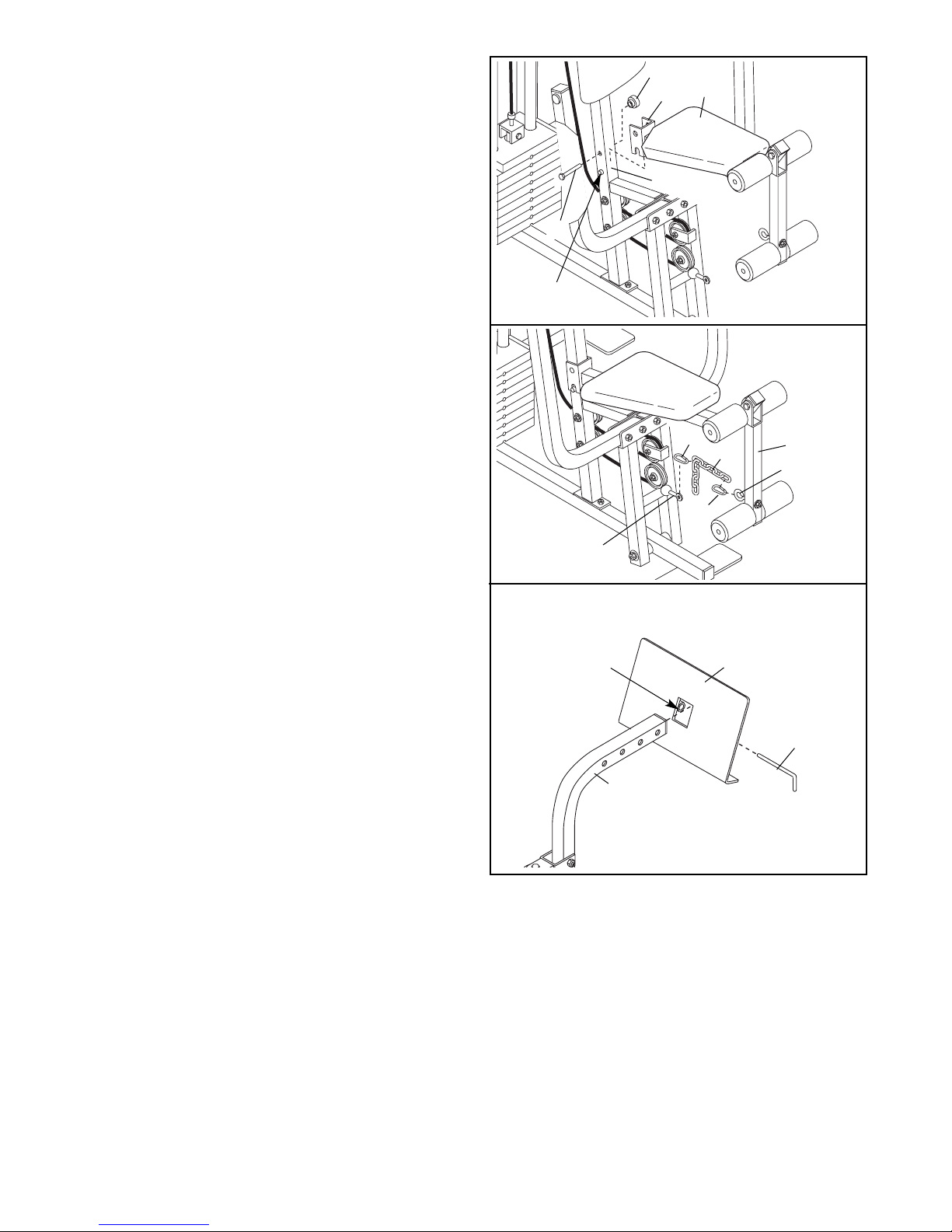

ATTACHING AND REMOVING THE SEAT

To attach the Seat (13), set the bracket on the Front
Seat Frame (36) onto the indicated pin on the Front
Upright (42). Attach the Front Seat Frame to the Front
Upright with the 5/16” x 2 3/4” Carriage Bolt (14) and
the Seat Knob (40).

To remove the Seat (13), first be sure that the chain is
not attached to the leg lever. Next, remove the Seat
Knob (40) and the 5/16” x 2 3/4” Carriage Bolt (14)
from the Front Seat Frame (36). Lift the Front Seat
Frame off the Front Upright (42).

ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION

To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV­ING THE SEAT above).

Attach one end of the Chain (52) to the Low Cable
(23) with a Cable Clip (53). Attach the other end of
the Chain to the 5/16” x 2” Eyebolt (35) with a Cable
Clip.

ADJUSTING THE LEG PRESS PLATE

Remove the Press Pin (97) from the Leg Press Plate
(95) and the Leg Press Arm (96).

Align the welded tubes on the Leg Press Plate (95)
with the desired set of holes in the Leg Press Arm
(96). Re-insert the Press Pin (97) through the welded
tubes on Leg Press Plate and the holes in the Leg
Press Arm.

36

13

40

14

Pin

42

29

53

35

23

97

96

95

53

52

Welded

Tube

23

This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lb. top weight.
The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance listed is the resistance for
each butterfly arm. The actual resistance at each weight station may vary due to differences in individual

weight plates, as well as friction between the cables, pulleys, and weight guides.

WEIGHT PRESS BUTTERFLY LEG HIGH LOW MILITARY LEG

ARM ARM LEVER PULLEY PULLEY PRESS ARM PRESS

PLATES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)

To p 2 0 1 0 1 5 1 6 3 0 2 9 40

14522363060 5080

2 70 33 54 52 100 72 146

3 99 42 75 68 130 95 166

4 128 48 96 87 170 120 210

5 153 60 115 100 200 140 240

6 184 69 137 120 255 160 268

7 204 79 146 135 270 180 325

8 247 91 176 155 320 205 360

WEIGHT RESISTANCE CHART

24

TROUBLE-SHOOTING AND MAINTENANCE

Make sure all parts are properly tightened each time you use the weight system. Replace any worn parts immedi­ately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

TIGHTENING THE CABLES

Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the
front weight stack, both the High Cable (58) and the Low Cable (23) will need to be tightened. If any slack is felt
when using the rear weight stack, both the Military Press Cable (72) and the Leg Press Cable (99) will need to
be tightened.

To tighten the cables, insert the weight pin into the middle of
the weight stack. Slack can be removed from these cables
several ways:

• See drawing 1. Tighten the 1/4” Nylon Locknut (2) that
connects the end of the Low Cable (23) to the Long “U”­Bracket (57).

The Leg Press Cable (99) can be tightened in the same
manner.

• See drawing 1. Remove the 3/8” Nylon Locknut (21) and
the 3/8” x 2” Bolt (12) from the Cable Trap (66), the 3 1/2”
Pulley (15), and the Long “U”-Bracket (57). Re-attach the
Pulley and Cable Trap to the other hole in the Long “U”­Bracket with the Bolt and Locknut. Be sure that the

Cable Trap is in the proper position and that the
Cable and Pulley move smoothly.

The other Long “U”-Bracket (57) can be adjusted in the
same manner.

• See drawing 2. Tighten the 1/4” Nylon Locknut (2) that
connects the end of the High Cable (58) to the Small “U”­Bracket (71).

The Military Press Cable (72) can be tightened in the
same manner.

• See Drawing 3. If additional slack is felt while using the
Leg Press Arm (96), then the end of the Leg Press Cable
(99) must be moved to the next hole in the Rear Seat
Frame (100). Remove the 5/16” x 2 3/4” Bolt (11), the
5/16” Washer (8), the end of the Cable, and both 5/16”
Nylon Jamnuts (93) from the Rear Seat Frame. Re-attach
the Bolt, the Washer, the end of the Cable, and both
Nylon Jamnuts to the next hole in the Rear Seat Frame.

Do not overtighten the cables. The top weight will be lifted off the weight stack. If a cable tends to slip off
the pulleys often, it may have become twisted. Remove the cable and re-install it.

If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.

57

71

71

66

15

2

2

2

23 or 99

21

58

72

96

99

100

11

8

93

93

2

3

1

12

25

The cable diagrams on these pages show the proper routing of the High Cable (58), the Low Cable (23), the
Military Press Cable (72), and the Leg Press Cable (99). Use the diagrams to be sure that the four cables and
the cable traps have been assembled correctly. If the cables have not been correctly routed, the weight system
will not function properly and damage may occur. The insets show the proper positioning of the cable traps. The
cable traps should be positioned so that the cables will not come off the pulleys. Be sure that the cable traps

do not touch or bind the cables.

Low Cable (23)

1

—Low Pulley

2

3

4

5

—Long “U”-Bracket

TOP VIEW

1

—High Pulley

2

3

4

7

6

5

High Cable (58)

Front Weight Stack—

8

High Cable (58) and Low Cable (23)

CABLE DIAGRAMS

26

Military Press Cable (72)

Leg Press Cable (99)

Rear Weight Stack—1

2

3

4

5

3

2

4—

Rear Seat Frame

6—

Pivot Arm

1—

Long “U”-Bracket

Military Press Cable (72) and Leg Press Cable (99)

PART IDENTIFICATION CHART—Model No. WESY96310 R0901A

3/8" Washer (9)

3/8" Nylon Locknut (21)

1/4" Nylon Locknut (2)

5/16" Washer (8)

5/16" Nylon Jamnut (93)

3/8" Nylon Jamnut (104)

#8 x 1/2" Self­tapping Screw (87)

1/4" Washer (10)

5/16" Nylon Locknut (3)

3/8" x 8" Bolt (59)

1" Retainer (69)

3 1/2" Pulley (15)

(Not shown to scale)

"V"-Pulley (50)

(Not shown to scale)

5/16" x 2" Eyebolt (35)

1" x 7/8" Plastic Bushing (90)

1 1/8" x 2 1/2" Plastic Bushing (89)

5/16" x 2 1/2" Bolt (22)

1/4" x 2 1/2" Carriage Bolt (92)

3/8" x 2 1/2" Bolt (86)

5/16" x 2 1/4" Bolt (33)

1/4" x 2 1/2" Screw (43)

1/4" x 2" Carriage Bolt (38)

3/8" x 2" Bolt (12)

5/16" x 2 1/2" Carriage Bolt (1)

5/16" x 2 3/4" Bolt (11)

5/16" x 2 3/4" Carriage Bolt (14)

5/16" x 3" Bolt (75)

3/8" x 3" Bolt (103)

1/4" x 2" Machine Screw (81)

5/16" x 1 3/4" Bolt (24)

1/4" x 3/4" Screw (18)

3/8" x 3 1/4" Bolt (67)

3/8" x 3 1/2" Bolt (16)

3/8" x 3 3/4" Bolt (88)

5/16" x 5" Bolt (68)

5/16" x 6" Bolt (60)

3/4" Round Inner Cap (34)

1" Round Inner Cap (49)

Cable Clip (53)

Round Inner Cap (102)

1" Square Inner Cap (6)

5/8" x 9/16" Spacer (7)

1" Round Cover Cap (70)

1 1/2" Square Inner Cap (32)

2" Square Inner Cap (27)

1/2" x 3/4" Spacer (61)

1 3/4" Square Inner Cap (44)

2" Square Outer Cap (51)

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.

Key No. Qty. Description

1 10 5/16” x 2 1/2” Carriage Bolt
2 6 1/4” Nylon Locknut
3 33 5/16” Nylon Locknut
4 1 Base
5 1 Stabilizer
6 1 1” Square Inner Cap
7 1 5/8” x 9/16” Spacer
8 9 5/16” Washer

9 6 3/8” Washer
10 17 1/4” Washer
11 10 5/16” x 2 3/4” Bolt
12 7 3/8” x 2” Bolt
13 2 Seat
14 1 5/16” x 2 3/4” Carriage Bolt
15 13 3 1/2” Pulley
16 2 3/8” x 3 1/2” Bolt
17 1 Press Frame
18 6 1/4” x 3/4” Screw
19 4 Weight Bumper
20 1 Pulley Bracket
21 20 3/8” Nylon Locknut
22 4 5/16” x 2 1/2” Bolt
23 1 Low Cable
24 2 5/16” x 1 3/4” Bolt
25 16 Weight
26 2 Weight Pin
27 8 2” Square Inner Cap
28 2 Pad Tube
29 1 Leg Lever
30 4 Foam Pad
31 3 Long Cable Trap
32 6 1 1/2” Square Inner Cap
33 3 5/16” x 2 1/4” Bolt
34 4 3/4” Round Inner Cap
35 1 5/16” x 2” Eyebolt
36 1 Front Seat Frame
37 2 Seat Plate
38 1 1/4” x 2” Carriage Bolt
39 1 Nylon Strap
40 1 Seat Knob
41 1 Front Backrest
42 1 Front Upright
43 6 1/4” x 2 1/2” Screw
44 6 1 3/4” Square Inner Cap
45 2 10” Pad
46 2 Press Arm
47 1 Left Arm
48 1 Right Arm
49 6 1” Round Inner Cap
50 3 “V”-Pulley
51 2 2” Square Outer Cap
52 1 Chain
53 3 Cable Clip

Key No. Qty. Description

54 1 Lat Bar
55 1 Top Frame
56 1 Leg Press Upright
57 2 Long “U”-Bracket
58 1 High Cable
59 1 3/8” x 8” Bolt
60 2 5/16” x 6” Bolt
61 4 1/2” x 3/4” Spacer
62 2 Long Weight Guide
63 2 Weight Tube
64 2 Weight Tube Bumper
65 2 Top Weight
66 8 Cable Trap
67 2 3/8” x 3 1/4” Bolt
68 1 5/16” x 5” Bolt
69 4 1” Retainer
70 2 1” Round Cover Cap
71 2 Small “U”-Bracket
72 1 Military Press Cable
73 2 Short Weight Guide
74 1 VKR Upright
75 2 5/16” x 3” Bolt
76 1 3 1/2” Low Pulley
77 1 VKR Backrest
78 2 VKR Armrest
79 1 Left VKR Arm
80 1 Right VKR Arm
81 5 1/4” x 2” Machine Screw
82 1 Handle
83 10 5” Plastic Grip
84 1 Military Press Arm
85 1 Rear Backrest
86 3 3/8” x 2 1/2” Bolt
87 1 #8 x 1/2” Self-tapping Screw
88 5 3/8” x 3 3/4” Bolt
89 2 1 1/8” x 2 1/2” Plastic Bushing
90 2 1” x 7/8” Plastic Bushing
91 1 Rubber Bumper
92 1 1/4” x 2 1/2” Carriage Bolt
93 4 5/16” Nylon Jamnut
94 1 Press Bracket
95 1 Leg Press Plate
96 1 Leg Press Arm
97 1 Press Pin
98 2 Bushing

99 1 Leg Press Cable
100 1 Rear Seat Frame
101 1 Pivot Arm
102 2 Round Inner Cap
103 1 3/8” x 3” Bolt
104 1 3/8” Nylon Jamnut

# 1 User’s Manual
# 1 Exercise Guide

PART LIST—Model No. WESY96310 R0901A

EXPLODED DRAWING—Model No. WESY96310 R0901A

49

47

44

45

89

31

86

68

15

69

70

50

88

15

44

12

15

11

12

55

27

61

21

70

69

89

58

102

8

20

27

3

66

21

21

102

44

21

27

15

21

3

12

66

15

21

85

56

3

60

12

57

99

2

10

48

86

31

3

61

60

95

96

13

92

37

18

87

91

73

72

3

11

27

44

50

21

3

62

97

27

21

103

94

104

12

15

99

18

10

18

1

8

11

11

10

10

43

27

24

71

2

10

11

43

10

75

80

78

83

13

45

41

42

24

58

71

10

3

67

27

21

93

100

3

43

11

9

8

2

3

15

16

63

65

79

3

83

75

10

81

49

32

44

34

30

83

28

3

32

37

18

38

10

81

40

2

83

3

82

21

3

78

36

14

1043

65

98

64

63

32

83

15

66

12

25

26

74

32

77

46

34

30

28

3

29

33

2

30

21

66

8

32

30

35

34

15

64

8

11

19

51

34

83

66

44

6

9

88

25

32

49

33

8

11

66

1

88

1

21

8

5

11

3

88

16

9

22

46

49

3

3

26

19

66

15

83

84

93

72

93

3

21

9

15

101

21

83

1

51

23

76

7

15

66

3

21

67

54

59

21

90

17

21

27

1

4

3

12

57

23

2

10

39

53

52

83

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service cen­ters with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to
a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or
repairs not provided by an ICON authorized service center, products used for commercial or rental pur­poses, or products used as store display models. No other warranty beyond that specifically set forth
above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre­pared to give the following information:

1. The MODEL NUMBER of the product (WESY96310)

2. The NAME of the product (WEIDER

®

30CT weight system)

3. The SERIAL NUMBER of the product (see the front cover of this manual)

4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING
attached at the center of this manual).

Part No. 178958 R0901A Printed in Canada © 2001 ICON Health & Fitness, Inc.

ORDERING REPLACEMENT PARTS
