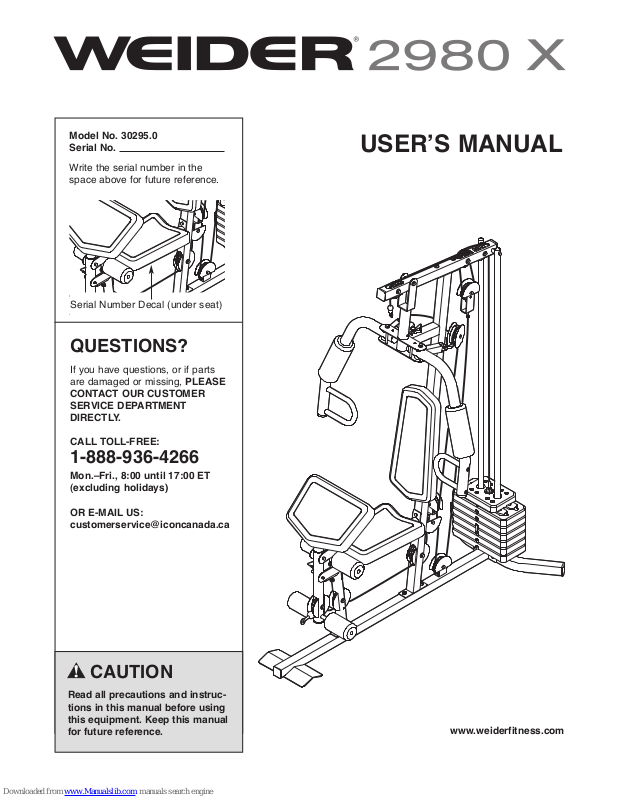

Page 1
Model No. 30295.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
If you have questions, or if parts
are damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USERʼS MANUAL
CALL TOLL-FREE:
1-888-936-4266
Mon.–Fri., 8:00 until 17:00 ET
(excluding holidays)
OR E-MAIL US:
customerservice@iconcanada.ca
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
www.weiderfitness.com
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

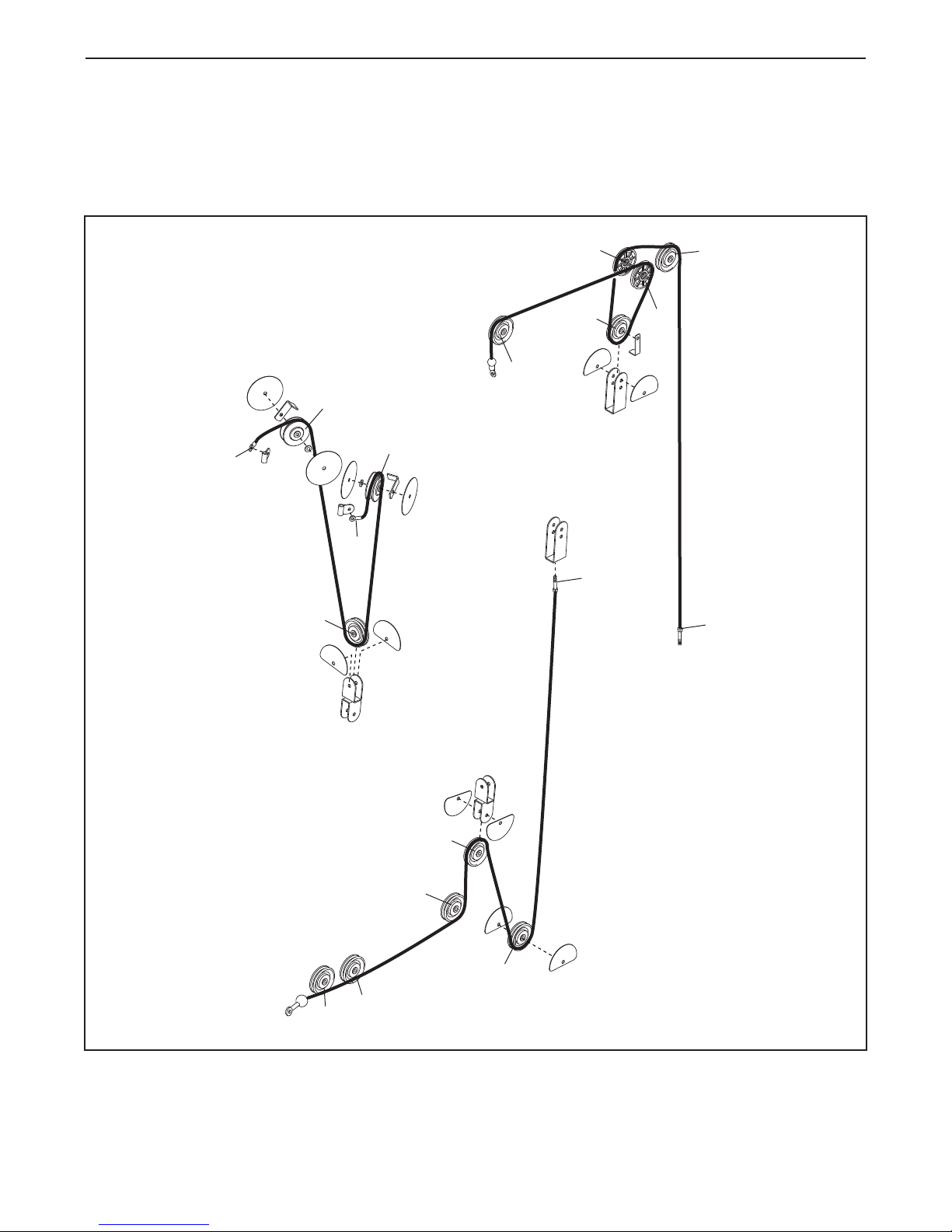

CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

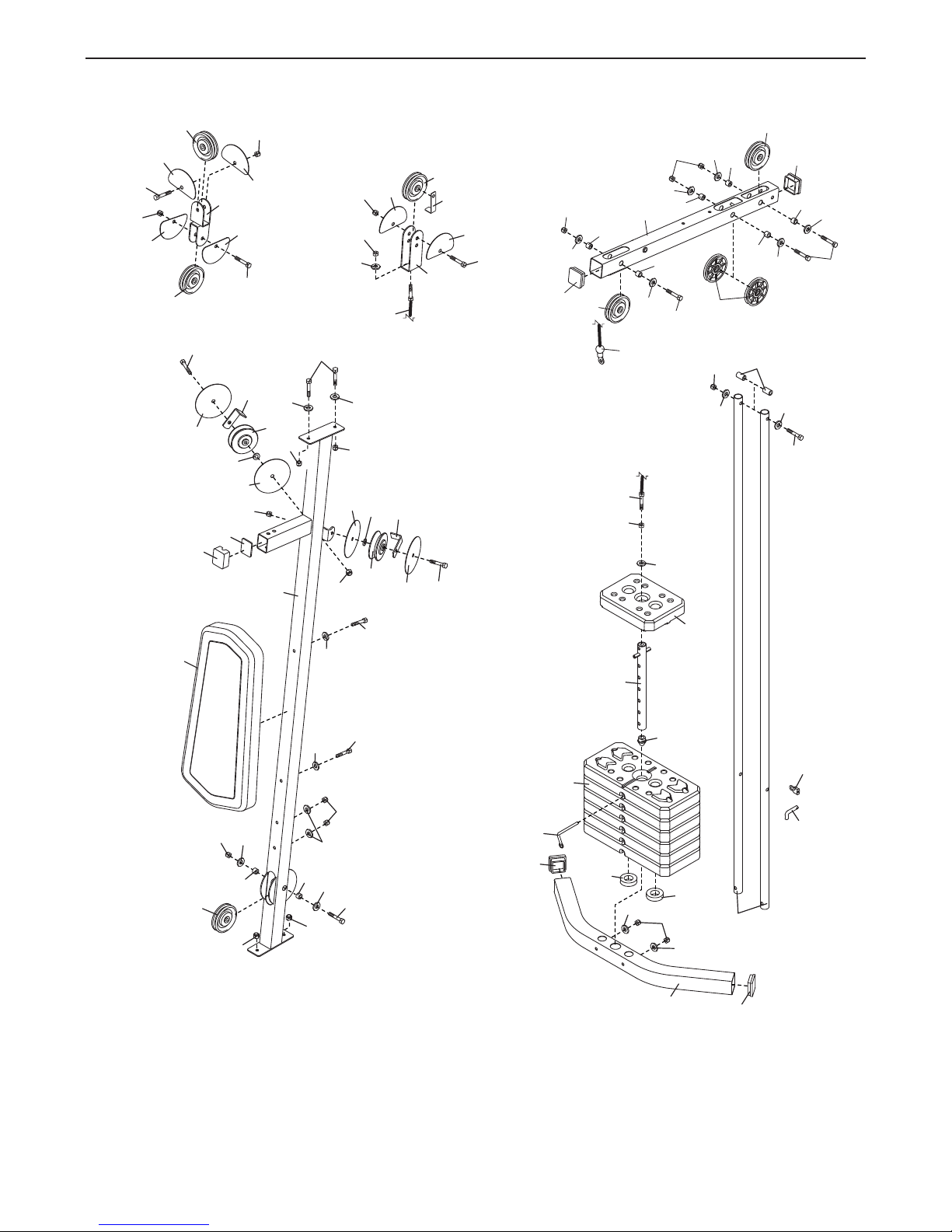

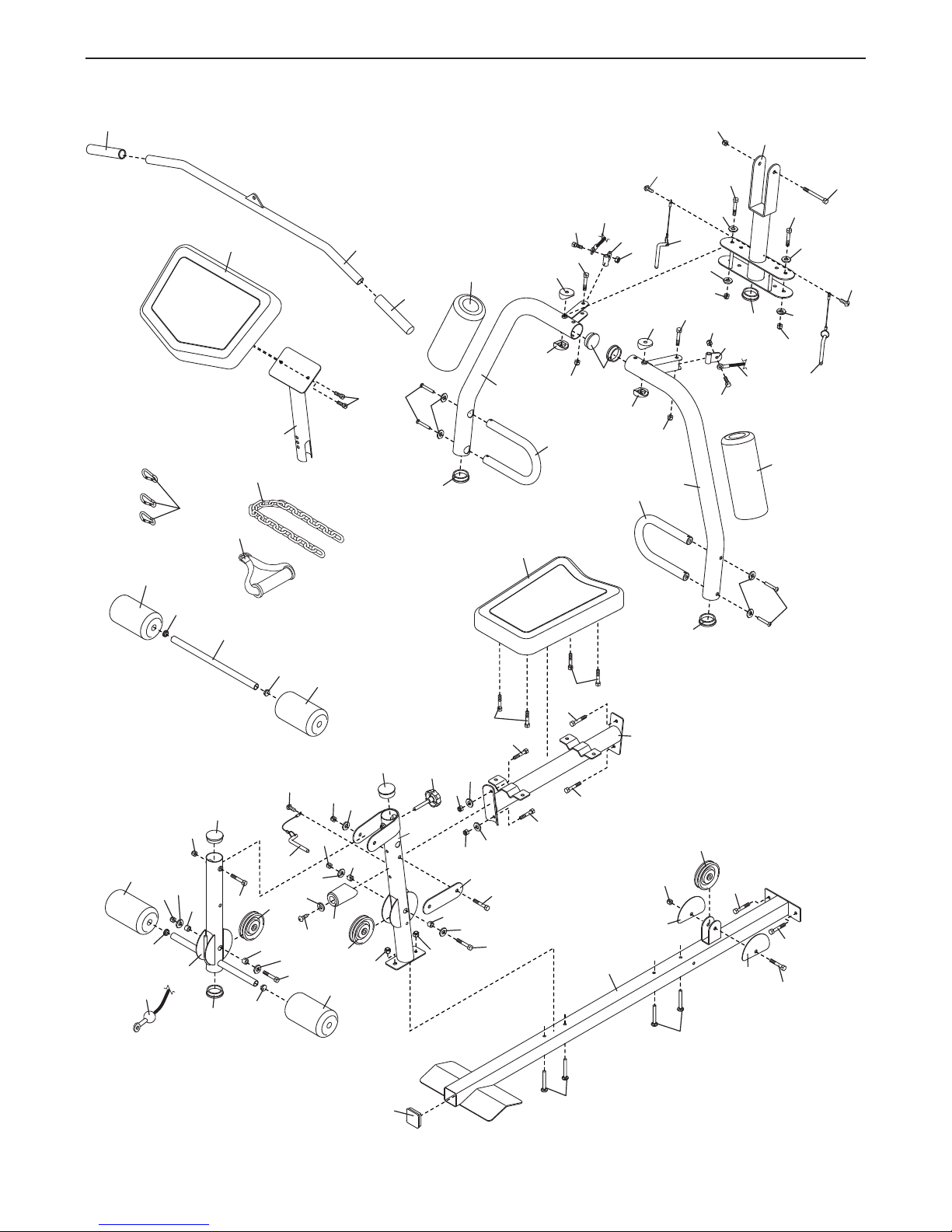

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s). If a
decal is missing or illegible, see
the front cover of this manual
and request a free replacement
decal. Apply the decal in the
location shown. Note: The
decal(s) may not be shown at
actual size.
WEIDER is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your weight system before using your weight system. ICON assumes no responsibility for personal injury or property damage sustained by or
hrough the use of this product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the weight system are adequately informed of all precautions.
3. Your weight system is intended for home
use only. Do not use your weight system in a
commercial, rental, or institutional setting.
4. Use your weight system only on a level surface. Cover the floor beneath the weight system to protect the floor.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your weight system at all times.
7. Your weight system should not be used by
persons weighing more than 300 lbs.
(136 kg).
8. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your weight system. Always wear athletic shoes for foot protection while exercising.
9. Keep hands and feet away from moving
parts.

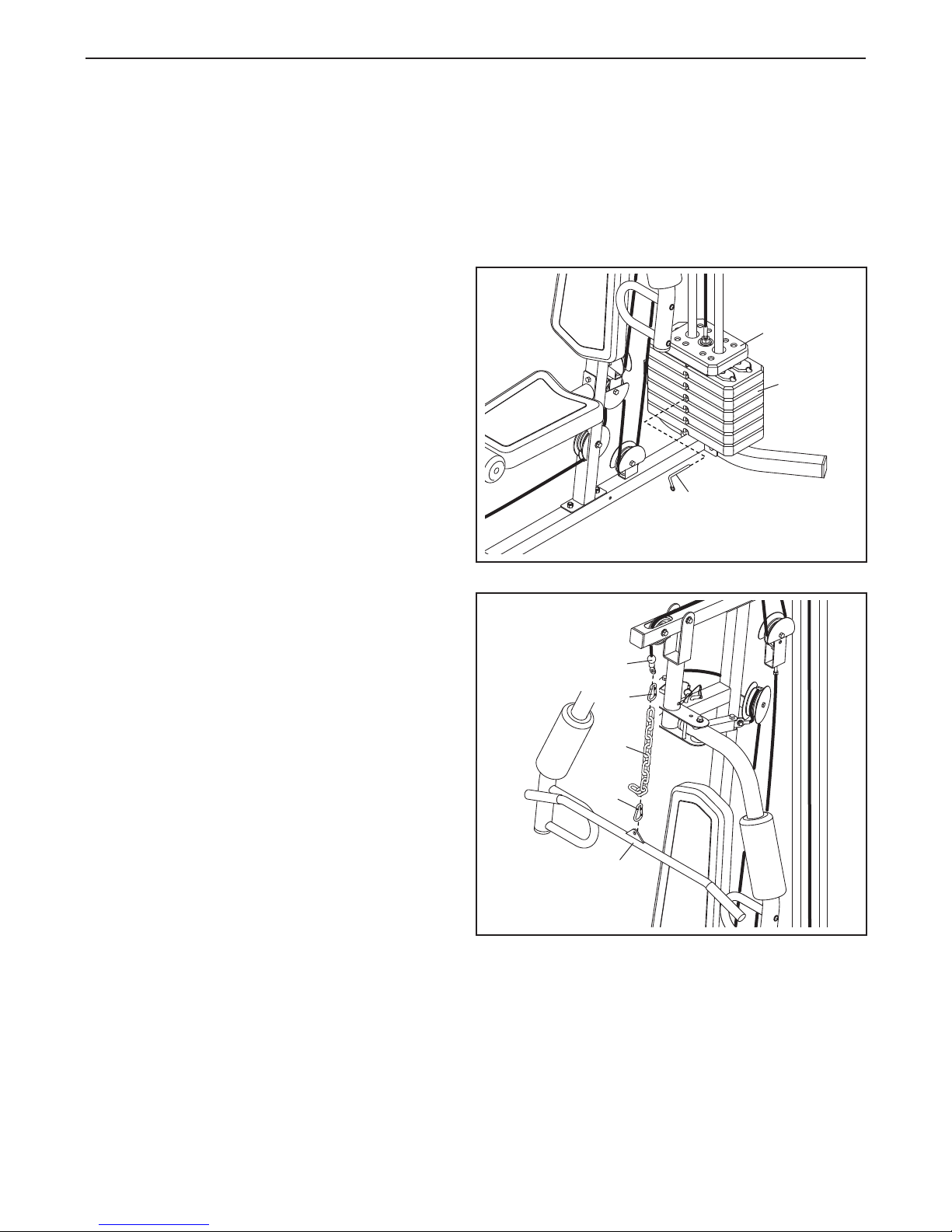

10. Always secure the weight stack with the lock
pin and lock after exercising to prevent
unauthorized use of the weight system (see
LOCKING THE WEIGHT STACK on page 20).
11. Make sure that the cables remain on the pulleys at all times. If the cables bind while you
are exercising, stop immediately and make
sure that the cables are on the pulleys.
12. Always stand on the foot plate while performing an exercise that could cause the
weight system to tip.
13. Never release the arms, leg lever, lat bar, or
handle strap while weights are raised; the
weights will fall with great force.
14. Always disconnect the lat bar from the
weight system before performing an exercise that does not require the lat bar.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
16. Use your weight system only as described in
this manual.
3
Page 4
BEFORE YOU BEGIN
hank you for selecting the versatile WEIDER
T
weight system. The 2980 X weight system offers a
selection of weight stations designed to develop every
major muscle group of the body. Whether your goal is
o tone your body, build dramatic muscle size and
t
strength, or improve your cardiovascular system, the
weight system will help you to achieve the specific
results you want.
For your benefit, read this manual carefully before
you use the weight system. If you have questions
High Pulley Station
Arm Pin
®
980 X
2
fter reading this manual, please see the front cover
a
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
umber decal are shown on the front cover of this
n
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
ASSEMBLED DIMENSIONS:
Height: 6 ft. 4 in. (193 cm)
Width: 3 ft. 1 in. (94 cm)
Depth: 5 ft. 5 in. (165 cm)
Right Side
Backrest
Curl Pad
Seat
Leg Lever Pin
Leg Lever
Low Pulley Station
Foot Plate
Left Side
Arm
Weights
Note: The terms “right side” and “left side” are determined
relative to a person sitting on the seat; they do not correspond to right and left on the drawings in the manual.
4
Page 5
M6 Washer (80)
M8 Washer (59)
M4 Washer
(33)
M10 x 70mm Bolt (72)
M10 x 46mm Bolt (81)
M10 x 63mm Bolt (75)
M10 x 67mm Bolt (71)
M10 x 85mm Bolt (67)
M10 x 25mm Button Screw (77)
M10 x 155mm Bolt (74)
M8 x 65mm Bolt (68)
M8 x 22mm Shoulder Bolt (65)
M6 x 63mm Screw (70)
M6 x 16mm Screw (62)
M4 x 20mm Self-tapping Screw (69)
M10 x 77mm Bolt (79)
M10 x 51mm Bolt (66)
M8 x 63mm Carriage Bolt (64)
M10 Washer (57)
M12 Nut (82)
Large Washer (78)
M10 Locknut (56)
M8 Locknut (58)
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is the key number of the part, from the PART LIST near the end of this manual. Note: If a part is not in the
hardware kit, check to see if it has been preattached.
5
Page 6
ASSEMBLY
To make assembly easier, carefully read the
following information and instructions:
Assembly requires two persons.
•
• Because of its weight and size, the weight system
should be assembled in the location where it will
be used. Make sure that there is enough clearance to walk around the weight system as you
assemble it.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assem-
bling the base and the uprights that form the
skeleton of the weight system.
• The following tools (not included) may be required
for assembly:
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.

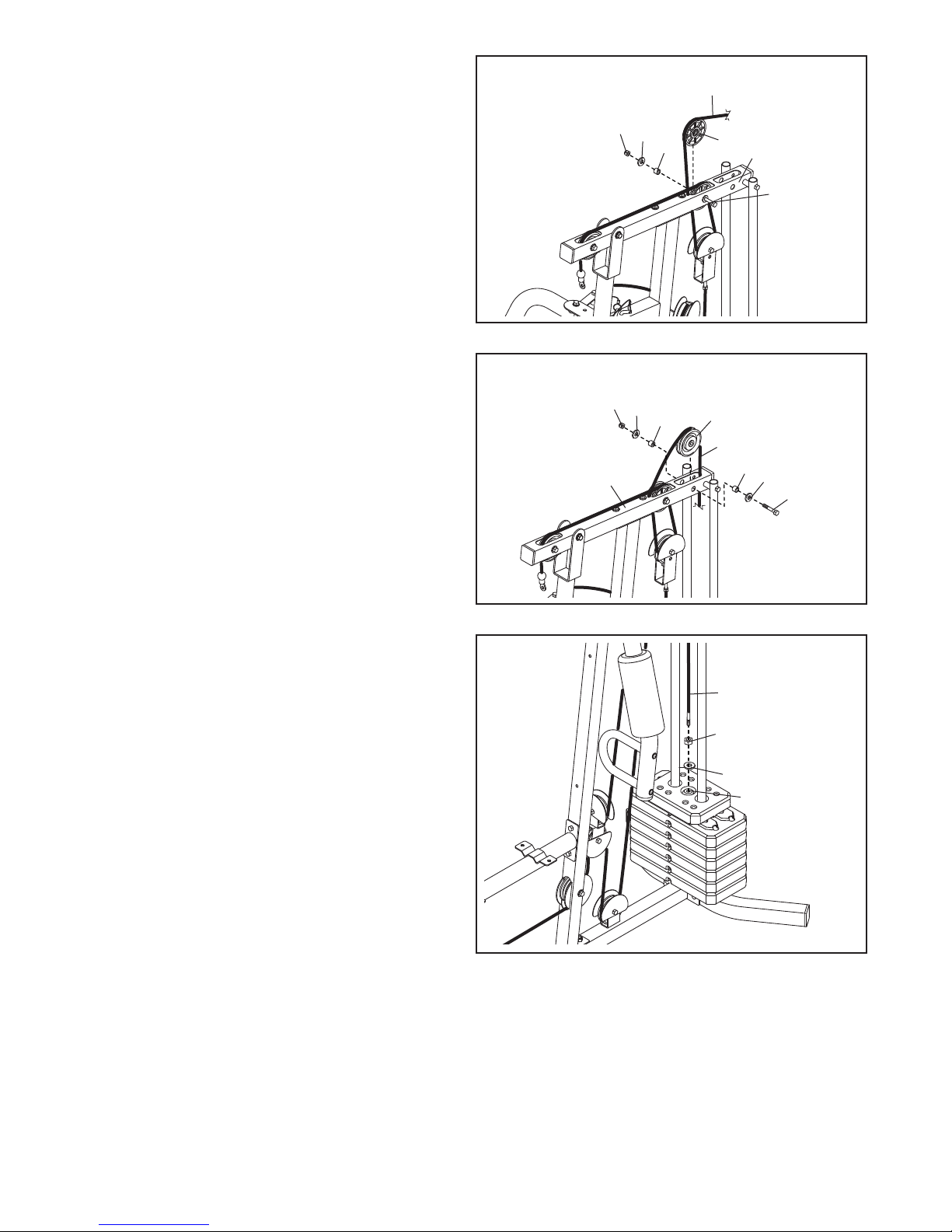

Cable Assembly—During this stage you will
attach the cables and pulleys that connect the
arms to the weights.
Arm Assembly—During this stage you will
assemble the arms and the leg lever.

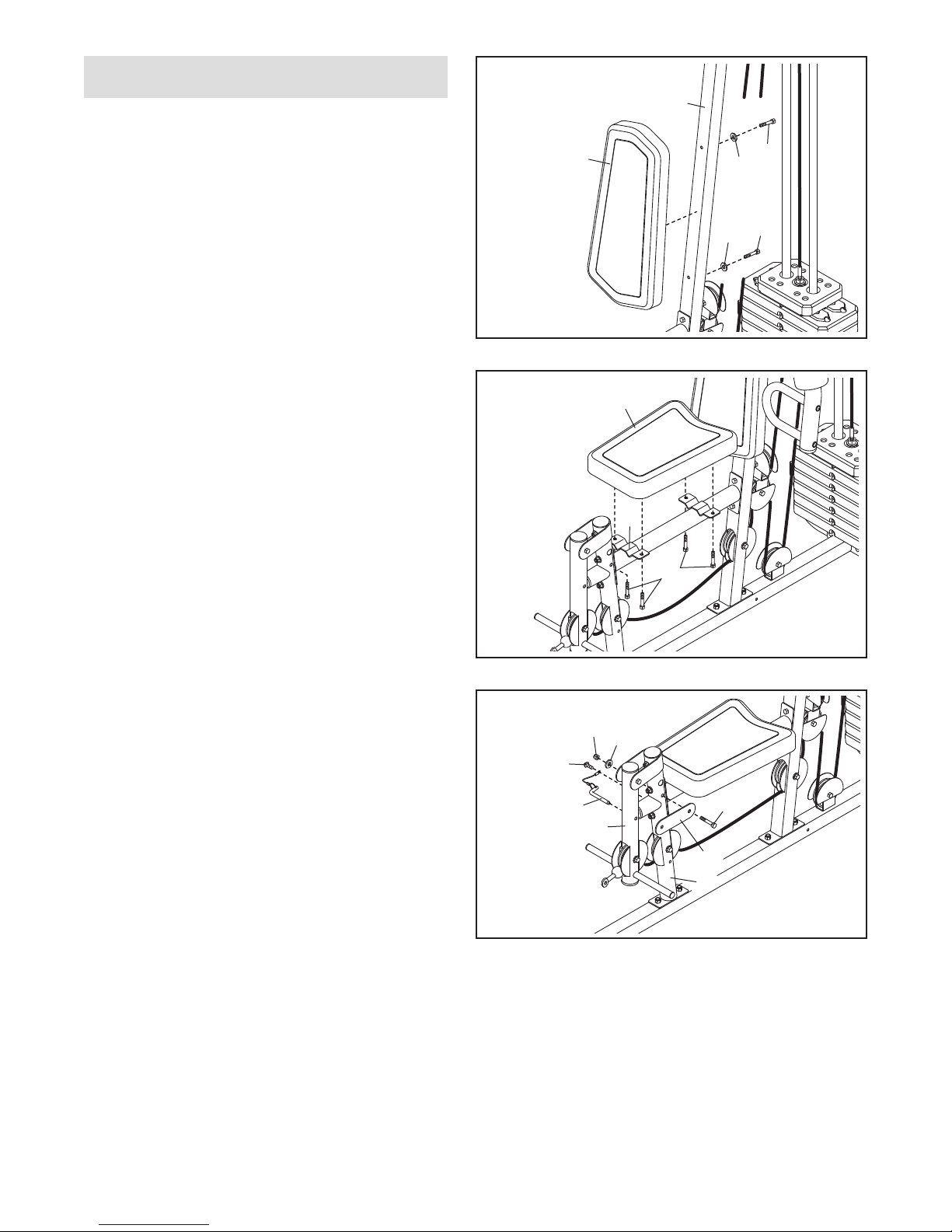

Seat Assembly—During the final stage you will
assemble the seat and the backrest.
6
Page 7
Frame Assembly
1.
To make assembly easier, read the
information on page 6 before you begin.
1
1
Insert four M8 x 63mm Carriage Bolts (64) up
through the Base (1). Note: It may be helpful
to place a piece of tape over the bolt heads
to hold them in place.
2. Orient the two Weight Guides (21) as shown, so
the indicated holes are closer to the lower ends.
Attach the Weight Guides and the Stabilizer (2)
to the Base (1) with two M10 x 67mm Bolts
(71), two M10 Washers (57), and two M10
Nylon Locknuts (56). Fully tighten the Nylon
Locknuts.
Attach the Upright (3) to the Base (1) with the
two indicated M8 x 63mm Carriage Bolts (64)
and two M8 Nylon Locknuts (58). Do not tight-
en the Nylon Locknuts yet.
64
64
2
58
21
21
Holes
3
57
56
58
71
71
1
64
57
2
7
Page 8
3. Attach the Front Leg (7) to the Base (1) with the
two M8 x 63mm Carriage Bolts (64) and two M8
Nylon Locknuts (58). Do not tighten the Nylon
ocknuts yet.
L
ttach the Leg Bumper (60) to the Front Leg (7)
A
with an M4 x 20mm Self-tapping Screw (69)
and an M4 Washer (33). Make sure that the
end of the Leg Bumper is pointing upward.
3
7
Upward
33
8
5
1
64
69
60
5
8
4. Attach the Seat Frame (6) to the Upright (3)
with two M8 x 65mm Bolts (68), two M8
Washers (59), and two M8 Nylon Locknuts (58).
Do not tighten the Nylon Locknuts yet.
Attach the Seat Frame (6) to the Front Leg
(7) in the same way.
5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient the six Weights (22)
with the pin holes on the bottom as shown.
Slide the Weights onto the Weight Guides.
Insert the Weight Selector Cap (23) into the
Weight Selector (24). Insert the Weight Selector
into the six Weights (22). Make sure that the
pin on the Weight Selector is oriented as
shown.
Apply some of the included grease to the indicated holes in the Top Weight (25). Slide the
Top Weight onto the Weight Guides (21).
4
6
59
58
59
5
68
Pin
Hole
25
68
21
68
59
58
68
7
3
21
Grease
Pin
24
23
58
59
22
27
8
Page 9
6. Orient the Top Frame (4) with the welded support on the bottom.
ttach the Top Frame (4) to the Upright (3) with
A
two M8 x 65mm Bolts (68), two M8 Washers
59), and two M8 Nylon Locknuts (58). Do not
(
tighten the Nylon Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (21) with an M10 x 155mm Bolt (74),
two M10 Washers (57), two 19mm Spacers
(76), and an M10 Nylon Locknut (56).
See steps 2–4, and 6. Tighten the M8 Nylon
Locknuts (58).
6
68
59
76
5
76
7
74
21
Welded
Support
9
5
4
56
57
58
58
3
21
Arm Assembly
7. Grease an M10 x 77mm Bolt (79). Orient the
Leg Lever (8) with the welded support on the
side shown. Attach the Leg Lever to the Front
Leg (7) with the Bolt and an M10 Nylon Locknut
(56). Do not overtighten the Nylon Locknut;
the Leg Lever must pivot easily.
8. Grease an M10 x 77mm Bolt (79). Attach the
Pivot Frame (5) to the Top Frame (4) with the
Bolt and an M10 Nylon Locknut (56). Do not
overtighten the Nylon Locknut; the Pivot
Frame must pivot easily.
7
8
Welded
Support
56
8
7
Grease
79
4
Attach the two Arm Pins (40) to the Pivot Frame
(5) with two M4 x 20mm Self-tapping Screws
(69). Insert the Arm Pins into the two holes in
the Upright (3).
Holes
79
3
Grease
69
40
69
40
56
5
9
Page 10

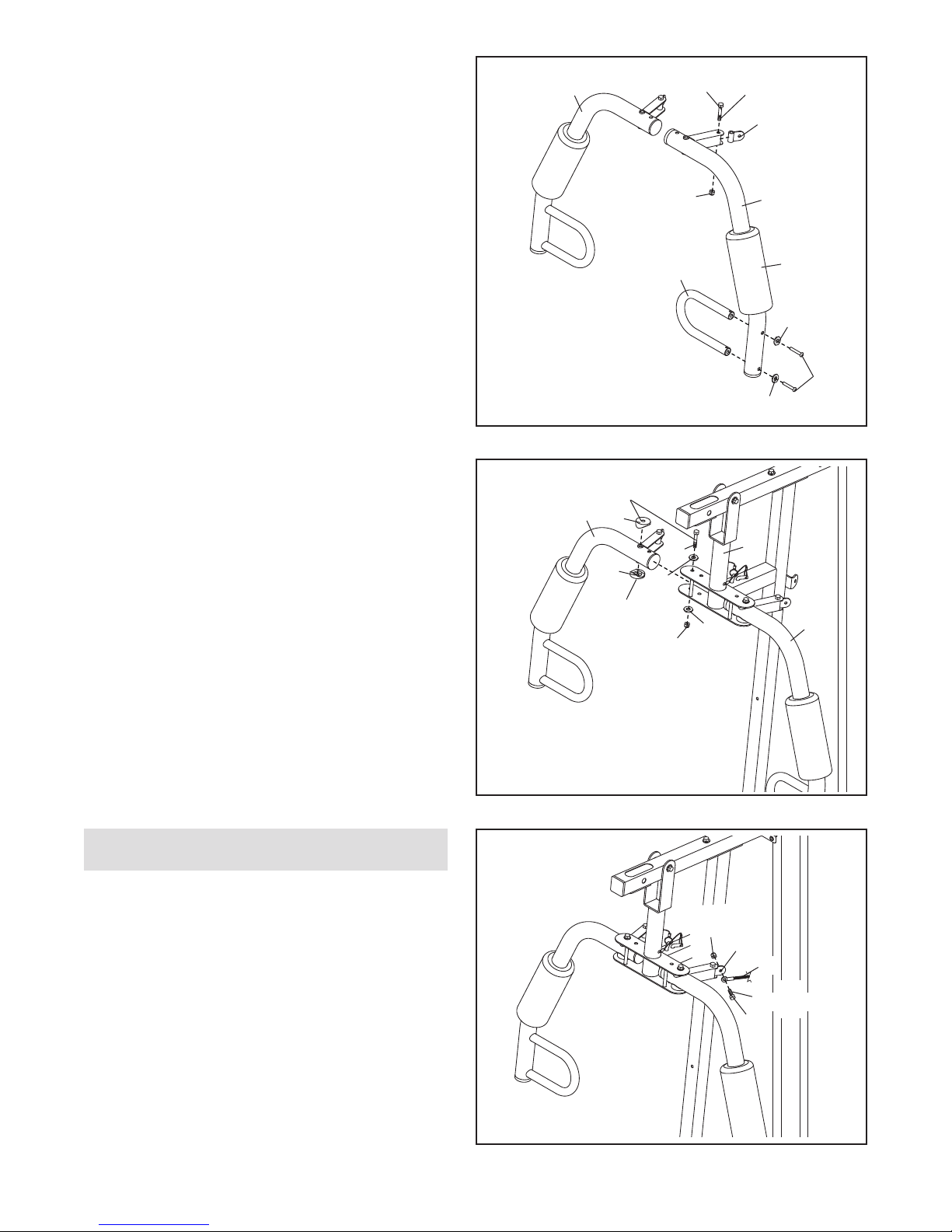

9. Grease an M10 x 51mm Bolt (66). Attach a
Cable Pivot (39) to the Left Arm (10) with the
Bolt and an M10 Nylon Locknut (56). Do not
vertighten the Nylon Locknut; the Cable
o
Pivot must pivot easily.
Wet the inside of a Large Foam Pad (42) with
soapy water. Slide the Large Foam Pad onto
the Left Arm (10).
9
9
56
6
6
Grease
39
10
Attach a Handle (11) to the Left Arm (10) with
two M10 x 25mm Button Screws (77) and two
M10 Washers (57).
Assemble the Right Arm (9) in the same way.
10. Grease an M10 x 85mm Bolt (67) and two Arm
Bushings (44). Attach the Right Arm (9) to the
Pivot Frame (5) with the Bolt, two M10 Washers
(57), the two Arm Bushings, and an M10 Nylon
Locknut (56). Do not overtighten the Nylon
Locknut; the Right Arm must pivot easily.
Attach the Left Arm (10) to the Pivot Frame
(5) in the same way.
10
Grease
9
44
Grease
44
57
56
11
67
57
42
57
77
57
5
10
Cable Assembly

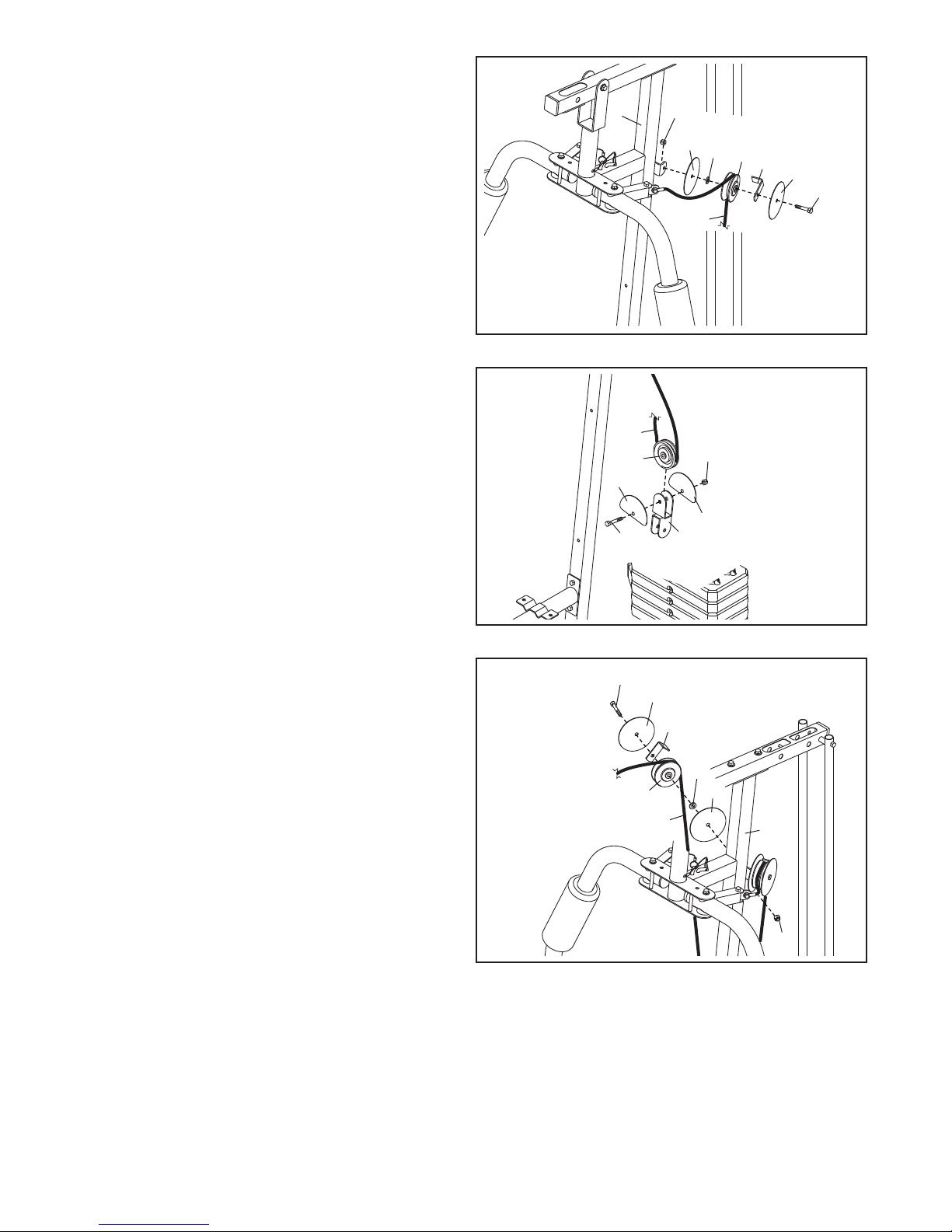

11. See the CABLE DIAGRAM on page 21 to
identify and route the cables.
Identify the Arm Cable (54). Grease an M8 x
22mm Shoulder Bolt (65). Attach the Cable to
the indicated Cable Pivot (39) with the Shoulder
Bolt and an M8 Nylon Locknut (58). Make sure
that the cable end can pivot easily on the
Shoulder Bolt.
11
58
39
54
Grease
65
10
Page 11
12. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
two Full Guards (41), and an M10 Washer (57)
o the Upright (3) with an M10 x 63mm Bolt (75)
t
and an M10 Nylon Locknut (56). Make sure
hat the Cable Trap is oriented to hold the
t
Cable in the groove of the V-pulley.
12
6
3
5
41
57
46
50
41
75
4
5
13. Route the Arm Cable (54) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Nylon Locknut
(56). Make sure that the Half Guards are on
the outside of the U-bracket as shown.
14. Route the Arm Cable (54) over a V-pulley (46).
Attach the V-pulley, a Large Cable Trap (50),
two Full Guards (41), and an M10 Washer (57)
to the Upright (3) with an M10 x 63mm Bolt (75)
and an M10 Nylon Locknut (56). Make sure
that the Cable Trap is oriented to hold the
Cable in the groove of the V-pulley.
13
14
43
75
54
81
48
46
41
54
56
43
63
50
57
41
3
56
11
Page 12
15. Grease an M8 x 22mm Shoulder Bolt (65).
Attach the Arm Cable (54) to the indicated
Cable Pivot (39) with the Shoulder Bolt and an
8 Nylon Locknut (58). Make sure that the
M
cable end can pivot easily on the Shoulder
olt.
B
15
rease
G
65
54
39
58

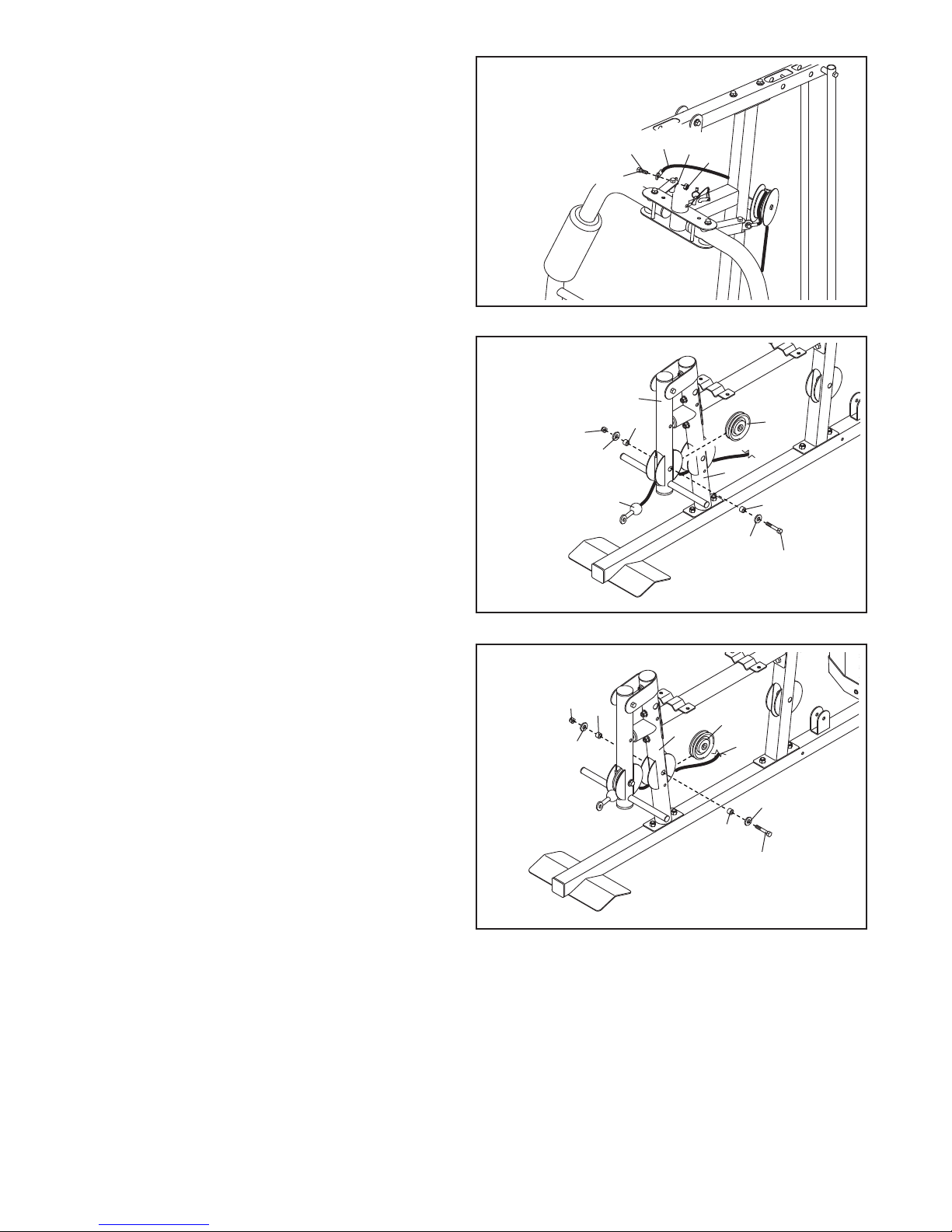

16. Identify the Low Cable (53). Route the Cable
through the Leg Lever (8) and the Front Leg (7).
Attach a 90mm Pulley (48) inside the Leg Lever
(8), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Nylon Locknut
(56).
17. Attach a 90mm Pulley (48) inside the Front Leg
(7), over the Low Cable (53), with an M10 x
67mm Bolt (71), two M10 Washers (57), two
12mm Spacers (52), and an M10 Nylon Locknut
(56).
16
17
56
56
57
57
52
53
8
52
48
7
52
57
71
48
7
53
57
52
71
12
Page 13

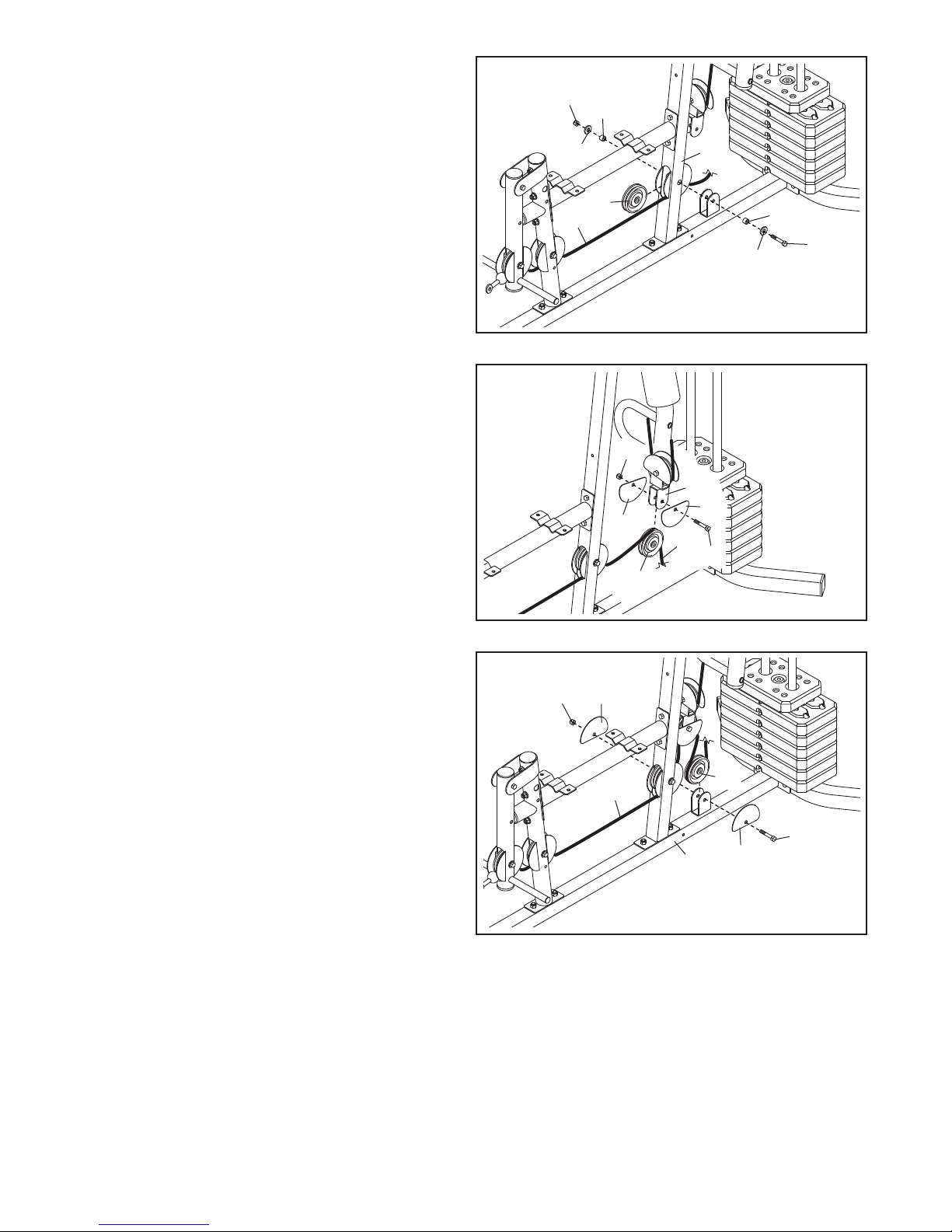

18. Route the Low Cable (53) under a 90mm Pulley
(48) and through the Upright (3). Attach the
Pulley inside the Upright with an M10 x 67mm
olt (71), two M10 Washers (57), two 12mm
B
Spacers (52), and an M10 Nylon Locknut (56).
18
56
57
52
3
19. Route the Low Cable (53) over a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Double U-bracket (63) with an M10 x
46mm Bolt (81) and an M10 Nylon Locknut
(56). Make sure that the Half Guards are on
the outside of the U-bracket as shown.
19
48
3
5
56
63
43
43
53
81
48
52
71
57
20. Route the Low Cable (53) under a 90mm Pulley
(48). Attach the Pulley and two Half Guards (43)
to the Base (1) with an M10 x 46mm Bolt (81)
and an M10 Nylon Locknut (56). Make sure
that the Half Guards are on the outside of
the bracket as shown.
20
56
43
53
48
81
1
43
13
Page 14

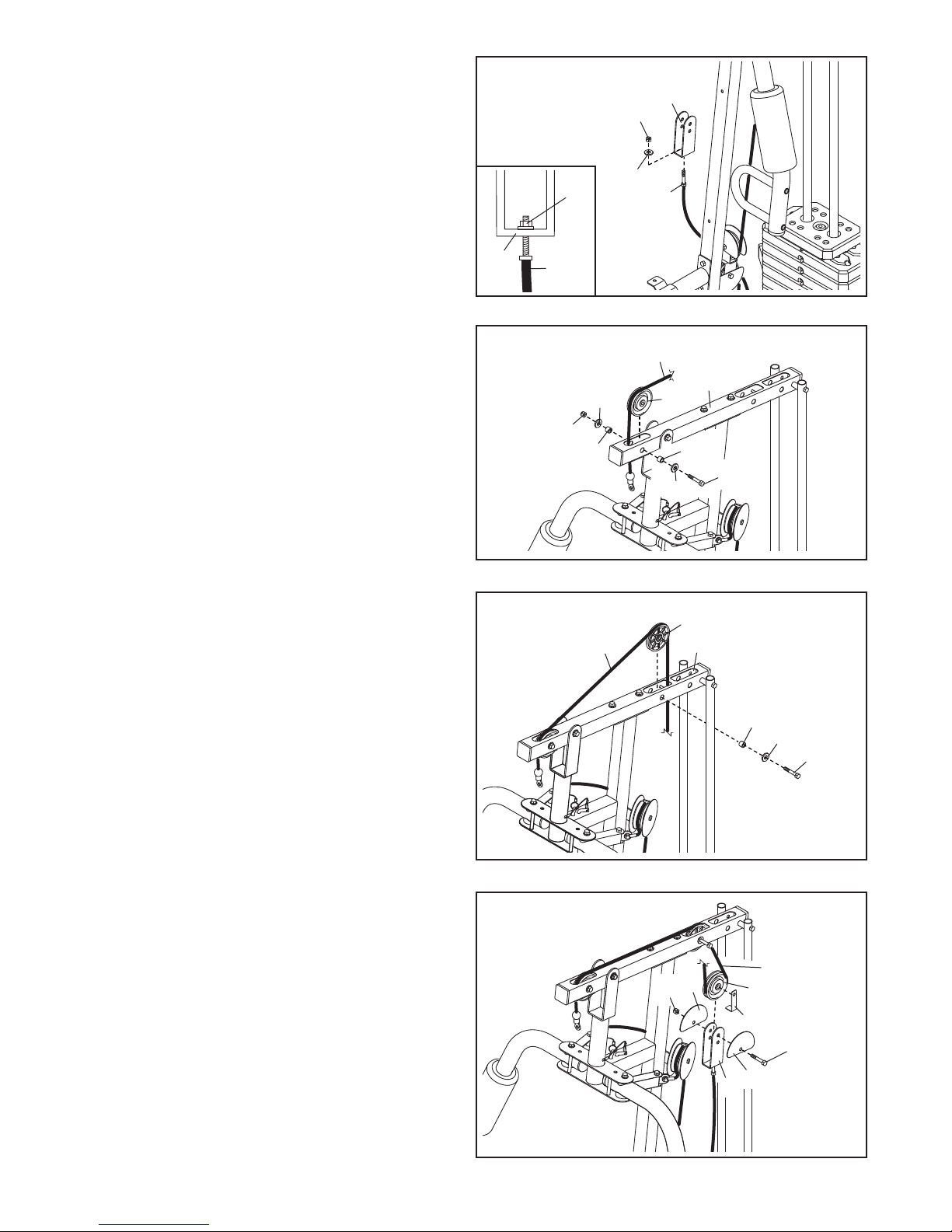

21. Attach the Low Cable (53) to the U-bracket (45)
with an M8 Washer (59) and an M8 Nylon
Locknut (58). See the inset drawing. Do not
vertighten the Nylon Locknut; it should be
o
threaded onto the end of the Cable so that
nly two threads are showing above the
o
Nylon Locknut.
21
58
45
58
59
53
22. Identify the High Cable (55). Route the Cable
up through the Top Frame (4) and over a 90mm
Pulley (48). Attach the Pulley inside the Top
Frame with an M10 x 67mm Bolt (71), two M10
Washers (57), two 12mm Spacers (52), and an
M10 Nylon Locknut (56).
23. Route the High Cable (55) over a 90mm Thin
Pulley (47) and down through the Top Frame
(4). Attach the Thin Pulley inside the Top Frame
with an M10 x 67mm Bolt (71), an M10 Washer
(57), and an 11mm Spacer (49). Make sure
that the Thin Pulley does not fall out of the
Top Frame while you complete steps 24 and
26.
45
22
23
53
56
52
57
55
55
4
48
52
71
57
47
4
49
57
71
24. Wrap the High Cable (55) under a 90mm Pulley
(48). Attach the Pulley, a Cable Trap (51), and
two Half Guards (43) at the upper hole in the Ubracket (45) with an M10 x 51mm Bolt (66) and
an M10 Nylon Locknut (56). Make sure that
the Cable Trap is oriented to hold the Cable
in the groove of the Pulley and that the Half
Guards are on the outside of the U-bracket.
14
24
56
43
45
55
48
51
66
43
Page 15
25. Route the High Cable (55) up through the Top
Frame (4) and over a 90mm Thin Pulley (47).
Attach the Pulley inside the Top Frame with the
10 x 67mm Bolt (71) used in step 23, an
M
11mm Spacer (49), an M10 Washer (57), and
n M10 Nylon Locknut (56).
a
25
56
57
49
5
5
7
4
4
71
26. Route the High Cable (55) over a 90mm Pulley
(48) and down through the Top Frame (4).
Attach the Pulley inside the Top Frame with an
M10 x 67mm Bolt (71), two M10 Washers (57),
two 12mm Spacers (52), and an M10 Nylon
Locknut (56).
27. Completely thread an M12 Nut (82) onto the
High Cable (55). Place a Large Washer (78) on
top of the Weight Selector (24).
Tighten the High Cable (55) into the Weight
Selector (24) until all the slack is removed from
the cables. Tighten the M12 Nut (82) against
the Large Washer (78).
26
27
56
4
57
52
48
55
55
82
78
52
24
57
71
15
Page 16
Seat Assembly
28. Attach the Backrest (16) to the Upright (3) with
two M6 x 63mm Screws (70) and two M6
Washers (80).
28
3
80
80
7
70
0
6
1

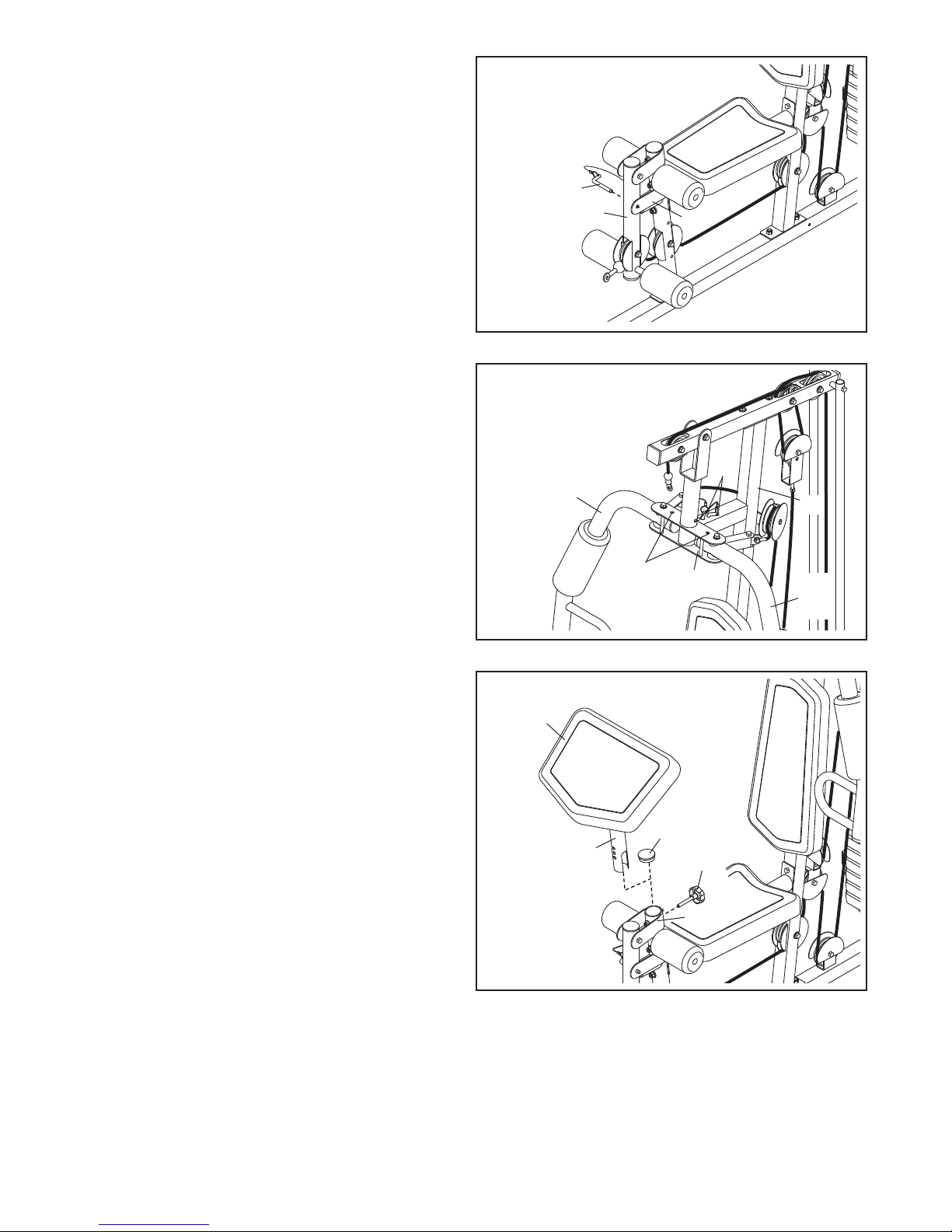

29. Attach the Seat (15) to the Seat Frame (6) with
four M6 x 16mm Screws (62) as shown.
30. Attach the Lock Plate (73) to the Front Leg (7)
with an M10 x 70mm Bolt (72), an M10 Washer
(57), and an M10 Nylon Locknut (56). Do not
overtighten the Nylon Locknut; the Lock
Plate must pivot easily.
Attach the Leg Lever Pin (38) to the Front Leg
(7) with an M4 x 20mm Self-tapping Screw (69).
Insert the Leg Lever Pin through the Leg Lever
(8) and the Lock Plate (73).
29
30
69
38
56
15
6
62
57
72
8
73
7
16
Page 17

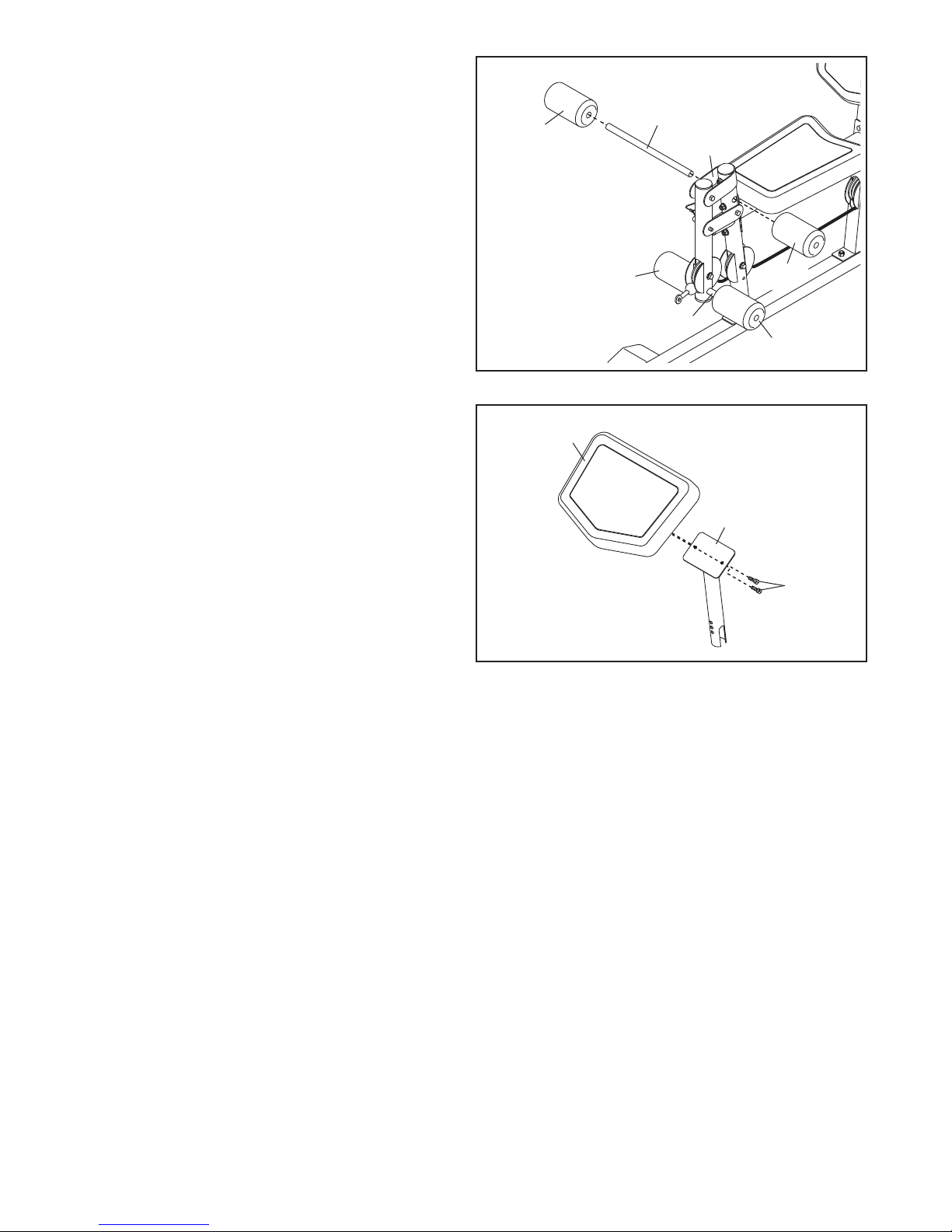

31. Insert the Pad Tube (29) into the Front Leg (7).
Slide two Small Foam Pads (28) onto the ends
of the Pad Tube.
Slide two Small Foam Pads (28) onto the Leg
ever (8).
L
31
29
28
7
28
8
32. Attach the Curl Pad (14) to the Curl Post (13)
with two M6 x 16mm Screws (62).
33. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 18.
32
14
13
28
28
62
Before using the weight system, pull each cable a few times to make sure that the cables move smoothly
around the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT:
If the cables are not properly installed, they may be damaged when heavy weight is used. See the
CABLE DIAGRAM on page 21 for proper cable routing. If there is any slack in the cables, you will
need to remove the slack by tightening the cables. See MAINTENANCE on page 22.
17
Page 18
ADJUSTMENT
his section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 23 for impor-
T
tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for each exercise.
ake sure all parts are properly tightened each time the weight system is used. Replace any worn parts immedi-
M
ately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
CHANGING THE WEIGHT SETTING

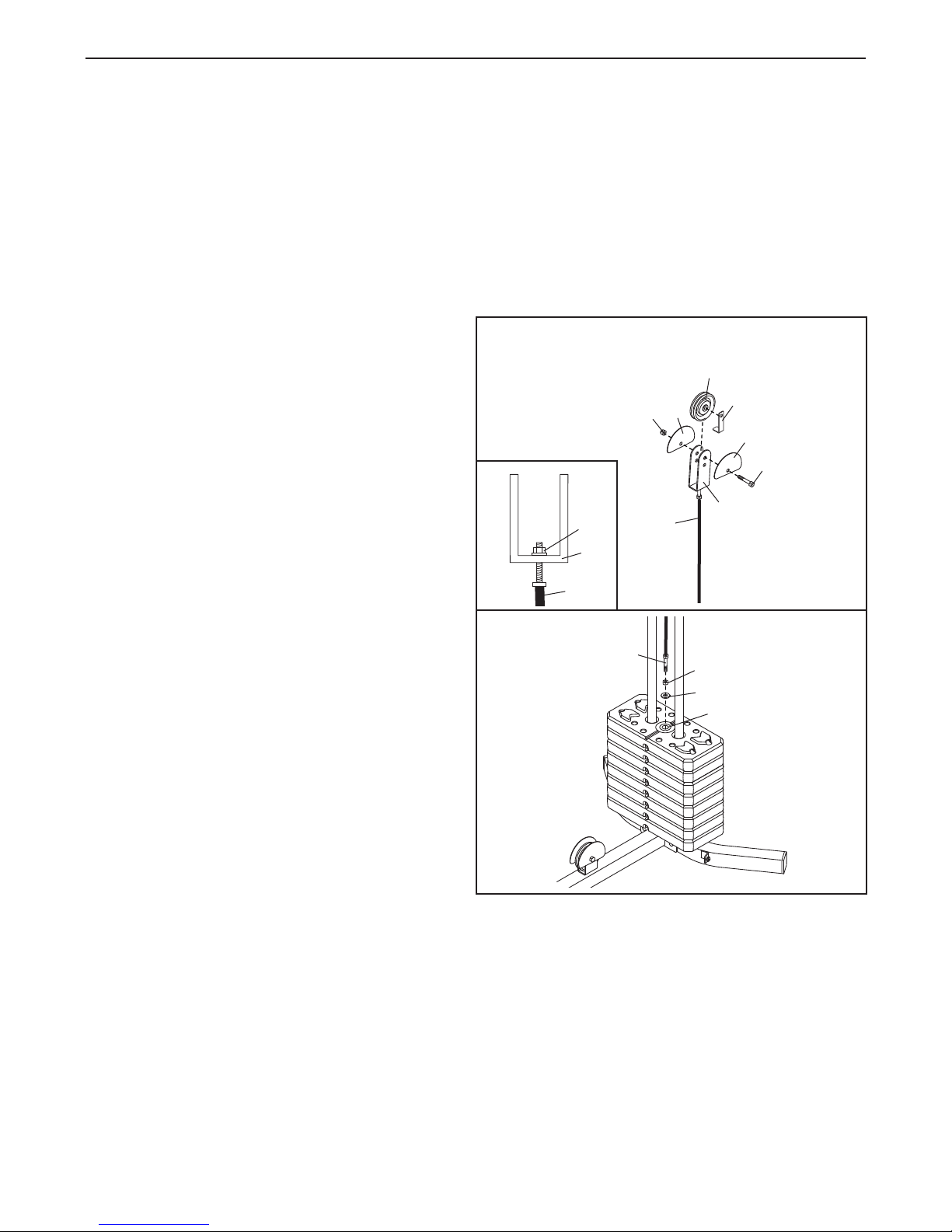

To change the setting of the weight stack, insert the
Weight Pin (26) under the desired Weight (22).
Insert the Weight Pin so that the bent end touches
the weight stack. Turn the bent end down. Note: Do
not use the Top Weight (25) by itself.
Note: Due to the cables and pulleys, the amount
of resistance at each exercise station may vary
from the weight setting. Use the WEIGHT
RESISTANCE CHART on page 20 to find the
approximate amount of resistance for each
weight station.
ATTACHING THE ACCESSORIES TO A PULLEY
STATION
Attach the Lat Bar (35) to the High Cable (55) at the
high pulley station with a Cable Clip (37). For some
exercises, the Chain (19) should be attached
between the Lat Bar and the Cable with two Cable
Clips. Adjust the length of the Chain between
the Lat Bar and the Cable so that the Lat Bar is
in the correct starting position for the exercise
to be performed.
25
22
26
55
37
19
37
The Lat Bar (35) or the Handle Strap (not shown)
can be attached at either pulley station in the same
way. Always engage the Lock Plate (not shown)
before using the low pulley station (see USING
THE LOCK LEVER on page 19).
35
18
Page 19
USING THE LOCK LEVER
Before using the low pulley station, engage the Leg
ever Pin (38) into the Leg Lever (8) and the Lock
L
Plate (73).
ARM CONVERSION
To use the Arms (9, 10) as butterfly arms, insert the
Arm Pins (40) into the holes in the Upright (3) and
the Pivot Frame (5) as shown.
To use the Arms (9, 10) as press arms, insert the
Arm Pins (40) into the holes in the Pivot Frame (5)
and the Arms.
38
9
8
3
7
40
3
USING THE CURL PAD
To use the Curl Pad (14), remove the 50mm Round
Inner Cap (30) from the Front Leg (7). Insert the
Curl Post (13) into the Front Leg and secure it in
place with the Curl Knob (61).
Before performing an exercise that does not require
the Curl Pad (14), remove the Curl Pad and press
the 50mm Round Inner Cap (30) into the Front Leg
(7). Store the Curl Pad away from the weight system.
14
13
Holes
5
10
30
61
7
19
Page 20

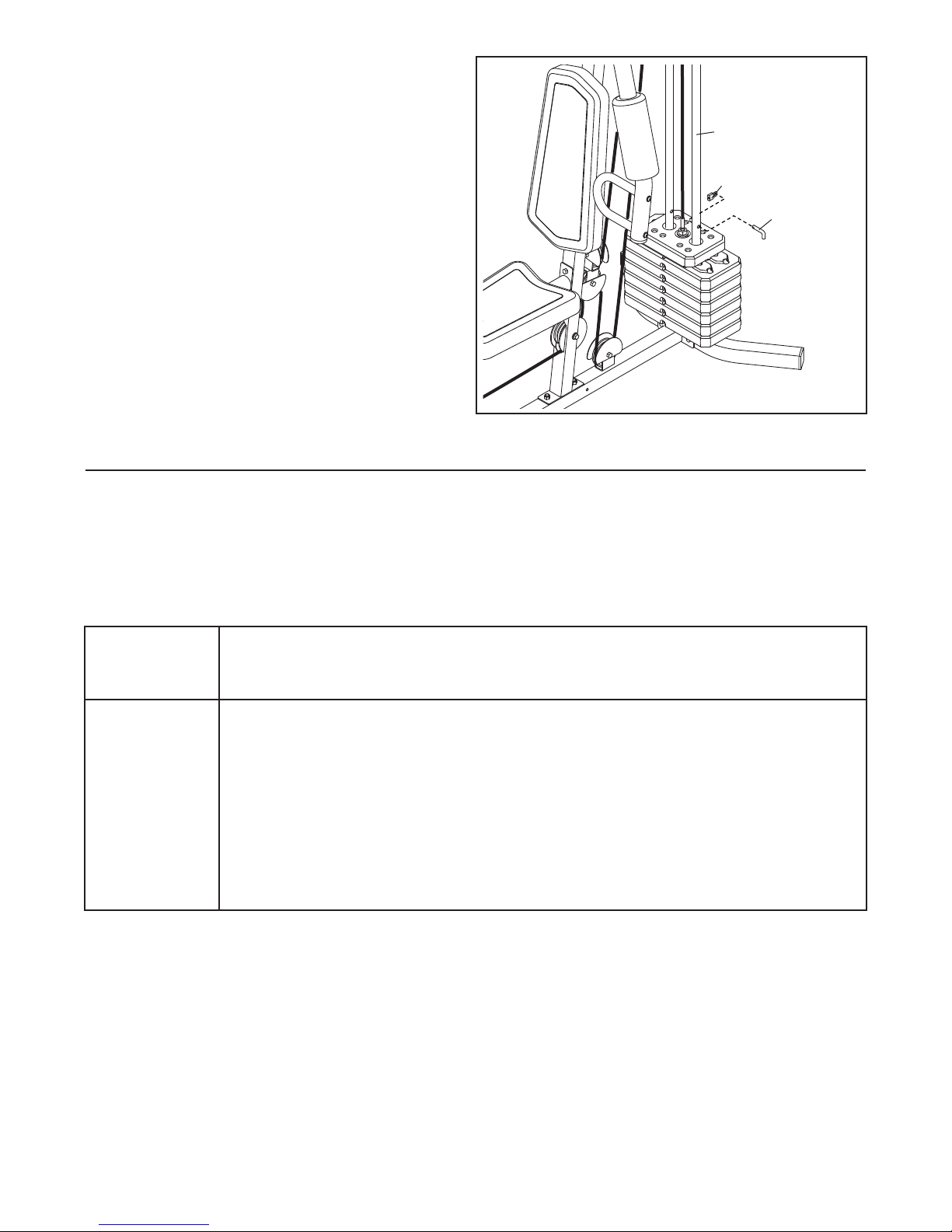

LOCKING THE WEIGHT STACK
Lock the weight stack by inserting the Lock Pin (18)
hrough a Weight Guide (21) and securing the Lock
t
(17) onto the Lock Pin.
WEIGHT RESISTANCE CHART
21
1
7
18
The chart below shows the approximate weight resistance at each exercise station. The numbers in the left column refer to the 12.5-lb. weights. Note: The weight resistance shown for the butterfly arm station is for
each arm. The actual resistance at each station may vary due to differences in individual weights as well
as friction between the cables, pulleys, and weight guides.
WEIGHT
Top
1
2
3
4
5
6
Note: 1 lb. = 0.45 kg
HIGH
PULLEY
(lbs.)
11
26
42
61
70
86
101
BUTTERFLY
ARM
(lbs.)
16
22
30
41
51
63
82
PRESS ARM
(lbs.)
27
44
62
97
127
144
173
LEG LEVER
(lbs.)
27
57
85
111
159
182
214
LOW
PULLEY
(lbs.)
26
55
86
119
148
163
187
20
Page 21
CABLE DIAGRAM
The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper route
of that cable. Use the diagram to make sure that the cables, cable traps, pulleys, and guards are assembled
correctly. If the cables are not assembled correctly, the weight system will not function properly and damage may
ccur. Make sure that the cable traps do not touch or bind the cables.
o
5
Arm Cable (54)
Length: 7 ft. 5 in. (226 cm)
High Cable (55)
Length: 9 ft. 6 in. (290 cm)
4
2
1
3
4
3
1
6
2
5
6
Low Cable (53)
Length: 10 ft. 8 in. (325 cm)
4
3
5
2
1
21
Page 22
MAINTENANCE
Make sure that all parts are properly tightened each time the weight system is used. Replace any worn parts
immediately. The weight system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not
use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is
slack in the cables before resistance is felt, the cables should be tightened. To tighten the cables, first insert the
weight pin into the middle of the weight stack. Slack can be removed from these cables several ways:
See the inset drawing. Tighten the M8 Nylon
Locknut (58) that connects the end of the Low
Cable (53) to the U-bracket (45).
48
Remove the M10 Nylon Locknut (56) and the M10 x
51mm Bolt (66) from the Cable Trap (51), the
90mm Pulley (48), the two Half Guards (43), and
the U-bracket (45). Reattach the Pulley, Cable Trap,
and Half Guards to the other hole in the U-bracket.
Make sure that the Cable Trap is in the proper
position and that the Low Cable (53) and Pulley
move smoothly.
Loosen the M12 Nut (82) on the High Cable (55).
Tighten the Cable into the Weight Selector (24) until
the slack is removed from the Cable. Then, retighten the M12 Nut against the Large Washer (78).
53
58
45
55
56
53
43
51
43
66
45
82
78
24
Do not overtighten the cables. If the cables are overtightened, the top weight will be lifted off the weight
stack. If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and
reinstall it. If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of
this manual.
22
Page 23
EXERCISE GUIDELINES
FOUR TYPES OF STRENGTH WORKOUTS
Note: A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions.
Muscle Building—Work your muscles near their maximum capacity and progressively increase the intensity
of your exercise. Adjust the intensity level of an individual exercise as follows:
• Change the amount of resistance used.
• Change the number of repetitions or sets performed.
Use your own judgment to determine the amount of
resistance that is right for you. Begin with 3 sets of 8
repetitions for each exercise you perform. Rest for 3
minutes after each set. When you can complete 3 sets
of 12 repetitions without difficulty, increase the amount
of resistance.
Toning—Tone your muscles by working them to a
moderate percentage of their capacity. Select a moderate amount of resistance and increase the number
of repetitions in each set. Complete as many sets of
15 to 20 repetitions as possible without discomfort.
Rest for 1 minute after each set. Work your muscles
by completing more sets rather than by using high
amounts of resistance.
Weight Loss—To lose weight, use a low amount of
resistance and increase the number of repetitions in
each set. Exercise for 20 to 30 minutes, resting for a
maximum of 30 seconds between sets.
Warming Up—Start with 5 to 10 minutes of stretching
nd light exercise. A warm-up increases your body
a
temperature, heart rate, and circulation in preparation
for exercise.
Working Out—Include 6 to 10 different exercises in
each workout. Select exercises for every major muscle
group, emphasizing areas that you want to develop. To
give balance and variety to your workouts, vary the
exercises from workout to workout.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FORM
Move through the full range of motion for each exercise and move only the appropriate parts of the body.
Perform the repetitions in each set smoothly and without pausing. The exertion stage of each repetition
should last about half as long as the return stage.
Exhale during the exertion stage of each repetition and
inhale during the return stroke. Never hold your
breath.
Rest for a short period of time after each set:
• Muscle Building—Rest for three minutes after each
set.
• Toning—Rest for one minute after each set.
• Weight Loss—Rest for 30 seconds after each set.
STAYING MOTIVATED
Cross Training—Combine strength training and aero-
bic exercise by following this type of program:
• Strength workouts on Monday, Wednesday, and
Friday.
• 20 to 30 minutes of aerobic exercise on Tuesday
and Thursday.
• One full day of rest each week to give your body
time to regenerate.
WORKOUT GUIDELINES
Familiarize yourself with the equipment and learn the
proper form for each exercise. Use your own judgment
to determine the appropriate length of time for each
workout, and the numbers of repetitions and sets to
complete. Progress at your own pace and be sensitive
to your bodyʼs signals. Follow each strength workout
with at least one day of rest.
For motivation, keep a record of each workout. Write
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions completed. Record your weight and key body measurements once a month. To achieve good results, make
exercise a regular and enjoyable part of your life.
23
Page 24
NOTES
24
Page 25
PART LIST—Model No. 30295.0 R0709A
Key No. Qty. Description Key No. Qty. Description
11Base
2
31Upright
41Top Frame
51Pivot Frame
61Seat Frame
71Front Leg
81Leg Lever
91Right Arm
10 1 Left Arm
11 2 Handle
12 1 Square Plate
13 1 Curl Post
14 1 Curl Pad
15 1 Seat
16 1 Backrest
17 1 Lock
18 1 Lock Pin
19 1 Chain
20 1 Handle Strap
21 2 Weight Guide
22 6 Weight
23 1 Weight Selector Cap
24 1 Weight Selector
25 1 Top Weight
26 1 Weight Pin
27 2 Weight Bumper
28 4 Small Foam Pad
29 1 Pad Tube
30 8 50mm Round Inner Cap
31 5 50mm Square Inner Cap
32 1 38mm Square Outer Cap
33 1 M4 Washer
34 4 19mm Round Inner Cap
35 1 Lat Bar
36 2 Handgrip
37 3 Cable Clip
38 1 Leg Lever Pin
39 2 Cable Pivot
40 2 Arm Pin
41 4 Full Guard
42 2 Large Foam Pad
43 8 Half Guard
1 Stabilizer
44 4 Arm Bushing
5 1 U-bracket
4
46 2 V-pulley
47 2 90mm Thin Pulley
48 9 90mm Pulley
49 2 11mm Spacer
50 2 Large Cable Trap
51 1 Cable Trap
52 10 12mm Spacer
53 1 Low Cable
54 1 Arm Cable
55 1 High Cable
56 22 M10 Nylon Locknut
57 27 M10 Washer
58 13 M8 Nylon Locknut
59 7 M8 Washer
60 1 Leg Bumper
61 1 Curl Knob
62 6 M6 x 16mm Screw
63 1 Double U-bracket
64 4 M8 x 63mm Carriage Bolt
65 2 M8 x 22mm Shoulder Bolt
66 3 M10 x 51mm Bolt
67 2 M10 x 85mm Bolt
68 6 M8 x 65mm Bolt
69 4 M4 x 20mm Self-tapping Screw
70 2 M6 x 63mm Screw
71 8 M10 x 67mm Bolt
72 1 M10 x 70mm Bolt
73 1 Lock Plate
74 1 M10 x 155mm Bolt
75 2 M10 x 63mm Bolt
76 2 19mm Spacer
77 4 M10 x 25mm Button Screw
78 1 Large Washer
79 2 M10 x 77mm Bolt
80 2 M6 Washer
81 3 M10 x 46mm Bolt
82 1 M12 Nut
*–Userʼs Manual
*–Exercise Guide
*–Grease Packet
*–Hex Key
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
25
Page 26
1
5
6
7
9
5
6
7
67
57
57
69
57
56
56
40
58
39
54
65
66
44
44
56
30
66
44
44
56
65
54
39
58
42
42
11
11
30
77
30
77
13
62
36
35
3
6
37
6
62
62
68
68
68
68
61
58
58
56
57
30
28
34
34
29
28
69
33
30
56
79
52
57
56
52
48
57
30
71
34
28
53
28
69
57
56
52
48
58
58
52
73
72
71
31
64
64
81
43
43
56
48
71
71
8
34
60
57
9
10
7
40
69
57
57
59
59
38
19
20
57
30
14
15
EXPLODED DRAWING A—Model No. 30295.0 R0709A
26
Page 27
2
3
31
31
26
22
27
27
21
57
56
57
24
23
25
78
82
55
74
56
55
48
31
52
57
71
47
52
57
5
6
4
56
57
57
49
52
4
8
3
1
52
49
57
57
71
53
43
66
4
3
48
56
51
58
59
45
32
70
80
56
56
41
57
46
50
41
75
41
58
58
57
46
59
59
68
50
41
75
70
80
58
59
57
57
56
52
52
71
58
58
48
56
56
81
43
4
8
43
48
43
43
63
81
76
57
57
12
17
18
16
EXPLODED DRAWING B—Model No. 30295.0 R0709A
27
Page 28
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
T
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,
under normal use and service conditions. Parts and labor are warranted for ninety (90) days from the date
of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. This warranty does not
extend to any damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; products used for
commercial or rental purposes; or products used as store display models. No other warranty beyond that
specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of
incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from province to
province.
ICON of Canada, Inc., 900 de lʼIndustrie, St. Jérôme, QC J7Y 4B8
Part No. 285103 R0709A Printed in China © 2009 ICON IP, Inc.
Loading...
