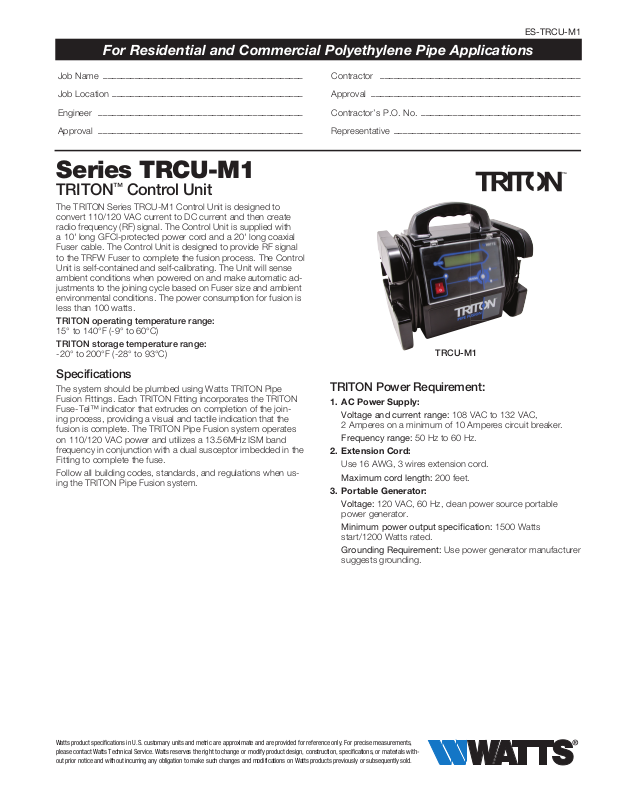

Series TRCU-M1

TRITON™ Control Unit

The TRITON Series TRCU-M1 Control Unit is designed to
convert 110/120 VAC current to DC current and then create
radio frequency (RF) signal. The Control Unit is supplied with
a 10' long GFCI-protected power cord and a 20' long coaxial
Fuser cable. The Control Unit is designed to provide RF signal
to the TRFW Fuser to complete the fusion process. The Control
Unit is self-contained and self-calibrating. The Unit will sense
ambient conditions when powered on and make automatic ad­justments to the joining cycle based on Fuser size and ambient
environmental conditions. The power consumption for fusion is
less than 100 watts.

TRITON operating temperature range:
15° to 140°F (-9° to 60°C)

TRITON storage temperature range:

-20° to 200°F (-28° to 93°C)

Contractor

Approval

Contractor’s P.O. No.

Representative

––––––––––––––––––––––––––––––––––––––––––––

––––––––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––––––––

–––––––––––––––––––––––––––––––––––

TM

TRCU-M1

Specifications

The system should be plumbed using Watts TRITON Pipe
Fusion Fittings. Each TRITON Fitting incorporates the TRITON
Fuse-Tel™ indicator that extrudes on completion of the join­ing process, providing a visual and tactile indication that the
fusion is complete. The TRITON Pipe Fusion system operates
on 110/120 VAC power and utilizes a 13.56MHz ISM band
frequency in conjunction with a dual susceptor imbedded in the
Fitting to complete the fuse.

Follow all building codes, standards, and regulations when us­ing the TRITON Pipe Fusion system.

TRITON Power Requirement:

1. AC Power Supply:

Voltage and current range: 108 VAC to 132 VAC,
2 Amperes on a minimum of 10 Amperes circuit breaker.

Frequency range: 50 Hz to 60 Hz.

2. Extension Cord:

Use 16 AWG, 3 wires extension cord.

Maximum cord length: 200 feet.

3. Portable Generator:

Voltage: 120 VAC, 60 Hz, clean power source portable
power generator.

Minimum power output specification: 1500 Watts
start/1200 Watts rated.

Grounding Requirement: Use power generator manufacturer
suggests grounding.

Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with­out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.

Dimensions — Weights

c

A

B

MODEL DEscriptiOn DiMEnsiOns WEight

A B C

TRCU1-M1 CONTROL UNIT 123⁄4 323.9 14 355.6 9 228.6 11.00 4.994

in. mm in. mm in. mm Lb g

A Watts Water Technologies Company

USA: Tel: [phone] • Fax: [phone] • www.watts.com

Canada: Tel: [phone] • Fax: [phone] • www.watts.ca

ES-TRCU-M1 1315 © 2013 Watts
