Watts WCA-411, WCA-411-WC User Manual

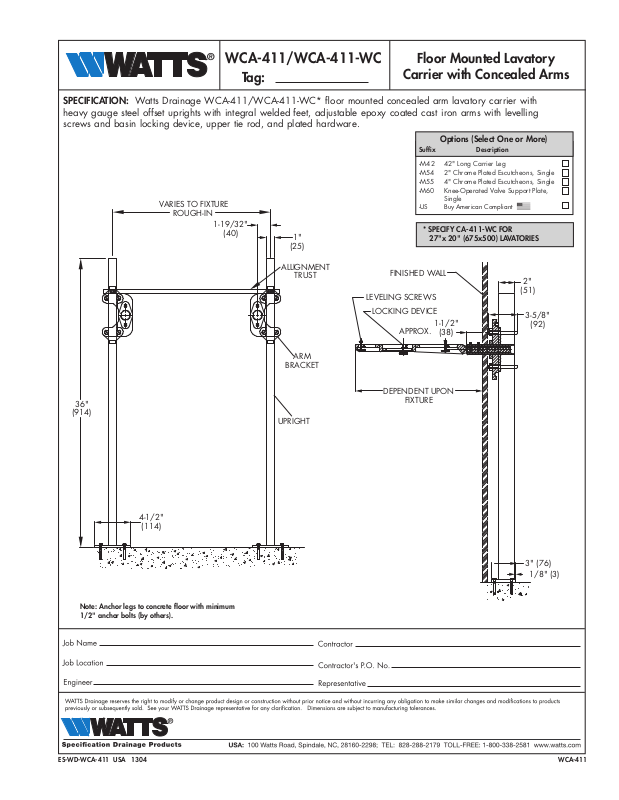

WCA-411/WCA-411-WC

Floor Mounted Lavatory



























































Tag:

Carrier with Concealed Arms













































SPECIFICATION: Watts Drainage WCA-411/WCA-411-WC* floor mounted concealed arm lavatory carrier with heavy gauge steel offset uprights with integral welded feet, adjustable epoxy coated cast iron arms with levelling screws and basin locking device, upper tie rod, and plated hardware.

VARIES TO FIXTURE

ROUGH-IN

1-19/32"

(40)

36"

(914)

4-1/2" (114)

Options (Select One or More)

Suffix Description

-M42 42" Long Carrier Leg

-M54 2" Chrome Plated Escutcheons, Single

-M55 4" Chrome Plated Escutcheons, Single

-M60 Knee-Operated Valve Support Plate,

Single

-US

Buy American Compliant

* SPECIFY CA-411-WC FOR

1" 27"x 20" (675x500) LAVATORIES

(25)

ALLIGNMENT

FINISHED WALL



TRUST

2"













LEVELING SCREWS



(51)









LOCKING DEVICE



3-5/8"



1-1/2"



(92)



APPROX.

(38)



ARM







BRACKET









DEPENDENT UPON





FIXTURE





UPRIGHT













3" (76)







1/8" (3)

Note: Anchor legs to concrete floor with minimum 1/2" anchor bolts (by others).

ES-WD-WCA-411 USA 1304

WCA-411
