240 Volt Panini Ottimo®/Tostato Ottimo
Dual Italian-Style Panini Grills
®
029824
5/32" Short Arm Hex Key
Allen Wrench
1
2
032000
Cleaning Brush
WDG300
half flat plates/half ribbed plates
WFG300
flat grill
WPG300
ribbed grill
Unit Information
3200 Watts 240 Volts
NEMA 6-20
Grill takes about 10 minutes to warm up.
17 x 9.25" Cooking Surface
3
4
6
11
9
8
10
7
503186
WDG300 Base Unit Assembly
503135
WFG300 Base Unit Assembly
5
503136
WPG300 Base Unit Assembly
Graphic by: Sandra A. Montysko Revised May 4, 2018 Approved 5/4/18 Page 1 of 6
12
Base Unit Components
53
56
14
13
54
12
17
55
23
26
17
57
31
29
30
24
25
18
27
34
16
15
32
33
22
14
13
20
21
19
28
35
62
60
63
2
69
1
64
58
61
59
68
70
71
66
65
67
46
39
40
43
42
44
49
48
41
37
36
38
45
47
50
Page 2 of 6 Revised May 4, 2018
72
51
52
Catalog/Model
WDG300
WFG300
WPG300
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
Illustration# Part# Description
1 028625 Pivot Bracket Screw Set (1 small and 1 large per side)
2 028624 Pivot Bracket (2 required per unit)
3 028627 Set Screw
4 028626 Control Knob
(4 required per unit)
(2 required per unit)
5 029504 Drip Tray
6 028622 Foot
7 028623 Foot Screw
8 029478 On/Off Switch
(4 required per unit)
(4 required per unit)
(2 required per unit)
9 030018 Indicator Light (2 required per unit)
10 030013 Thermostat (2 required per unit per unit)
11 029943 Thermostat Screw
(4 required per unit)
12 030080 Cover (2 required per unit)
13 029946 Washer (8 required per unit)
14 029947 Screw (8 required)
15 029950 Hex Head Bolt
(2 required per unit)
16 029951 Washer (2 required)
17 030057 Top Insulation Plate (2 required per unit)
18 030058 Top Insulation (2 required per unit)
19 030059 Top Element Plate (2 required per unit)
20 029962 Hex Head Bolt (8 required per unit)
21 029963 Spring Washer (8 required per unit)
22 029964 Washer (8 required per unit)
23 029956 Fiber Sleeve (4 required per unit)
24 029957 Plastic Sleeve (4 required per unit)
25 029958 Screw (4 required per unit)
26 029959 Washer (4 required per unit)
27 030060 Top Element (2 required per unit)
28 030061 Top Flat Grill Plate (1 or 2 per unit)
030062 Top Ribbed Plate (1 or 2 per unit)
Revised May 4, 2018 Page 3 of 6
Catalog/Model
WDG300
WFG300
WPG300
Illustration# Part# Description
29 036549 Screw (2 required per tension bracket on units after 10/18/2017)
030054 Screw (2 required)
30 036550 Tension Bolts (2 required per tension bracket on units after 10/18/2017)
030055 Tension Screw (2 required)
31 036548 2 Piece Tension Bracket (2 required per unit on units after 10/18/2017)
030056 Tension Bracket (2 required)
32 029992 Screw (8 required per unit)
33 029993 Spring Washer (8 required per unit)
34 030063 Large Handle Bracket (4 required per unit)
35 036571 Bottom Flat Grill Plate (on units after 10/18/2017)
030064 Bottom Flat Grill Plate
036572 Bottom Ribbed Grill Plate
030065 Bottom Ribbed Grill Plate
036573
030066 Bottom Half Flat & Half Ribbed Grill Plate
Bottom Half Flat & Half Ribbed Grill Plate (on units after 10/18/2017)
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
(on units after 10/18/2017)
36 029973 Thermostat Bracket
(2 required per unit)
37 029974 Washer (4 required per unit)
38 029975 Screw (4 required per unit)
39 029956 Fiber Sleeve (4 required per unit)
40 029957 Plastic Sleeve (4 required per unit)
41 029958 Screw (4 required per unit)
42 029959 Washer (4 required per unit)
43 030067 Bottom Element (2 required)
44 030068 Bottom Element Plate (2 required per unit)
45 029964 Washer (8 required per unit)
46 029963 Spring Washer (8 required per unit)
47 029962 Hex Head Bolt (8 required per unit)
48 029980 Nut (2 required per unit)
49 030069 Bottom Insulation (2 required per unit)
50 030070 Bottom Insulation Plate (2 required per unit)
51 029951 Washer (2 required per unit)
52 029980 Nut (2 required per unit)
53 029985 Screw (4 required per unit)
Page 4 of 6 Revised May 4, 2018
Catalog/Model
WDG300
WFG300
WPG300
Illustration# Part# Description
54 029986 Washer (4 required per unit)
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
55 036569
Rear Cover w/ Tension Cover (2 required per unit on units after 10/18/2017)
030071 Rear Cover w/ Tension Cover (2 required per unit)
56 036570
030072 Rear Cover Plate w/ Tension Hole (2 required per unit)
Rear Cover Plate w/ Tension Hole (2 required per unit on units after 10/18/2017)
57 030073 Large Handle (2 required per unit)
58 029990 Hex Head Screw (4 required per unit)
59 029991 Nut (4 required per unit)
60 030074 Thermal Cut-off (2 required per unit)
61 030075 Screw (4 required per unit)
62 030076 Lock Washer (4 required per unit)
63 029997 Washer (4 required per unit)
64 029998 Nut (4 required per unit)
65 029999 Washer (4 required per unit)
66 030000 Spring Washer (4 required per unit)
67 030001 Bolt (4 required per unit)
68 013731 Wire Tie (11 required per unit)
69 030077 20" Red Lead
70 030078 17
"
Red Lead
71 030079 Bottom Housing Plate
72 030006 Screw
(8 required per unit)
033697

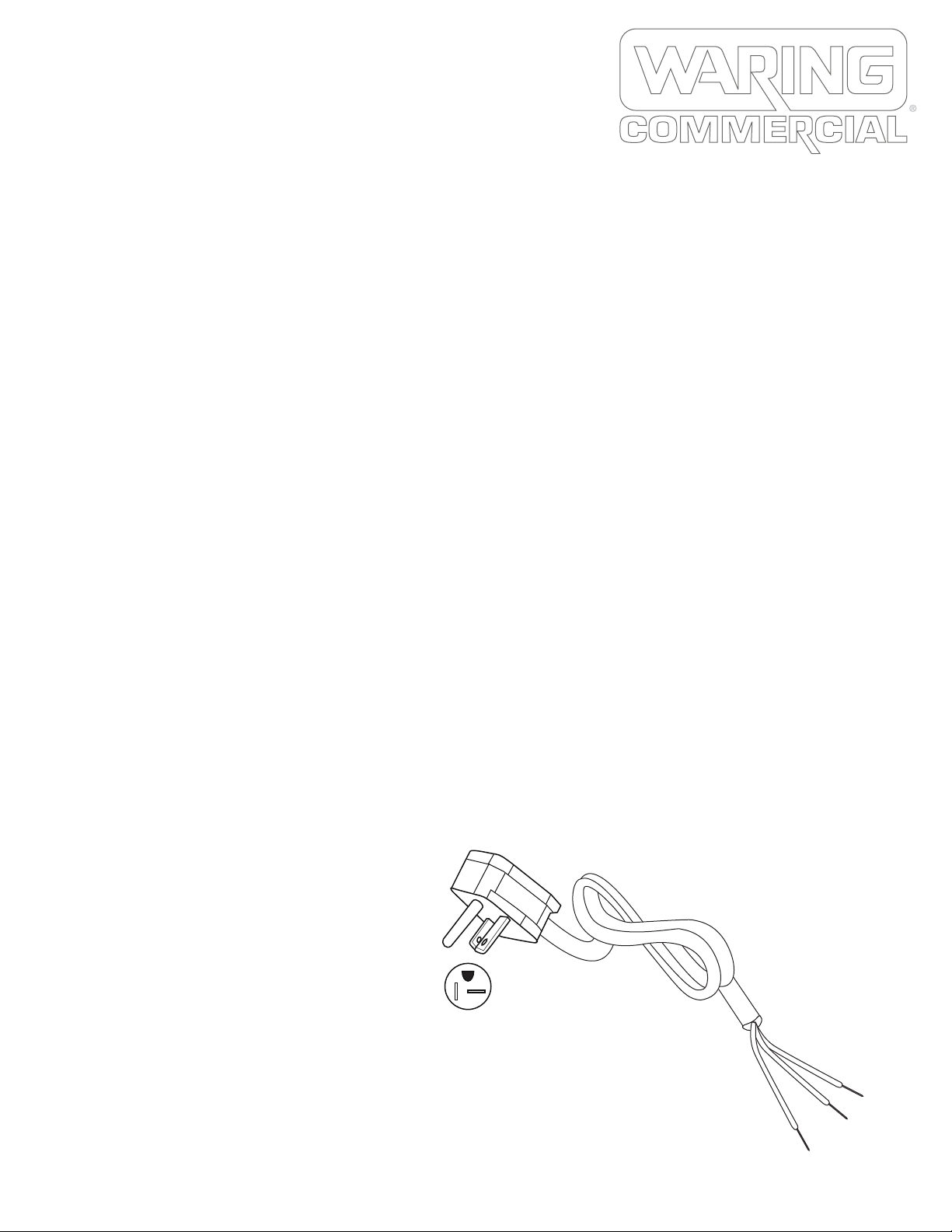

Cord 240 Volt NEMA 6-20P
* Certified replacement of the cord set can
only be performed by an Authorized Service Center
or the Waring Factory Service Center.
Revised May 4, 2018 Page 5 of 6
Catalog/Model
WDG300
WFG300
WPG300
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
www.waringcommercialproducts.com
Fax 860-496-9017
033053 - Coil
(2 required
per unit
)
(on units after 10/18/2017)
29
Page 6 of 6 Revised May 4, 2018
31
30
1st Generation
Tension Bracket
