Page 1
Unit Information
WCT800
Amps 19 • Watts 2200
WCT810
Amps 17 • Watts 2025
120 Volt Toasters
Plug Configuration
WCT800 or WCT810
WCT800RC or WCT820
WCT8206
WCT800RC
Amps 15 • Watts 1800
WCT820 - WCT8206
Amps 12.5 • Watts 1500
1
2
WCT800
"
Four 1
1/8
Toast Slots
WCT800RC
1/8
Four 1
"
Toast Slots
WCT810
Two 1
Two
1/8
" Toast Slots
5/8
1
" Extra Wide Slots
WCT820
Four Bagel Slots
WCT8206
Four Bagel Slots with 6 Ft. Cord
3
4
3
4
2
15
16
5
14
6
10
11
12
13
Graphic By Sandra A. Montysko Revised April 14, 2014 Approved 4/22/14 Page 1 of 5
HEAVY DUTY TOASTER
7
9
8
Page 2
1
WCT800 – WCT800RC
WCT810 – WCT820
WCT8206
15
22
16
20
26a
28
9
34
35
5
6
36
21
27
25
23
24
26
29
32
33
59
42
17
18
19
37
38
39
40
41
7
58
Page 2 of 5 Revised April 14, 2014
12
10
13
11
44
55
8
17
48
56
30
31
47
54
43
45
49
Back View
50
53
46
57
51
52
Page 3
Catalog#/Model
WCT800
WCT800RC
WCT810
WCT820
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringcommercialproducts.com
WCT8206
Illustration # Part # Description
1 027219 Top Cover Plate for WCT800, WCT800RC
027169 Top Cover Plate for WCT810
029825 Top Cover Plate for WCT820, WCT8206
2 027170 Push Knob
(2 required)
3 027171 Push Knob (2 required)
4 027172 Screw
(2 required)
5 027173 Set Screw (2 required)
6 027174 Browning Control Knob
7 027175 Crumb Tray
8 027176 Cord Set for WCT800, WCT810
027941 Cord Set for WCT800RC, WCT820
029799 Cord Set for WCT8206
9 027177 Screw
(4 required)
10 027178 Foot (4 required)
11 027179 Rubber Foot (4 required)
12 027180 Washer (4 required)
13 027181 Screw (4 required)
14 502939 Front Panel Assembly
15 027177 Screw
(2 required)
16 027182 Front Cover Plate
17 027183 Back Cover Plate
18 027184 Power Box Cover
19 027177 Screw
(4 required)
20 027185 Housing Support (2 required)
21 027186 Screw (4 required)
22 027187 Compression Wire Spring (4 required)
23 027188 Moving Bracket Spring (2 required)
24 027189 Bracket Bushing (8 required)
25 027190 C Ring (4 required)
26 502940 WCT800,WCT800RC Moving Bracket Assembly (2 required)
502940 WCT810 Moving Bracket Assembly (1 required)
Revised April 14, 2014 Page 3 of 5
Page 4
Catalog#/Model
WCT800
WCT800RC
WCT810
WCT820
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringcommercialproducts.com
WCT8206
Illustration # Part # Description
26a 502941 WCT810 Moving Bracket Assembly (1 required)
502941 WCT820, WCT8206 Moving Bracket Assembly
27 027191 Damper Cylinder Rod (2 required)
28 027192 Locking Mechanism
(2 required)
29 027193 Screw
(4 required)
30 034768 Screw (4 required)
31 034767 Switch Cover (2 required)
32 034769 Screw (8 required)
33 033456 Micro Switch (4 required)
34 027198 Rheostat (2 required)
35 027199 Insulated Bracket Plate (2 required)
36 027200 Screw (4 required)
37 027201 WCT800 Elements-17-7268 (8 required)
027901 WCT800RC Elements-17-7271 (8 required)
027221 WCT810 Elements-17-7269 (6 required)
029826 WCT820, WCT8206 Elements-17-7634 (2 required)
38 027202 Screw (16 required)
39 027203 Ceramic Insulator Bracket (16 required)
40 027204 Hex Nut (16 required)
41 027205 Hex Nut (16 required)
42 027206 Screw (16 required)
43 027207 Jumper Bracket
44 027947 Standard Baffle
027946 Wide Slot Baffle
45 027208 PC Board
(2 required) for WCT800 (older units)
027942 PC Board (2 required) for WCT800RC
027291 Toast Side PC Board for WCT810
(older units)
46 027290 Bagel PC Board for WCT810 (older units)
027290 PC Board (2 required) for WCT820, WCT8206
47 027209 Screw
(4 required)
48 027210 Screw (2 required)
Page 4 of 5 Revised April 14, 2014
Page 5
Catalog#/Model
WCT800
WCT800RC
WCT810
WCT820
WCT8206
Illustration # Part # Description
49 027211 Lock Washer-ground
50 027212 Green Screw-ground
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringcommercialproducts.com
51 027213 Screw
52 027214 Power PCB Holder
(2 required)
(2 required)
53 027215 Hex Nut (4 required)
54 027216 Power Terminal Board
55 027217 Strain Relief
56 027177 Screw
(2 required)
57 027218 Power Box Body
58 027225 Bottom Cover
59 034770 WCT800 Toaster Chassis Assembly
502944 WCT800 Toaster Chassis Assembly (older units)
503026 WCT800RC Toaster Chassis Assembly
502945 WCT810 Toaster Chassis Assembly
503279 WCT820, WCT8206 Toaster Chassis Assembly

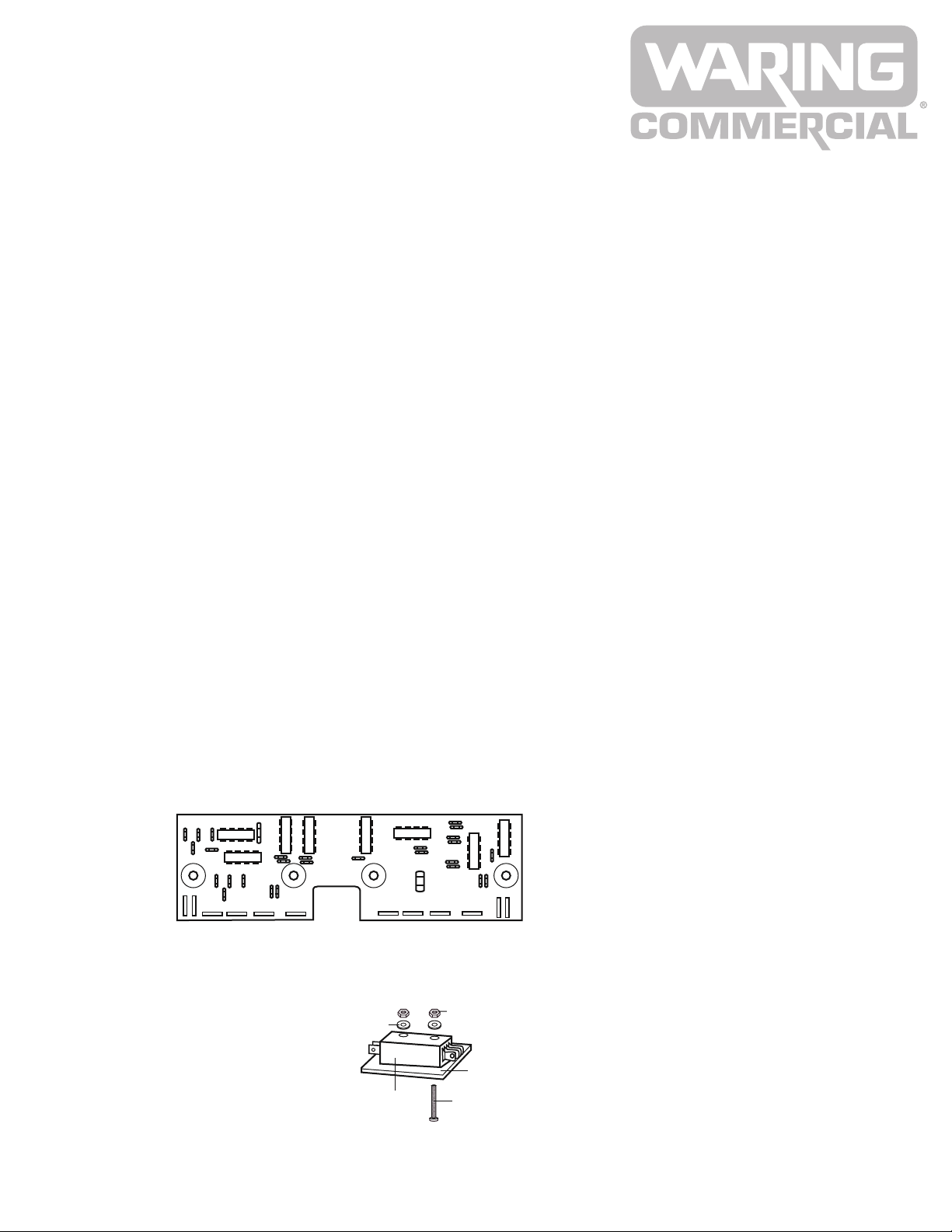

Items Not Shown
027214 - Main PCB Holder for pc board (4 required)
027222 - Screw for front panel assembly (5 required)
Current Production
Items No Longer Used
027196 - Washer
(4 required)
027194
Switch
(2 required)
027197 - Hex Nut (4 required)
027223 - Insulator (2 required)
027195 - Screw (4 required)
030240 - WCT800 PC Board
030239 - WCT810 PC Board
Revised April 14, 2014 Page 5 of 5
