Operating instructions
Semi-Automatic pistol
P22
Cal. .22l.r.
slide
muzzle
frontsight
rear sight
hammer
manual
safety
slide stop
backstrap
magazine
grip
magazine catch
trigger
takedown lever
manual
safety
extractor
mounting rail
barrel
trigger lock
stabilizer
USA
Loaded chamber
indicator
anl_usa.qxd 29.04.2002 10:58 Seite 1
Always bear in mind: Keep your finger away
from the trigger unless you really intend to
fire. Always keep your weapon pointing in a
safe direction so that you and others cannot
be endangered.
Do not use force when disassembling or assembling
your weapon. A gun can only be safe as long as it is in a
flawless technical condition.
Incorrect handling and lack of maintenance may lead to
malfunctions and reduced safety of the weapon.
Always be aware of possible risks from dropping your
pistol or from corrosion or other external influences. In
such cases, have your weapon inspected by a competent gunsmith before using it again.
Unauthorized modifications to the mechanism, damages
caused by the application of force and modifications
effected by third parties will lead to the manufacturer not
to assume any liability. Only an authorized and qualified
gunsmith is allowed to work on a gun.
Table of contents page
Components.............................................................1
General...................................................................2
Operation of safeties...................................................3-4
Inspections ....................................................................5
Loading the pistol...........................................................6
Insertion of the first cartridge......................................6
Firing........................................................................7
Decocking the hammer...............................................7
Pistol with empty magazine............................................7
Unloading the pistol....................................................8
Disassembly and reassembly of the pistol...............8
Adaptation of the grip.................................................9
Sights.....................................................................9
Changing the barrel.....................................................10
Cleaning.......................................................................11
Storage.........................................................................12
Repairs ...................................................................12
Warranty ......................................................................12
Technical data........................................................13
Parts/exploded view................................................14/15
Special accessories.....................................................16
Important instructions for the use of firearms
It should be remembered that even the safest gun is potentially dangerous to you and others when it is not properly
handled.
First of all read and understand the operating instructions
and learn how the weapon works and is to be
handled.Always treat an unloaded weapon as if it were
loaded.
2
anl_usa.qxd 29.04.2002 10:58 Seite 2
3. Drop safety (automatic internal safety)
The drop safety (firing pin safety) is only disengaged when the trigger is pulled. If, after a fall, the hammer was released,
then the firing pin would not be activated.
1. Manual safety
To engage the safety, turn the safety lever, as shown in
fig. 1, to the lower position.
2. Trigger lock
The enclosed key is used to lock the trigger
mechanism of the P 22. Without the key it is
impossible to disengage the safety. Use this feature to prevent unauthorized persons from using
your weapon.
Operation of the safeties (safety devices)
CAUTION: It should be made a common habit to leave the manual safety engaged until you really intend to fire.
3
safety engaged
fig. 1
fig. 2
safety
disengaged
pistol ready
to fire
fig. 3
fig. 4
safety engaged safety
disengaged
pistol ready
to fire
anl_usa.qxd 29.04.2002 10:58 Seite 3
CAUTION:
All safety devices of the weapon are mechanical safeties, and the shooter is the only one who can engage and
disengage these safeties.
NEVER RELY SOLELY ON MECHANICAL SAFETIES - always be extremely careful and avoid situations which
could lead to an accident.
5. Loaded chamber indicator
A small slot in the upper part of the slide allows for an
inspection of the chamber to see if a cartridge has been
loaded (fig. 5).
4. Magazine safety
Without the magazine inserted, the magazine safety of the P 22 prevents a round to be fired. Acartridge in the chamber
cannot be ignited.
Always inspect the chamber of your pistol after the magazine has been removed from the gun. Make sure
that no cartridge is left in the chamber after the safety has been engaged.
4
fig. 5
anl_usa.qxd 29.04.2002 10:58 Seite 4
Inspections before use
Make sure that the pistol is unloaded (chamber cleared, barrel clear of any obstructions, magazine empty) for
inspection and that the safety is engaged.
Functional inspection
1. Remove the magazine, retract the slide. After the slide has been released, the mainspring must press the slide fully
forward.
2. Insert the empty magazine, retract the slide. The slide must be caught in its rearmost position.
3. Remove the magazine, slightly retract the slide. After the slide has been released, the mainspring must press the slide
fully forward.
4. To decock the gun, insert the empty magazine, hold the hammer with your thumb, pull the trigger and let the hammer
slowly travel forward.
5. Insert the empty magazine, fully retract the slide. The slide must be caught in its rearmost position.
6. Press down the slide stop. The mainspring must press the slide fully forward. Decock the hammer.
7. Remove the magazine, pull the trigger. The hammer must not fall.
Make sure that the pistol is unloaded (chamber and barrel must be clear) after use, that the magazine is empty
and that the safety is engaged. Decock the hammer.
Inspection after use
5
anl_usa.qxd 29.04.2002 10:58 Seite 5
Loading the pistol
Engage safety.
Press magazine catch and remove empty magazine (fig. 6). Use the side-mounted button to
press the follower down and insert a cartridge under the magazine lips (fig. 7). Do not use
force. Damaged magazine lips will cause malfunctions and will render the weapon useless.
Tap the back of the loaded magazine against the palm of your hand. Properly positioned
cartridges inside the magazine help to prevent stoppages. When a magazine is to be emptied,
remove the cartridges one after the other by pushing them to the front side of the magazine.
Push the loaded magazine into the magazine well until the magazine catch locks it.
Loading the chamber with the first cartridge
Pick up the gun with your shooting hand, hold it at an angle of approx. 45 degrees and point
the muzzle in a safe direction. Use other hand to retract slide. release slide. The slide travels
forward and inserts the first round into the chamber, the hammer is now cocked.
Leave the safety engaged until you really intend to fire.
CAUTION! Your gun is now ready to fire. Regard safety instructions, keep
shooting finger away from trigger until you really intend to fire.
If you do not fire your gun immediately after loading it, decock hammer.
CAUTION: Read and understand the operating instructions thoroughly before you
load your gun.
Malfunction may occur when ammunition with low propellent charge is fired.
6
fig. 6
fig. 7
fig. 8
anl_usa.qxd 29.04.2002 10:58 Seite 6
Firing
You may fire this pistol in two different ways: Double action or single action
To fire it "double action" means that the gun is loaded but the hammer is not cocked. You will have to fully pull the trigger
to fire a round.
To fire it "single action" means that the gun is loaded and that the hammer is manually cocked before firing.
The action of the slide then automatically reloads the pistol and cocks the hammer.
Decocking the hammer.
Engage the safety. Hold the hammer with your thumb, pull the trigger and let the hammer slowly travel forward.
Keep the pistol pointing in a safe
direction when decocking it so that no
other persons are endangered.
7
Pistol with empty magazine
After the last round was fired, the slide stop holds the
slide in its opened position. Engage the safety.
In case you intend to commence shooting, replace empty
magazine by a full one. Press the slide stop lever
(fig. 9), the slide will travel forward and load the chamber
with the first round. Keep your weapon in your shooting
hand and keep it pointing in a safe direction so that there
is no danger for other persons.
fig. 9
CAUTION! The pistol is ready to fire.
Regard safety instructions and leave your
shooting finger off the trigger.
anl_usa.qxd 29.04.2002 10:58 Seite 7
If shooting is not to commence, engage safety, remove magazine and inspect the chamber, it must be clear (fig. 10). Close breech and decock
hammer.
fig. 10
8
Unloading your pistol
Engage safety. Remove magazine and retract slide. The round in the
chamber is extracted and ejected.
Make a visual inspection of the barrel - it must be clear!
Allow slide to travel forward and decock hammer.
fig. 11
Disassembly and reassembly of the pistol
It is not necessary to strip the pistol any further as is described in this
manual. Further disassembly, improper assembly and disregard of the
instructions will lead to loss of warranty, and under no circumstances will
the manufacturer then be liable for damages to persons or property.
To do so, engage the safety, remove the magazine and inspect
the weapon, it must be unloaded.
With the 5” version first remove the stabilizer (see page 11)
Press the takedown lever down and cock the hammer. Fully retract the
slide, lift its rear section and push slide forward off the receiver. Remove
guidance rod. Assembly of the gun is in reverse order.
anl_usa.qxd 29.04.2002 10:58 Seite 8
Adaptation of the grip
In order to adapt the grip of the weapon to your hand, the
backstrap of the pistol can be changed. Remove the pin (as
shown in fig. 12) with the tool, change the backstrap and reinsert the pin afterwards.
Sights
The front sight is interchangeable for elevation adjustment, and
the sight is adjustable for windage.
Windage adjustment:
Turn screw on the sight to the right if weapon fires to the right,
turn it to the left if weapon fires to the left.
Elevation adjustment:
Elevation adjustment is changed by mounting front sights of
different height. If weapon fires too low, a lower front sight is to
be mounted, if it fires too high, a higher front sight is to be
mounted.
To change the front sight, use a screwdriver to press it out of
its seat on the slide.
fig. 12
fig. 13
9
anl_usa.qxd 29.04.2002 10:58 Seite 9
10
Interchangeable barrel
Additional 5 inch or 3,4 inch barrel available as accessory.
(see page 16)
Prior to the barrel change, engage the safety, remove
the magazine and make sure that the weapon is
unloaded.

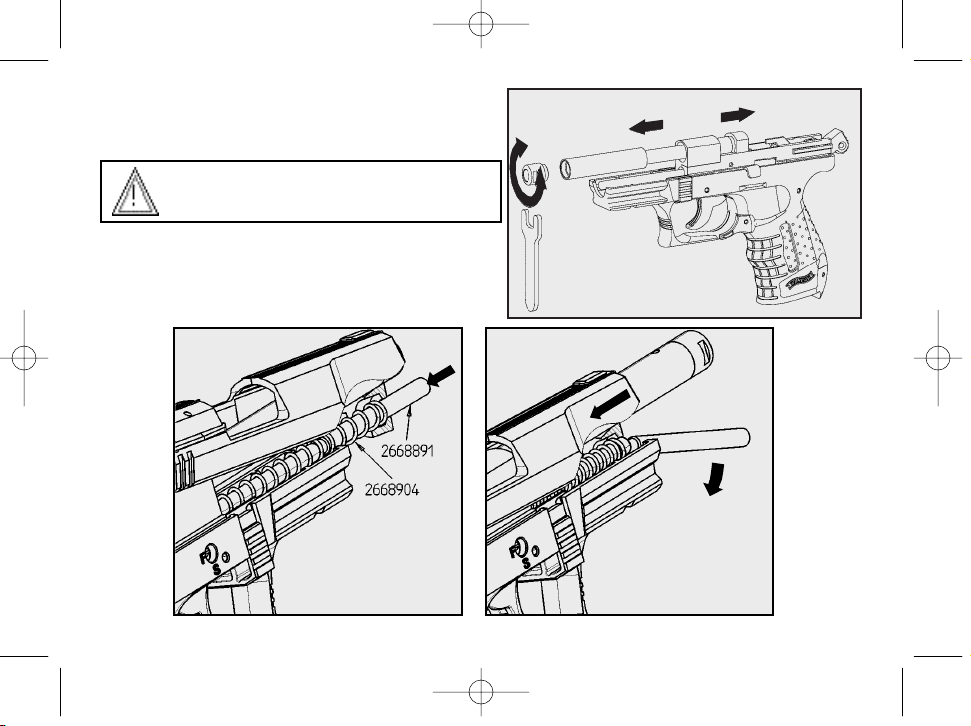

Push the takedown lever down, cock the hammer and remove
the slide.
Use the enclosed spanner to release the barrel nut. Remove the
barrel sleeve and pull the barrel to the rear from the receiver.
fig. 14
fig. 15 fig. 16
anl_usa.qxd 29.04.2002 10:59 Seite 10
11
Engage the safety, remove the magazine, open the slide and inspect the chamber.
Cleaning
In order to keep the weapon functional and to extend its service life, it should be cleaned and maintained at regular intervals.
Disassemble the weapon, clean fouled parts of breech, magazine lips, follower and receiver with a brush and a cloth.
Clean the barrel with an oil-soaked brush and then dry it with cleaning patches, always begin at the chamber. Repeat
these steps until barrel is clean. Apply a thin coat of oil to all metal parts.
Reassemble gun and check for proper function.
Assembly is in reverse order.
Make sure that the web on the receiver bridge is embedded
in the notch of the barrel sleeve.
Install mainspring no. 2668904. For running the slide onto
the receiver, use the mounting pin no. 2668891 (fig. 15/16).
Mount the stabilizer, fix it with the worm screw and jam it
with the stabilizer screws. (fig. 17)
The front sight on the slide is to be replaced by a plug
(2661314).
1.
2.
3.
fig. 17
To disassemble the stabilizer first remove the worm screw
(fig. 17/part no. 2) then release the stabilizer screws
(fig. 17/part no. 3). Now remove the stabilizer.
anl_usa.qxd 29.04.2002 10:59 Seite 11
Storage
Never leave a loaded pistol unattended!
Always keep and store your pistol in unloaded condition with the safety engaged.
Keep Pistol away from children and unauthorized persons. Weapon and ammunition are to be stored separately.
Repair of Walther-weapons
CAUTION! A weapon which fails to function properly is dangerous. It should be safely kept in a way that prevents its use
before it is repaired. It is difficult to repair a weapon, and improper assembly can lead to dangerous malfunctions.
Only let an authorized and qualified gunsmith inspect and repair your weapon!
Warranty for Walther-weapons
Within the first year after the date of purchase, the Walther company will repair or replace your defective weapon free of
costs provided the defect was not caused by own fault. Please hand the weapon over to an authorized dealer, describe
the problem and enclose a proof of purchase.
IMPORTANT! When transporting a firearm, make sure that it is unloaded and that the safety is engaged.
12
anl_usa.qxd 29.04.2002 10:59 Seite 12
13
Technical data
caliber .22 l.r.
action blowback
trigger DA / SA
trigger weight, normal approx. 77.6 ounce / ca. 2.2 kg
(single action)
trigger weight approx. 197.5 ounce / ca. 5.6 kg
(double action)
trigger travel approx. 0.16 inch / ca. 4mm
(single action)
trigger travel approx. 0.63 inch / ca. 16mm
(double action)
magazine capacity 10 rounds
dimensions (length/height/width) 6.26/4.49/1.14 inch / 159/114/29 mm
(7.84/4.49/1.14 inch) / (199/114/29 mm)
barrel length 3.43 inch (5 inch) / 87 mm (127 mm)
sight length 5.12 inch (6.7 inch) / 130 mm (170 mm)
width of rear sight notch 0.18 inch / 4.5 mm
front sight width 0.14 inch / 3.6 mm
weight (without magazine) 15.2 ounce (18.5 ounce) / 430 g (525 g)
weight magazine (empty) 1.8 ounce / 50 g
anl_usa.qxd 29.04.2002 10:59 Seite 13
Designation of components
14
Pos. designation article no.
1 receiver, polymer 266 04 82
2 sideplate, left 267 04 61
3 sideplate, right 267 04 53
4 stove bolt 266 05 12
5 stove bolt 266 97 22
6 trigger assembly 267 04 37
7 straight pin 266 05 47
8 hammer assembly 267 04 45
9 sear 266 06 44
10 sear spring 266 06 52
11 ejector 266 06 79
12 magazine catch 266 06 95
13 straight pin 266 84 75
14 dowel pin 266 07 17
15 slide stop lever 266 07 25
16 slide stop spring 266 07 33
17 takedown lever 266 07 41
18 dowel pin 266 07 50
19 dowel pin 266 07 68
20 retaining pin 266 07 76
21 spring guidance rod 266 07 84
22 mainspring 266 89 04
23 magazine safety 266 08 06
24 magazine safety spring 266 08 14
Pos. designation article no.
25 trigger lock 266 08 22
26 trigger lock spring 266 08 31
27 backstrap 266 08 49
28 backstrap, large 266 08 57
29 key for trigger lock 266 08 65
30 slide 266 08 73
31 breech block 266 08 81
32 dowel pin 266 08 90
33 extractor 266 09 03
34 spring 266 09 11
35 pin 266 09 20
36 firing pin 266 09 38
37 firing pin spring 266 09 46
38 safety block 266 09 54
39 safety lever, left 266 09 62
40 safety lever, right 266 09 71
41 screw 266 09 89
42 ball for safety lever 266 09 97
43 spring for sayfty lever 267 08 10
44 firing pin safety 266 10 04
45 spring 266 10 12
46 barrel 3,4 inch 266 10 47
47 barrel sleeve 266 10 55
Pos. designation article no.
48 barrel nut 266 10 63
49 spanner 266 10 71
50 barrel 5 inch 266 10 80
51 barrel sleeve, long 266 10 98
52 stabilizer assembly 267 04 70
53 allen key 218 98 01
54 allen key 266 84 91
55 magazine body 266 11 36
56 follower 266 11 44
57 magazine button 266 11 52
58 magazine butt plate 266 11 61
59 magazine spring 266 11 79
60 butt plate holder 299 11 87
61 magazine butt plate, large 266 12 41
62 rear sight 267 04 88
63 rear sight screw 266 12 68
64 washer 266 12 76
65 front sight 3 267 04 96
66 front sight 2 267 05 00
67 front sight 4 267 05 18
68 filler plug 266 13 14
69 simulating divice 260 83 32
70 mounting pin 266 88 91
71 worm screw 266 84 91
anl_usa.qxd 29.04.2002 10:59 Seite 14
15
anl_usa.qxd 29.04.2002 10:59 Seite 15
Special accessories
barrel, interchangeable
barrel length 5 inch (127 mm)
Part. no.: 265 93 01
barrel, interchangeable
barrel length 3,4 inch (87 mm)
Part. no.: 265 92 98
spanner for barrel
Part. no.: 266 10 71
16
magazine
Part. no.: 265 93 44
magazine
Part. no.: 265 93 36
key for trigger lock
Part. no.: 266 08 65
anl_usa.qxd 29.04.2002 10:59 Seite 16
All technical changes and modifications reserved
art. no.: 266 1446 (Walther USA)
Walther USA
2100 Roosevelt Ave.
Springfield, MA 01102
USA
Phone: +1-800-372-6454
Fax: +1-413-747-3682
anl_usa.qxd 29.04.2002 10:59 Seite 17
Loading...
