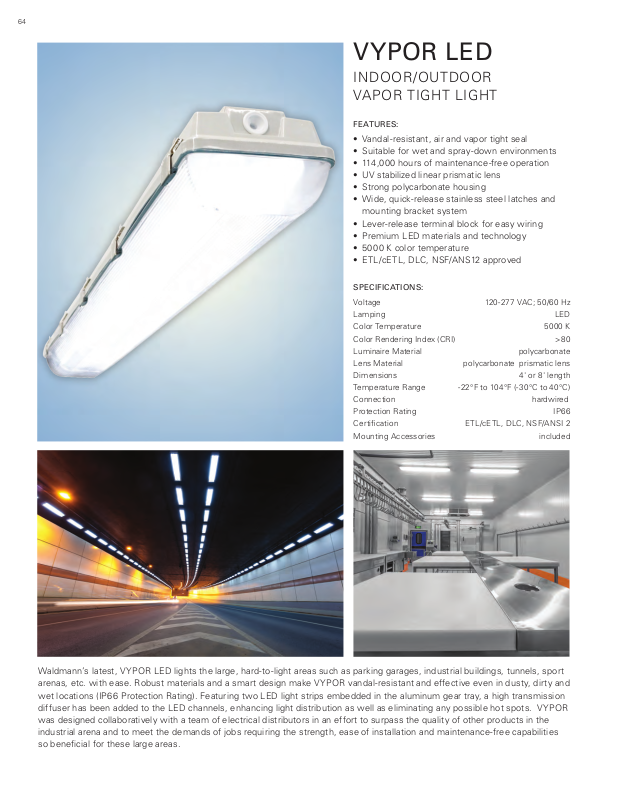

Waldmann VYPOR LED Catalog

64

VYPOR LED

INDOOR/OUTDOOR
VAPOR TIGHT LIGHT

FE AT U RES :

• Vandal-resistant, air and vapor tight seal

• Suitable for wet and spray-down environments

• 114,000 hours of maintenance-free operation

• UV stabilized linear prismatic lens

• Strong polycarbonate housing

• Wide, quick-release stainless steel latches and
mounting bracket system

• Lever-release terminal block for easy wiring

• Premium LED materials and technology

• 5000 K color temperature

• ETL/cETL, DLC, NSF/ANS12 approved

SPECIFICATIONS:

Voltage 120-277 VAC; 50/6 0 Hz

Lamping LED

Color Temperature 5000 K

Color Rendering Index (CRI) >80

Luminaire Material polycarbonate

Lens Material polycarbonate prismatic lens

Dimensions 4' or 8' length

Temperature Range -22°F to 104°F (-30°C to 40°C)

Connection hardwired

Protection Rating IP66

Certification ETL /cETL, DLC, NSF/ANSI 2

Mounting Accessories included

Waldmann’s latest, VYPOR LED lights the large, hard-to-light areas such as parking garages, industrial buildings, tunnels, sport
arenas, etc. with ease. Robust materials and a smart design make VYPOR vandal-resistant and effective even in dusty, dirty and
wet locations (IP66 Protection Rating). Featuring two LED light strips embedded in the aluminum gear tray, a high transmission
diffuser has been added to the LED channels, enhancing light distribution as well as eliminating any possible hot spots. VYPOR
was designed collaboratively with a team of electrical distributors in an effort to surpass the quality of other products in the
industrial arena and to meet the demands of jobs requiring the strength, ease of installation and maintenance -free capabilities
so beneficial for these large areas.

Task & WorkbenchMachine Magnification & Inspection Facility Lighting Accessories

ADVS8LED

ADV4LED

ADV4SLED

65

A

6.25"

4.25"

ORDERING INFORMATION

Wattage Length (A) Lumens Part #

48 W 50” (1240 mm) 4545 VPR448000

96 W 102” (2597 mm) 9332 VPR896000
