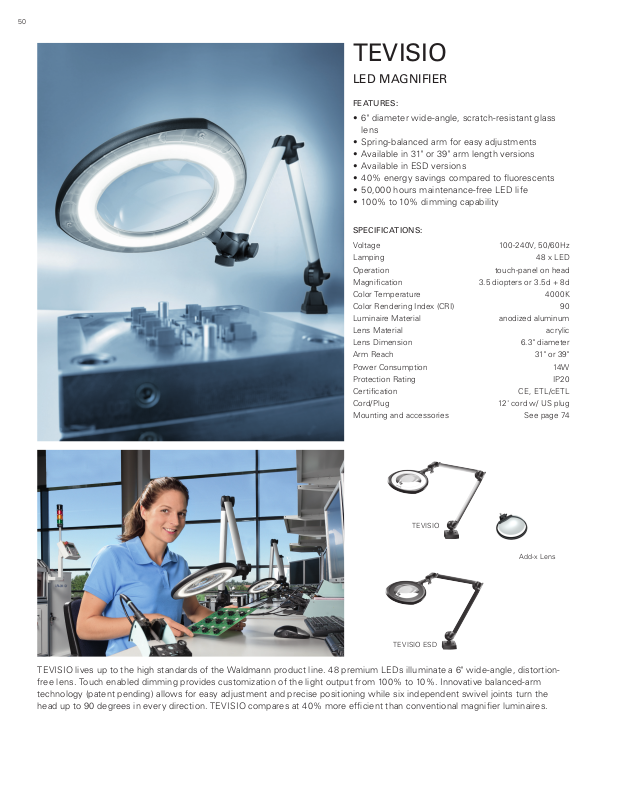

TEVISIO

LED MAGNIFIER

FE AT URES:

• 6" diameter wide-angle, scratch-resistant glass
lens

• Spring-balanced arm for easy adjustments

• Available in 31" or 39" arm length versions

• Available in ESD versions

• 40% energy savings compared to fluorescents

• 50,000 hours maintenance-free LED life

• 100% to 10% dimming capability

SPECIFICATIONS:

Voltage 100-240V, 50/60Hz
Lamping 48 x LED
Operation touch-panel on head
Magnification 3.5 diopters or 3.5d + 8d
Color Temperature 4000K
Color Rendering Index (CRI) 90
Luminaire Material anodized aluminum
Lens Material acrylic
Lens Dimension 6.3" diameter
Arm Reach 31" or 39"
Power Consumption 14W
Protection Rating IP20
Certification CE, ETL/cETL
Cord/Plug 12' cord w/ US plug
Mounting and accessories See page 74

TEVISIO

Add-x Lens

TEVISIO ESD

TEVISIO lives up to the high standards of the Waldmann product line. 48 premium LEDs illuminate a 6" wide-angle, distortion­free lens. Touch enabled dimming provides customization of the light output from 100% to 10%. Innovative balanced-arm
technology (patent pending) allows for easy adjustment and precise positioning while six independent swivel joints turn the
head up to 90 degrees in every direction. TEVISIO compares at 40% more efficient than conventional magnifier luminaires.

Task & WorkbenchMachine Magnification & Inspection Accessories

DIMENSIONAL DATA

180 °

372 A

51

180°

180°

180 °

ø 265 x 21

130°

B

360°

Measurements in millimeters

ORDERING INFORMATION

Wattage Version Arm Reach Magnification Segment Switching Lumens Model Part #

14W Standard 31" (784mm) 3.5 diopters No 600 RLLQ 48 R 112 919 000

14W Standard 31" (784mm) 3.5 + 8 diopters No 600 RLLQ 48 R 112 919 000

14W Standard 31" (784mm) 3.5 diopters Yes 600 RLLQ 48 2/R 112 919 000

- 005 873 35

- 005 873 38

- 005 873 41

14W Standard 31" (784mm) 3.5 + 8 diopters Yes 600 RLLQ 48 2/R 112 919 000

14W Max 39" (988mm) 3.5 diopters No 600 RLLQ 48 R 112 918 000

14W Max 39" (988mm) 3.5 + 8 diopters No 600 RLLQ 48 R 112 918 000

14W Max 39" (988mm) 3.5 diopters Yes 600 RLLQ 48 2/R 112 918 000

14W Max 39" (988mm) 3.5 + 8 diopters Yes 600 RLLQ 48 2/R 112 918 000

14W ESD 31" (784mm) 3.5 diopters No 600 RLLQ 48 R 113 016 000

14W ESD 39" (988mm) 3.5 diopters No 600 RLLQ 48 R 113 015 000

Mounting Options Item Dimensions Part #

Table clamp with pin mount (included) 0" - 3.5" span 191 025 069

Universal base for table/wall 2.4" x 2.4" 204 090 019

Table clamp, universal base required 2.5" - 5.4” span 190 033 019

Wall bracket 3" x 3" 226 108 019

Table clamp, ESD safe 0" - 3" span 190 100 029

1/2" Pin mount adapter 1.77 " length US0 209 022

1/2" Pin mount adapter 3.75" length US0 209 012

Accessories Item Features Part #

Add-x magnifier 3.5 diopters (1.88X) 190 208 019

Plug-in converter 100-240V w/quick disconnect 309 414 070

- 005 873 44

- 005 873 22

- 005 873 26

- 005 873 29

- 005 873 32

- 005 953 84

- 005 953 77

40

- 000 149 50

- 006 107 54

- 000 890 21

- 005 759 24

- 005 555 23
